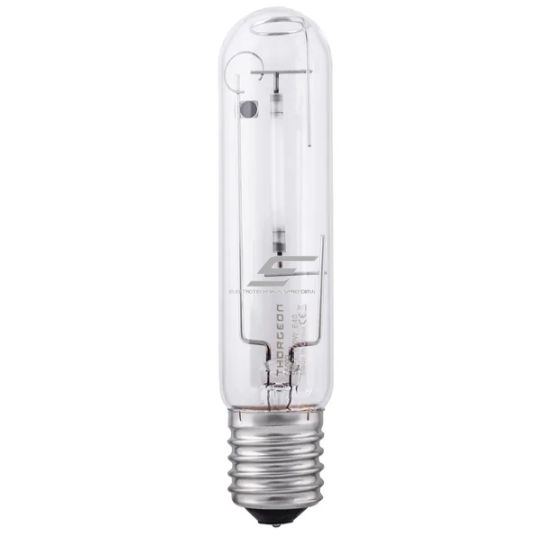

Sodium lamp E40 | 100W | 100V | 2000K | 9500lm | Thorgeon

Technical Specifications

Power: 100 W
Base: E40
Lamp shape: tubular
Bulb surface: clear
Rated current: 1.2 A
Voltage (min.–nom.–max.): 85 V – 100 V – 115 V
Ignition voltage (max.): 198 V
Ignition peak voltage (max.): 2800 V
Ignition time: ≤ 5 s
Luminous flux: 9500 lm
Luminous efficacy: 95 lm/W
Color temperature: 2000–2200 K (warm yellow light)
Color rendering index (CRI): 21 Ra
Warm-up time: ~5 min.
Operating position: universal
Service life: up to 5% failures – 12,000 h; up to 20% failures – 20,000 h; up to 50% failures – 28,000 h
PPF maintenance: 85% (2000 h), 95% (5000 h), 80% (10,000 h), 90% (12,000 h)
Max. bulb temperature: 450 °C
Max. base temperature: 250 °C

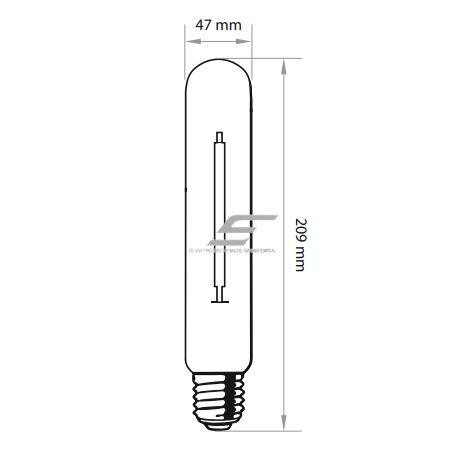

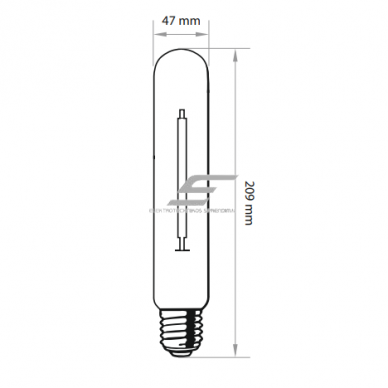

Dimensions: Ø 47 mm × 205 mm
Weight: 0.114 kg
System type: with external ignitor
Energy consumption: 110 kWh / 1000 h

Features

Produces very bright, warm yellow light.

High luminous efficacy saves electricity.

Suitable for use with an external ignitor for reliable ignition.

Long service life reduces operating costs.

Can be used in any mounting position, providing installation flexibility.

Applications

Industry: workshops, warehouses, factories.

Outdoor areas: street lighting, yards, open spaces.

Agriculture: greenhouses, plant growth lighting.

Commercial spaces: exterior lighting of shopping centers, parking lots.

Residential areas: yards, utility rooms, farm buildings.

Pros

Very high luminous flux (9500 lm).

High efficiency (95 lm/W).

Long service life up to 28,000 h.

Universal mounting in any position.

Cons

Low color rendering index (CRI 21).

Takes a few seconds to ignite and ~5 minutes to reach full brightness.

Requires an external ignitor.
