  • Sodium lamp GX12-1 | 100W | 91V | 2500K | 5300lm | MASTER SDW-TG 100W/825 Philips

    Code: 33815
    Barcode: 871150020233815

    MASTER SDW-TG 100W is a professional, high-efficiency warm-color sodium lamp designed for use in open-type luminaires of small capacity adapted for MASTERColour CDM-T lamps. With its exceptionally natural warm white light spectrum (2500 K), this source is ideal for use in commercial, decorative, and public spaces where a comfortable atmosphere and aesthetic lighting are required.

  • Sodium lamp GX12-1 | 100W | 91V | 2500K | 5300lm | MASTER SDW-TG 100W/825 Philips

    Philips MASTER SDW-TG Mini 100W/825 is a compact white high-pressure sodium lamp (White SON) with a GX12-1 base. It delivers warm 2500 K “gold white” light and is intended for small open luminaires designed for this lamp type. The lamp operates only with a dedicated Philips electronic ballast.

    Key point:
    SDW-TG is bought not as a universal lamp but as an exact replacement for an installed luminaire: bakery, meat, bread and pastry displays, shop and showroom accent lighting. Warm 2500 K light with CRI 82 brings out warm tones – bread crust, wood, leather, meat. If the luminaire already has an SDW-TG 100W and its ballast works, this lamp restores the same light appearance without replacing the fixture.
    Base
    GX12-1
    Power / flux
    102 W · 5300 lm
    Light colour
    2500 K · CRI 82
    Lifetime
    10,000 h (50% failures)

    Operating principle

    The lamp is inserted into a GX12-1 lampholder in a luminaire fitted with a Philips electronic ballast designed for SDW-TG lamps (e.g. PrimaVision HID-PV 100/S SDW-TG). The ballast ignites the lamp and keeps its operating current stable.

    The burner inside the bulb produces a discharge in high-pressure sodium vapour. Thanks to the special burner and control, SDW-TG light is whiter and renders colours better than ordinary yellow street sodium lamps.

    The result is 5300 lm of warm “gold white” light from a compact T19 source with an 18 mm arc length. The point source suits accent luminaires with reflectors well.

    Why choose MASTER SDW-TG 100W/825?
    It keeps existing retail or accent lighting with the same light tone, without replacing luminaires and ballasts. This matters when display or hall lighting was designed specifically for this lamp.

    Technical specifications

    Product type High-pressure sodium lamp, white light (White SON), compact
    Manufacturer Philips (Signify)
    Model MASTER SDW-TG Mini 100W/825 GX12-1 1CT/12
    Order code (12NC) 928158905131
    EAN 8711500202338

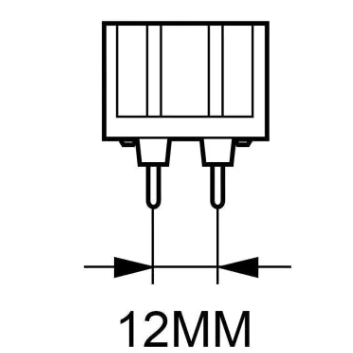

    Base GX12-1
    Nominal power 102 W
    Lamp voltage 91 V (84–98 V)
    Luminous flux 5300 lm
    Luminous efficacy 52 lm/W
    Colour temperature 2500 K (colour code 825, “gold white”)
    Colour rendering index (CRI) 82
    Operating position Universal
    Bulb Clear glass, T19

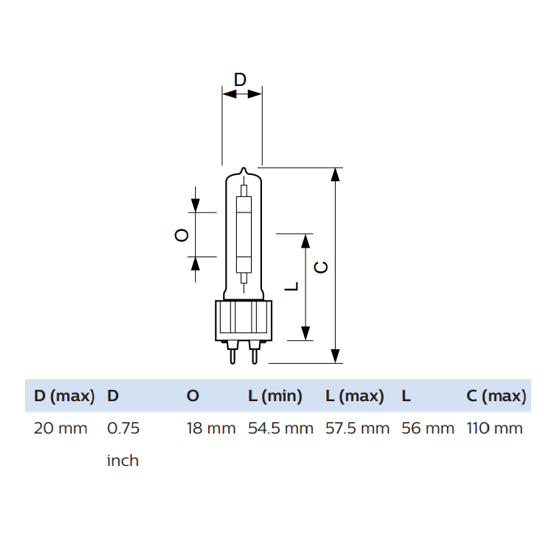

    Dimensions Diameter up to 20 mm, overall length up to 110 mm, arc length 18 mm
    Lifetime 5,000 h (5% failures), 8,000 h (20% failures), 10,000 h (50% failures)
    Dimming No
    Control gear Only with a dedicated Philips electronic ballast for SDW-TG lamps
    Max. base temperature 280 °C
    Mercury content 15.2 mg
    Energy consumption 102 kWh / 1000 h
    Energy efficiency class G (EPREL 473402)

    Main functions

    • Warm 2500 K light – brings out warm tones of products and materials in displays.
    • CRI 82 – whiter light and better colour rendering than ordinary sodium lamps.
    • 5300 lm from a compact source – enough for accent lighting with a single luminaire.
    • Universal operating position – suits luminaires mounted in any direction.
    • Stable light with an electronic ballast – consistent tone across several lamps.
    • GX12-1 base – quick replacement in the same lampholder.

    Where is it used?

    • Bakery and bread department displays
    • Meat and delicatessen counters
    • Pastry and café displays
    • Furniture, wood and leather goods showrooms
    • Shop accent lighting with reflector luminaires
    • Warm lighting in hotels, restaurants and lobbies
    • Maintenance and lamp replacement in existing SDW-TG luminaires

    Use by need

    For a retail chain technician.
    Quick replacement of a failed lamp in a display without changing the luminaire or ballast.
    For a bakery or butcher shop owner.
    The same warm product appearance that customers are used to is maintained.
    For an electrician.
    An exact original Philips replacement with clear parameters and no compatibility risk.

    Practical application

    If one of several SDW-TG lamps above the bread shelves in a bakery display fails while the others still work, simply insert the same MASTER SDW-TG 100W/825 – the light tone will match the remaining lamps and the display will look uniform. If the lamps have run for a similar time, it is practical to replace them all at once.

    Advantages

    • Original Philips replacement for existing SDW-TG luminaires
    • Warm 2500 K light suited to food and interior goods
    • CRI 82 – better colours than ordinary sodium lamps
    • 5300 lm from a compact T19 source
    • Universal operating position
    • Up to 10,000 h nominal lifetime (50% failures)

    Disadvantages / limitations

    • Operates only with a dedicated Philips electronic SDW-TG ballast
    • Not suitable for standard sodium (SON) or metal halide (CDM) ballasts
    • Not dimmable
    • Luminous efficacy 52 lm/W – lower than LED sources
    • Contains mercury – must be disposed of as hazardous waste

    Safety and installation notes

    • Before replacing the lamp, disconnect the luminaire supply and let the lamp cool down – the bulb and base get very hot during operation.
    • Use only with a Philips electronic ballast designed for SDW-TG 100W (e.g. PrimaVision HID-PV 100/S SDW-TG).
    • Install only in luminaires designed for this lamp type.
    • Do not touch the bulb with bare hands – grease marks can shorten lamp life.
    • Do not use a lamp with a cracked or damaged bulb.
    • Return the used lamp to an electrical waste collection point – it contains mercury.

    Quick selection guide

    GX12-1
    102 W
    91 V
    5300 lm
    2500 K
    CRI 82
    Suitable when you need:
    • to replace a failed SDW-TG 100W lamp in an existing luminaire
    • to keep warm “gold white” display lighting
    • an original Philips lamp without compatibility risk
    Check before use:
    • whether the luminaire has a Philips electronic ballast for SDW-TG 100W
    • whether the lampholder is GX12-1 (not PG12-1 – that one takes SDW-T 100W)
    • whether the lamp power matches the ballast power (100 W, not 50 W)
    Important reminder: this lamp does not replace an ordinary sodium or metal halide lamp and will not ignite without the correct ballast. If there is no ballast, order the lamp together with HID-PV 100/S SDW-TG.

    FAQ

    Will it work with a standard sodium lamp ballast?
    No – SDW-TG operates only with a dedicated Philips electronic ballast for SDW-TG lamps.
    Which ballast is suitable?
    For the 100 W SDW-TG lamp, the Philips PrimaVision HID-PV 100/S SDW-TG 220–240 V is suitable.
    Can it be replaced with SDW-T 100W?
    No – SDW-T has a PG12-1 base and different parameters, so it does not fit the same lampholder and ballast.
    What is the light colour?
    Warm “gold white”, 2500 K, colour rendering index CRI 82.
    Can the lamp be dimmed?
    No – the manufacturer states that the lamp is not dimmable.
    How long does the lamp last?
    Nominally 10,000 hours to 50% failures and 5,000 hours to 5% failures.

    Sodium lamp GX12-1 | 100W | 91V | 2500K | 5300lm | MASTER SDW-TG 100W/825 Philips

    Philips MASTER SDW-TG Mini 100W/825 GX12-1 – original 102 W, 5300 lm, 2500 K white sodium lamp (CRI 82) for display and accent lighting. Operates with a Philips electronic SDW-TG ballast, e.g. PrimaVision HID-PV 100/S.
