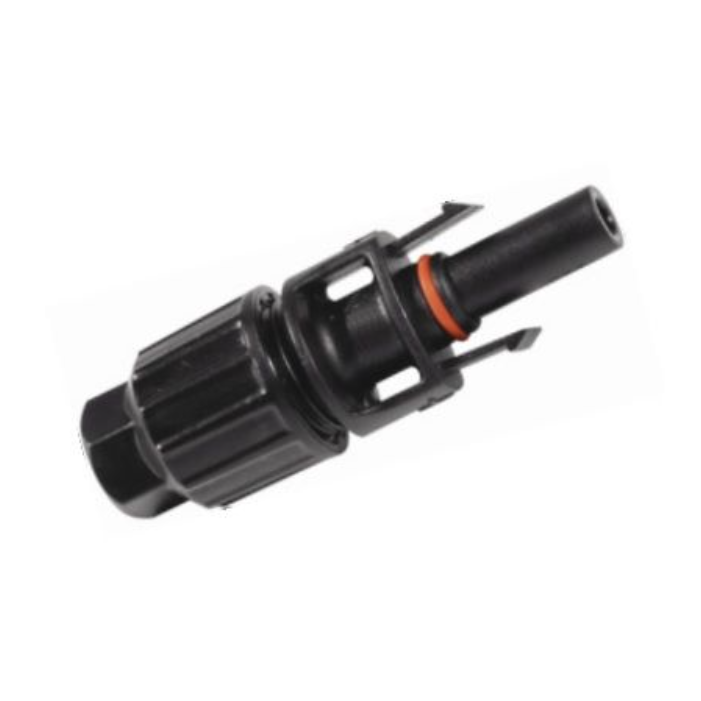

  • Solar module connector | MC4 | female socket | up to 40 A | 1500 V DC | for 2.5–6 mm² cable | IP68 | MOREK MAP2006B

    Code: MAP2006B

    The MC4-type solar module connector (socket) is designed for efficient and safe connection of photovoltaic (PV) system cables. It supports cable cross-sections from 2.5 mm² to 6 mm², ensuring a strong and reliable contact resistant to environmental influences. With an IP68 protection rating, the connector is completely resistant to dust and moisture, making it suitable for both indoor and outdoor use, even under extreme conditions. These types of connectors are widely used in solar power plants where durability, sealing, and low contact resistance are crucial.

  • Solar module connector | MC4 | female socket | up to 40 A | 1500 V DC | for 2.5–6 mm² cable | IP68 | MOREK MAP2006B

    MOREK MAP2006B – MC4 type female socket for 2.5–6 mm² solar cables. Designed for direct current (DC) connections in photovoltaic systems: connecting modules, extending cables and connecting to the inverter or combiner box. Rated voltage – 1500 V DC, protection when mated – IP68.

    Key point:
    The MC4 connector is the only point in the DC circuit where contact is made outdoors without a bolted joint. Whether it overheats over the years depends on three things: matching the cable cross-section, crimping with the right tool and a compatible mating connector. MAP2006B is the female socket; it requires an MC4 male plug, e.g. MOREK MAP1006B. The full 40 A is permitted only with 4–6 mm² cable.
    Rated voltage
    1500 V DC
    Rated current
    25 A (2.5–4 mm²) / 40 A (4–6 mm²)
    Cable
    2.5–6 mm²
    Protection
    IP68 (mated)

    How it works

    The connector consists of an insulating housing, a contact (pin in the male, socket in the female) and a sealing nut with gasket. The cable conductor is stripped, the contact is crimped onto it with an MC4 crimper, pushed into the housing until it clicks, and the sealing nut is tightened.

    When the male and female are mated, the pin enters the socket and the snap-in latch locks the housings – they do not come apart from vibration or wind. They can only be separated with an unlocking tool.

    The result is a sealed, low contact resistance DC connection that works outdoors under the modules all year round.

    Why choose MAP2006B?
    1500 V DC and IP68 – more margin than typical 1000 V DC connectors, so it also suits newer higher-voltage systems. Sold separately – convenient for replacing only the damaged half of a connection.

    Technical specifications

    Product type MC4 type solar module connector – female socket
    Manufacturer MOREK
    Product code MAP2006B
    Connector system MC4, Ø4 mm contact
    Rated voltage 1500 V DC
    Rated current 25 A (2.5–4 mm²) / 40 A (4–6 mm²)
    Cable cross-section 2.5–6 mm²
    Degree of protection IP68 – mated
    Contact termination Crimp
    Locking Snap-in, released with a tool
    Mounting On cable
    Approval TÜV

    Main features

    • MC4 system – mates with MC4 type connectors; most reliable with a pair of the same manufacturer and type.
    • Snap-in latch – the connection does not come apart from vibration or wind.
    • IP68 sealing – protection against rain, snow and dust when mated.
    • 1500 V DC – also suitable for 1500 V DC system strings.
    • UV-resistant housing – for long-term outdoor use.
    • Crimped contact – more stable than screw connections in outdoor conditions.

    Where is it used?

    • Connecting modules into a string
    • Extending cables between modules and inverter
    • Connecting to inverter DC inputs
    • Outputs of combiner boxes and DC isolators
    • Replacing damaged or burnt connectors
    • Off-grid systems for cabins and campervans

    Use by need

    For PV installers.
    A connector for 2.5–6 mm² cable with clear current and voltage data – for fast string connections on site.
    For plant owners.
    Replacing a damaged, burnt or rodent-chewed connector without replacing the whole cable.
    For maintenance staff.
    The same connector type throughout the plant – simpler diagnostics and repair.

    Practical example

    If a string connector is damaged (cracked housing, darkened contact), switch off the inverter and DC isolator, release the connector with the tool, cut off the damaged end and strip the 2.5–6 mm² conductor to the length specified by the manufacturer. Crimp a new contact with an MC4 crimper, push it into the MAP2006B housing, tighten the nut and check polarity and string voltage with a multimeter before switching on.

    Pros

    • MC4 system connector – a widely used standard
    • 1500 V DC rated voltage
    • Rated current: 25 A (2.5–4 mm²) / 40 A (4–6 mm²)
    • IP68 protection when mated
    • Snap-in latch
    • UV-resistant housing

    Cons / limitations

    • Requires an MC4 crimper and unlocking tool
    • Cable cross-section and outer diameter must match the connector range
    • Mating different manufacturers is not recommended without confirmed compatibility
    • IP68 sealing applies only when mated

    Safety and installation notes

    • Do not disconnect under load – a DC arc damages the contacts; first switch off the inverter and DC isolator.
    • Crimp the contact only with an MC4 crimper – a contact crimped with pliers overheats.
    • Tighten the sealing nut; do not leave connectors lying in water or on the roof surface.
    • Do not mate connectors of different manufacturers without confirmed compatibility.
    • Install according to HD 60364-7-712 and the design.

    Quick selection guide

    MC4
    1500 V DC
    up to 40 A
    2.5–6 mm²
    IP68
    MOREK
    Suitable when you need:
    • a reliable outdoor DC connection
    • a connector for 2.5–6 mm² cable
    • string connector repair or replacement
    • systems up to 1500 V DC
    Check before use:
    • cable cross-section and insulation diameter
    • manufacturer and type of the mating connector
    • maximum system voltage and current
    Important reminder: the connector is not a protective or switching device – it does not disconnect the circuit under load and does not replace a DC isolator or fuses.

    FAQ

    Does it fit other manufacturers' MC4 connectors?
    Mechanically they often mate, but the most reliable choice is a pair of the same manufacturer and type.
    Is a special tool needed?
    Yes – an MC4 crimper for the contact and a tool to release it.
    Which cable does it fit?
    Cables of 2.5–6 mm² whose outer diameter matches the sealing gasket.
    What is the rated current?
    25 A (2.5–4 mm²) / 40 A (4–6 mm²).
    Can it be disconnected under load?
    No – first switch off the inverter and DC isolator.
    Is an unmated connector sealed?
    No – IP68 protection applies only when mated.

    Solar module connector | MC4 | female socket | up to 40 A | 1500 V DC | for 2.5–6 mm² cable | IP68 | MOREK MAP2006B

    MOREK MAP2006B – MC4 type female socket for 2.5–6 mm² cables: 1500 V DC, 25 A (2.5–4 mm²) / 40 A (4–6 mm²), IP68 when mated. For sealed, reliable DC connections in solar plants, string repair and extension.
