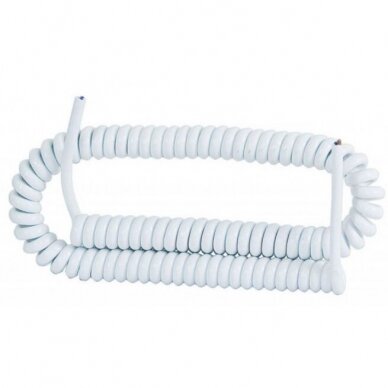

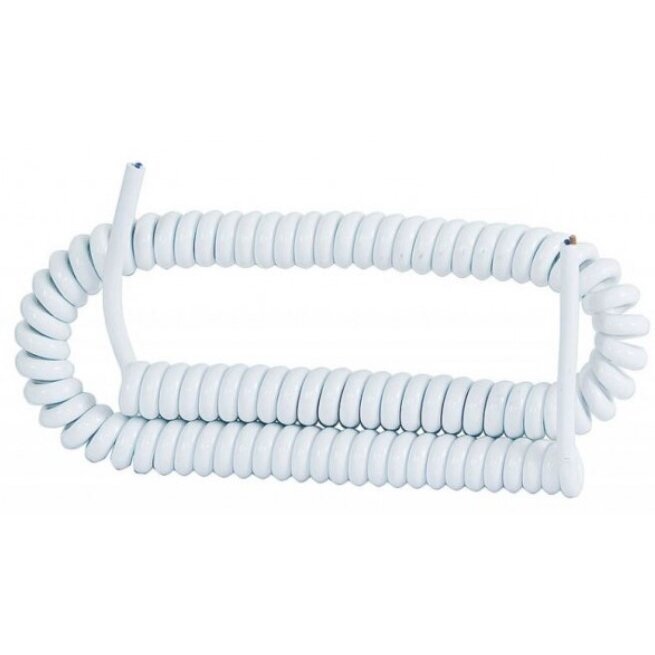

Spiral Cable | 05VVH8-F 3x1.5mm² | 5m Cable | White | 05VVH8-F3x1.5-B5

Technical Specifications

Product type: spiral power cable
Cable type: 05VVH8-F
Number of cores: 3 cores
Conductor cross-section: 3x1.5 mm²
Cable length: 5 m
Color: white
Conductor material: copper
Insulation material: PVC
Construction: spiral, flexible cable
Application: for connecting electrical appliances, tools, equipment and power connections

Functions

Power transmission – designed for reliable transmission of electrical power to equipment and appliances
Spiral extension – the cable can be stretched as needed, making it convenient where equipment moves or additional reach is required
Automatic retraction into a compact form – when not in use, the cable takes up less space and helps maintain a tidy working environment
3-core construction – suitable for electrical equipment requiring phase, neutral and protective conductors
1.5 mm² cross-section – suitable for higher loads than thinner 0.75 mm² or 1.0 mm² cables
PVC insulation – protects conductors from normal mechanical damage and ensures safer use in everyday working conditions
White color – aesthetically matches light interiors, white equipment, retail premises, offices and residential environments

Applications

For household users: Suitable for use at home, in garages, workshops or household appliances where a neat and extendable power cable is needed. It is particularly useful where a long cable lying on the floor is undesirable or may interfere with the work area.

For electricians: Useful when installing a flexible power solution for equipment that moves, is pulled out, lifted or operated at varying distances from the power source. Relevant for electrical equipment connections, repair and maintenance areas, and mobile power points.

For engineers or technical specialists: This cable may be useful when designing or selecting wiring for equipment where not only electrical supply but also mechanical convenience is important. The spiral cable helps reduce the amount of freely hanging or dragging cable.

Advantages

Neat cable management – the spiral design reduces loose cable clutter
Convenient extension – allows reaching equipment or connections located further away
Compactness – occupies less space when not in use
1.5 mm² cross-section – suitable for higher loads than thinner cables
3 cores – suitable for equipment requiring a protective grounding conductor
Copper conductors – ensure good electrical conductivity

Disadvantages

Not suitable for very harsh industrial environments where a rubber or specially reinforced cable is required
PVC insulation is not intended for extreme temperatures, therefore the working environment must be evaluated
The spiral may lose elasticity if the cable is continuously stretched to its maximum length

Is this spiral cable suitable for more powerful appliances?

Yes, the 3x1.5 mm² cross-section allows the cable to be used with higher-power appliances than 0.75 mm² or 1.0 mm² cables. However, the power, current and connection conditions of the specific appliance must always be evaluated.

Is this cable suitable for outdoor use?

This cable has PVC insulation and is therefore best suited for indoor environments or protected workplaces. When used outdoors, moisture, temperature, mechanical impact and other environmental factors must be considered.

Does the cable have a grounding conductor?

Yes, the cable has 3 cores and can therefore be used for equipment requiring phase, neutral and protective conductors.

Where is this type of spiral cable most commonly used?

It is commonly used for mobile electrical equipment, workstations, tools, commercial equipment, maintenance areas and locations where the cable must remain tidy while also being flexible.
