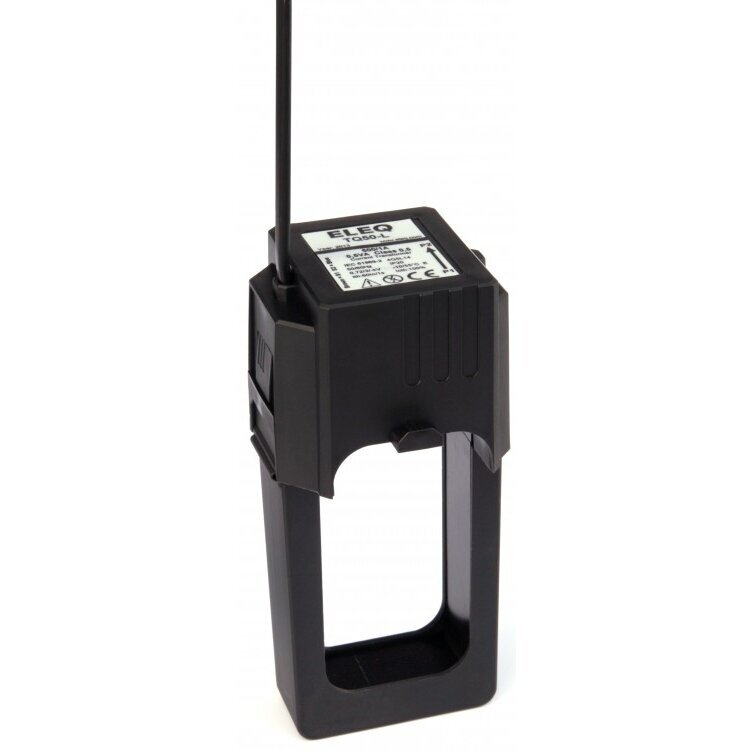

Split-core current transformer 800/5A | 0.5VA | 0.5 class | IP20 | ELEQ TQ50-L

Technical Data:

Burden: 0.5 VA or 5 VA (optional)
Ratio: 800/5A
Class: 0.5 (accuracy class)
Environmental Conditions: For indoor use only
Protection Degree (secondary terminal): IP20 (protection against solid objects larger than 12 mm)
Application Conditions: According to IEC 61869-2 standard
Nominal short-term thermal current (Ith): 60 x Ipr / 1s
Continuous thermal current strength (Icth): 1
Nominal insulation level: 0.72/3/-kV
Nominal Frequency: 50/60Hz
Insulation Class: E (120°C)

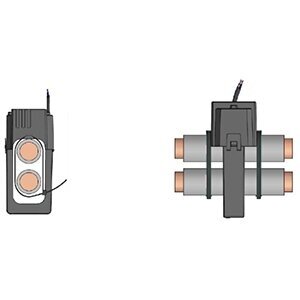

Main Terminal Dimensions: 2 x Ø42 mm
Secondary Wire Length: 3 meters, 1.5 mm² flexible cable
Voltage Category: CAT IV 600 V
Usage: This removable current transformer is designed to measure and control electric current in both industrial and commercial environments. Due to its precise class and wide application range, it is ideal for energy measurement systems, electrical distribution and protection systems, and other current measurement applications. With the long secondary wires and flexible cables, it is easy to install and integrate into existing systems.
Pros:

High accuracy: 0.5 class ensures precise current measurement, suitable for both industrial and commercial applications.
Wide applicability: Suitable for various indoor environments and equipment requiring accurate measurements.
Protection: IP20 protection degree and CAT IV 600 V surge category ensure safety in industrial use.
Flexibility and easy installation: 3-meter flexible cable provides more options and convenience during installation.
Reliability: Manufactured according to international IEC standards, ensuring long-term and reliable use.
Cons:

For indoor use only: Not suitable for outdoor use due to the IP20 protection rating, thus not usable in outdoor environments or areas with higher humidity.
Limited load power options: Although the transformer offers 0.5 VA and 5 VA load options, these powers may not be sufficient for high load requirements.
Insulation level: While the insulation level is sufficiently high (0.72/3/-kV), some specific industrial conditions may require a higher level of protection.
