Stay rod bow type with mounting plate | hot-dip galvanized steel | 400x143mm | Ø12mm

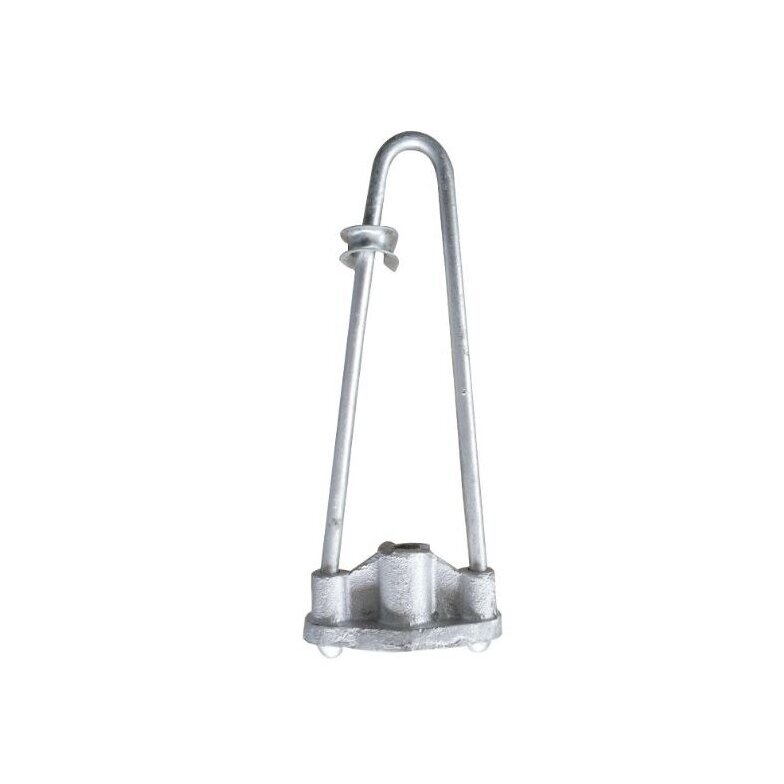

Bow Type Stay Rod with fixing plate – a mechanical overhead power line fitting designed for use in pole stay and guying systems. The bow-shaped steel construction forms a reliable connection point and allows mechanical loads to be transferred between components of the stay system.

The product is made of steel and its surface is protected by hot-dip galvanizing. The zinc coating helps protect the metal against corrosion and is suitable for long-term use in outdoor electrical infrastructure.

Application

The Bow Type Stay Rod is used in mechanical stabilization systems for overhead power line poles. In such systems, the stay helps compensate for horizontal forces acting on the pole and transfers these forces to the appropriate anchoring structure.

This product forms one of the mechanical components of the stay assembly. Its bow-shaped construction allows a connection to be formed between other stay-system components; however, the final installation method depends on the specific project and the fittings used.

Bow-shaped construction

The component is formed from a Ø12mm steel rod bent into an elongated bow shape. This construction principle creates a closed mechanical fastening element with two parallel legs.

The ends of the bow are connected by a fixing plate, which helps maintain the geometry of the assembly and forms part of the stay fastening arrangement.

Hot-dip galvanizing

The steel surface of the product is hot-dip galvanized. During this process, the steel is coated with a protective zinc layer that reduces direct exposure of the base metal to environmental conditions.

This type of protection is particularly important for overhead line fittings that are used outdoors for long periods and are exposed to humidity, precipitation and temperature fluctuations.

Main dimensions

Technical specification

Main features

Advantages

Disadvantages / limitations

Suitable for

• Overhead power line pole stay systems
• Mechanical stay fastening assemblies
• Power transmission and distribution infrastructure
• Mechanical stabilization systems for poles
• Use together with other mutually compatible stay fittings
• Outdoor installation systems requiring hot-dip galvanized steel components

Not suitable for

• Use as an electrical current-carrying contact element
• Stay systems whose connection dimensions are incompatible with the geometry of this product
• Assemblies where the project specifies a different type of stay fitting
• Use without evaluating the mechanical loads of the complete pole and stay system

Practical application example

Installation

Before installation, the condition of the product, bow geometry, fixing plate and galvanized surface must be checked. There should be no visible deformation, cracks or damaged fastening components.

The product must be installed as part of a specific stay system in accordance with the project requirements and the installation instructions for the connecting components used.

Frequently asked questions (FAQ)

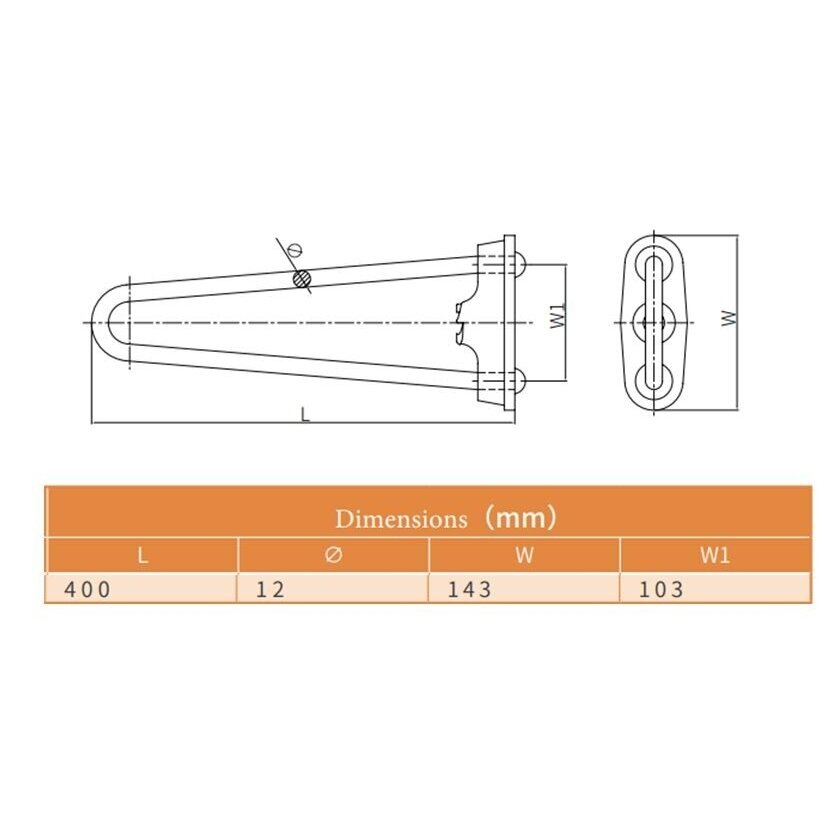

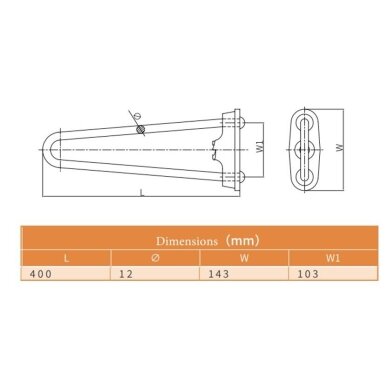

Bow Type Stay Rod with fixing plate – a hot-dip galvanized steel overhead power line fitting designed for pole stay and mechanical fastening systems. According to the supplied technical drawing, the product length is 400mm, rod diameter – Ø12mm, overall width – 143mm, and internal width – 103mm.
