    Street light bracket | single-arm | 1500 mm outreach | 793 mm height | 5° upward tilt | Esm-GL-1-0,6/1,5-5-60

    Street light bracket | single-arm | 1500 mm outreach | 793 mm height | 5° upward tilt | Esm-GL-1-0,6/1,5-5-60

    Code: Esm-GL-1-0,6/1,5-5-60
    Inquire about this item
    Price 73.66 € VAT incl.
    ( 60.88 € VAT excl. )
    Buy more, pay less
    10+ pcs.  – 70.74 € for pcs. -3%
    20+ pcs.  – 66.15 € for pcs. -10%
    Want another price? Suggest yours!

    Single curved arm for one street luminaire. Outreach 1500 mm, height 793 mm, 5° tilt, two mounting plates (270 mm, 250 mm spacing).

  • Product description

    Street light bracket | single-arm | 1500 mm outreach | 793 mm height | 5° upward tilt | Esm-GL-1-0,6/1,5-5-60

    The single-arm street light bracket Esm-GL-1-0,6/1,5-5-60 is designed for side-entry (cantilever) mounting of a street, yard or site luminaire on a pole. The curved tubular arm carries the luminaire 1500 mm out from the mounting point, while two cross mounting plates with slotted holes allow the bracket to be fixed securely to the pole.

    Key point:
    Lighting quality on a street depends not only on the luminaire but also on where it sits. A 1500 mm outreach moves the luminaire over the carriageway or path, and the 5° upward tilt (95° angle between the post and the arm) directs the light where it is needed without extra adapters.
    Outreach
    1500 mm
    Overall height
    793 mm
    Arm tilt
    5° (95° angle)
    Mounting
    2 plates, 250 mm spacing

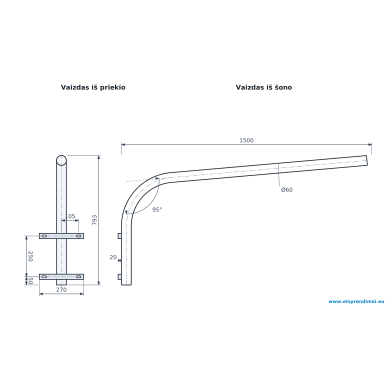

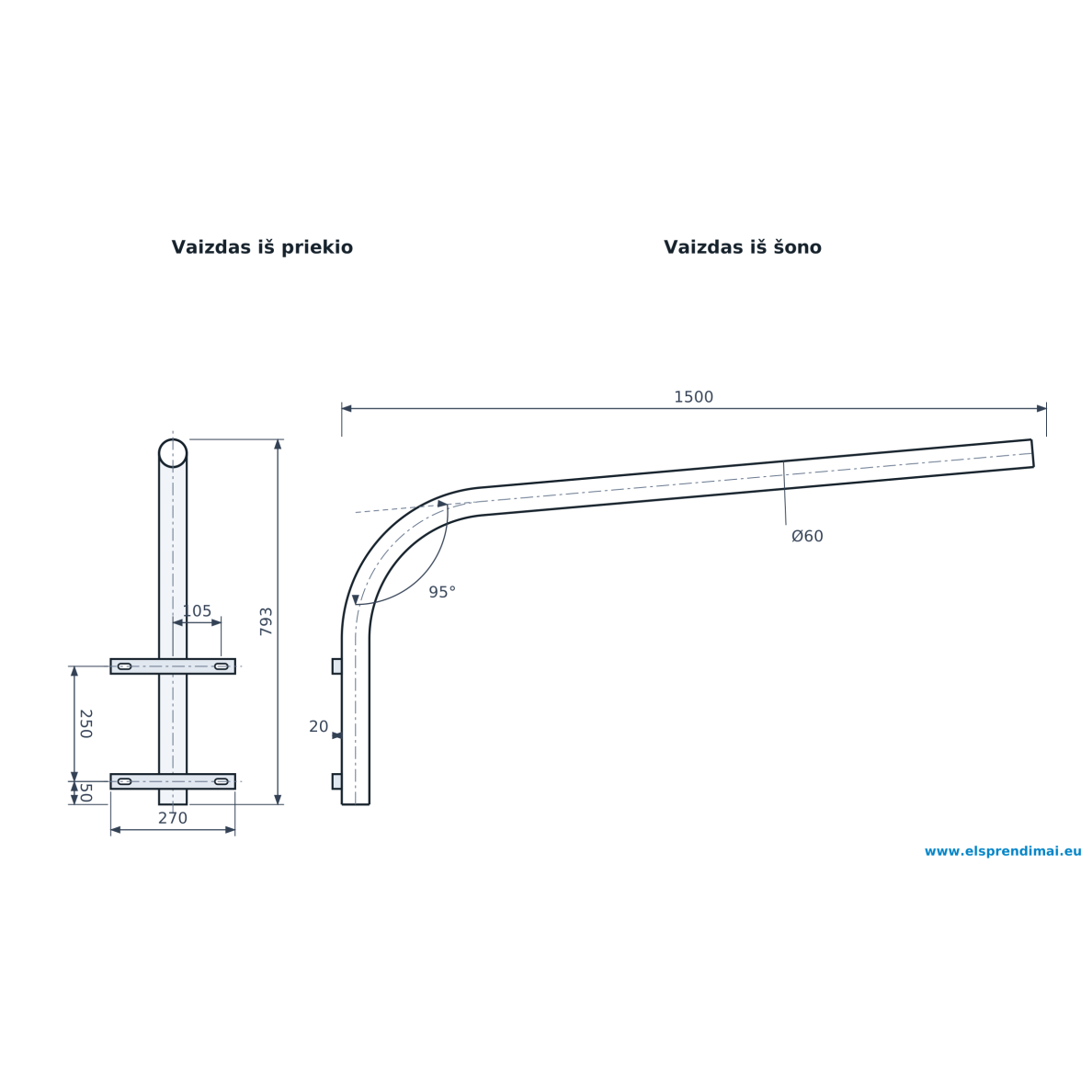

    How it works

    The bracket's vertical post is fixed to a pole with two cross plates. The plates are 270 mm wide and spaced 250 mm apart; the lower plate sits 50 mm above the bottom of the post. Slotted holes in the plates give mounting tolerance and let you level the bracket before final tightening.

    The post turns into a curved arm that ends in a straight section for fitting the luminaire. The arm rises at 5° from horizontal, so the luminaire naturally tilts towards the area being lit.

    The result: the luminaire sits 1.5 m away from the pole, firmly fixed and aimed at the road, path or parking area.

    Why choose Esm-GL-1-0,6/1,5-5-60?
    It is a simple solution with standard geometry for mounting one cantilever luminaire: clear dimensions, two fixing points and a fixed tilt angle make the lighting point quick to plan and install.

    Technical specifications

    Product type Street light bracket (arm)
    Product code Esm-GL-1-0,6/1,5-5-60
    Design Single-arm, tubular, curved arm
    Tube diameter Ø60 mm
    Number of luminaires 1
    Outreach (horizontal distance) 1500 mm
    Overall height 793 mm
    Angle between post and arm 95° (5° tilt from horizontal)
    Mounting plates 2 pcs, 270 mm wide, with slotted holes
    Plate spacing 250 mm
    Lower plate position 50 mm from the bottom of the post
    Installation On a pole

    Key features

    • 1500 mm outreach – the luminaire is moved over the road or path instead of sitting next to the pole.
    • 5° tilt – the luminaire tilts towards the lit area without extra adapters.
    • Curved arm profile – a smooth transition from post to arm, with no welded corner at the bend.
    • Two fixing points 250 mm apart – the bracket does not twist or sway under wind load.
    • Slotted holes in the plates – easier to fit to the pole and level during installation.
    • Ø60 mm tube – a robust structure for a long outreach.

    Where is it used?

    • Street and local road lighting
    • Village streets and access roads
    • Apartment block yards and car parks
    • Industrial and warehouse sites
    • Farm and homestead yards and driveways
    • Footpaths and cycle paths
    • Car park and site perimeter lighting
    • Upgrading existing lighting poles

    Use by need

    For electrical contractors.
    Clear dimensions let you include the bracket in an estimate and install it without extra coordination.
    For municipal maintenance departments.
    Suitable for installing or renewing street lighting points when replacing old luminaires with LED.
    For homestead or farm owners.
    Lets you light a driveway or yard with a luminaire on an existing pole.

    Practical example

    If a yard or street pole stands on the verge and a luminaire fixed directly to it lights mostly grass and the kerb, the Esm-GL-1-0,6/1,5-5-60 bracket carries the luminaire 1.5 m towards the road and, raised at 5°, directs the light onto the carriageway – the lighting becomes more even without a new pole.

    Pros

    • 1500 mm outreach puts the luminaire over the lit area
    • Fixed 5° tilt – no extra adapters needed
    • Two fixing points ensure stability
    • Slotted holes make installation and levelling easier
    • Simple, clear design with no moving parts
    • Ø60 mm tube – a robust structure

    Cons / limitations

    • For one luminaire only – two luminaires require a double-arm bracket
    • The tilt angle is fixed and cannot be changed on site
    • Fixings (bolts, bands) are selected separately according to the pole type
    • If you need a longer outreach, choose a bracket with a longer arm

    Safety and installation notes

    • Work at height only with suitable lifting equipment and protective gear.
    • Before installation, make sure the pole can carry the load of the bracket, luminaire and wind.
    • Before connecting the luminaire, switch off the power and check that the line is dead.
    • Fix the bracket with both plates – single-point mounting is not allowed.
    • Route the cable to the luminaire without sharp bends and protect it from chafing on metal edges.
    • The luminaire must be connected to the mains by a qualified electrician.

    Quick selection guide

    Single-arm
    Outreach 1500 mm
    Height 793 mm
    Tilt 5°
    Suitable when you need to:
    • mount one cantilever street or yard luminaire;
    • carry the luminaire about 1.5 m out from a pole;
    • aim the light at a road or parking area with a small tilt angle.
    Check before use:
    • whether the luminaire's mounting spigot fits the diameter of the arm end;
    • whether the pole type and diameter suit fixing with 270 mm plates;
    • which fixings your pole requires.
    Important reminder: the bracket does not replace a lighting design – choose pole height, spacing and luminaire power according to the requirements of the area to be lit.

    FAQ

    How many luminaires can be fitted to this bracket?
    One – it is a single-arm bracket.
    What is the bracket's outreach?
    The horizontal distance from the mounting point to the end of the arm is 1500 mm.
    At what angle is the arm raised?
    The angle between the post and the arm is 95°, i.e. the arm rises 5° from horizontal.
    What is the tube diameter?
    Ø60 mm.
    What is the spacing between the mounting plates?
    The plates are 250 mm apart, and each is 270 mm wide.
    Is it suitable for LED street luminaires?
    Yes, provided the luminaire's mounting spigot matches the diameter of the arm end.

    Street light bracket Esm-GL-1-0,6/1,5-5-60

    A single-arm street light bracket with 1500 mm outreach, 793 mm height and 5° tilt – for cantilever mounting of a luminaire on a pole in streets, yards, car parks and industrial sites.

    Illustrative image may have been created using AI. The appearance of the product may differ slightly from the image shown. Please refer to the technical specification.
