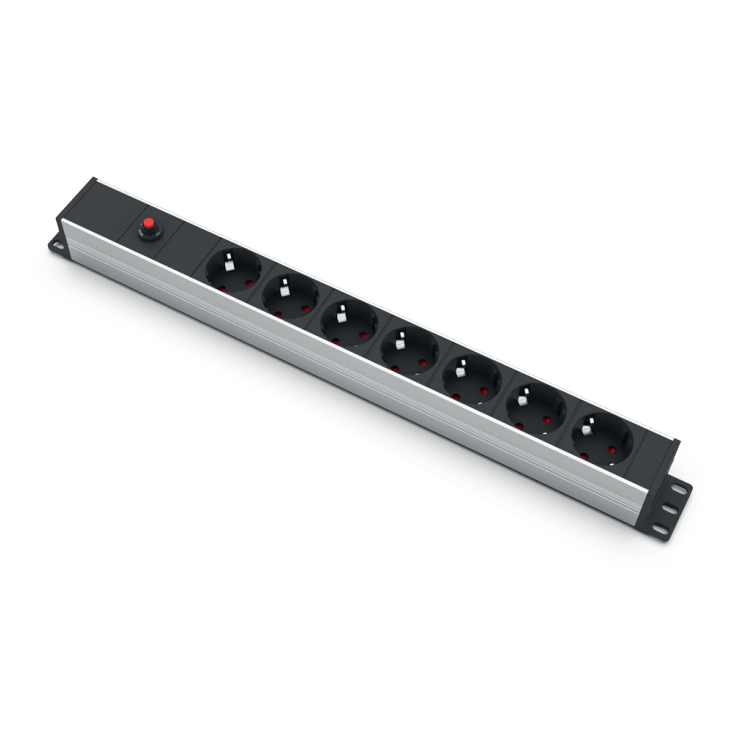

Surface-mounted socket block | 7xschuko | with overload protection and button | TEM

Technical Specifications
Number of sockets: 7xschuko (with grounding, 2-pole)
Voltage: 250 V AC, 50/60 Hz
Maximum power: 4000 W
Current: 16 A (125/250 V AC)
Protection: integrated overload protection with reset button
Housing: 1U rigid anodized aluminum profile
Insulation: >1000 Ω (DC 500 V)
Additional protection: grounding connection on the housing
Mounting: plastic side brackets

Functions
Overload protection: automatically disconnects power in case of overcurrent or overload, can be reset manually.
Aluminum housing: ensures durability, mechanical stability, and aesthetics.
Compact format: 1U height profile fits conveniently in server racks or workstations.
Grounding contact: provides additional protection against electrical interference and leakage.

Usage
For home users: ideal solution for home office, study, TV, computers, or household appliances where safety is important.
For engineers: reliable power distribution in laboratories, testing environments, server rooms, or control systems where overload protection is required.
For electricians: easy and quick installation due to 1U format, convenient fixing with plastic side brackets, clear protection function with reset button.
For commercial spaces: suitable for conference rooms, offices, and computer workstations where multiple devices need to be safely connected at the same time.

Pros
Schuko sockets with grounding – universal solution for most devices.
Overload protection with button – higher safety and easy reset.
Anodized aluminum housing – durability and resistance to deformation.
Compact 1U size – perfect for server rooms and professional installations.
Additional grounding connection on the housing – maximum protection.

Cons
Requires proper installation and space.
No surge protection (additional solution required).
Price may be higher compared to standard household extension cords.
