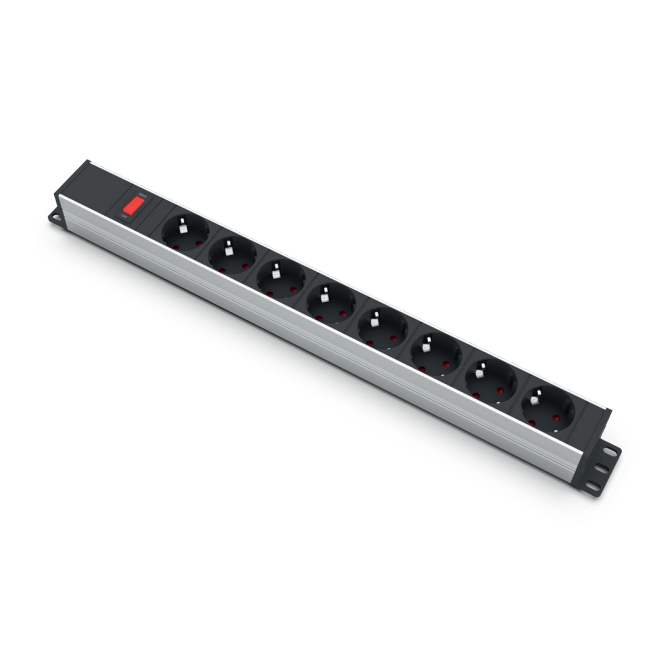

Surface-mounted socket block | 8xschuko | with overload protection and switch | TEM

Technical specifications
Number of sockets: 8xschuko (2-pole with grounding)
Voltage: 250 V AC, 50/60 Hz
Maximum power: 4000 W
Maximum current: 16 A (125/250 V AC)
Protection: integrated overload protection switch
Housing: 1U rigid anodized aluminum profile
Grounding: chassis connection
Insulation: >1000 Ω (DC 500 V)
Mounting: plastic side brackets

Functions

Overload protection – automatically cuts off current when exceeding the safe limit, protecting connected devices.

Switch – allows turning on/off all connected equipment with one press.

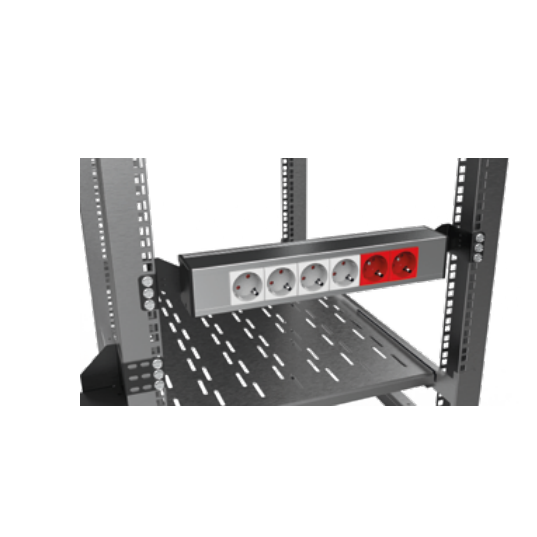

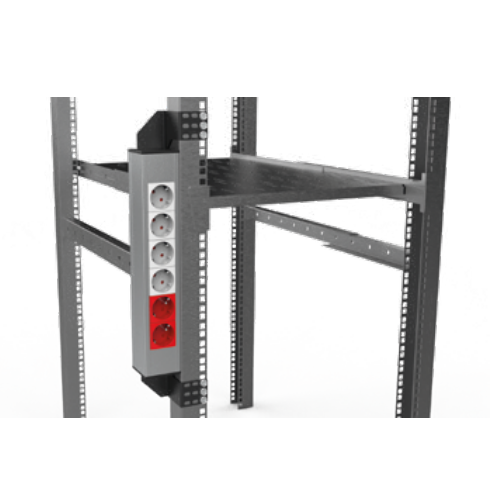

1U design – standard size suitable for server racks or technical drawers.

Reliable grounding – ensures safe operation and protection against electrical disturbances.

Usage

For home users – household electronics, TVs, computers, kitchen appliances, where safe overload protection is needed.

For engineers – in laboratories, server rooms, or technical centers where organized device connection is essential.

For electricians – installation in offices, data centers, conference halls, as the socket block is suitable for 19” equipment (1U).

For commercial users – retail and service sectors, where multiple connections are needed in one place.

Pros

Integrated overload protection – additional safety level.

Durable aluminum housing – resistant to deformation, long-lasting.

Suitable for both household and professional use.

Compact 1U size – ideally suited for server racks.

Cons

Requires proper installation in a 19” rack or structure – not always convenient as a standalone extension.

No USB or other modern connections.
