    Switch-mode power supply | 24VDC | 40W | 1.67A | 85-264VAC | RJ45 Power over Modbus | IP30 | DIN rail | Sentera Controls | DRPS8-24-40

    Code: DRPS8-24-40
    Inquire about this item
    Price 93.92 € VAT incl.
    ( 77.62 € VAT excl. )
    146.52 € You save 52.60 €
    Offer is valid until 2026-12-31
    Want another price? Suggest yours!
  • Product description

    Switch-mode power supply | 24VDC | 40W | 1.67A | 85-264VAC | RJ45 Power over Modbus | IP30 | DIN rail | Sentera Controls | DRPS8-24-40

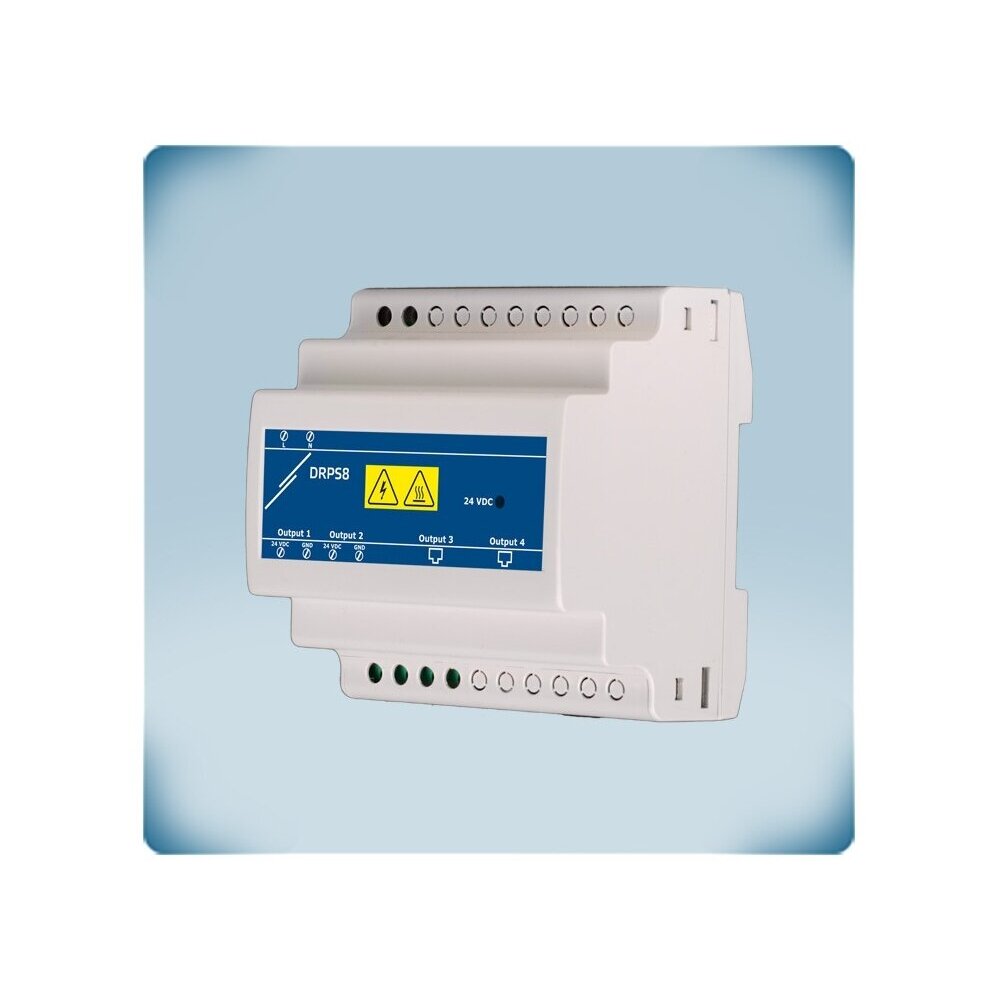

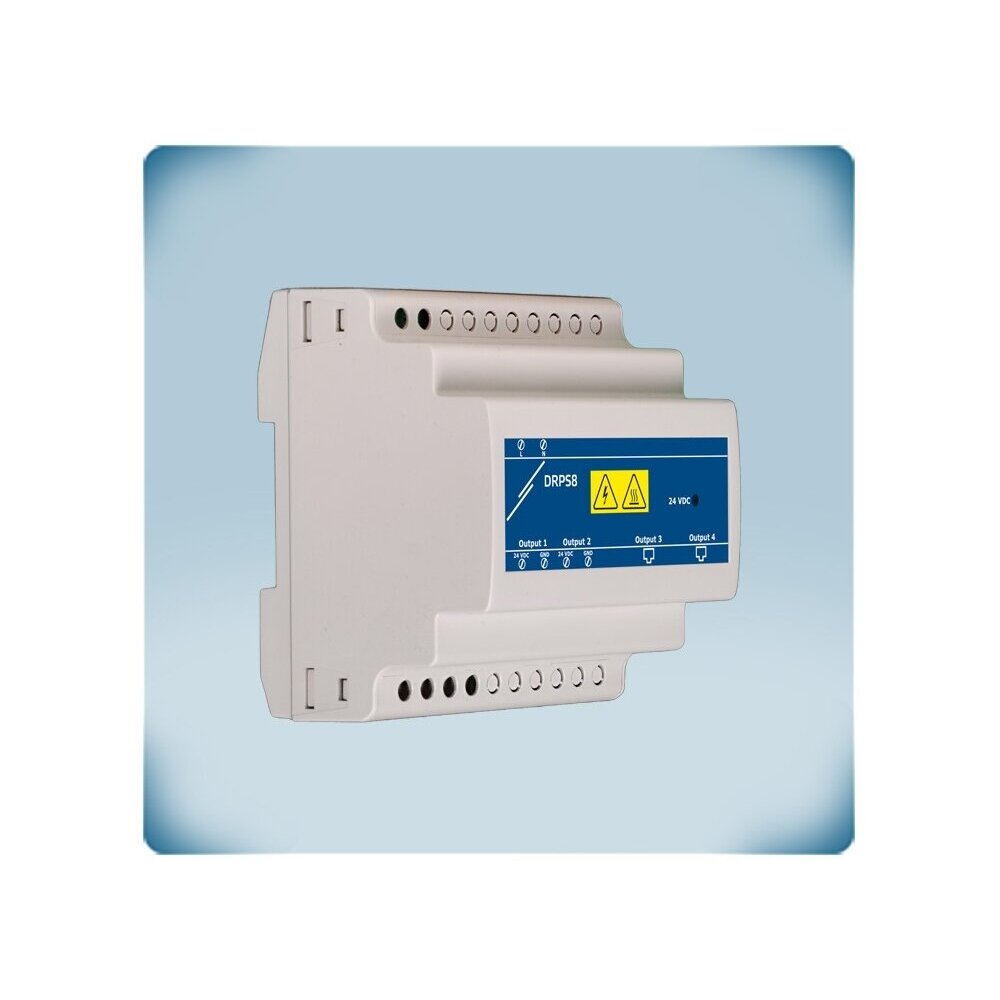

    DRPS8-24-40 – a Sentera Controls switch-mode power supply converting the 85–264 VAC mains voltage into a stable 24 VDC, up to 40 W (Imax 1.67 A). DIN rail mounted, it has two terminal and two RJ45 outputs – 24 VDC can also be distributed via a Power over Modbus cable.

    Key idea:
    Sentera sensors, controllers and control panels must be powered at 24 VDC. This power supply is designed for exactly that: through the RJ45 socket a single cable can carry both power and the Modbus RTU line, making installation faster and neater.
    Output
    24 VDC, 40 W (1.67 A)
    Input
    85–264 VAC, 50–60 Hz
    Connections
    2 × terminals + 2 × RJ45
    Protection
    IP30, DIN rail

    Operating principle

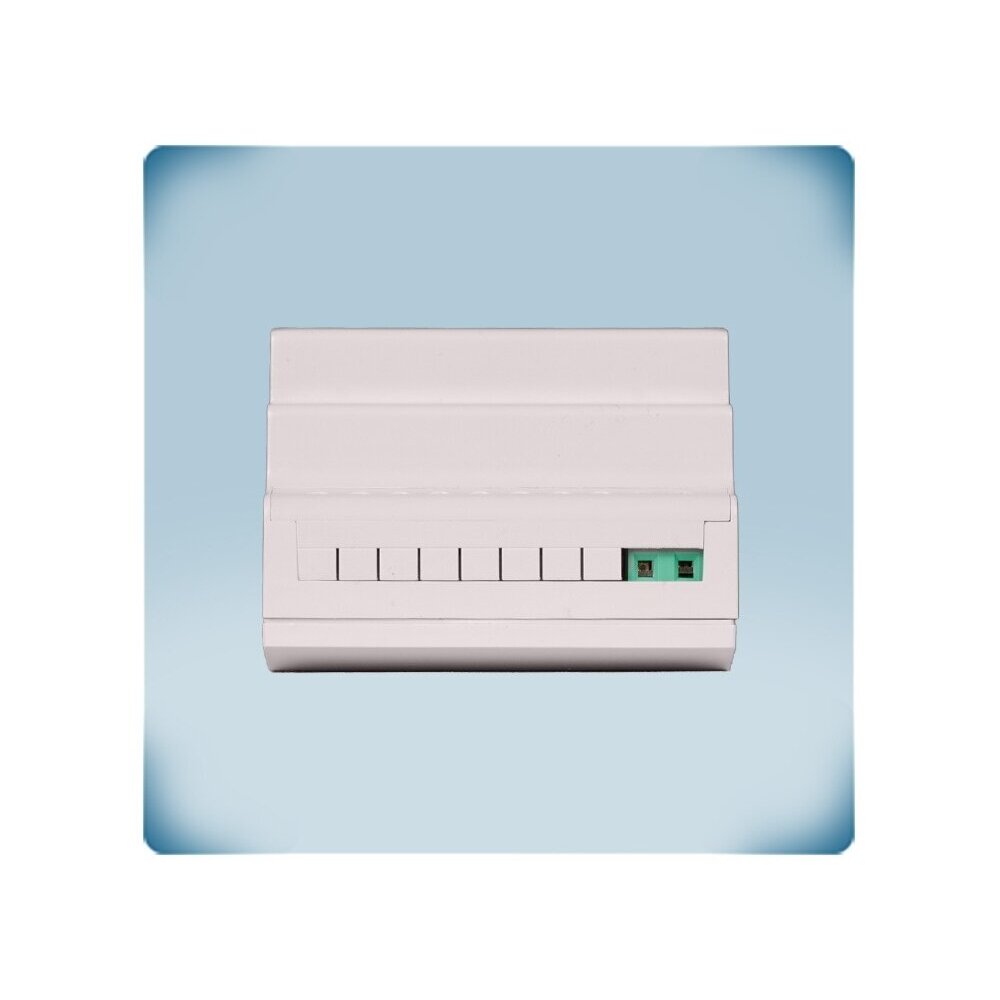

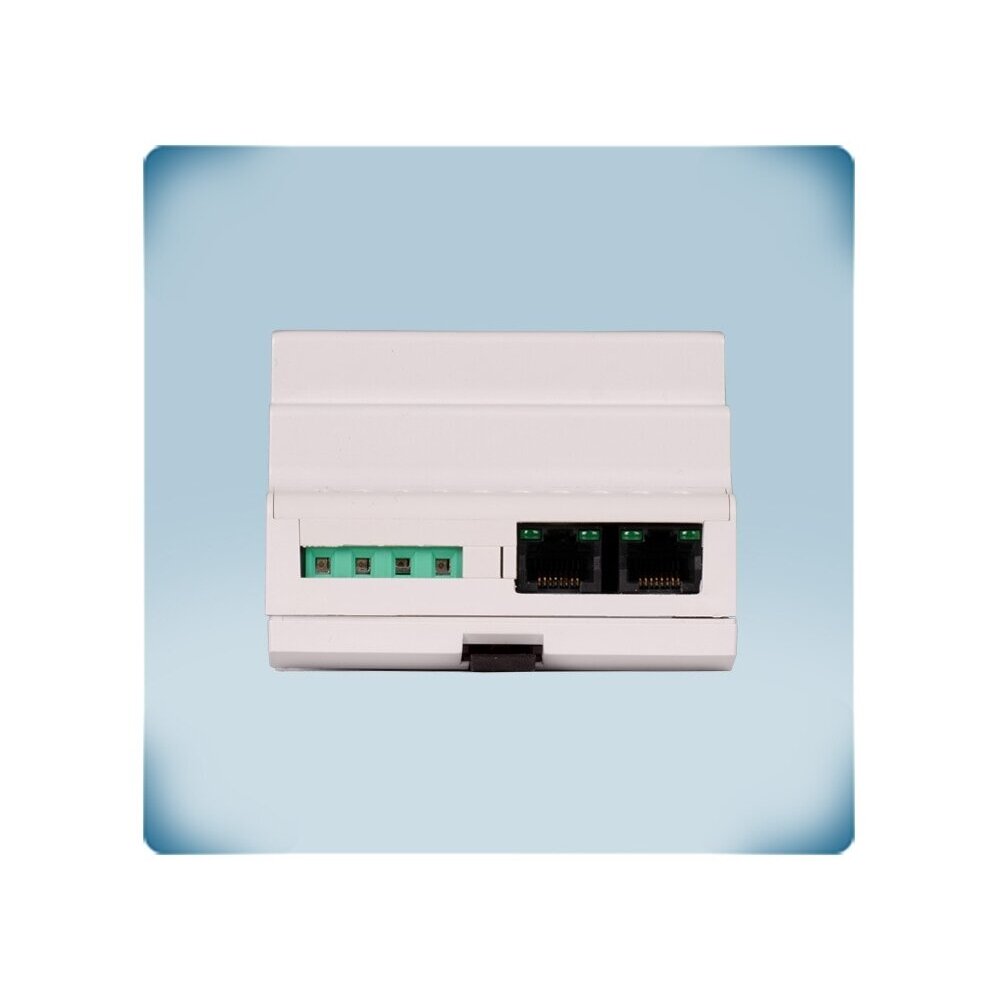

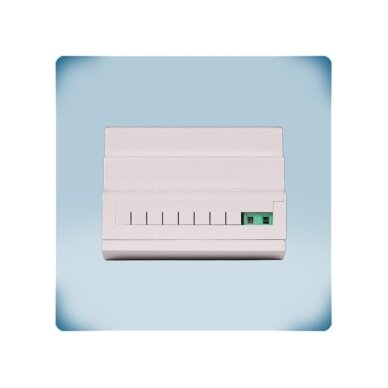

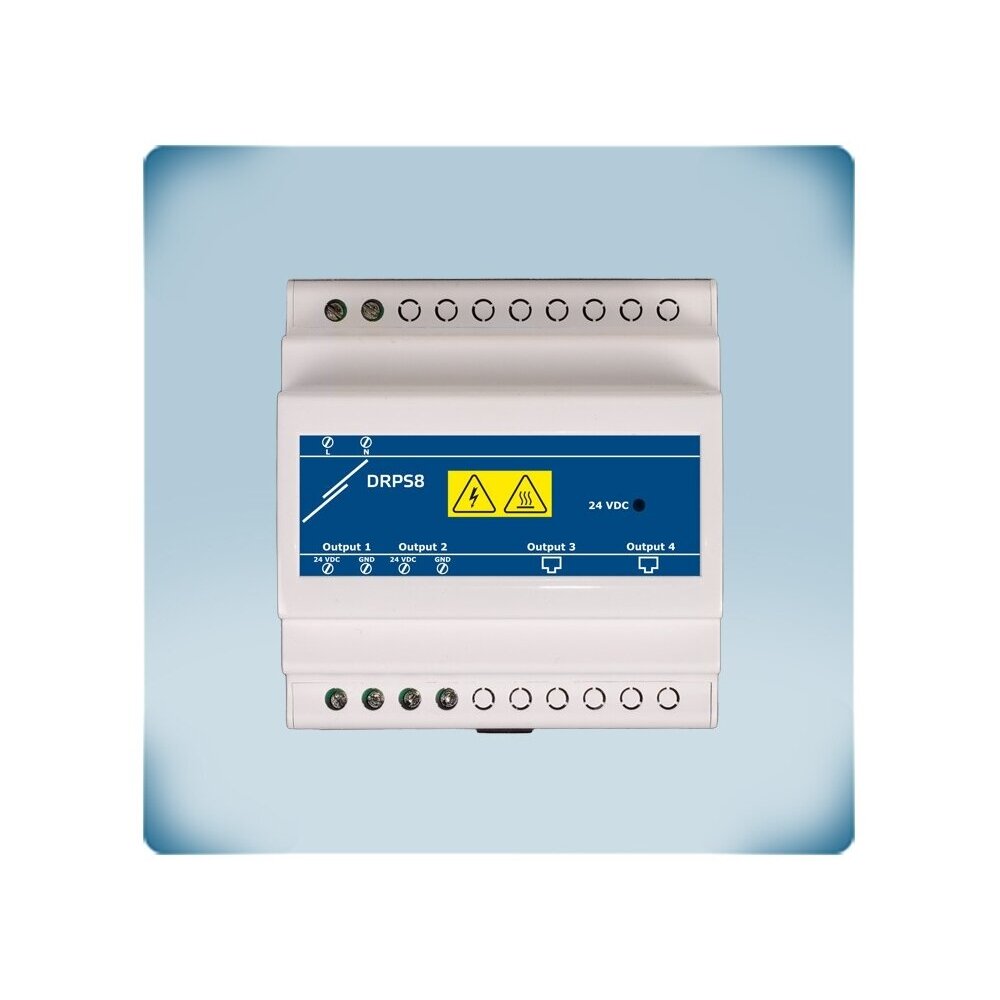

    The power supply is mounted on a DIN rail in the panel. Mains voltage 85–264 VAC, 50–60 Hz is connected to terminals L and N. Outputs: 1 and 2 – terminals (+24 V, GND), 3 and 4 – RJ45 sockets (pin 1 – 24 VDC, 3 – Modbus A, 5 – Modbus /B, 7 – GND). The terminal block duplicates the RJ45 connector – the total load is the sum of the loads of all outputs and must not exceed 40 W.

    The switching converter produces a stable 24 VDC voltage. Compared with linear sources, such a supply is more efficient, runs cooler, and is lighter and more compact. Overvoltage and overload protection operates in "hiccup" mode: during an overload the supply briefly switches off and tries to restart, and once the fault is removed, operation resumes automatically.

    Result – Sentera sensors, controllers and control panels receive a stable 24 VDC voltage from a single supply, and after an overload operation recovers without human intervention. Engineer's note: when calculating the load, add up the maximum power of all connected devices and leave a margin.

    Benefits DRPS8-24-40?
    A single 24 VDC / 40 W power supply for a group of several Sentera sensors or controllers, with an RJ45 Power over Modbus connector and automatic overload protection.

    Technical specifications

    Product type Switch-mode power supply 24 VDC
    Manufacturer / code Sentera Controls / DRPS8-24-40
    Input voltage 85–264 VAC, 50–60 Hz
    Output voltage 24 VDC
    Max. output current 1.67 A
    Power 40 W
    Outputs 2 × terminals (+24 V, GND), 2 × RJ45 (1 – 24 VDC, 3 – A, 5 – /B, 7 – GND)
    Protection Against overvoltage and overload (hiccup mode, automatic reset)
    Indication Green LED – output voltage is present
    Housing ABS, grey (RAL 7035)
    Protection class IP30
    Installation DIN rail
    Wire stripping length 8 mm
    Operating environment -30…+40 °C, 20–90 % rH non-condensing
    Weight 0.23 kg (net)
    Compliance LVD 2014/35/EU, EMC 2014/30/EU, RoHS

    Manufacturer documentation

    ✔ Recommended by Elektrotechnikos sprendimai

    Original manufacturer documentation – technical data, wiring diagrams and installation instructions.

    Main functions

    • 24 VDC / 40 W – powers several Sentera sensors, controllers or control panels.
    • Wide input range 85–264 VAC – suitable for an unstable network and various countries.
    • RJ45 Power over Modbus – power and Modbus RTU over a single cable.
    • Hiccup protection – in case of overload or short circuit it switches off and recovers automatically.
    • LED indication – you can see at a glance whether there is voltage at the output.

    Where is it used?

    • Automation panels with DIN rail
    • Ventilation and heating control cabinets
    • Powering multiple Sentera transmitters and controllers on a Modbus network
    • Modbus RTU lines with Power over Modbus cables
    • 24 VDC power supply for type F pressure controllers (HPSPF, DPSPF, HPSAF, DPSAF, SPS2F)
    • Powering a group of pressure or CO₂ sensors with up to 40 W total power

    On-demand operation

    For the control panel assembler.
    A DIN rail housing and an 8 mm wire strip length allow neat 24 VDC distribution in the panel.
    For Modbus network integrators.
    Two RJ45 sockets pass 24 VDC and the Modbus RTU line (A, /B) to other Sentera devices over a single cable.
    For ventilation control cabinet designers.
    The wide 85–264 VAC input and 40 W (1.67 A) output allow several sensors and controllers to be powered from a single supply.

    Practical application

    If Sentera devices on a Modbus RTU network need to be powered in a control panel, then the DRPS8-24-40 on a DIN rail passes 24 VDC and the A, /B line over a single cable through two RJ45 sockets, and the total load of all four outputs must not exceed 40 W.

    Application guide: how it is used in practice

    The DRPS8-24-40 is used in various systems – only the connected devices and the connection method change:

    Site What is connected Result Installer's note
    Automation panel DIN rail, L / N from the panel circuit breaker Neat 24 VDC distribution in the panel Strip the wires 8 mm
    Group of pressure or CO₂ transmitters Transmitters (e.g. HPS-2, DPS-2) → terminals +24 V / GND All sensors are powered from a single power supply Add up the transmitter power – up to 40 W
    Modbus network with RJ45 Sentera device with RJ45 → RJ45 socket Power and Modbus RTU in one cable Terminals and RJ45 are connected in parallel – the load is shared
    Pressure controller with an EC fan HPSPF / DPSPF controller → +24 V, GND The controller receives a stable 24 VDC Connect F-type controllers with 4 wires

    How to choose a power supply

    Installation location Recommended model
    Panel, DIN rail (IP30) DRPS8-24-40 (24 VDC, 40 W, DIN) ← this model
    On a wall, damp environment (IP65) SEPS8-24-40 (24 VDC, 40 W, IP65)
    Rule: the sum of the maximum power of all connected devices must not exceed 40 W (1.67 A at 24 VDC); terminal and RJ45 output loads are added together. Choose the installation location according to the environment: in a panel – DIN version, in a damp room – IP65 version.
    When to choose another solution: for damp environments or wall mounting – SEPS8-24-40 (IP65).

    Pros

    • 24 VDC, 40 W
    • Wide input range 85–264 VAC
    • RJ45 Power over Modbus
    • Hiccup protection with automatic reset
    • IP30 and DIN mounting

    Cons / limitations

    • Power limited to 40 W – larger loads require several sources
    • Output voltage is unregulated (24 VDC)
    • IP30 – panels and dry rooms only
    • Operating temperature up to +40 °C

    Safety and installation notes

    • Installation and connection are to be carried out by a qualified electrician with the mains voltage disconnected.
    • The 85–264 VAC mains voltage is connected only to the L and N terminals.
    • The total load of the terminal and RJ45 outputs must not exceed 40 W.
    • Operating environment -30…+40 °C, 20–90 % rH non-condensing.
    • The power supply is IP30 – install it only in a closed panel.

    Quick selection guide

    24 VDC
    40 W
    85–264 VAC
    RJ45
    IP30
    Suitable when you need:
    • to power Sentera sensors, controllers and panels at 24 VDC;
    • to distribute power over Power over Modbus RJ45 cables;
    • to mount the power supply in a panel on a DIN rail.
    Check before use:
    • the total power of all devices (up to 40 W);
    • the installation location and the required protection class;
    • whether devices are connected via terminals or an RJ45 cable.
    Important reminder: DRPS8-24-40 – a 24 VDC source; it is not suitable for devices requiring AC supply (24 VAC).

    FAQ

    How many transmitters can be connected?
    As many as keeps their total maximum power within 40 W.
    What is the RJ45 socket for?
    Power over Modbus – for carrying 24 VDC power and the Modbus RTU line over a single cable.
    What happens during an overload?
    The power supply works in hiccup mode and recovers automatically after the fault is cleared.
    Can it be installed in a damp room?
    No, the DRPS8-24-40 is IP30 – for damp locations choose the SEPS8-24-40 (IP65).
    Is it suitable for 24 VAC powered devices?
    No, the output is 24 VDC only, so the power supply is not suitable for devices requiring 24 VAC.
    Under what conditions does the power supply operate?
    Operating environment -30…+40 °C, 20–90 % rH non-condensing.

    Switch-mode power supply | 24VDC | 40W | 1.67A | 85-264VAC | RJ45 Power over Modbus | IP30 | DIN rail | Sentera Controls | DRPS8-24-40

    Sentera DRPS8-24-40 – 24 VDC / 40 W switch-mode power supply with 85–264 VAC input, RJ45 Power over Modbus connector, IP30 housing and hiccup protection – for powering Sentera sensors and controllers.

    Illustrative image may have been created using AI. The appearance of the product may differ slightly from the image shown. Please refer to the technical specification.
