    Temperature-based fan speed and electric heater controller | 5-35°C | 6A | 230VAC | Schuko sockets | Sentera Controls | GTEE1-60-DT

    Code: GTEE1-60-DT
    Inquire about this item
    Price 255.01 € VAT incl.
    ( 210.75 € VAT excl. )
    397.81 € You save 142.80 €
    Offer is valid until 2026-12-31
    Want another price? Suggest yours!
  • Product description

    Temperature-based fan speed and electric heater controller | 5-35°C | 6A | 230VAC | Schuko sockets | Sentera Controls | GTEE1-60-DT

    GTEE1-60-DT – Sentera Controls “plug & play” fan and electric heater controller for maintaining temperature. It controls extract and supply fans (total current up to 6 A) and an electric heater up to 16 A (3.6 kW) – everything is connected via Schuko sockets.

    Key idea:
    For a greenhouse, barn or farm building – with no wiring at all: plug the fans and heater into the sockets, set the temperature, and the controller maintains the climate on its own.
    What it is for GTEE1-60-DT:
    This model is designed for larger sites – more powerful fans or a pair of fans (total current up to 6 A), e.g. a larger greenhouse or barn.
    Fans
    up to 6 A (2 sockets)
    Heater
    up to 16 A / 3.6 kW
    Temperature
    5–35 °C
    Protection
    IP54

    Operating principle

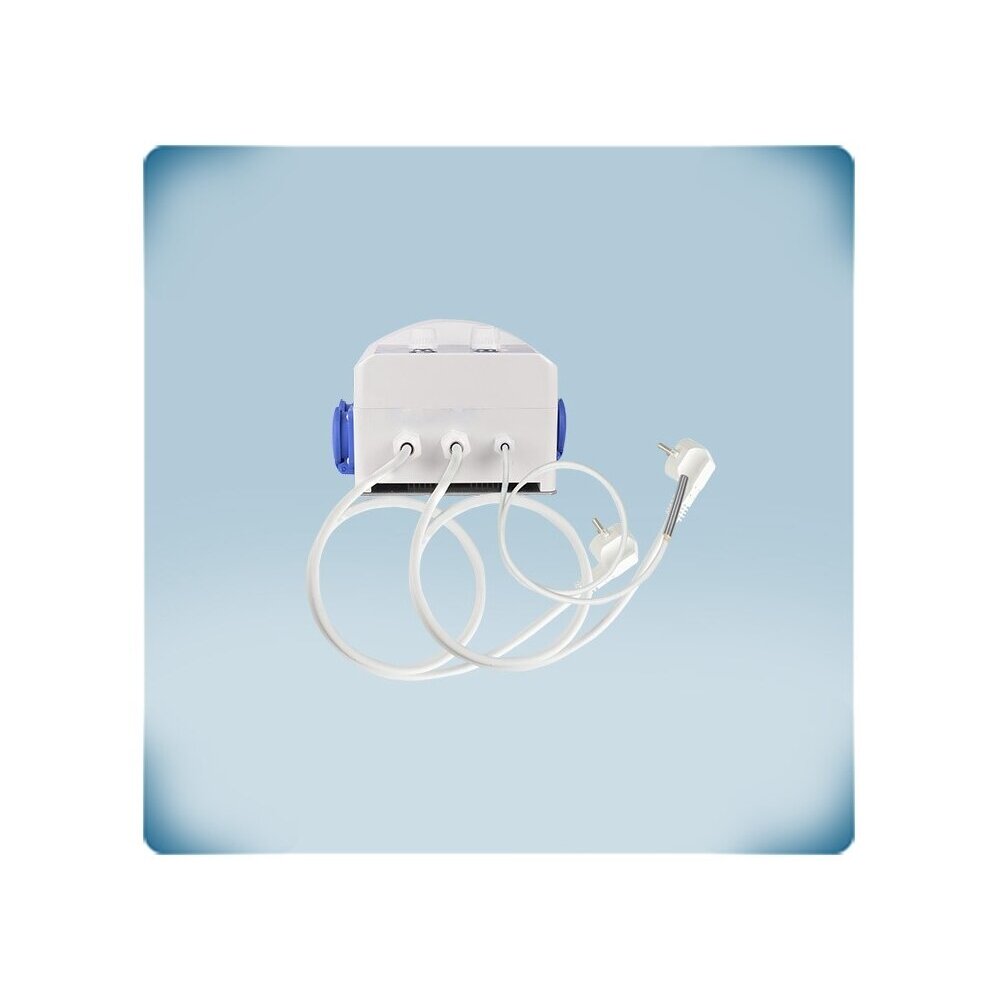

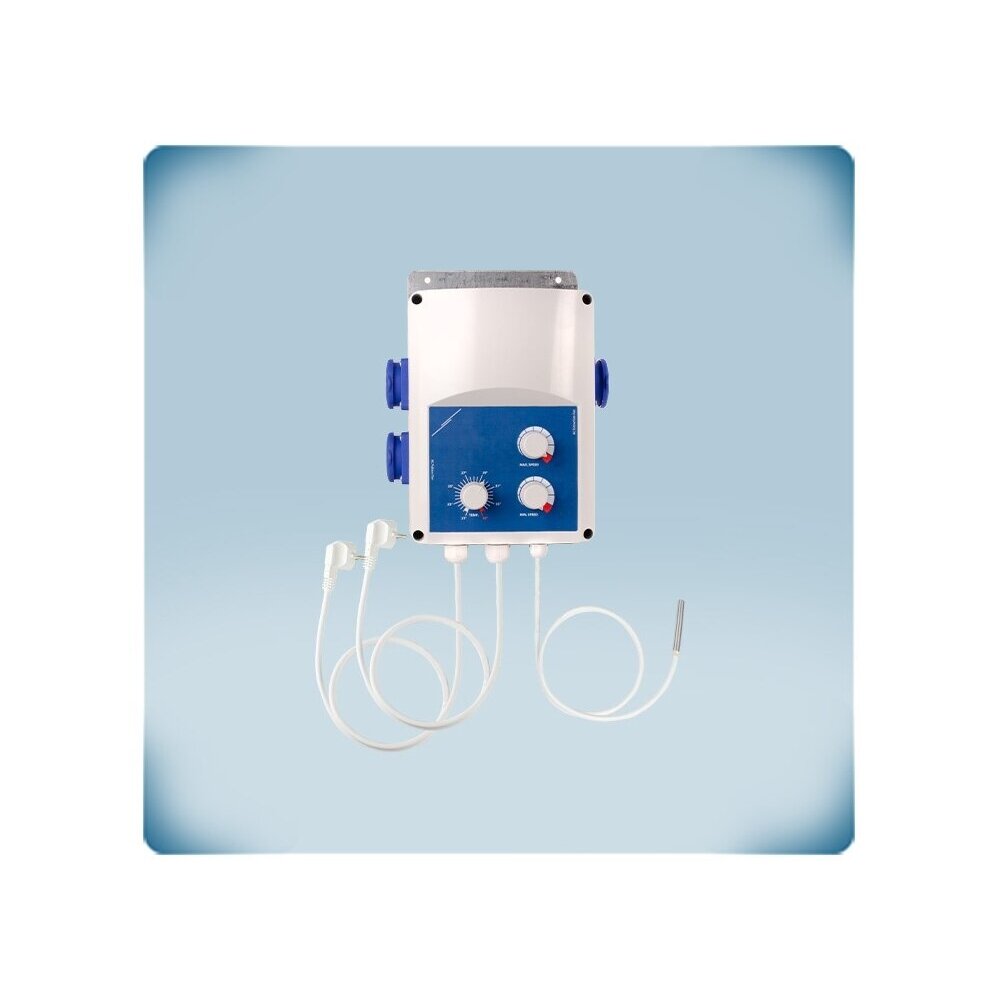

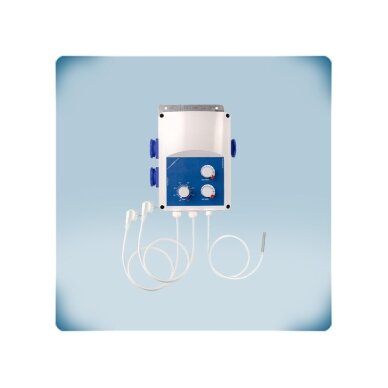

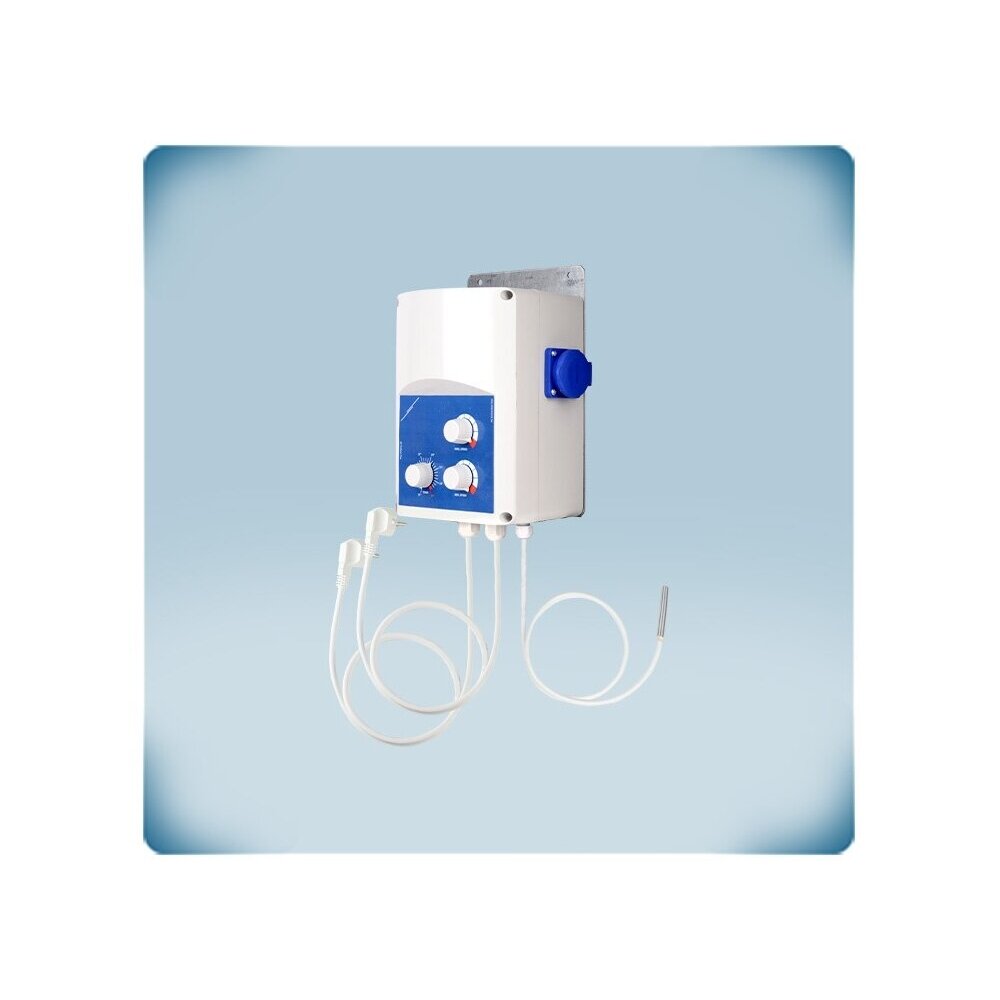

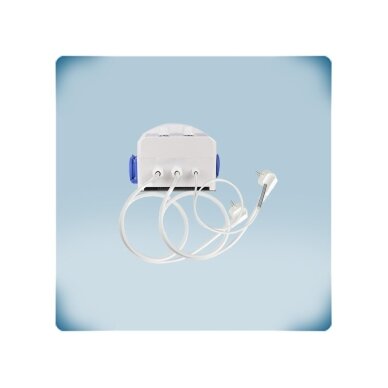

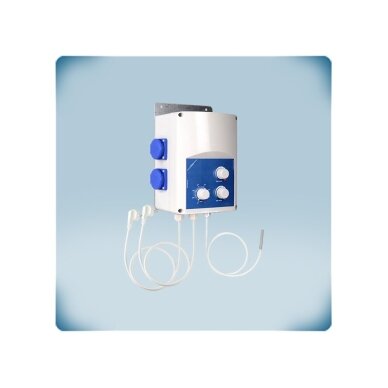

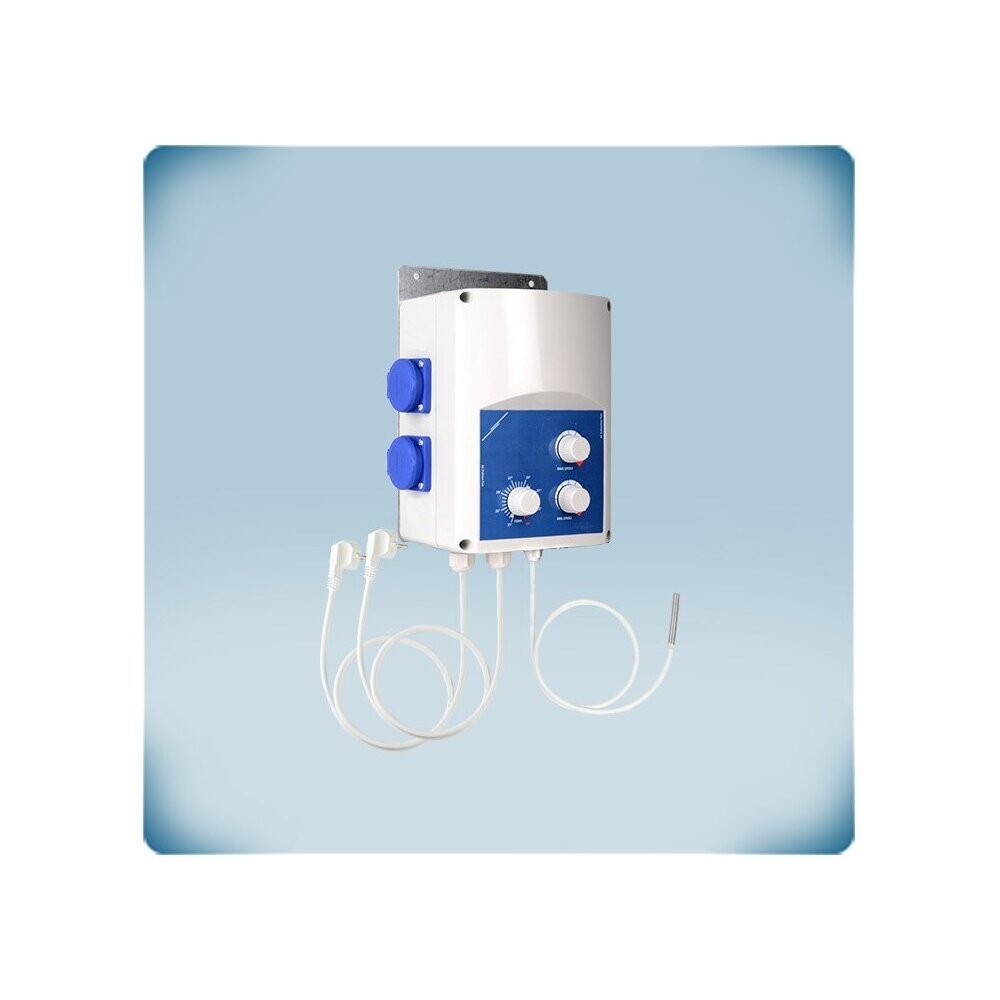

    The controller is fixed to the wall with its integrated plate and plugged into a socket outlet with a standard plug. The fans and heater are plugged into three Schuko sockets: extract fan, supply fan and heater.

    Temperature is measured by a PT500 capillary sensor (4 m cable). When the temperature exceeds the set value, the fan speed increases (proportional band 3 °C); when the temperature drops, the heater is switched on.

    Fan speed is controlled by phase angle between Vmin (80–160 VAC) and Vmax (180–230 VAC); settings are changed with potentiometers.

    Engineer's note: with an AC induction motor, reducing the voltage increases rotor losses, so the savings are lower than with an EC fan or a frequency inverter; when completely silent operation at low speed is essential, choose a transformer controller with a sinusoidal output voltage.

    Benefits GTEE1-60-DT?
    One device replaces a thermostat, two speed controllers and a heater switch – no electrician's work and no control panel.

    Technical specifications

    Product type Temperature-based fan and electric heater controller
    Manufacturer / code Sentera Controls / GTEE1-60-DT
    Supply voltage 230 VAC ±10 %, 50–60 Hz; 1.5 m cable with plug
    Fan current up to 6 A (total)
    Fan outputs 2 Schuko sockets (extract, supply), phase-angle control
    Vmin / Vmax 80–160 VAC / 180–230 VAC
    Heater output Schuko socket, 230 VAC, up to 16 A (3.6 kW), on / off switching
    Temperature sensor PT500 capillary, 4 m cable
    Setting limits 5–35 °C, proportional band 3 °C
    Control Potentiometers: temperature, Vmin, Vmax
    Protection Each socket with a separate fuse
    Protection class IP54
    Operating environment -10…+40 °C, 5–85 % rH
    Installation Wall-mounted, integrated board; indoor use only
    Weight 2.5 kg (net)
    Compliance LVD 2014/35/EU, EMC 2014/30/EU (EN 61000-6-2, EN 61000-6-3)

    Manufacturer documentation

    ✔ Recommended by Elektrotechnikos sprendimai

    Original manufacturer documentation – technical data, wiring diagrams and installation instructions.

    Main functions

    • Plug & play – the fans and heater are connected via Schuko sockets – no wiring required.
    • Temperature maintenance – as it gets warmer, ventilation increases; as it gets cooler, heating is switched on.
    • Two fan outputs – extraction and supply are controlled together.
    • Heater output 3.6 kW – an electric air heater.
    • Adjustable Vmin / Vmax – adapted to the specific fans.

    Where is it used?

    • Greenhouses
    • Barns, poultry houses, farm buildings
    • Warehouses and workshops where temperature must be maintained
    • Temporary premises, construction site facilities

    On-demand operation

    For the farmer.
    Plug in and it works – no electrician and no control panel.
    For the greenhouse owner.
    Automatic ventilation and heating based on temperature.
    For the installer.
    Minimal installation time.

    Application guide: how it is used in practice

    Typical GTEE1-60-DT applications:

    Site What is connected Result Installer's note
    Greenhouse Extract fan + electric heater Ventilation by day, heating by night – temperature is maintained automatically Install the sensor at plant height, not next to the heater
    Barn, poultry house Supply and extract fans Temperature-based ventilation intensity Set Vmin so that the minimum airflow is ensured
    Warehouse Extract fan + heater Prevents overheating or overcooling Heater power – up to 3.6 kW

    How to select the controller current

    Rated current of the motor(s) Recommended model
    up to 3 A GTEE1-30-DT (3 A)
    3–6 A GTEE1-60-DT (6 A) ← this model
    Rule: total rated fan current ≤ controller current; heater power – up to 3.6 kW (16 A).
    When to choose another solution: only the fan needs to be controlled by a 0-10 VDC sensor – EVS-1 series; for a water heater – GTH21 series (transformer-based); for EC fans – EC controllers.

    Pros

    • Plug & play via Schuko sockets
    • Ventilation and heating in one
    • PT500 sensor with 4 m cable
    • Heater up to 3.6 kW
    • IP54

    Cons / limitations

    • No display – settings via potentiometers
    • No Modbus
    • Only for single-phase voltage-controllable fans; not suitable for EC
    • Heater is only switched on / off
    • The output voltage is non-sinusoidal – some motors may hum audibly at low speed

    Safety and installation notes

    • Connect only to an earthed socket outlet with suitable protection.
    • Total fan current – no more than 6 A, heater – no more than 16 A.
    • Intended for indoor use only.
    • Protect the sensor from direct heater airflow and sunlight.

    Quick selection guide

    6 A fans
    3.6 kW heater
    5–35 °C
    Plug & play
    Suitable when you need:
    • to maintain temperature without a control panel or wiring;
    • to control ventilation and electric heating together;
    • for a greenhouse, barn or warehouse.
    Check before use:
    • the fan current and whether they are voltage-controllable;
    • the heater power (up to 3.6 kW);
    • whether the socket outlet can handle the total load.
    Important reminder: The total load on a single socket outlet can be high – check the circuit protection.

    FAQ

    What is the temperature setting range?
    5–35 °C, proportional band 3 °C.
    What heater can be connected?
    Electric, 230 VAC, up to 16 A (3.6 kW).
    Is an electrician required?
    No, the device is connected via a plug and Schuko sockets.
    What sensor?
    PT500 capillary, 4 m cable.

    Temperature-based fan speed and electric heater controller | 5-35°C | 6A | 230VAC | Schuko sockets | Sentera Controls | GTEE1-60-DT

    Sentera GTEE1-60-DT – plug & play temperature-based controller for fans (up to 6 A) and an electric heater (up to 3.6 kW), 5–35 °C, with PT500 sensor and Schuko sockets – for greenhouses and farm buildings.
