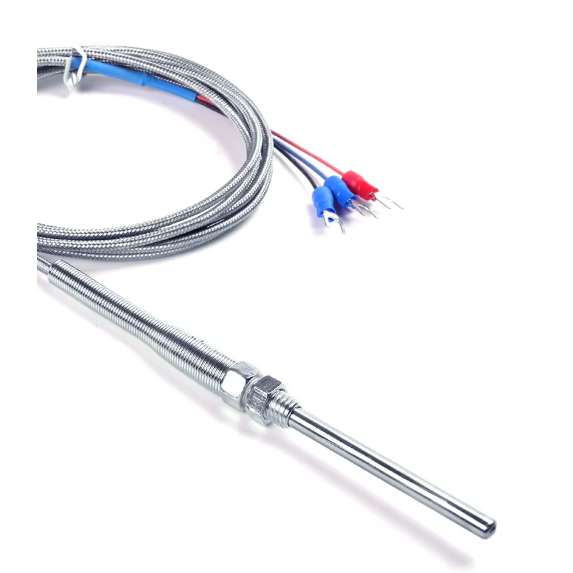

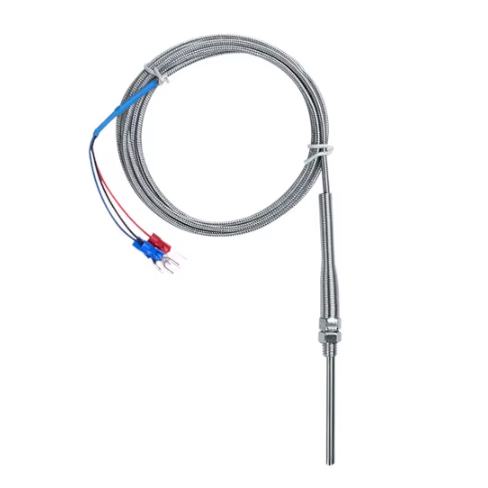

Temperature sensor | J-type thermocouple | 200 mm probe | M8 thread | 2 m cable | 0–400°C | stainless steel sensor | TAXNELE

Technical Specifications

Type: J type thermocouple
Temperature range: 0 ~ +400°C
Probe length: 200 mm
Thread: M8 x 1.25
Cable length: 2 m
Wire type: 2-wire
Probe material: stainless steel
Cable material: fiberglass insulation
Mounting: threaded mounting
Response time: fast
Interference resistance: high
Manufacturer: TAXNELE
Warranty: 18 months

Functions

Temperature measurement up to +400°C – suitable for medium temperature processes (heating, HVAC, manufacturing)
Fast response – the probe quickly reacts to temperature changes, ensuring accurate real-time monitoring
2-wire connection – simple and quick connection to J type controllers
Resistance to electromagnetic interference – stable measurements even in industrial environments
Stainless steel probe – resistant to corrosion, mechanical impact and temperature
Fiberglass cable – heat-resistant and suitable for higher temperature environments
M8 threaded mounting – easy and reliable installation into equipment or systems
2 m cable length – provides flexibility for installation in different locations
High reliability – long service life even under continuous thermal load

Applications

For household users: Temperature measurement of boilers, furnaces, heating system control, DIY projects with temperature control
For engineers / automation specialists: PLC and PID controller systems, industrial process temperature control, testing and measuring equipment
For electricians: Installation of temperature sensors into equipment, integration into automation panels, diagnostics and system maintenance
In industry: Furnaces, thermal equipment, plastic and metal processing, HVAC and ventilation systems

Advantages

Cost-effective solution
Sufficient accuracy for most tasks
Durable stainless steel probe
Easy installation (M8 thread)
Fast temperature response
Compatible with most standard J type systems

Disadvantages

Lower temperature range than K type (up to +400°C)
Lower accuracy compared to PT100 sensors
Compatible only with J type devices (limited compatibility)

Where can a J type thermocouple be used?

A J type thermocouple is widely used in heating systems, furnaces, boilers, HVAC equipment, production lines and automation where temperature does not exceed +400°C.

Is this sensor suitable for industrial equipment?

Yes, it is suitable for industrial systems, especially where stable and sufficiently accurate temperature measurement is required at medium temperatures.

Can it be used outdoors or in humid environments?

Yes, since the probe is made of stainless steel, but it is recommended to additionally protect the cable and connection points from moisture.

Is this sensor suitable for household systems?

Yes, it can be used in home heating systems, boilers, stoves or DIY projects where temperature monitoring is required.
