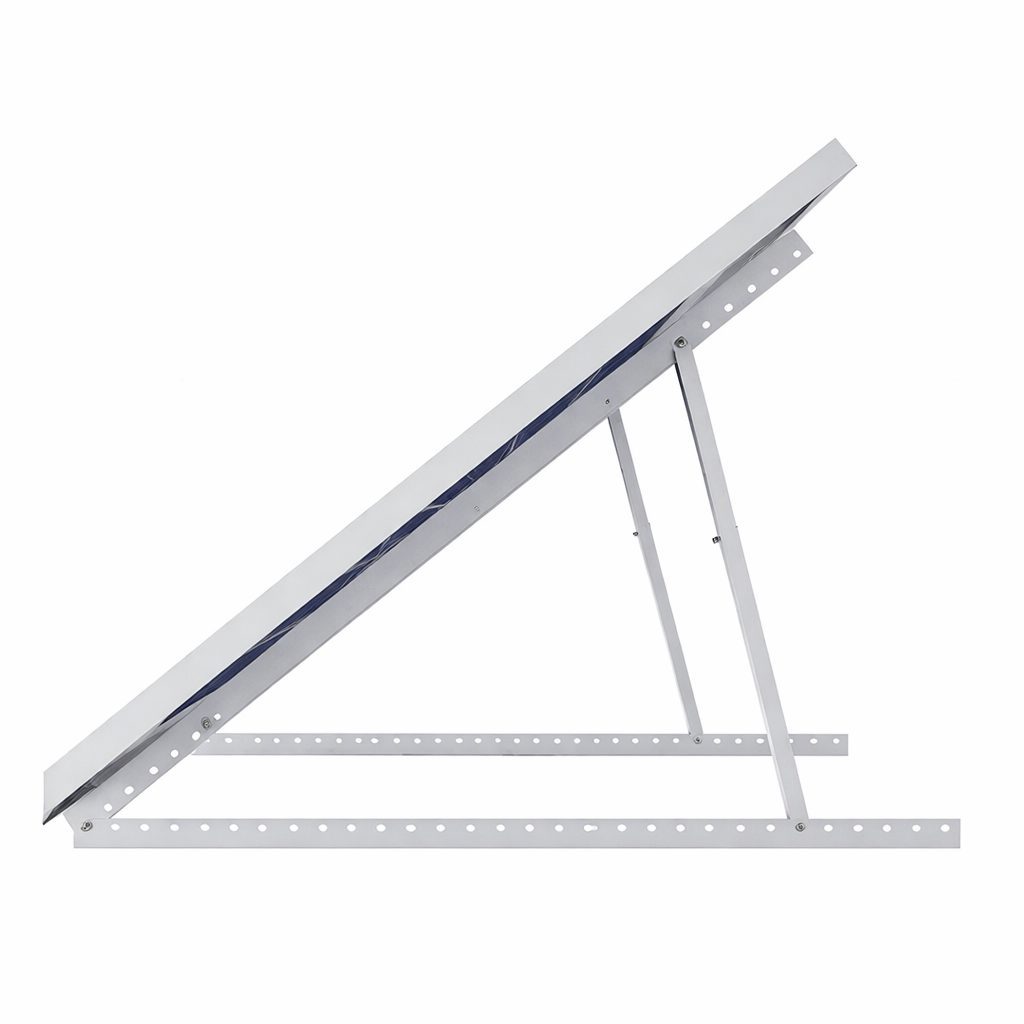

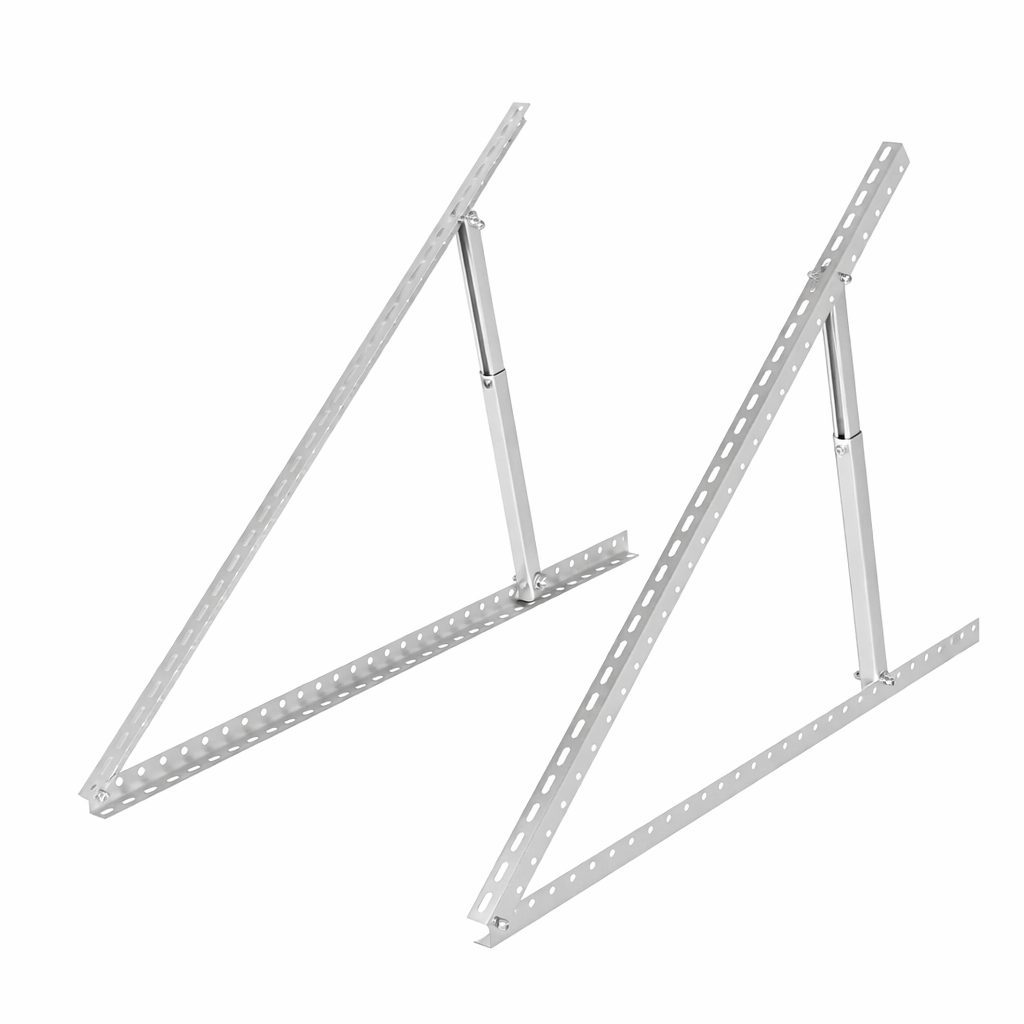

Triangular mounting structure for solar modules | adjustable | installation on flat roof | aluminum alloy | 10–60°

Technical Specifications

Type: Adjustable triangular mounting structure for solar modules
Mounting type: Installation on flat roofs
Structure type: Adjustable triangular mounting structure
Tilt angle: 10–15°; 15–30°; 30–60°
Material: Aluminum alloy
Surface treatment: Anodized surface
Color: Silver

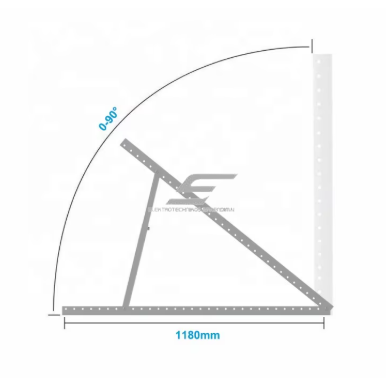

Dimensions: 1180 x 1180 x 525 mm
Wind resistance: up to 30 m/s
Snow load: 1.2 kN/m²
Standards: ASCE 7-10; EN1090; JIS8955:2017; IBC2009

Functions

Adjustable mounting angle – the ability to select different module tilt angles allows optimization of solar energy collection during different seasons of the year

Strong triangular structure – the geometrically stable triangular design ensures secure support of modules even in strong wind or snow load conditions

Corrosion resistance – the anodized aluminum surface protects the structure from moisture, oxidation, and environmental exposure

Lightweight and quick installation – the aluminum construction is lightweight, making transportation and installation simple and fast

Usage

For homeowners: An excellent solution for flat roof houses, garages, warehouses, or utility buildings. The adjustable angle helps increase the efficiency of a solar power system.

For electricians/installers: Allows quick installation of solar modules for customers, as the structure is simple, universal, and does not require complex installation work.

For engineers and designers: Compliance with international structural standards allows the structure to be used in professional solar energy system design projects.

Advantages

Adjustable module tilt angle
Resistance to strong wind and snow loads
Durable aluminum construction
Corrosion-resistant anodized surface
Fast and simple installation
Compatible with various types of solar modules
Service life up to 25 years

Disadvantages

Designed only for flat roofs
Additional mounting elements may be required depending on roof structure
The tilt angle is set during installation (not automatic adjustment)
