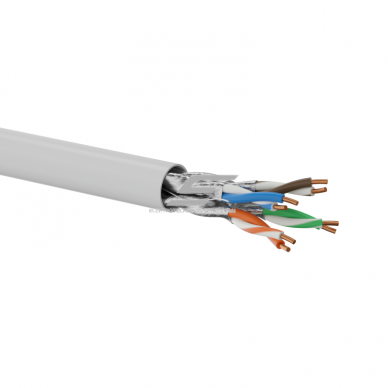

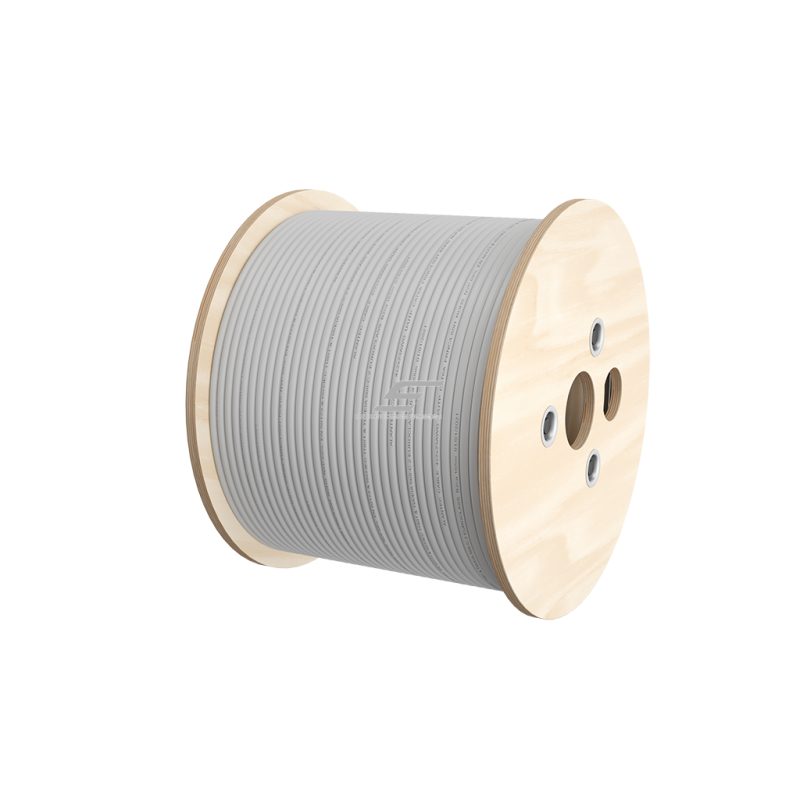

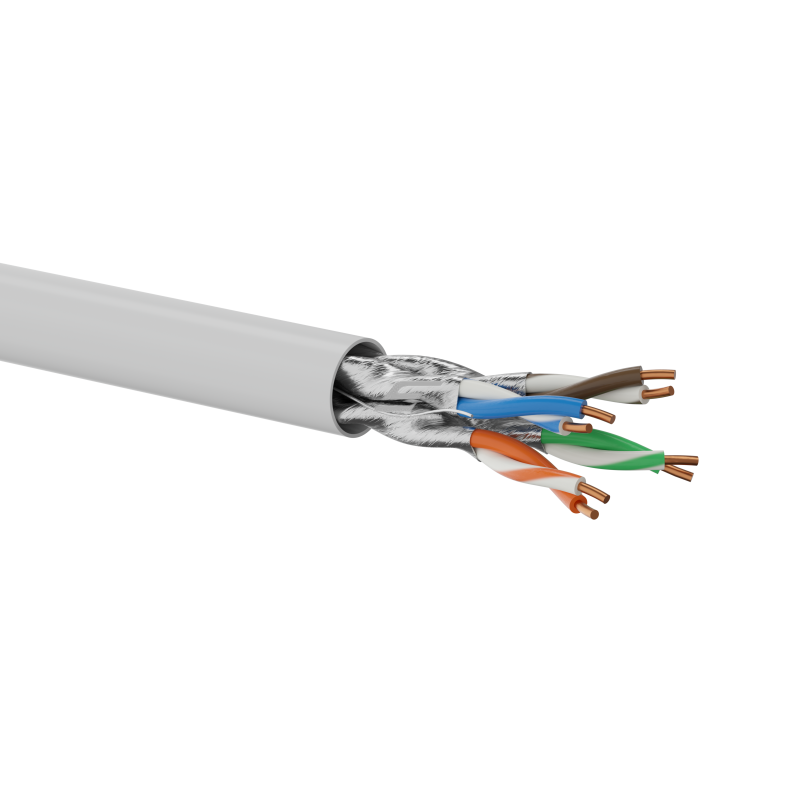

U-FTP Cable | 6A CAT | 4x2x23 AWG | shielded | copper | gray

Technical Specifications:
General Parameters:
Category: Cat.6A
Class: EA (500 MHz standard, extended characteristics up to 700 MHz)
Color: Gray
PoE Compatibility: IEEE 802.3bt (suitable for PoE and PoE+ power supply)

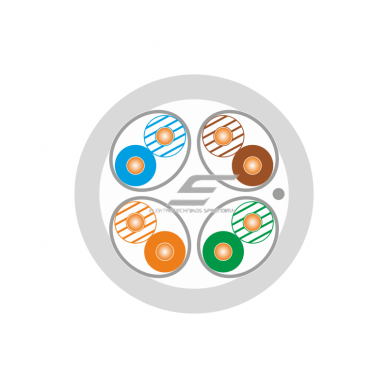

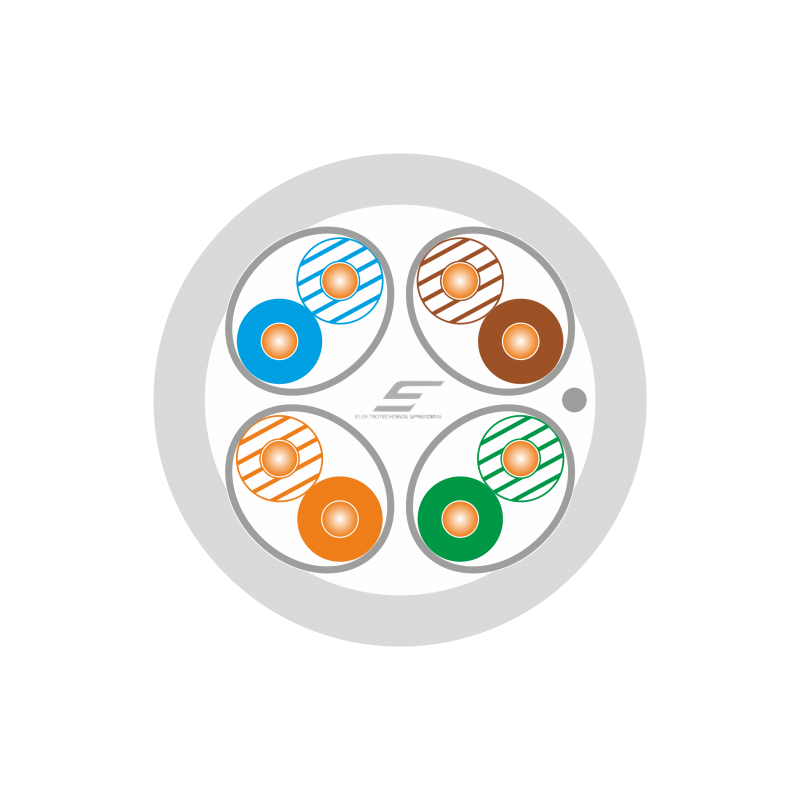

Construction:
Conductors: Solid copper, 0.57 mm diameter (23 AWG)
Insulation: Polyethylene
Shielding: Each pair shielded with aluminum foil, additional grounding wire
Sheath: Halogen-free, low-smoke, low-corrosion material (LSOH/FRNC)
Outer Diameter: 7.3 mm
Weight: 51 kg/km
Electrical Properties (at 20°C):
Line Resistance: ≤ 93.8 Ω/km
Insulation Resistance (500V): ≥ 5000 MΩ * km
Characteristic Impedance (1-1000MHz): 100 ± 15 Ω
Nominal Signal Propagation Velocity (NVP): 74%
Signal Delay: ≤ 535 ns/100m
Mechanical Properties:
Minimum Bending Radius: 4 × outer diameter
Maximum Tensile Force: 80N
Environmental Resistance:
Operating Temperature: -30°C to +75°C
Installation Temperature: 0°C to +50°C
Applications:
High-quality network installations – excellent for offices and industrial environments with high data traffic.
Security-sensitive areas – high CPR B2ca class allows installation in hospitals, schools, airports, shopping centers, and other public spaces.
Audio and video transmission – ideal for IPTV, VoIP telephony, cameras, or multimedia systems.
Offices, industry, public spaces – high B2ca fire safety class allows installation without additional protection, even in direct evacuation routes.
Electromagnetically polluted environments – shielded construction ensures stable operation near electrical and signal cables.
Horizontal and vertical network installations – can be installed in cable trays, ducts, or under plaster.
Features and Benefits:
High data transmission speed – supports up to 10 Gb/s, suitable for high-bandwidth networks.
Low crosstalk interference – each pair is individually shielded, ensuring better signal integrity.
High fire safety (CPR B2ca class) – suitable for direct use in evacuation routes without additional protection.
Shielded design with grounding wire – reduces electromagnetic interference (EMI) and increases reliability near power cables.
LSOH sheath – emits low smoke and minimal harmful gases in case of fire, protecting human health and sensitive equipment.
Drawbacks:
Not recommended for outdoor use – lacks additional moisture and UV protection.
Requires proper grounding system – due to the shielded construction, proper grounding is necessary to prevent signal distortion.
More complex installation than UTP cables – due to foil shielding, careful handling is required when connecting RJ45 modules or mounting in panels.
U/FTP cable is a high-quality data transmission solution designed for professional IT infrastructure installations and secure public spaces. Its advanced shielded construction ensures stable signal transmission, while the LSOH sheath enhances fire safety, making it an optimal choice for any network installation requiring reliability, speed, and durability.
