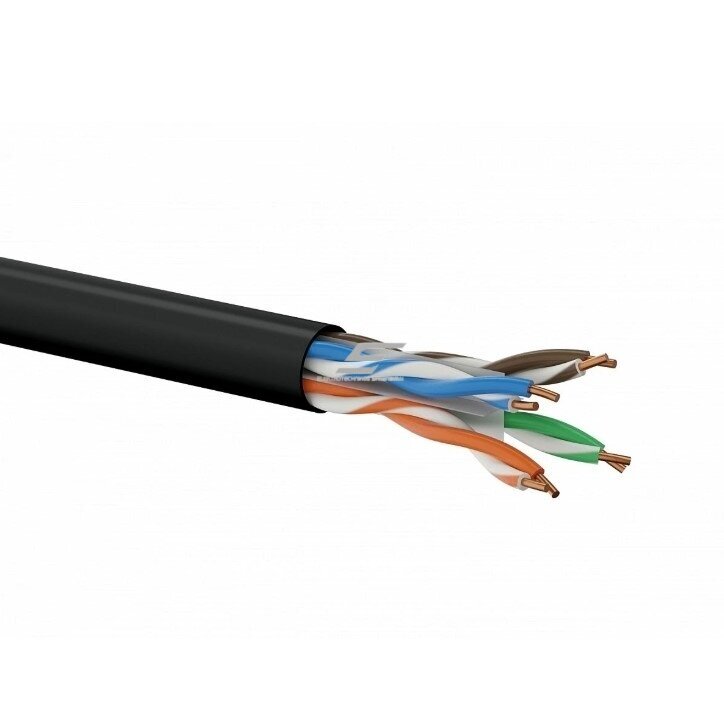

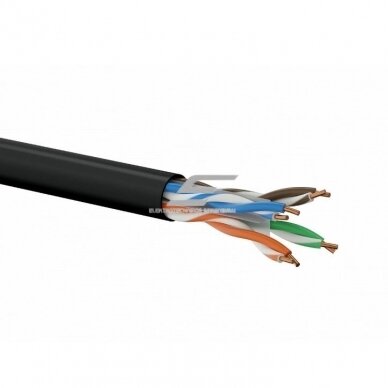

U-FTP Cable | 6A CAT | 4x2x23 AWG | shielded | copper | UV resistant | outdoor use | black

Technical Specifications
General Parameters
Category: Cat.6A
Standard: Class EA (500MHz) with extended characteristics up to 700MHz
Conductor Diameter: 0.57 mm (23 AWG) solid copper

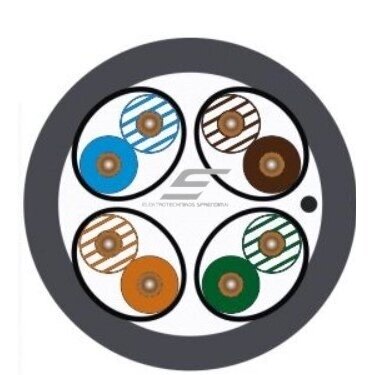

Shielding: U/FTP (Unshielded/Foiled Twisted Pair) – each pair wrapped in aluminum foil
Insulation: Polyethylene (PE), UV-resistant
Outer Diameter: 7.3 mm
Weight: 51 kg/km
Fire Classification CPR (Euroclass): Fca
Electrical Properties (20ºC)
DC Resistance: ≤ 93.8 Ω/km
AC Resistance: ≤ 2%
Insulation Resistance (500V): ≥ 5000 MΩ * km
Capacitive Resistance at 800 Hz: 48 nF/km
Characteristic Impedance (1-1000MHz): (100 ± 15) Ω
Signal Propagation Speed (NVP): 74%
Signal Delay: Nominally ≤ 535 ns/100m
Operating Temperature Range: -40°C to +60°C
Installation Temperature Range: -15°C to +50°C
Maximum Installation Parameters
Maximum Distance: 90 m (without additional connections, with two 5 m patch cables)
Minimum Bending Radius: 4 × outer diameter
Maximum Pulling Force: 80N
Features and Usage
10 Gigabit Ethernet (10GBASE-T) Support

Suitable for high-performance network infrastructure requiring stable and fast data transmission.
PoE++ (IEEE 802.3bt, 100W, Type 4) Support

Allows up to 100W power delivery over Ethernet (4PPoE), ideal for IP cameras, WiFi access points, VoIP phones, alarm, and access control systems.
Outdoor Installation Design

Resistant to moisture and UV radiation, suitable for direct outdoor use or in cable ducts
Black insulation resistant to dirt and environmental exposure
Electromagnetic Interference (EMI) Reduction

Aluminum foil shielding for each pair, enabling use near high-voltage lines or strong electromagnetic sources
Lower crosstalk compared to unshielded cables
Universal Suitability for Various Networks

Suitable for LAN, WAN, SAN, IP CCTV, and audio-video broadcasting.
Pros
High-quality 100% copper conductor – ensures low resistance and minimal signal attenuation
UV, moisture, and temperature-resistant – ideal for outdoor installations
U/FTP shielding – reduces interference and ensures stable data transmission
PoE++ 100W support – suitable for IP cameras, WiFi access points, and high-power devices
High data transfer speed – supports 10Gbps up to 90 meters
Durability and reliability – suitable for industrial, commercial, and home networks
Cons
Standard CPR classification Fca – cannot be used in buildings requiring higher fire resistance
May be harder to bend during installation
The U/FTP outdoor copper cable is a top-quality shielded network cable designed for 10Gbps Ethernet networks, IP CCTV systems, PoE devices, and outdoor installations. With excellent electromagnetic resistance and UV protection, this cable is the best choice for industrial and outdoor applications.
