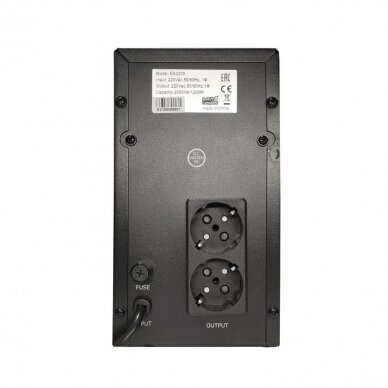

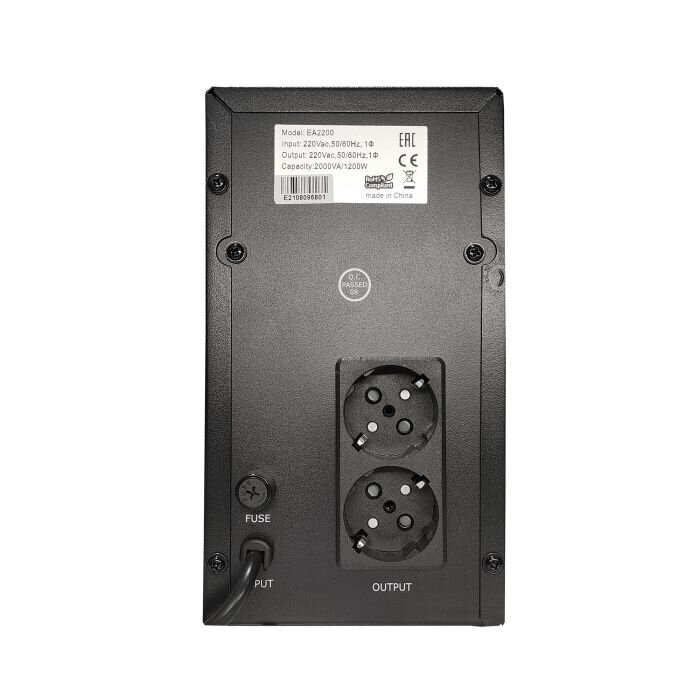

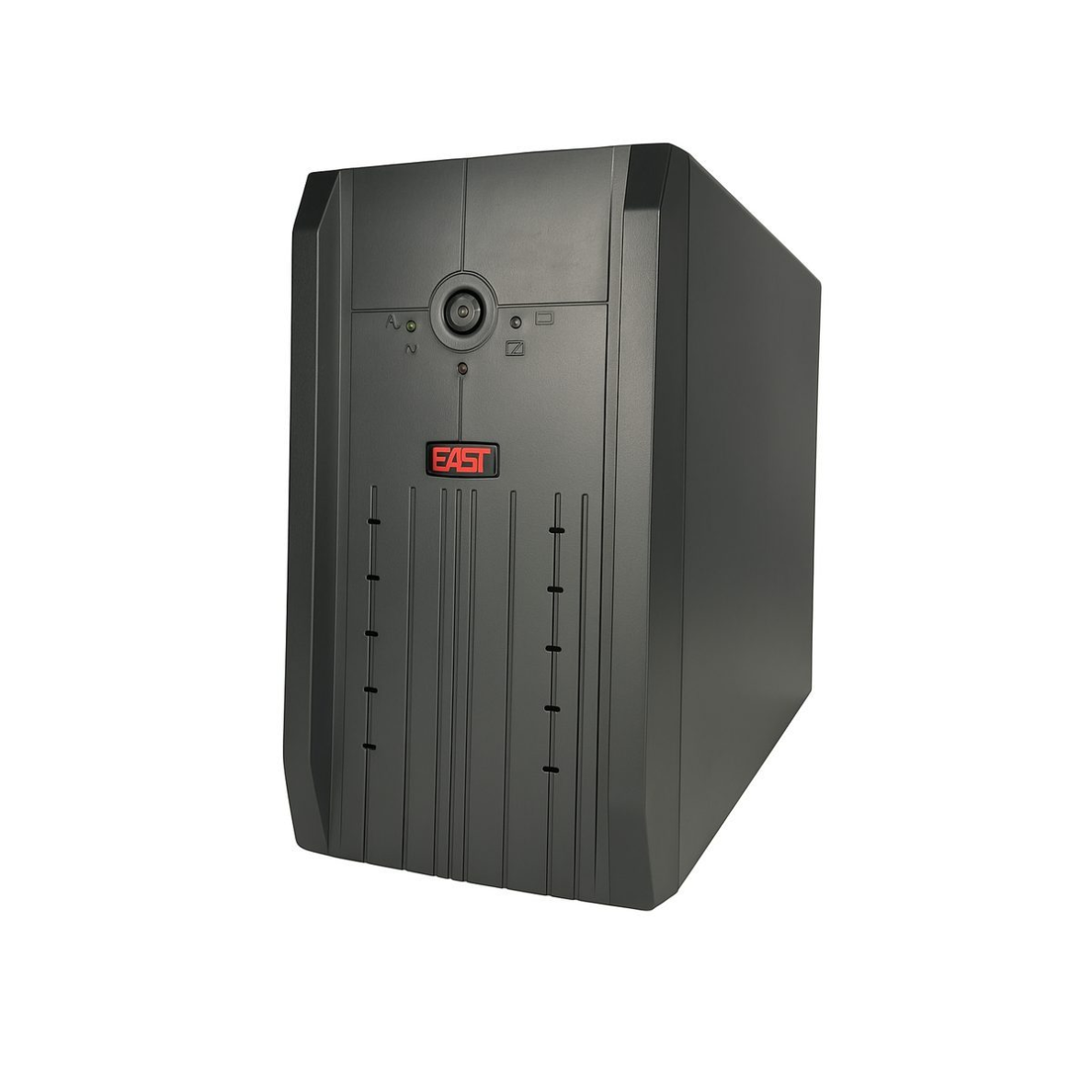

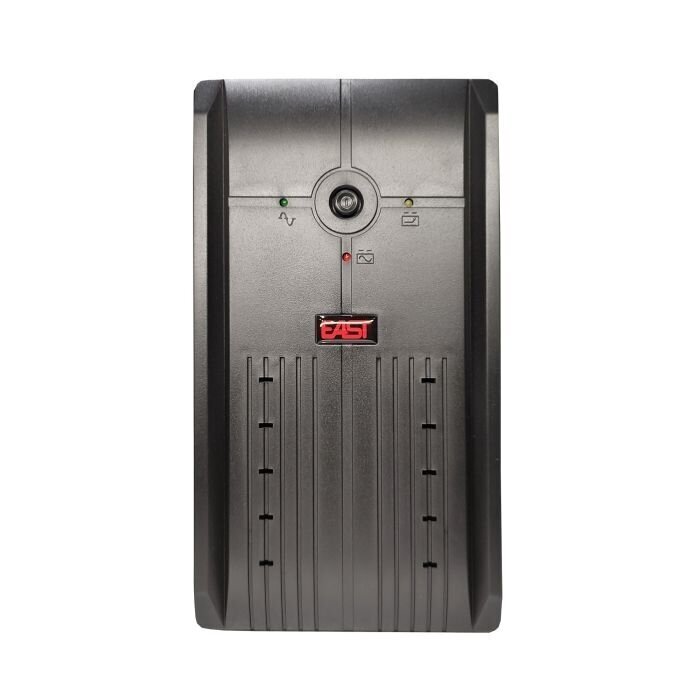

Uninterruptible Power Supply | UPS | 1200W | 2000VA | East EA2200

Technical specifications:

General:

Power: 2000 VA / 1200 W

Enclosure type: Tower

Display: LED indicators

Control: Microprocessor digital control

INPUT:

Voltage: 100/110/120V: 80 ~ 150VAC; 220/240V: 162 ~ 295VAC (optionally 145 ~ 295VAC in 220V mode)

Frequency: 50 / 60Hz ± 10% (auto detection)

OUTPUT:

Voltage: 100/110/120V ± 10% or 220/230/240V ± 10%

Frequency: 50 / 60Hz ± 1% (auto detection)

Waveform: Line mode – pure sine wave; Battery mode – simulated sine wave

Transfer time: 2–7 ms (typical), up to 10 ms (max)

BATTERIES:

Voltage: 24 V (2 x 12V / 9 Ah)

Charging time: 6–8 hours (up to 90% capacity)

Battery management: Intelligent battery management system with temperature compensation and 3-stage charging

PROTECTIONS AND FEATURES:

Protection from: short circuit; battery overcharge / deep discharge; overload; surges

Voltage stabilization with Boost and Buck AVR

Automatic frequency detection

Cold start function (startup without mains)

Auto restart when mains power returns

Automatic synchronization with mains phase – reduces switching time and wave transition

Charging in OFF mode

Unattended shutdown via RS232/USB

Additional features: RS232 / USB / SNMP communication interfaces (optional); RJ11 / RJ45 line protection; No-load shutdown option

Software compatible with: Windows 98 / 2000 / 2003 / XP / Vista / 2008 / Windows 7 / 8 / 10

PHYSICAL DATA:

Dimensions (WxDxH): 125 × 380 × 225 mm

Weight: 12.9 kg (net) / 13.3 kg (gross)

Humidity: 20 ~ 90 % RH (non-condensing)

Operating temperature: 0 ~ 40 °C

Noise level: ≤ 45 dB (at 1 m)

Key Features:

LED display showing system status

Digital microprocessor control – higher accuracy and efficiency

Automatic frequency detection (50 / 60 Hz)

Automatic voltage regulation (AVR)

Protection from power disturbances: surges, short circuits, overloads

Automatic charging even when UPS is off

Synchronized phase – reduced switching load

Computer interface with automatic emergency shutdown

Applications:

Workstation protection (computers, monitors, peripherals)

Power supply for servers and network equipment

Home offices

IT infrastructure protection from power disturbances

POS systems, ATMs, medical devices (non-life-supporting)

Pros:

High power (2000VA / 1200W)

Wide voltage ranges – suitable for both 110V and 230V grids

LED display and intuitive control

AVR stabilization – protects equipment from fluctuations

Compact tower-type design

USB/RS232/SNMP support

Compatible with various Windows versions

Quiet operation (≤ 45 dB)

Cons:

Limited battery runtime under load (depends on load size)

Simulated sine wave in battery mode – may be unsuitable for highly sensitive equipment

Rack version is slightly heavier and bulkier

No built-in LCD screen with textual information
