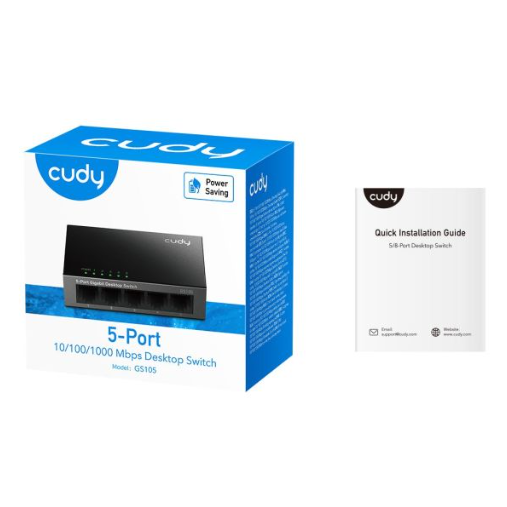

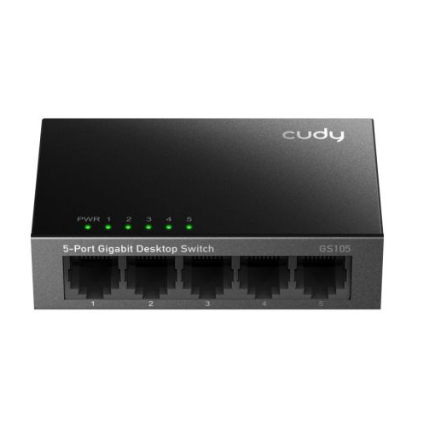

  •   Gigabit Ethernet switch 5 ports | wired network expansion | 10Gbps | 7.44Mpps | 1000Mbps | Plug & Play | unmanaged | SWITCH CUDY GS105
      Gigabit Ethernet switch 5 ports | wired network expansion | 10Gbps | 7.44Mpps | 1000Mbps | Plug & Play | unmanaged | SWITCH CUDY GS105 1
      Gigabit Ethernet switch 5 ports | wired network expansion | 10Gbps | 7.44Mpps | 1000Mbps | Plug & Play | unmanaged | SWITCH CUDY GS105 2
      Gigabit Ethernet switch 5 ports | wired network expansion | 10Gbps | 7.44Mpps | 1000Mbps | Plug & Play | unmanaged | SWITCH CUDY GS105 3

    Gigabit Ethernet switch 5 ports | wired network expansion | 10Gbps | 7.44Mpps | 1000Mbps | Plug & Play | unmanaged | SWITCH CUDY GS105

    Code: SWITCHCUDYGS105
    Inquire about this item
    Price 11.50 € VAT incl.
    ( 9.50 € VAT excl. )
    Want another price? Suggest yours!

    A compact, reliable, and cost-efficient 5-port gigabit Ethernet switch designed for both home and professional use.
    The switch allows you to easily and quickly expand your wired network infrastructure, ensuring data transfer speeds of up to 1000 Mbps, stable connectivity, low latency, and fully automatic port operation.

    This is an ideal solution for homes, small offices (SOHO), video surveillance cameras, IP telephony, computers, TVs, consoles, and various network devices where simplicity, speed, and reliability are essential.

  • Product description

    Technical Specifications

    Standards: IEEE 802.3i, 802.3u, 802.3ab, 802.3x, 802.3az
    Ports: 5 × 10/100/1000 Mbps Auto-Negotiation, Auto-MDI/MDIX
    Max cable length: 100 m. 10BASE-T: Cat3/4; 100BASE-TX: Cat5/5e; 1000BASE-T: Cat5/5e/6
    Switching method: Store-and-Forward
    MAC address table: 2K
    Switching capacity: 10 Gbps
    Packet forwarding rate: 7.44 Mpps
    Buffer: 3 Mbit
    Jumbo Frame: 15 KB
    VLAN support: 4K
    Power supply: DC 5V 1A
    Dimensions: 87 × 54 × 23 mm
    Operating temperature: -10…+50 °C
    Storage temperature: -40…+70 °C
    Humidity: 10–90% (operating), 5–95% (storage), non-condensing

    Features

    Gigabit speed (1000 Mbps): ideal for large files, 4K streaming, cameras, gaming.
    Auto-MDI/MDIX: eliminates need for crossover cables – plug and play.
    Store-and-Forward architecture: maximum reliability and packet error checking.
    Non-blocking switching: full-speed performance on all ports.
    Plug & Play: no configuration or software required.
    Energy efficient: IEEE 802.3az Energy Efficient Ethernet (EEE).
    High stability: ideal for continuous operation (cameras, servers).
    Compact metal housing: durable, resistant to temperature changes and vibration.

    Usage

    Home users: expanding router ports, Smart TV, PCs, consoles, IPTV, stable gaming and 4K/8K streaming.
    Engineers / IT specialists: test benches, laboratory network segmentation, server or NAS connection, office network expansion.
    Electricians / technicians: IP cameras (via PoE injector), DVR/NVR systems, office/industrial wiring, fast expansion of network points.

    Pros

    Easy to use – Plug & Play
    5 gigabit ports with auto settings
    Compact and durable metal casing
    Ideal for IP cameras and 24/7 use
    Energy efficient and silent (fanless)
    High switching capacity – 10 Gbps

    Cons

    No managed features (VLAN, QoS) – same as typical unmanaged switches
    Powered by 5V adapter, no PoE support

    Illustrative image may have been created using AI. The appearance of the product may differ slightly from the image shown. Please refer to the technical specification.
