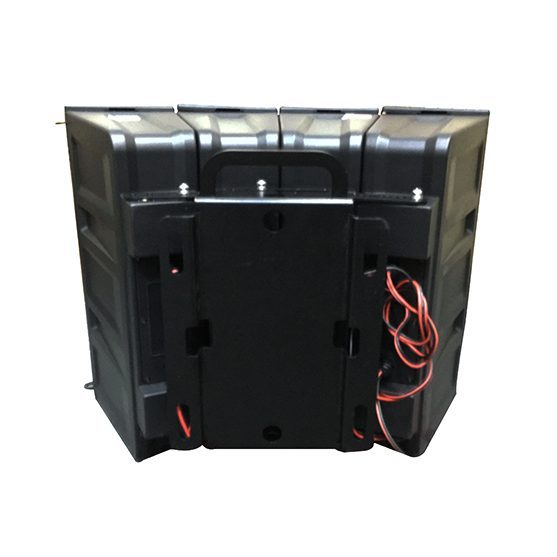

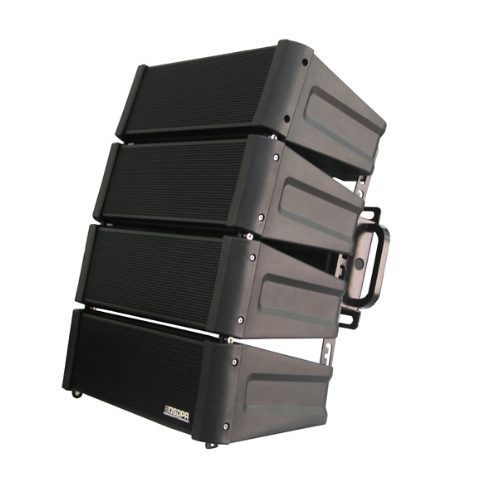

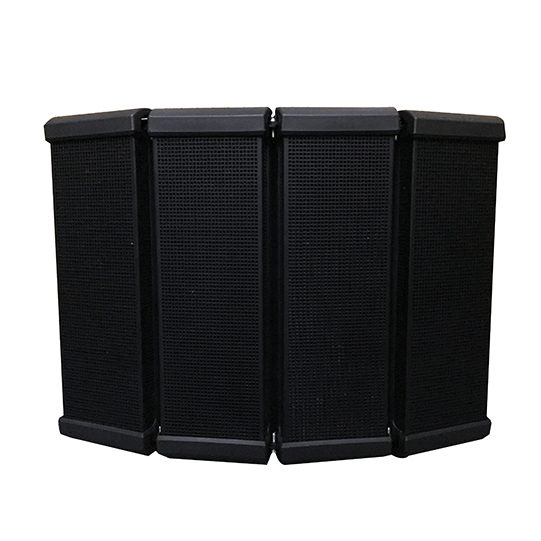

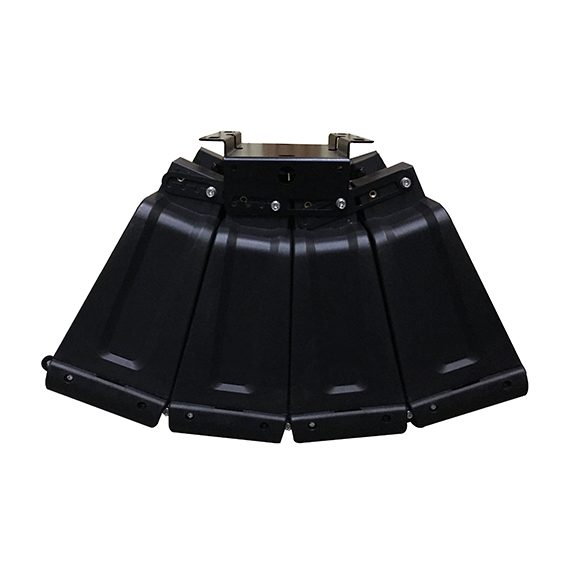

Wall-mounted linear speaker | Waterproof | 100V | 200W | Adjustable vertical angle | 4×5" woofer + 1×1" tweeter

Wall-mounted linear speaker | Waterproof | 100V | 200W | Adjustable vertical angle | 4×5" woofer + 1×1" tweeter 1

Wall-mounted linear speaker | Waterproof | 100V | 200W | Adjustable vertical angle | 4×5" woofer + 1×1" tweeter 2

Wall-mounted linear speaker | Waterproof | 100V | 200W | Adjustable vertical angle | 4×5" woofer + 1×1" tweeter 3

Wall-mounted linear speaker | Waterproof | 100V | 200W | Adjustable vertical angle | 4×5" woofer + 1×1" tweeter

Code: LA1512

Inquire about this item

Add to compareRemove from comparison Compare goods (0)

Price 907.50 € VAT incl.

( 750.00 € VAT excl. )

Want another price? Suggest yours!

Wall-mounted linear loudspeaker designed for high-power outdoor and indoor sound systems where high sound pressure, clear speech intelligibility, and precisely controlled sound dispersion are required. The integrated 100V transformer allows easy deployment in large-scale installations with long cable runs and multiple connected loudspeakers.

Thanks to its weatherproof construction, 122±2 dB SPL, wide 70 Hz–20 kHz frequency response, and adjustable vertical directivity, this loudspeaker is ideal for stadiums, arenas, airports, railway stations, industrial yards, and public outdoor areas. It is a solution for professional projects where top-level control and reliability are essential.

Product description

Technical Specifications
Manufacturer: DSPPA
Model: LA1512
Type: Linear (Array) loudspeaker
Power (RMS): 200 W
Connection: 100V line system
Frequency response: 70 Hz – 20 kHz
Maximum SPL: 122 ± 2 dB
Sensitivity: 99 ± 2 dB
Drivers: 4 × 5" woofers + 1 × 1" tweeter
Vertical directivity control: Adjustable angle 15° – 60°
Protection: Weatherproof construction
Application: High-power PA, evacuation and announcement systems

Functions
Linear array design – uniform sound dispersion over long distances, reduced sound pressure loss with distance, clear announcements in large spaces
Adjustable vertical sound beam angle for precise sound direction control
100V system – simplified infrastructure, allows connecting many loudspeakers on one line without complex impedance calculations
122 dB SPL – powerful and clear sound, announcements clearly audible even in noisy environments

Use
For household users: The loudspeaker is intended for professional and infrastructure use, not for domestic applications
For engineers and system integrators: Ideal for stadiums and sports arenas, airports and stations, concert and mass-event venues, city announcement systems, industrial areas
For electricians/installers: 100V system simplifies cabling, modular design allows convenient wall or structural mounting, adjustable angle enables precise system tuning after installation

Pros
Linear array technology – professional sound coverage
200 W power and 122 dB SPL
Adjustable vertical directivity (15°–60°)
Weatherproof construction – suitable for outdoor use
100V system – ideal for large-scale projects

Cons
Designed only for professional installations
Requires system design and professional installation
Not suitable for small rooms or domestic use

Illustrative image may have been created using AI. The appearance of the product may differ slightly from the image shown. Please refer to the technical specification.

CE certificate – a guarantee of safety, quality, and compliance

This product is marked with the CE label, which confirms that it complies with all applicable European Union directives and regulations. CE marking is not just a formality – it is an important indicator of quality and safety, ensuring that the product has been properly assessed, tested, and can be safely used throughout the EU market.

CE certification means that the product has been evaluated according to the main criteria:

Safety requirements – ensures that the product does not pose a risk to the user or the environment
Electromagnetic compatibility (EMC) – the device does not interfere with other equipment and is resistant to external disturbances
Environmental standards – complies with current ecological and material usage requirements
Operational reliability – the product is suitable for long-term use according to its intended purpose

CE marking allows this product to:

be legally supplied and used in all European Union countries
ensure a high level of quality and safety
be used in residential, commercial, and industrial environments

The CE mark is a declaration of the manufacturer’s responsibility, confirming that the product complies with all applicable standards and has been assessed according to EU legislation.

What does this mean for you as a buyer?

Safe use in everyday activities
Reliable performance and reduced risk of failure
Compliance with EU standards and requirements
Suitability for professional solutions
