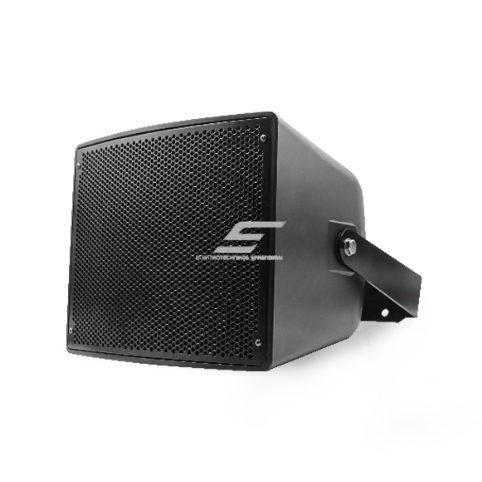

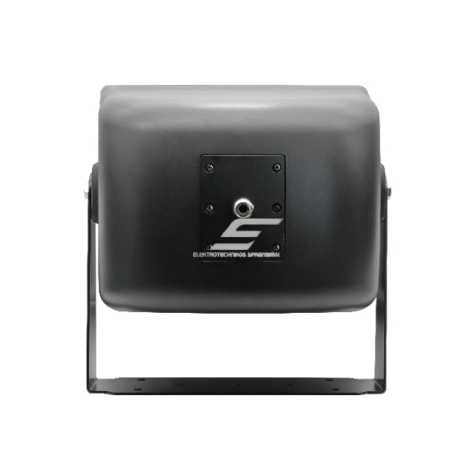

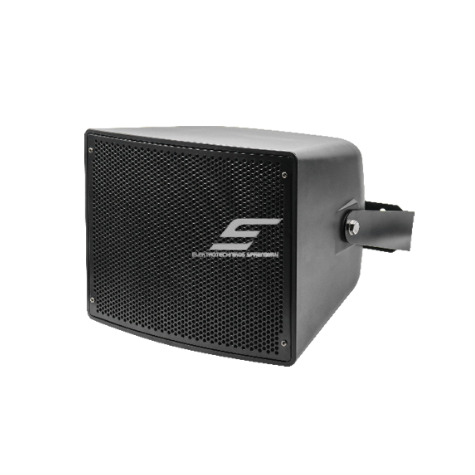

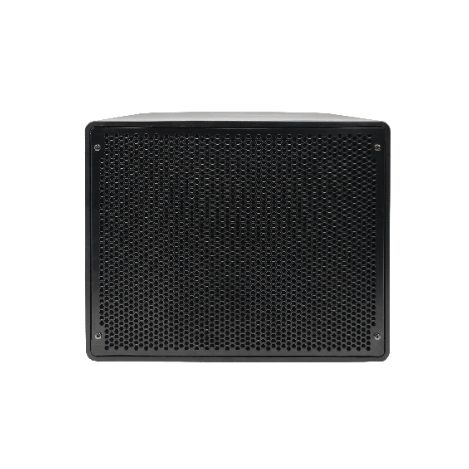

Wall-mounted speaker | 70V/100V/8Ω | 120W | <110° sound dispersion | 1x8" woofer + 1x1.5" tweeter

Technical Specifications

Manufacturer: DSPPA
Model: DSP3008H
Speaker size: 8" + 1.15"
Rated power (100V): 15W / 30W / 60W / 120W
Rated power (70V): 7.5W / 15W / 30W / 60W / 120W
Rated power (8Ω): 120W
Sensitivity: 95 ± 2 dB
Dispersion angle: <110°
Frequency range: 80 Hz – 18 kHz
Protection rating: IP65 – dustproof and resistant to heavy rain
Housing material: ABS with aluminum grille
Application: Indoor and outdoor commercial installations

Functions

Three operating modes: 100V, 70V, and 8Ω — suitable for large-scale 100V line systems, medium-size 70V commercial installations, and direct 8Ω connection to professional amplifiers.
IP65 protection – suitable for harsh outdoor conditions.
Wide 110° sound dispersion for large areas and even coverage.
1x8” + 1x1.5” coaxial speaker system delivering balanced voice, background music, and clear announcements.

Usage

For household users: Ideal for large terraces, yards, pool areas; water-resistant, no additional protection required.
For engineers: Perfect for 100V public address and evacuation systems; versatile power options allow zone distribution in commercial buildings such as shopping malls, hotels, stadiums, logistics centers.
For electricians: Easy wiring options — 100V, 70V, and 8Ω; IP65 housing simplifies outdoor installation; durable ABS enclosure resists dirt and deformation.

Pros

100V / 70V / 8Ω — one model for all projects

IP65 weather resistance

1x8” + 1x1.5” system — powerful and clear sound

120W power (8Ω)

Wide frequency range: 80–18 kHz

Cons

Larger size compared to standard indoor speakers

Requires a professional amplifier for all modes
