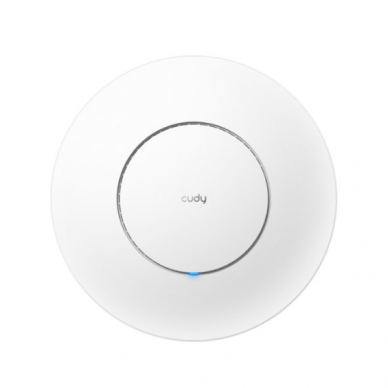

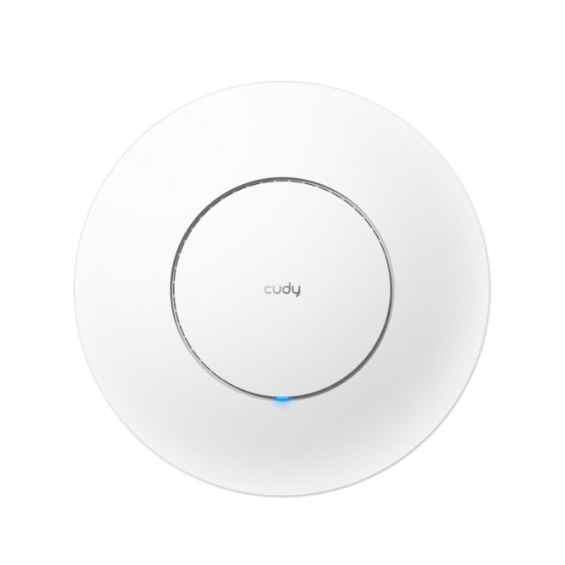

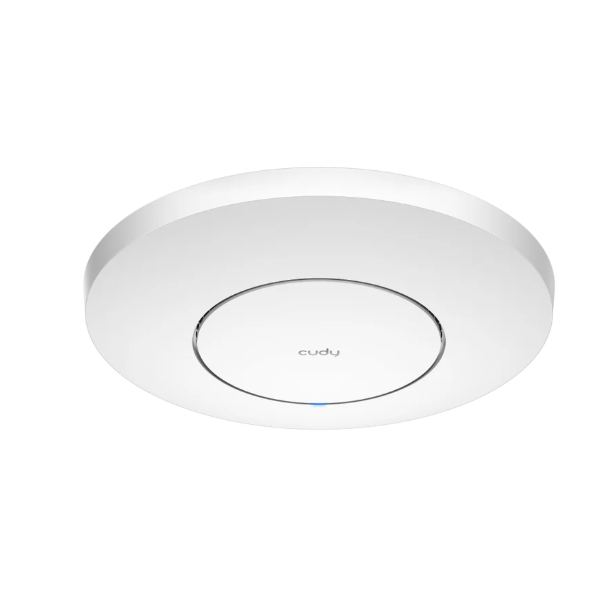

Wall/Ceiling Access Point | Wireless Network Transmitter | Wi-Fi 5 | 2.4 GHz + 5 GHz | Up to 1167 Mbps | PoE Powered

Technical Specifications

Type: Wireless access point
Wi-Fi standard: Wi-Fi 5 (802.11ac)
Frequency bands: 2.4 GHz + 5 GHz
Max. wireless speed: 2.4 GHz – up to 300 Mbps; 5 GHz – up to 867 Mbps
MIMO technology: 2×2 MIMO (2T2R)
Beamforming: Yes
Antennas: 4 × internal
Antenna gain: 2.4 GHz – up to 5.31 dBi; 5 GHz – up to 4.64 dBi
FEM / PA / LNA: 2.4 GHz – 2 × internal; 5 GHz – 2 × internal
CPU chipset: MT7621DAT
Processor: 880 MHz, Dual-Core
Flash / ROM: 16 MB (128 Mbit) NOR
RAM: 128 MB DDR3 (1 Gbit)

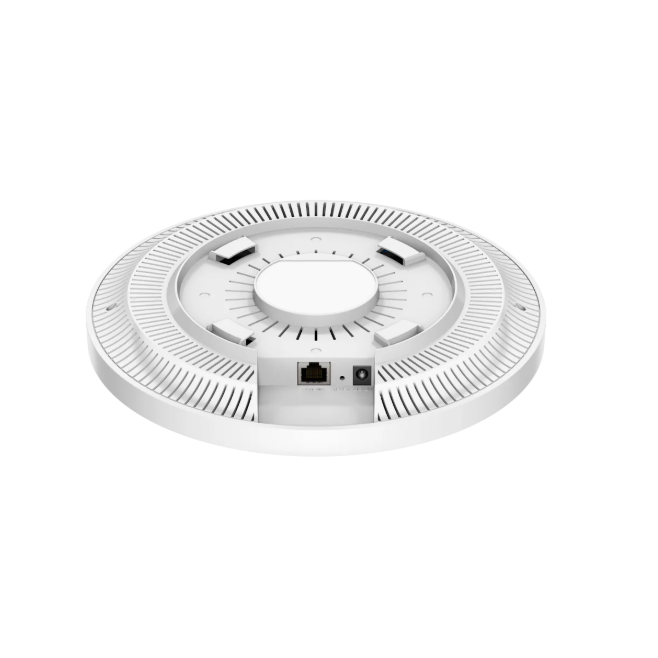

Ethernet ports: 1 × Gigabit RJ45
PoE support: Yes (via Ethernet)
Power options: 802.3af / 802.3at PoE; Passive PoE (24–57 V); 12 V DC (1 A)
Max. power consumption: via PoE – up to 11 W; via DC – up to 7.5 W
Standby power: ~4.0 W
Max. operating range: up to 170 m (environment dependent)
Wall penetration: 2 wooden walls (<10 cm); 1 concrete wall (<20 cm)
Operating temperature: –10 °C to +65 °C
Operating humidity: 10–90% (non-condensing)
Hardware watchdog: Yes
ESD protection: Contact: 4 kV; Air: 8 kV
Certifications: CE, FCC

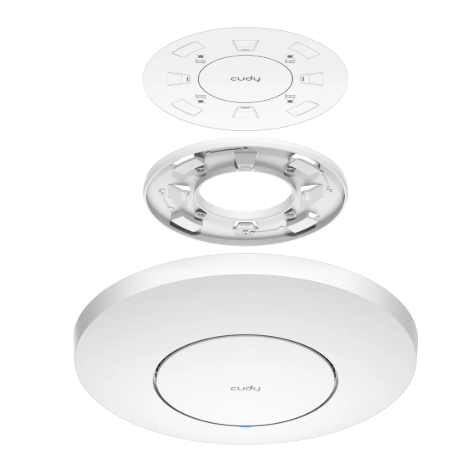

Mounting: Wall or ceiling
Dimensions: Ø231.9 × 57.1 mm
Weight: ~400 g

Functions

Stable dual-band Wi-Fi connection with minimal interference
2×2 MIMO technology for higher throughput
Beamforming for directional signal enhancement
Gigabit Ethernet connection
Flexible power supply: PoE or DC
Wide operating temperature range
Suitable for continuous 24/7 operation
Easy installation and maintenance

Applications

Household users: Ideal for larger homes or apartments, stable connection for streaming, remote work and smart devices; ceiling installation for a clean interior without extra cables; more reliable than standard routers
Engineers / IT administrators: Stable 24/7 operation, hardware watchdog for added reliability, suitable for designing indoor wireless networks, compatible with various PoE solutions
Electricians: Fast and straightforward installation, PoE reduces cabling, clean installation, wall or ceiling mounting, reliable operation in different environments

Advantages

Dual-Band Wi-Fi 5 (2.4 + 5 GHz)
High speed – up to 1167 Mbps
2×2 MIMO and Beamforming
Support for PoE (802.3af/at) and Passive PoE
Wide operating temperature range
Reliable operation with low power consumption
Wall or ceiling mounting

Disadvantages

No Wi-Fi 6 support
Only one Ethernet port
No integrated management display
