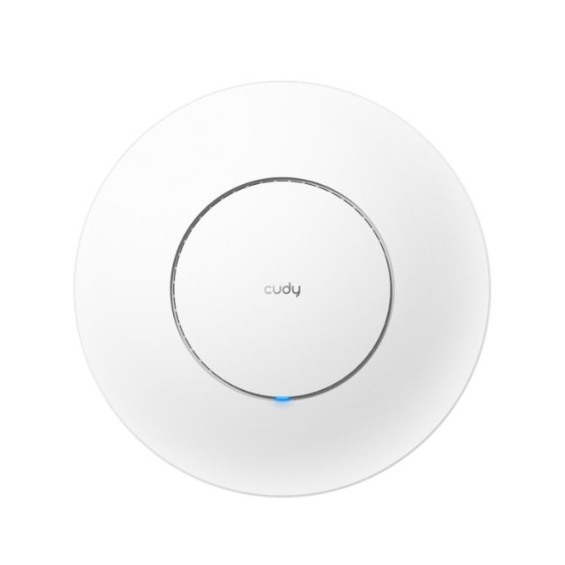

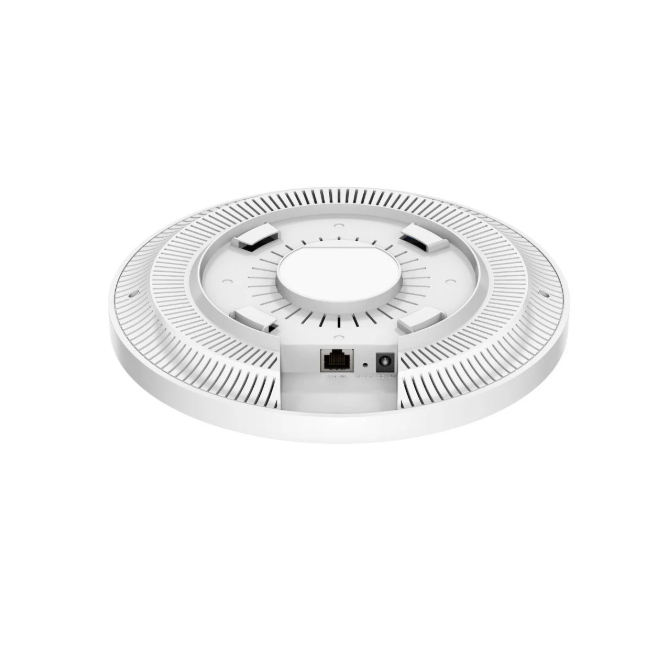

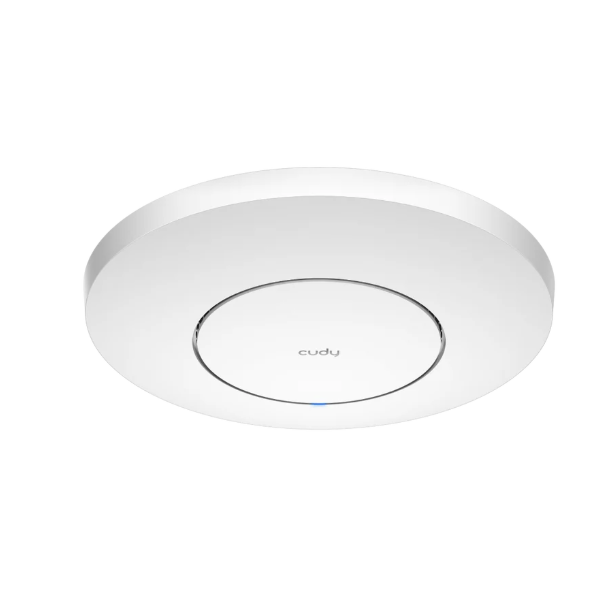

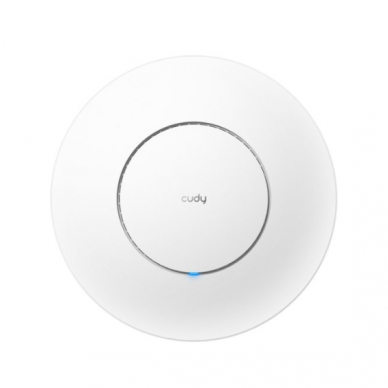

Wall/Ceiling Access Point | Wireless Network Transmitter | Wi-Fi 6 | 2.4GHz + 5GHz | Long Range Coverage | PoE Support

Technical Specifications

Type: Access Point
Wi-Fi Standard: Wi-Fi 6
Certifications: CE, FCC
2.4 GHz Speed: up to 574 Mbps
5 GHz Speed: up to 2402 Mbps
MIMO: 2.4 GHz – 2×2 (2T2R); 5 GHz – 3×3 (3T3R)
Antennas: 5× internal
Antenna Gain: 2.4 GHz – up to 4.8 dBi; 5 GHz – up to 5.6 dBi
Beamforming: Yes
CPU: 1.3 GHz Dual-Core
RAM: 512 MB DDR4
Flash (ROM): 256 MB NAND
Ethernet: 1× 2.5G RJ45
LED Indicator: System status
Button: Reset
Power Supply: 802.3af/at PoE
Passive PoE: 48–57 V
DC Power: 12V / 1.5A
Max. Power Consumption: 12 W
Standby Power: ~6.1 W
Operating Temperature: –10°C ~ +60°C
Storage Temperature: –40°C ~ +70°C
Operating Humidity: 10–90% (non-condensing)
ESD Protection: Contact – 4 kV; Air – 8 kV
Open Area Range: up to 200 m
Mounting: Ceiling or wall
Dimensions: Ø 231.9 × 57.1 mm
Weight: 494 g

Features

Wi-Fi 6 ensures lower latency and better performance for multiple devices simultaneously
Powerful 3×3 MIMO on the 5 GHz band for higher speed and stability
Beamforming directs the signal directly to connected clients
PoE enables installation without a nearby power outlet
Hardware watchdog ensures higher reliability in 24/7 operation
Ideal for high-density wireless environments

Applications

Home users: Large houses or cottages, stable Wi-Fi across multiple floors, fast internet for remote work, TV, streaming, and gaming
Electricians / IT specialists: Easy PoE installation, reliable long-term operation, suitable for professional Wi-Fi infrastructures
Business and engineers: Offices, open-space areas, warehouses, industrial facilities, public spaces, conference rooms, Wi-Fi network design and expansion

Pros

Wi-Fi 6 – future-ready standard
Long operating range (up to 200 m)
PoE for simplified installation
Powerful hardware
Ceiling and wall mounting
Suitable for both home and professional use

Cons

Only one Ethernet port
Not designed for outdoor use (indoor only)
