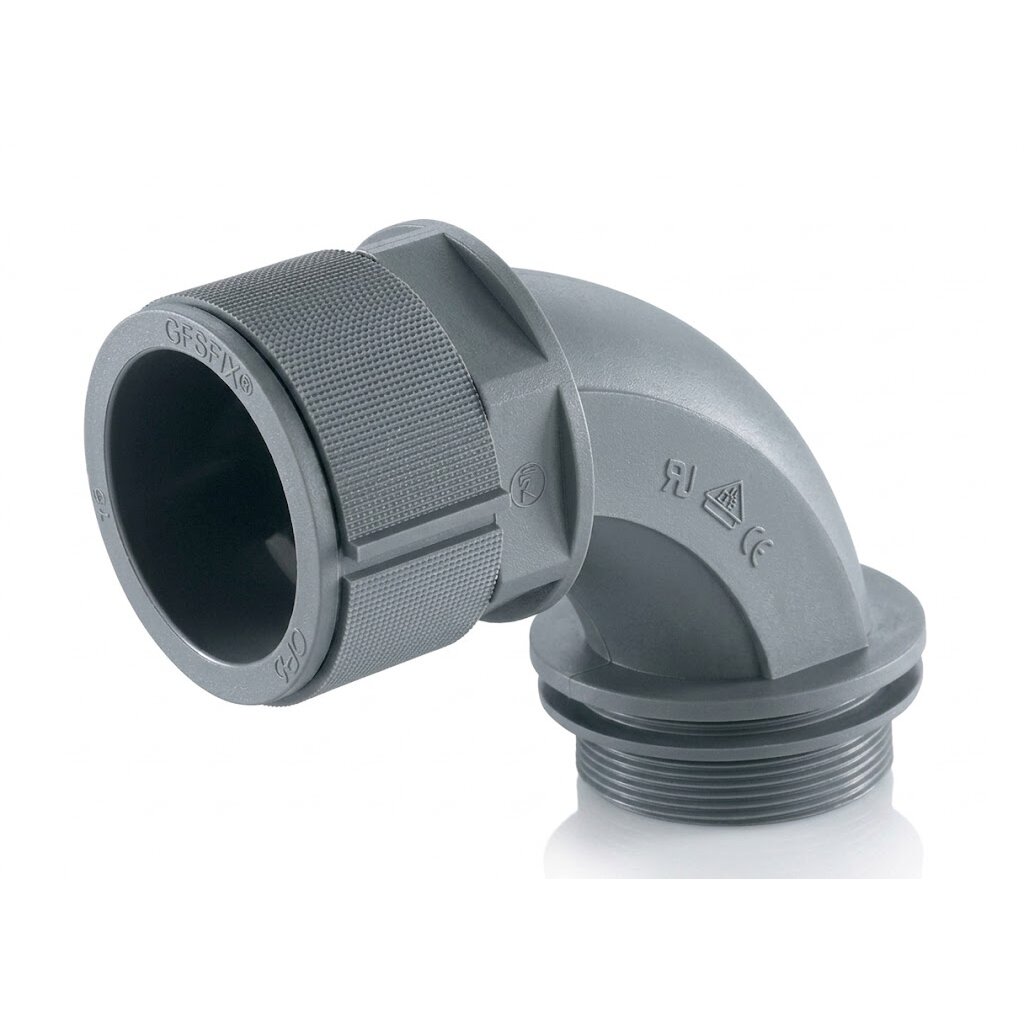

Waterproof angled cable | corrugated conduit entry into electrical distribution board | enclosure | 90° elbow | with nut and gasket | D10mm | Pg13.5 | IP68 | grey

Waterproof angled cable | corrugated conduit entry into electrical distribution board | enclosure | 90° elbow | with nut and gasket | D10mm | Pg13.5 | IP68 | grey

Code: ES-PWC-P130G

Inquire about this item

Add to compareRemove from comparison Compare goods (0)

Price 3.12 € VAT incl.

( 2.58 € VAT excl. )

Want another price? Suggest yours!

The hermetic cable and protective corrugated conduit gland is designed for the professional and secure entry of wires, cables, or corrugated conduits into electrical panels, distribution boxes, automation equipment, industrial enclosures, and outdoor installations. It ensures not only reliable mechanical fixation of the cable but also a high level of protection against water, dust, moisture, vibration, and external environmental factors.

Unlike standard straight glands, this angled construction allows the cable or corrugated conduit to be routed at a 90-degree angle, significantly reducing the risk of cable bending or damage, improving installation layout in confined spaces, and providing a more aesthetic and professional cable routing solution.

Due to the IP68 hermetic protection class, the high-quality Polyamide 6 (PA6) body, as well as the included rubber sealing gasket and locking nut, this cable gland becomes an ideal solution in places where maximum sealing performance and long service life are required. Suitable for both electrical cables and protective wire conduits or hoses.

Widely used in railway equipment, industrial machinery, automation systems, shipbuilding, control cabinets, and other professional installations.

Product description

Technical Specifications

Product type: hermetic angled cable / corrugated conduit gland
Construction: 90° elbow type
Thread: Pg13.5
Suitable conduit / cable size: 10 mm

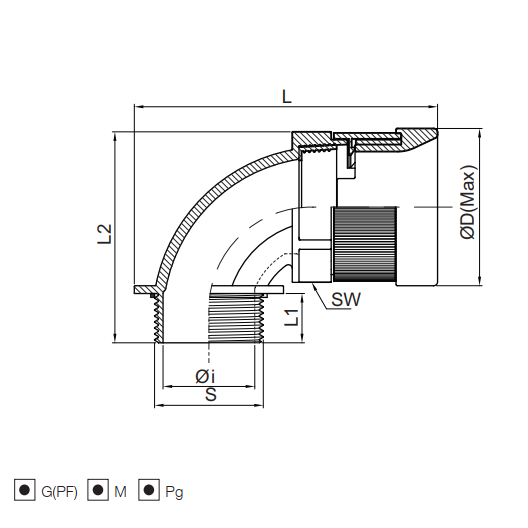

Inner passage diameter Øi: 15.0 mm
Outer body diameter ØD: 24.5 mm
Thread part length L1: 13.0 mm
Overall height L2: 50.8 mm
Overall length L: 66.4 mm
External thread dimension S: 20.2 mm
Nut wrench size SW: 19.7 mm
Material: high quality Polyamide 6 (PA6)
Color: grey

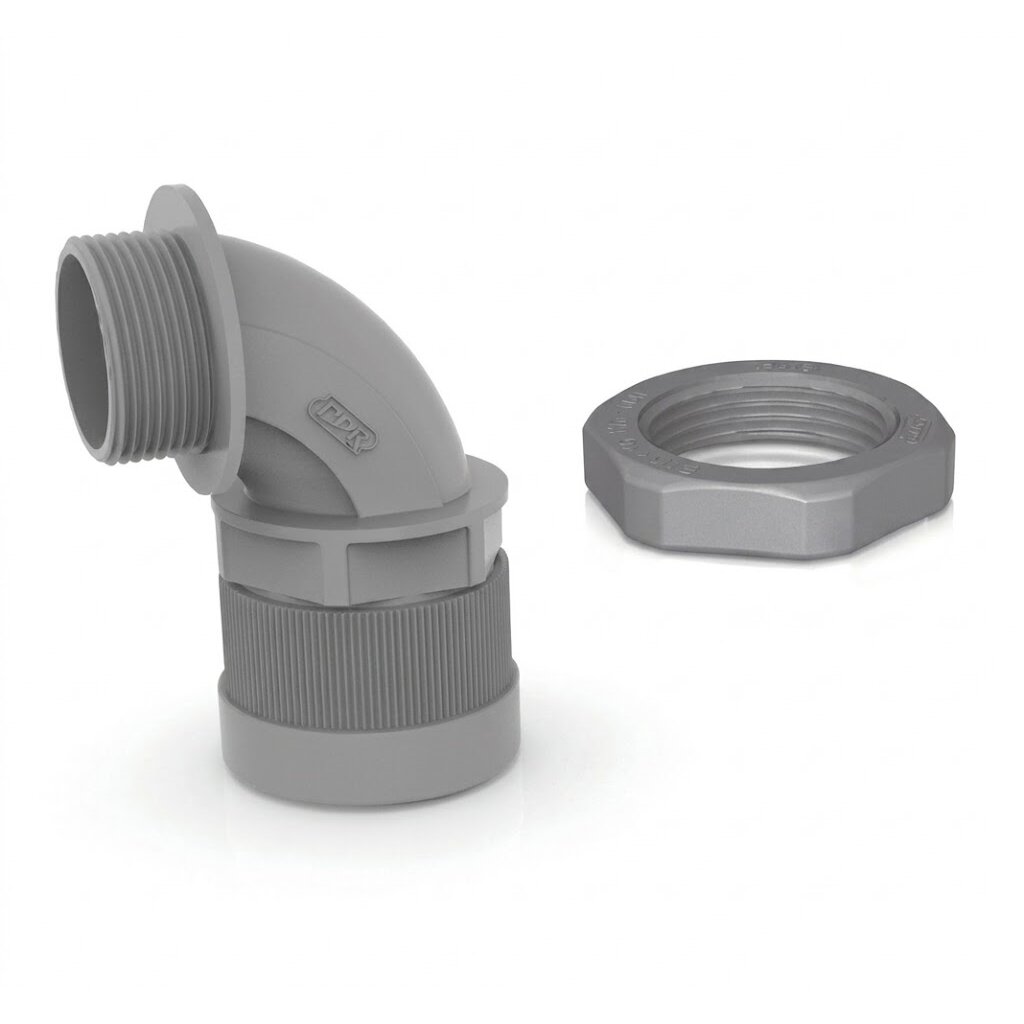

Set includes: gland + compression nut + sealing gasket
Protection class: IP68 according to EN60529
Operating temperature: -40°C to +105°C
Short-term temperature: up to +150°C
Flammability class: UL94-HB
Free from: halogens and cadmium
Certificates: UL, CE, VDE

Functions

90° angled cable routing: Allows wires or corrugated conduit to be directed parallel to the wall of the enclosure or cabinet, making the installation more compact.
Cable protection against bending: The angled shape reduces the risk of strong cable kinking at the outlet point.
Sealed entry into enclosure: Rubber gasket and clamping nut protect against moisture, water and dust ingress.
Mechanical fixation: Firmly clamps the corrugated conduit or cable and prevents movement during vibration.
Resistance to industrial conditions: Suitable for operation in both indoor and outdoor environments.

Usage

For household users: An excellent solution for sealed cable entry into outdoor electrical boxes, pump control boxes, solar power system enclosures or garage installations.
For electricians: Allows a neat, professional and durable cable installation, especially when it is necessary to fit the corrugated conduit tightly along the cabinet.
For automation specialists: Widely used in automation cabinets where there are many cables and it is necessary to optimize their routing directions.
For industrial engineers: Suitable for mechanisms and equipment where hermetic and vibration-resistant cable entry is required.

Advantages

Convenient 90° angled cable outlet
High IP68 sealing protection
Protects cable against kinking
Strong mechanical fixation
Resistant to cold, heat and vibration
Nut and gasket included in the set
Suitable for cable and corrugated conduit
Looks professional after installation

Disadvantages

The angled shape requires planning the outlet direction before installation.

Frequently Asked Questions (FAQ)

1. Is this cable gland resistant to water in outdoor conditions?

Yes, the IP68 protection class means a very high level of sealing against dust and water, therefore it is suitable for outdoor electrical boxes and damp locations.

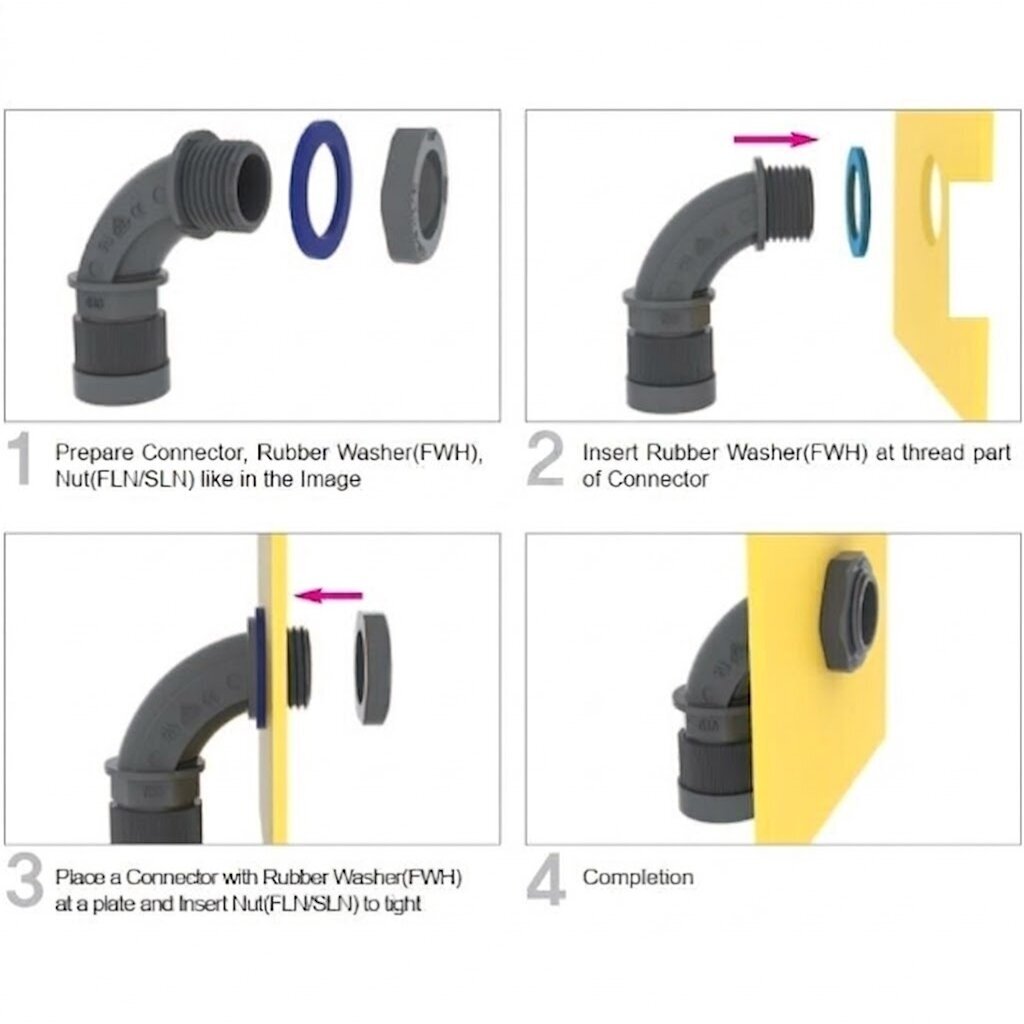

2. Does the set include everything needed for installation?

Yes, a rubber sealing gasket and fixing nut are included, therefore no additional parts are required for standard installation.

3. What cable thickness can be passed through this gland?

The internal passage diameter is Ø15 mm, therefore it is suitable for wires, cables or protective conduits up to this diameter.

4. Is this material suitable for industrial environments?

Yes, PA6 polyamide features high resistance to mechanical stress, temperature, vibration and chemical impact, therefore it is widely used in industry.

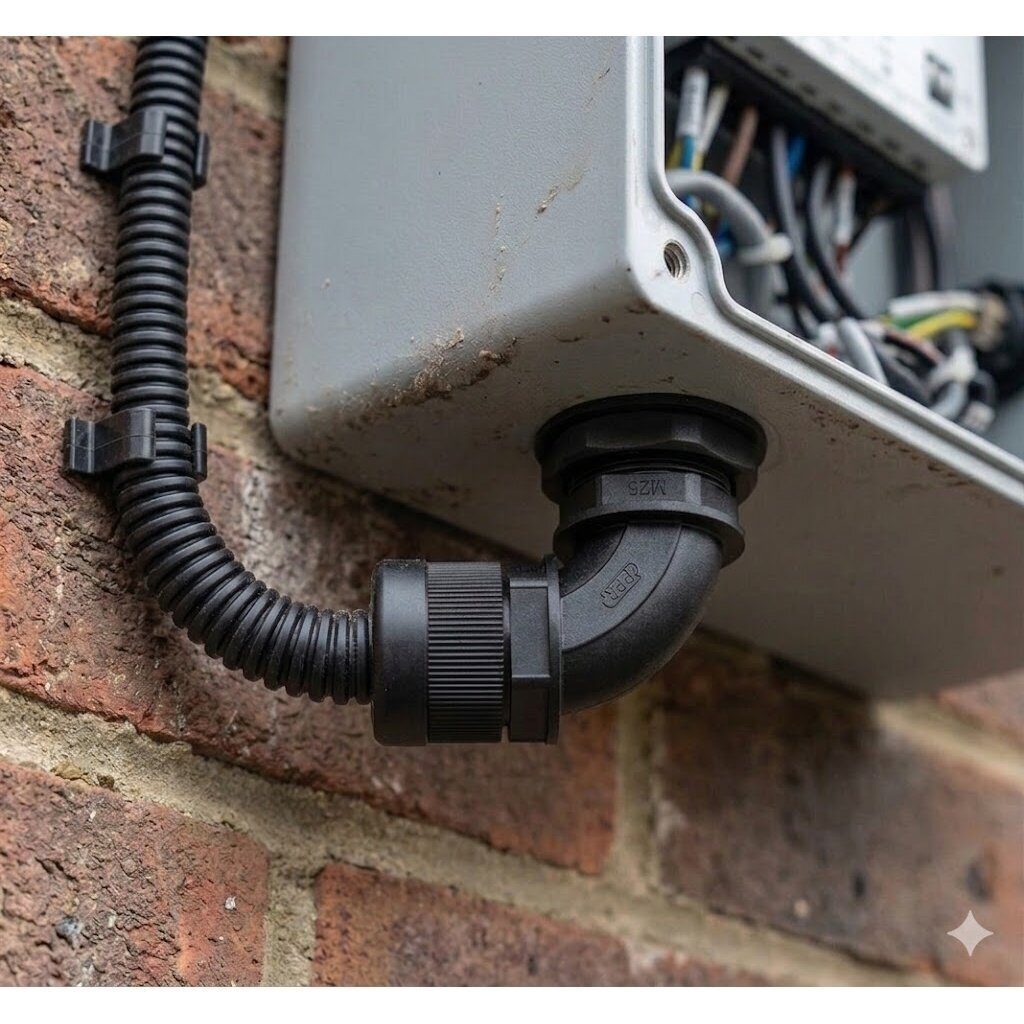

Illustrative image may have been created using AI. The appearance of the product may differ slightly from the image shown. Please refer to the technical specification.
