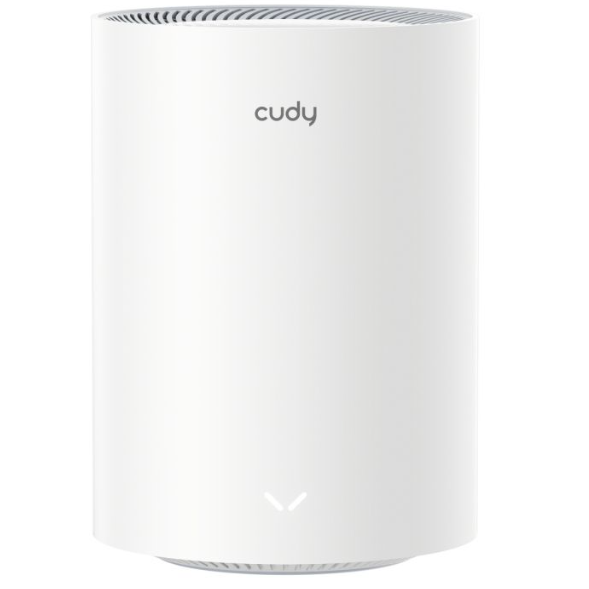

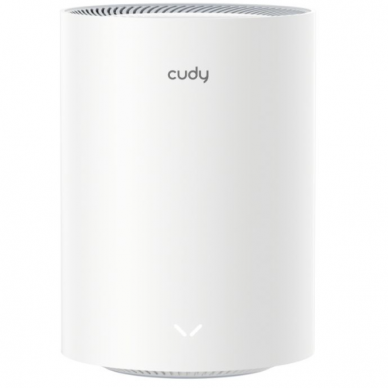

Wi-Fi 6 Mesh system | for creating stable and wide wireless coverage | 2.5G WAN port | 2.4GHz + 5GHz | up to 3000 Mbps | CUDYM3000B

Technical Specifications
CPU: 1.3 GHz Dual-Core ARM Cortex-A53
RAM: 256 MB DDR3
ROM/Flash: 128 MB NAND
Wi-Fi speed 5 GHz: up to 2402 Mbps
Wi-Fi speed 2.4 GHz: up to 574 Mbps
Antennas: 5 internal antennas
MIMO: 2×2 (5 GHz and 2.4 GHz)
Beamforming: Yes (True Beamforming)
Max. range: up to 220 m in open space
Wall penetration: 2 wooden walls <10 cm; 1 concrete <20 cm or 2 concrete <10 cm
Wi-Fi coverage: 2-pack – ~200 m²; 3-pack – ~270 m²

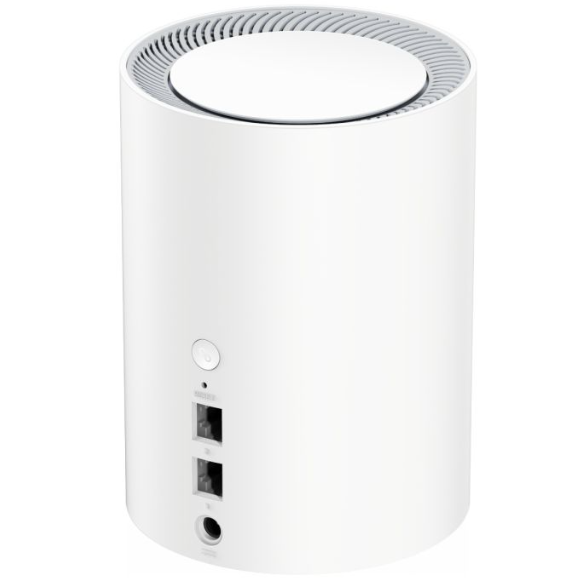

Ports: 1× 2.5G WAN RJ45; 1× Gigabit LAN RJ45
Indicators: System LED, Speed/Link/Activity LAN/WAN
Buttons: WPS, Reset
Power: DC 12V 1A; Adapter: 100–240 V AC
Power consumption: Max 11.5 W; Standby 4.2 W
Temperature: Operating: 0…40 ℃; Storage: -40…70 ℃
Humidity: 10%–90% RH
Certifications: FCC, CE
Mounting: desktop
Dimensions: Φ110 × 154.5 mm
Weight: 360 g

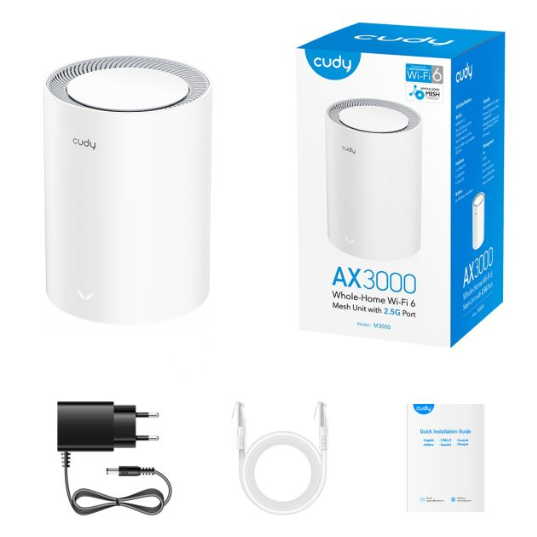

Package contents: Cudy M3000, power adapter, Ethernet cable, manual

Features and Advantages
Ultra-powerful Wi-Fi 6 Mesh network – stable and interference-free connectivity throughout your home.
Speed up to 3000 Mbps – ideal for 4K/8K streaming, gaming, remote work, or home servers.
2.5G WAN port – fully utilizes fast optical or gigabit connections.
Seamless coverage – intelligent roaming between mesh nodes without disconnection.
Beamforming – directs signal toward your device for stronger connectivity.
Long range – up to 220 m in open space.
Wide compatibility with all ISP routers and modems.
Easy setup via WPS or mobile app.
Low power consumption and quiet operation.

Applications
For home users: ideal for houses, apartments, or cottages requiring stable Wi-Fi across multiple rooms or floors. Supports multiple devices – phones, TVs, robots, and cameras.
For engineers and network specialists: suitable for reliable wireless networks in small businesses, offices, camera systems, or IoT setups. 2.5G WAN ensures high-speed data transmission.
For electricians: simple installation, clear LED indicators, WPS button, and easy expansion. Perfect for building Wi-Fi infrastructure or upgrading existing systems.

Pros
High Wi-Fi speed up to 3000 Mbps
2.5G WAN port – ready for future internet speeds
Wi-Fi 6 technology – higher efficiency and lower latency
Powerful Beamforming and MU-MIMO
Large coverage area (200–270 m²)
Stable connection for multiple devices simultaneously
Easy configuration

Cons
No USB port for file or device sharing
Not suitable for wall mounting (desktop only)
Best performance achieved with a 2–3 unit set
