Wi-Fi Mesh System | Stable and Wide Wireless Network | 2.4GHz + 5GHz | up to 3000 Mbps | CUDY M3600

Technical Specifications

Processor: 2.0 GHz Quad-Core ARM Cortex-A7
Memory: 512 MB DDR3L RAM, 128 MB NAND Flash
Wi-Fi Standard: IEEE 802.11 a/b/g/n/ac Wave2 (Wi-Fi 5)
5 GHz Wi-Fi Speed: up to 2882 Mbps
2.4 GHz Wi-Fi Speed: up to 688 Mbps
Antennas: 4 internal (2T2R MIMO 5 GHz + 2.4 GHz)
Antenna Gain: 5 GHz – 5.5 dBi, 2.4 GHz – 5.4 dBi
Beamforming: Yes
Frequency Bands: Dual-band (2.4 GHz + 5 GHz)
Maximum Range: up to 220 m in open space
Coverage Area: 2-unit set – up to 200 m²; 3-unit set – up to 270 m²

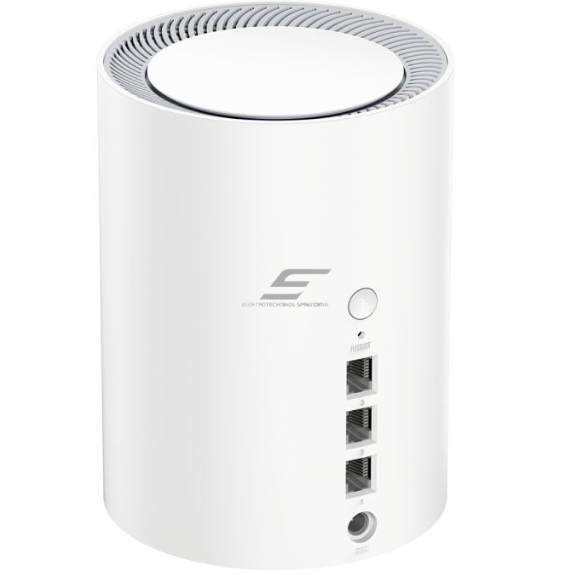

Ethernet Ports: 3× Gigabit RJ45 (1× WAN + 2× LAN)
Buttons: WPS, Reset
Power Supply: DC 12V 1A (adapter included)
Power Consumption: max. 9 W
Dimensions: Φ110 × 154.5 mm
Operating Temperature: 0°C ~ +40°C
Storage Temperature: -40°C ~ +70°C
Humidity: 10%–90% (operating), 5%–95% (storage)
Certifications: CE, FCC
Enclosure: Compact desktop type

Features and Functions

Mesh technology: connects multiple M3600 devices into one seamless network – no dead zones or disconnections.

Automatic roaming: devices automatically connect to the strongest signal.

High speed: total bandwidth up to 3000 Mbps – ideal for gaming, streaming 4K videos, and smart home devices.

Beamforming technology: directs signal to connected devices for better stability.

Gigabit ports: for Smart TVs, NAS, desktop PCs, or IP cameras.

Easy management: via Cudy App, web interface, or WPS synchronization.

Stable performance: 2.0 GHz Quad-Core CPU + 512 MB RAM ensure smooth operation even under heavy load.

Wide compatibility: works with all ISP modems, routers, IPTV, and IoT systems.

Usage

For home users: ideal for large houses or apartments with weak Wi-Fi coverage; one system ensures stable coverage throughout.

For engineers and IT specialists: suitable for offices, data centers, or warehouses needing uniform coverage and high throughput.

For electricians or technicians: quick setup via WPS and auto-sync – installation in just a few minutes.

Pros

High-speed Wi-Fi 5 Mesh network up to 3000 Mbps

Quad-Core 2.0 GHz CPU for stable operation

Large coverage up to 270 m² (3-unit set)

Seamless roaming between units

Gigabit LAN/WAN ports for wired devices

Convenient app-based management

Stylish modern design

CE and FCC certified reliability

Cons

No USB port for NAS or 3G/4G modem

Only Wi-Fi 5 (no Wi-Fi 6 support)

Multiple units required for full coverage in large spaces
