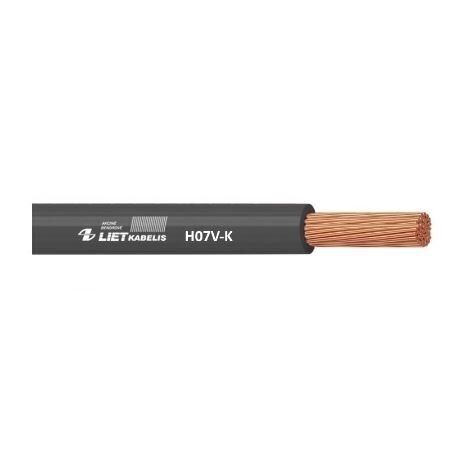

  • Wire 50mm² | copper | flexible | single-core | multi-stranded | H07V-K 50 | 1m | black

    Code: 91350002

    • Cables are intended for fixed installation, laying cables in surface-mounted or fixed insulating pipes or similar sealed systems.
    • Cables are intended for the installation of electrical circuits for the control and monitoring of medium- and high-power equipment and devices.
    • The conductor is made of annealed copper wire strands, highly flexible. The copper core is coated with PVC insulation.

    Minimum order quantity: 10 meters!

  • Technical Specifications:

    LGY
    Conductor type: Multi-stranded, flexible copper conductor (Class 5 according to IEC 60228)
    Number of cores: 1
    Conductor cross-section: 50.0 mm²
    Rated voltage: 450/750 V
    Test voltage: 2.5 kV
    Insulation material: TI 1 type PVC compound
    Insulation color: Black
    Cable outer diameter: ~13.1 mm
    Insulation thickness: 1.4 mm
    Maximum operating temperature: +70 °C
    Short-circuit temperature: up to +160 °C
    Thermal shock: 1 hour at +150 °C
    Installation temperature: from -5 °C to +40 °C
    Operating temperature: from -30 °C to +70 °C
    Standards: IEC 60227, LST EN 60227
    Manufacturer: AB "Lietkabelis"

    Functions:

    Installation of fixed electrical wiring in insulating pipes or ducts

    Connection of control and monitoring circuits

    Suitable for supplying medium and high power equipment

    High flexibility ensures easy installation in tight spaces

    Resistance to temperature fluctuations and short-term thermal loads

    Usage:

    Electrical distribution boards and boxes

    Indoor building installations

    Industrial equipment and machinery wiring

    Electrical installations of automation and control systems

    Internal wiring inside panels

    Advantages:

    High-quality annealed copper – excellent conductivity and durability

    Flexible – easy to install in confined spaces

    Reliable PVC insulation resistant to moisture and temperature

    Wide operating temperature range

    Certified according to international standards

    Disadvantages:

    Not suitable for direct outdoor installation without additional protection (requires pipe or duct)

    Limited chemical resistance in aggressive environments (depends on the type of PVC insulation used)

    Illustrative image may have been created using AI. The appearance of the product may differ slightly from the image shown. Please refer to the technical specification.
