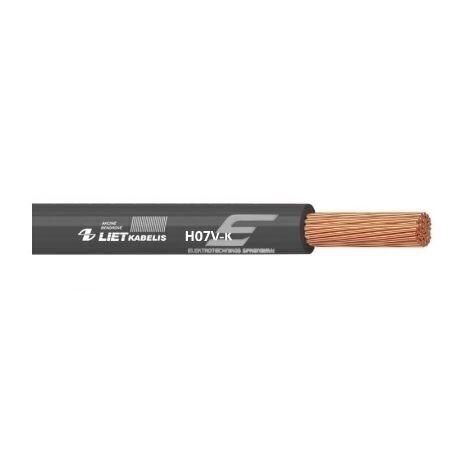

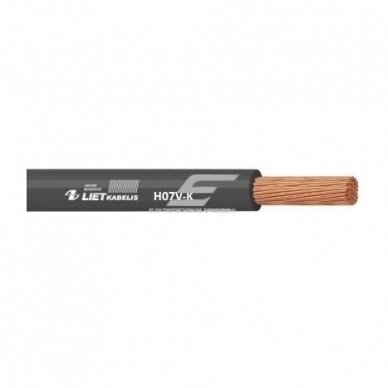

Wire 6mm2 | copper | flexible | single-core | multi-core | H07V-K 6 | (1m) | black
Code: 91306002High-quality single-core flexible electric wire made from annealed copper wire strands with PVC insulation. It is designed for use in electrical installations, particularly suitable for installation in fixed installations, equipment, and control systems. The wire is characterized by high flexibility, resistance to temperature, and mechanical impact.
Minimum order quantity: 10m!
-
LGY, PV-3
Technical Specifications:
Conductor type: Annealed copper wire strand (multi-wire, class 5)
Number of conductors: 1
Conductor cross-section: 6.0 mm²
Rated voltage: 450/750V
Insulation material: PVC (TI 1 type insulation compound)
Insulation thickness: 0.8 mm
Outer diameter of the cable: 4.68 mm
Insulation color: Black
Operating temperature (in normal conditions): -30°C to +70°C
During short circuit: +160°C
Maximum allowed temperature during installation: -5°C to +40°C
Thermal shock: 1 hour at +150°C
High voltage test: 2.5 kV
Manufacturer: AB "Lietkabelis"Functions and Application:
Designed for fixed electrical installations, where wires are laid in insulation tubes, cable channels, or sealed systems.
Used for connecting medium and high power electrical equipment and control and monitoring systems.
Due to its flexibility, it is ideal for use in electrical distribution panels and when installing equipment with complex wiring routes.
Suitable for both industrial installations and domestic electrical systems.Advantages:
Flexible – allows for easy installations even in complex locations.
Temperature resistant – suitable for various working conditions.
Safe to use – high electrical insulation and resistance to voltage.
Versatile – can be used in both domestic and industrial equipment.
High-quality copper – ensures good electrical conductivity and minimal energy loss.
Disadvantages:For fixed installations only – not recommended for flexible extensions or frequently moved wires.
Limited temperature range during installation – the wire must be installed in environments with temperatures no lower than -5°C.
H07V-K copper flexible single-core multi-wire electrical cable is a reliable and efficient choice for fixed electrical installations, industrial control equipment, and distribution systems. It features high conductivity quality, flexibility, and resistance to environmental influences, making it suitable for both home and industrial use.Illustrative image may have been created using AI. The appearance of the product may differ slightly from the image shown. Please refer to the technical specification.ManufacturerSingle-core wires are also called monolithic wires,
while multi-core wires are flexible wires.Wires usually have a single conductor covered with an insulating layer.
Cables have several insulated wires, covered with a common sheath.
Conductor properties of wires:
The resistance of copper conductors is lower (0.017Ω) than that of aluminum (0.028Ω),
but copper has better conductivity.
Copper has better electrical and thermal conductivity than aluminum.
Copper wires are more flexible, more resistant to corrosion, and more durable.
Aluminum wires quickly oxidize upon contact with air, forming a film that weakens the contact.
Copper wires carry higher currents than aluminum wires.
Copper conductors are denser than aluminum. Therefore, copper wire is heavier.The cross-sectional area of wires is chosen according to the power of specific equipment,
for example: for a 1kW load, a 1.57 mm² cross-sectional area of the conductor is required.
For aluminum wires: 5A per 1mm², and for copper wires: 8A per 1mm².This product is marked with the CE label, which confirms that it complies with all applicable European Union directives and regulations. CE marking is not just a formality – it is an important indicator of quality and safety, ensuring that the product has been properly assessed, tested, and can be safely used throughout the EU market.
CE certification means that the product has been evaluated according to the main criteria:
Safety requirements – ensures that the product does not pose a risk to the user or the environment
Electromagnetic compatibility (EMC) – the device does not interfere with other equipment and is resistant to external disturbances
Environmental standards – complies with current ecological and material usage requirements
Operational reliability – the product is suitable for long-term use according to its intended purposeCE marking allows this product to:
be legally supplied and used in all European Union countries
ensure a high level of quality and safety
be used in residential, commercial, and industrial environmentsThe CE mark is a declaration of the manufacturer’s responsibility, confirming that the product complies with all applicable standards and has been assessed according to EU legislation.
What does this mean for you as a buyer?
Safe use in everyday activities
Reliable performance and reduced risk of failure
Compliance with EU standards and requirements
Suitability for professional solutions
