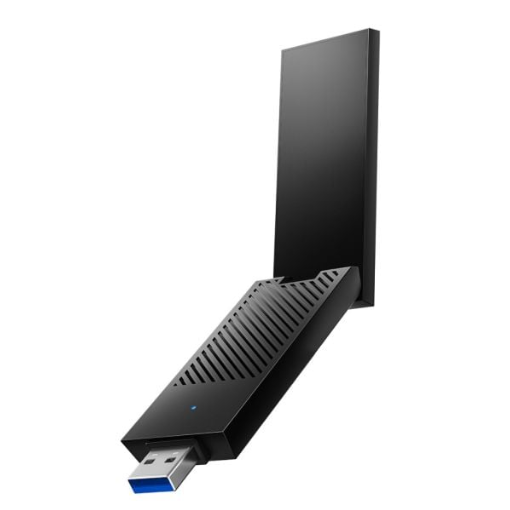

Wireless communication module | Wi-Fi 7E technology | up to 2882 Mbps data transfer rate | USB connector | CUDY WU6500

Technical Specifications
Connection standard: Wi-Fi 7 (IEEE 802.11be)
Frequency bands: 2.4 GHz / 5 GHz / 6 GHz (Tri-Band)
Maximum speed: 6 GHz – 2882 Mbps; 5 GHz – 2882 Mbps; 2.4 GHz – 688 Mbps
Channel bandwidth: up to 160 MHz
Modulation: 4K-QAM
Data streams: 2T2R (2×2 MIMO) on all bands
Signal gain: 3 dBi (2.4 GHz / 5 GHz)
Interface: USB 3.0 (required for full speed)
Supported technologies: MRU, Puncturing, OFDMA, MU-MIMO, BSS Coloring
Wi-Fi security: WPA, WPA2, WPA3
OS compatibility: Windows 10 / Windows 11 (6 GHz requires Win 10 version 22H2 or higher)
Drivers: Plug & Play (automatic installation)
Certifications: FCC, CE
Operating temperature: 0°C – 40°C
Storage temperature: -40°C – 70°C
Humidity: 10% – 90% RH (non-condensing)
Dimensions: 29.9 × 13.2 × 88.8 mm

Features and Advantages

Wi-Fi 7 tri-band technology – delivers ultra-fast wireless performance with minimal interference.

Gigabit-class speed – up to 2882 Mbps on 5 GHz and 6 GHz bands, perfect for 4K/8K streaming, gaming, and file transfer.

MIMO + OFDMA – stable signal for multiple connected devices simultaneously.

USB 3.0 interface – ensures maximum throughput without lag.

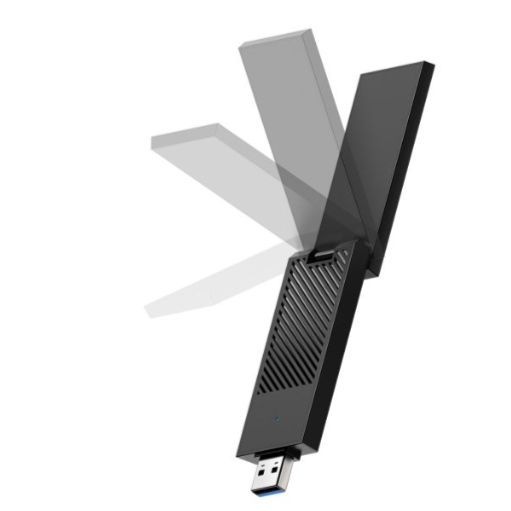

High-gain antennas – improved range and signal strength even through walls.

Plug & Play setup – automatic driver installation on Windows 10/11.

Compact and portable – ideal for laptops and desktops.

WPA3 security – top-level encryption and protection against attacks.

Use Cases

Home users: high-speed wireless internet, streaming, video calls, gaming.

IT engineers: network diagnostics, Wi-Fi setup, and testing.

Installers/technicians: configuration and testing of routers and access points.

Pros
✔ Latest Wi-Fi 7 standard
✔ Tri-band support (2.4 / 5 / 6 GHz)
✔ 2882 Mbps high speed
✔ Plug & Play setup
✔ Compact design
✔ WPA3 security

Cons
✖ Works only with Windows 10/11
✖ 6 GHz band available only on Win10 22H2+
✖ No stand or extension cable included
