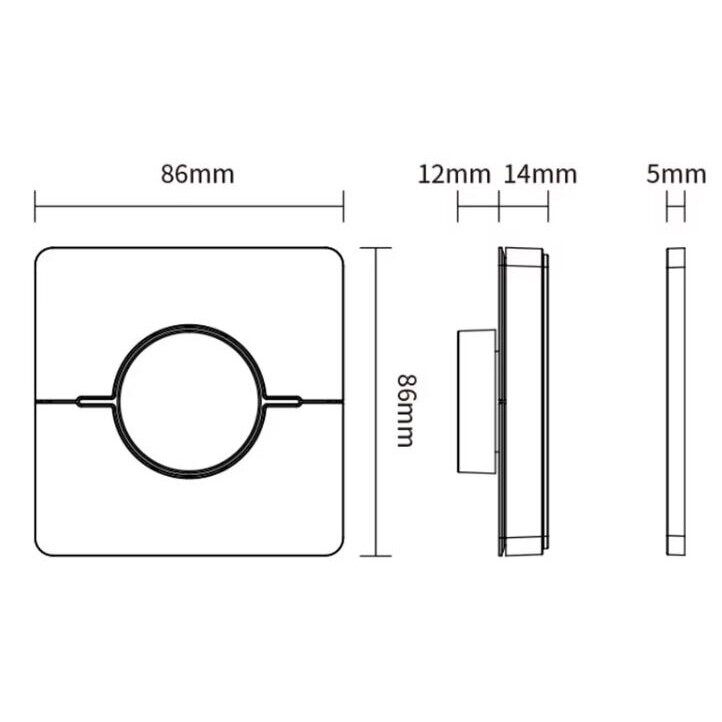

Wireless LED lighting dimmer controller | dimmer | brightness and color temperature control | CCT | 86x86mm | 4 zones | 2.4 GHz | black

Wireless LED lighting remote controller | 4 zones | CCT | brightness and colour temperature adjustment | rotary wheel | 2.4 GHz | 30 m | magnetic | 86 × 86 mm | black

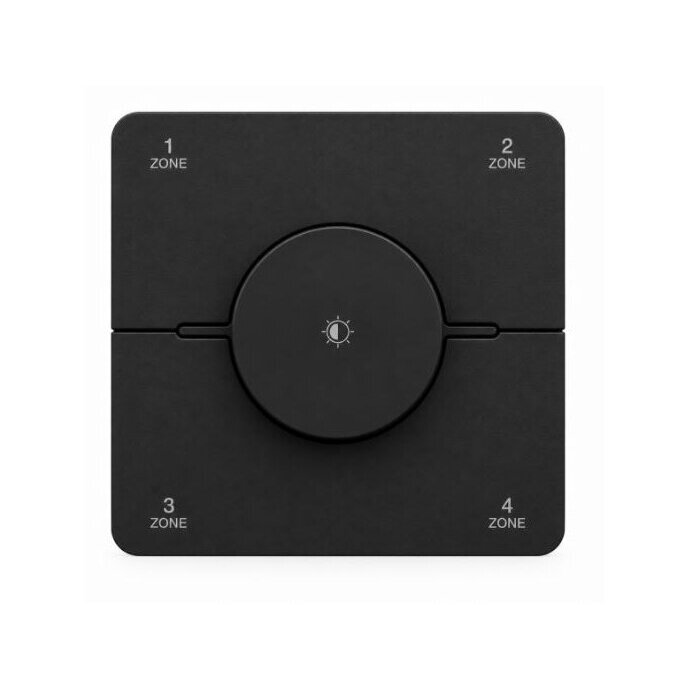

Black wireless LED lighting remote controller with a rotary adjustment wheel and four-zone control – a modern solution for convenient adjustment of light brightness and white-light colour temperature. The device uses 2.4 GHz radio technology to transmit control commands to compatible LED lighting controllers and luminaires at distances of up to 30 metres. Four separate zone-selection buttons allow different lighting groups to be controlled, while the central rotary wheel provides smooth adjustment of light intensity and CCT colour temperature. The compact 86 × 86 mm housing, minimalist black design and magnetic mounting allow the controller to be used either as a wall-mounted control panel or as a conveniently removable wireless remote. Suitable for controlling LED lighting systems in homes, offices, hotels, commercial premises and various other applications.

Key point:
Modern LED lighting can be adapted not only by switching luminaires on or off, but also by changing their brightness and white-light tone. Brighter, cooler white light is often needed during work, while softer and warmer light is preferable in the evening. This four-zone wireless controller allows different lighting groups to be organised and controlled from a single device. After selecting a zone, the rotary wheel can be used to change brightness, while a short press on the wheel switches to colour-temperature adjustment. Magnetic mounting makes it easy to remove the remote from the wall holder and use it in the preferred location in the room.

⚡ Spark: Phase, can this one small controller really control four different lighting groups? And what is that large wheel in the middle for?

⚙ Phase: Yes, Spark. The four zones allow you to control, for example, the living room, kitchen, corridor and dining-room lighting separately. After selecting a zone, the wheel adjusts the light brightness. A short press on the wheel activates the colour-temperature adjustment mode – turning it changes the white light from warmer to cooler or vice versa. Control is performed wirelessly via 2.4 GHz radio, so the remote does not require a separate control cable to each lighting group.

Why is this wireless LED lighting controller useful?
One compact remote can control four separate lighting zones and adjust their brightness and white-light colour temperature. The rotary wheel provides convenient adjustment, while 2.4 GHz wireless communication eliminates the need for additional control cables between the remote and the lighting controllers. Magnetic mounting allows the device to be used as a wall-mounted panel or portable remote controller. The black housing is particularly well suited to modern, minimalist and industrial-style residential, administrative and commercial interiors.

• Four-zone control – four separate lighting groups can be controlled from one remote.
• Independent zone on/off control – convenient control of different rooms or lighting scenarios.
• Brightness adjustment – light intensity is changed by turning the central wheel.
• CCT colour-temperature control – the white-light tone can be adjusted from warm to cool.
• Pushable adjustment wheel – a short press activates colour-temperature adjustment mode.
• Automatic mode return – after 3 seconds of inactivity, the controller returns to brightness adjustment.
• 2.4 GHz wireless communication – control commands are transmitted by radio signal.
• Up to 30 m operating distance – convenient control from different locations in a room.
• GFSK modulation – technology for transmitting digital control commands.
• Multiple-device pairing – several compatible LED devices can be controlled within one zone.

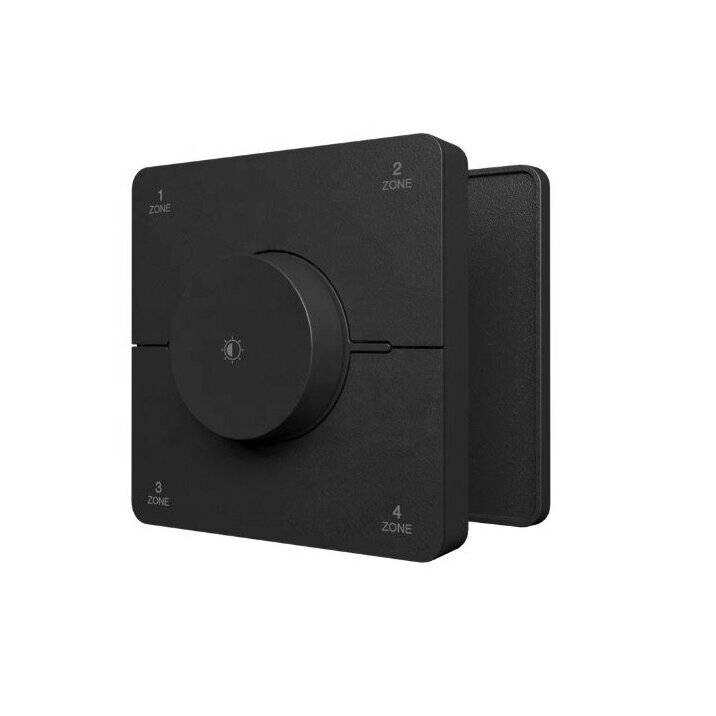

• Magnetic mounting – the controller can be easily attached to and removed from the holder.
• Portable remote function – lighting can be controlled without keeping the remote on the wall.
• Battery power – no separate 230 V supply line is required for the controller.
• Low standby consumption – only 6 µA standby current.
• Minimalist black design – matches dark electrical accessories, graphite-coloured walls and modern interiors.
• Convenient central control – brightness and colour temperature can be adjusted with one hand.

• LED lighting systems in houses and apartments.
• Main and decorative lighting in living rooms.
• Adjustable white lighting in bedrooms.
• Kitchen work-zone and furniture LED-strip control.
• Lighting for corridors, stairways and utility areas.
• LED luminaire groups in offices and administrative premises.
• Lighting systems in conference and meeting rooms.
• Lighting control in hotel rooms and relaxation areas.
• Lighting in restaurants, cafés and other commercial interiors.
• Lighting groups in retail areas and displays.
• Ceiling LED panels and linear LED luminaires with CCT control.
• LED strips with adjustable white-light colour temperature.
• Decorative lighting systems for niches, shelves and furniture.
• Modern, minimalist and industrial-style interiors with black electrical accessories.
• Rooms where wireless lighting control is required without additional control cabling.

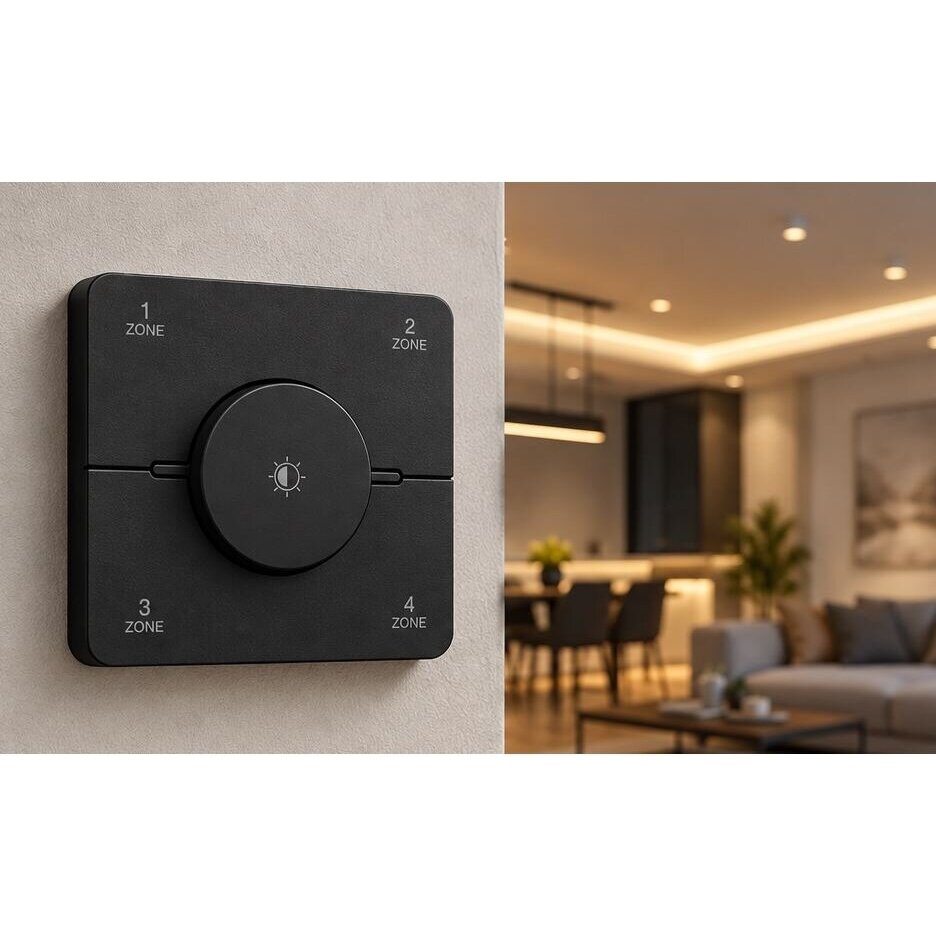

A modern detached house with dark interior accents has four separate LED lighting groups: living-room ceiling lighting, kitchen LED strips, dining-room luminaires and decorative lighting. All groups are controlled by compatible 2.4 GHz CCT LED controllers. A black 86 × 86 mm magnetic remote controller is mounted on the wall. The living-room luminaires are assigned to zone one, kitchen lighting to zone two, dining-room luminaires to zone three and decorative LED strips to zone four. In the evening, the user selects zone one and turns the wheel to reduce the living-room light intensity. A short press on the wheel activates colour-temperature adjustment mode and a warmer white-light tone is selected. After 3 seconds of inactivity, the controller returns to normal brightness adjustment. If the lighting needs to be changed while sitting on the sofa, the remote can be removed from the magnetic holder and used as a handheld controller.

• Installation location. Install the controller in an easily accessible location, for example on a wall near a door, by a workstation or in a relaxation area.

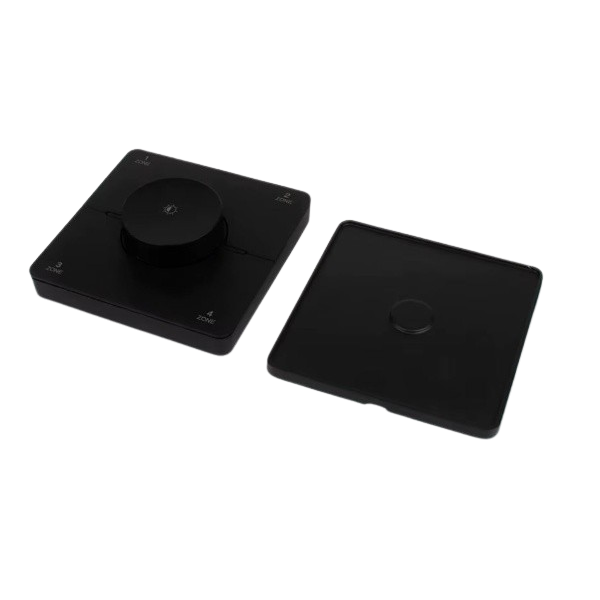

• Magnetic holder. The remote is attached to its dedicated magnetic mounting system. It can be removed and reattached.
• Surface preparation. The mounting surface must be clean, firm and suitable for the chosen holder-fixing method.
• Mounting height. Install the controller at a convenient height so that all four zones and the central wheel are easy to reach.
• Power supply. The device operates from a 3 V battery power source using two batteries.
• Battery installation. Insert the batteries according to the polarity markings.
• Wireless communication. The remote uses 2.4 GHz radio technology and transmits control commands to compatible devices.
• Pairing with lighting. Before use, pair the controller with the corresponding LED receivers or luminaires according to their pairing procedure.
• Zone assignment. LED controllers or luminaires are divided into four groups according to the desired control scheme.
• Multiple-device pairing. Several compatible lighting devices can be assigned to one zone.

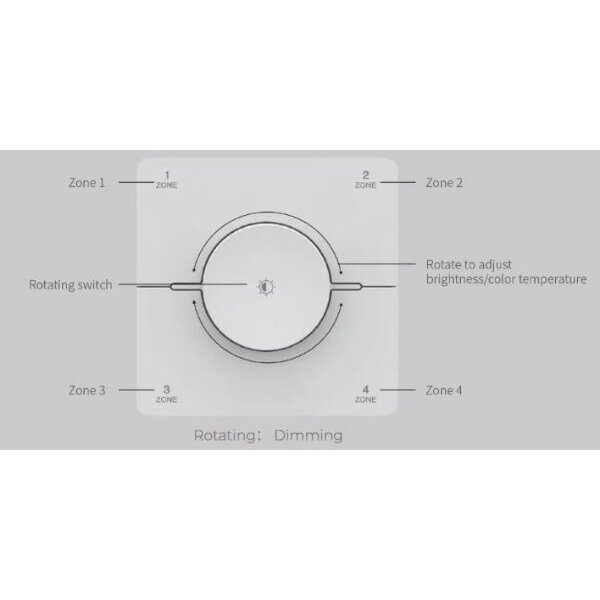

• Brightness adjustment. Select a zone and turn the central wheel to change the light intensity.
• CCT mode. A short press on the wheel activates colour-temperature adjustment. Turning the wheel changes the white-light tone.
• Automatic mode exit. After 3 seconds of inactivity, the controller returns to normal brightness-adjustment mode.
• Radio distance. Select the control location taking into account the up to 30 m communication range and possible effects of walls and other obstacles.
• Metal surfaces. Large metal structures may weaken or reflect radio signals, so correct positioning of the remote and receivers is important.
• Compatible LED equipment. Appropriate tunable-white luminaires and controllers are required for CCT colour-temperature adjustment.
• Electrical safety. The remote itself is not connected directly to the 230 V mains. Electrical installation work is carried out when connecting separate LED power supplies and lighting controllers.
• Operating temperature. Use the device at ambient temperatures from −10 °C to +40 °C.
• Cleaning. Clean the black housing with a soft dry or slightly damp cloth, protecting the internal electronic components from moisture.
• Magnetic-retention maintenance. Periodically check that the remote is securely held in the holder and that no dirt has accumulated around the magnetic contact areas.

⚡ Phase tip:
When choosing a wireless LED remote controller, it is important to distinguish brightness adjustment from CCT colour-temperature control. A standard single-colour LED strip allows only the light intensity to be changed, while a CCT LED strip or suitable luminaire also allows the white-light tone to be adjusted. This remote sends 2.4 GHz wireless control commands, so it requires a compatible LED receiver or luminaire with the appropriate control function. When planning four zones, it is convenient to divide lighting groups in advance according to rooms or functions. The black housing is particularly well suited to dark switches, sockets and other interior accents. Magnetic mounting allows the remote to remain near the entrance or be carried to a more convenient control location.

Quick selection guide

⚡ Spark: What does four-zone LED lighting control mean?
⚙ Phase: It means that one remote can control four separate lighting groups. For example, zone one can control the living room, zone two the kitchen, zone three the corridor and zone four decorative LED strips.

⚡ Spark: Can several luminaires be assigned to one zone?
⚙ Phase: Yes. Several compatible LED controllers or luminaires can be assigned to one zone so that all of them respond to the same zone-control commands.

⚡ Spark: How is the light brightness adjusted?
⚙ Phase: Brightness is adjusted by turning the central wheel. Turning it in one direction increases light intensity, while turning it in the other direction reduces it.

⚡ Spark: How do I change the white-light colour temperature?
⚙ Phase: Briefly press the central wheel. This activates CCT adjustment mode. Turning the wheel then changes the light to a warmer or cooler white tone if the controlled LED device supports this function.

⚡ Spark: Why does the wheel return to brightness adjustment after a few seconds?
⚙ Phase: CCT mode automatically switches off after approximately 3 seconds of inactivity. The wheel then returns to its main brightness-adjustment function.

⚡ Spark: Can this remote change RGB colours?
⚙ Phase: This controller is intended for brightness and CCT white-light colour-temperature adjustment. It is not an RGB colour-selection remote.

⚡ Spark: Does the remote need to be connected to the 230 V mains?
⚙ Phase: No. The remote operates from a 3 V battery power source and sends control commands by radio. Separate lighting power supplies and control equipment are connected to the mains.

⚡ Spark: From what distance can the lighting be controlled?
⚙ Phase: The control distance is up to 30 metres. The actual range depends on room layout, walls, metal structures and radio-signal propagation conditions.

⚡ Spark: Is this a „Wi-Fi“ remote?
⚙ Phase: No. The controller uses 2.4 GHz wireless radio communication with compatible LED equipment. Although the frequency range overlaps with that used by some „Wi-Fi“ systems, it is not the same control protocol.

⚡ Spark: Can the black remote be removed from the wall?
⚙ Phase: Yes. Magnetic mounting makes it easy to remove the remote from the holder and use it by hand. After use, it can be placed back on the chosen wall-mounted location.

⚡ Spark: Can the remote be installed without an additional control cable?
⚙ Phase: Yes. The device is battery-powered and uses wireless communication, so no separate control cable is required between the remote and the lighting controllers.

⚡ Spark: Is the controller suitable for a standard single-colour LED strip?
⚙ Phase: With a compatible dimming receiver, the brightness of single-colour LED lighting can be controlled. CCT colour-temperature adjustment requires tunable-white LED equipment.

⚡ Spark: What is the difference between warm and cool white LED light?
⚙ Phase: Warm white light has a more yellowish tone and is often used in relaxation areas. Cool white light is whiter or more bluish and can be used in work areas. CCT adjustment allows the appropriate white-light tone to be selected according to the situation.

⚡ Spark: Can one remote control both ceiling luminaires and LED strips?
⚙ Phase: Yes, provided the luminaires and LED-strip controllers support the same compatible 2.4 GHz control system. They can be divided into different zones or linked to the same zone.

⚡ Spark: Is the black controller suitable for office lighting?
⚙ Phase: Yes. Four-zone control and CCT adjustment make it possible to organise separate office lighting groups, change their brightness and adapt the white-light tone to work and relaxation requirements. The black design matches modern office interiors and dark electrical accessories.

⚡ Spark: Can this black controller be used like a normal wall light switch?
⚙ Phase: It can function as a wall-mounted wireless lighting controller. However, unlike a conventional mechanical 230 V switch, it sends radio commands to a compatible lighting receiver or luminaire and does not directly switch the mains circuit.

Black wireless 4-zone LED lighting controller – CCT, rotary wheel, 2.4 GHz, magnetic mounting

Black four-zone wireless LED lighting remote controller with a rotary and pushable control wheel, designed for brightness and CCT white-light colour-temperature adjustment. 2.4 GHz RF technology, GFSK modulation, up to 30 m operating distance and the possibility of linking several compatible lighting devices within one zone allow convenient organisation of lighting in residential, office and commercial premises. Four independent zone-selection buttons, wheel-based brightness adjustment, CCT mode activated by a short press and automatic return to brightness adjustment after 3 seconds provide intuitive operation. Magnetic mounting, 3 V battery power, 86 × 86 mm housing and minimalist black design allow the remote to be used as a wall-mounted lighting panel or a conveniently removable handheld controller. The black version is particularly suitable for modern, minimalist and industrial-style interiors with dark electrical accessories.
