"Eaton" automatic circuit breakers | installed in electrical distribution boxes | panels

Eaton automatic circuit breakers are advanced electrical devices designed to protect electrical systems from overloads and short circuits. These breakers are widely used in both residential and commercial as well as industrial environments, ensuring safety and reliability.

Eaton circuit breakers - product group description

Eaton circuit breakers | modular MCB | electrical circuit protection | DIN

Reliable solutions for electrical panels, installation, automatic protection, residential, commercial, and industrial facilities.

Eaton circuit breakers for electrical distribution systems

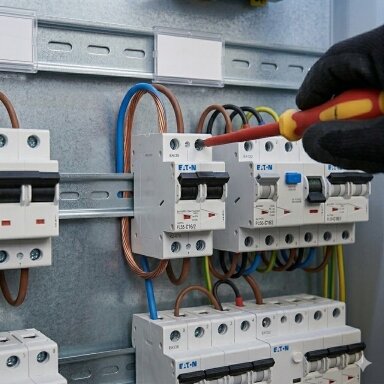

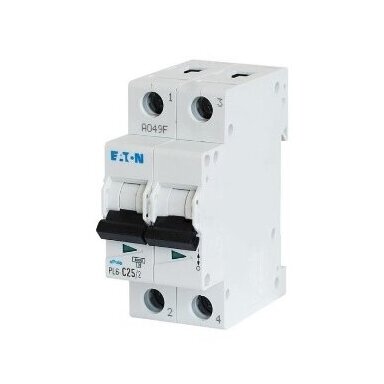

"Eaton circuit breakers are modular electrical protection devices designed to protect electrical circuits from overloads and short circuits. They are installed in electrical distribution boards on a DIN rail and are used in residential, commercial, administrative, and industrial facilities.

In this product group, you will find Eaton modular circuit breakers with various numbers of poles, rated currents, and characteristics. They are suitable for protecting lighting, sockets, equipment, automation, heating, ventilation, pumps, motor, and other electrical circuits.

Functions and features

Circuit protection: protects electrical installation from overloads and short circuits.
Automatic disconnection: quickly cuts off the power supply in the circuit in case of a fault.
Manual control: allows switching an individual electrical circuit on or off.
DIN mounting: installed in standard electrical distribution boards.
Different characteristics: B, C, or D types allow selecting protection based on load type.
Wide selection: 1P, 1P+N, 2P, 3P, and 4P models available.
Reusable: after tripping, the switch can be turned back on; no need to replace it like a fuse.
Circuit separation: helps organize lighting, socket, equipment, and automation lines.
Panel assembly: suitable for new and modernized electrical panels.
Eaton quality: professional solution for household, commercial, and industrial objects.

Technical specifications

Product type	Modular circuit breaker, MCB
Manufacturer	Eaton
Mounting	On DIN rail
Number of poles	1P, 1P+N, 2P, 3P, 4P
Rated current	Depending on the model
Characteristic	B, C or D
Rated voltage	Usually 230/400V AC
Frequency	50–60Hz
Breaking capacity	Usually 6kA, depending on the model
Standard	IEC/EN 60898-1
Purpose	Protection against overload and short circuit

General advantages and disadvantages of the product group

10 Pros (Advantages)

+ Reliable manufacturer: Eaton is a well-known electrical equipment manufacturer.

+ Fast tripping: effectively disconnects the circuit in case of overload or short circuit.

+ DIN mounting: convenient for installation in standard electrical panels.

+ Wide selection: can be chosen based on current, number of poles, and characteristic.

+ Reusable: after tripping, the switch can be switched back on manually.

+ Compact design: saves space in the distribution board.

+ Universal application: suitable for homes, offices, warehouses, and manufacturing.

+ Clear circuit management: allows dividing the electrical system into separate zones.

+ Standard compliance: meets modular protection equipment requirements.

+ Suitable for panel assembly: used in new and renovated objects.

10 Cons (Disadvantages)

− No leakage protection: for human protection, an RCD or RCBO device is required.

− Needs precise selection: rated current must match the cable and load.

− Needs correct characteristic: selection of B, C, or D depends on the load type.

− Installation by a specialist: improper connection can be dangerous.

− Limited breaking capacity: some objects may require protection greater than 6kA.

− No measurement function: does not display consumed electrical energy.

− No remote control: this is a mechanical protection device.

− Not suitable for all DC systems: checking the specific model parameters is mandatory.

− Does not protect against surges: surge arresters are required for this.

− Incorrect selection may lead to nuisance tripping: too low current will cause unnecessary disconnections.

Application areas by user type

For residential user

For protecting homes, apartments, garages, homesteads, lighting, sockets, and household electrical circuits.

For electrician

For electrical panel assembly, modernization, circuit separation, and daily installation work.

For engineer and designer

For electrical distribution projects, protection schemes, load distribution, and technical specifications.

For industry and automation

For protection of automation cabinets, production lines, pumps, ventilation, control, and technological circuits.

For commercial objects

For electrical panels in offices, shops, warehouses, administrative premises, and service areas.

For technical maintenance

For troubleshooting, replacing old circuit breakers, managing electrical panels, and preventive maintenance.

Note: The circuit breaker must be selected according to cable cross-section, load type, power grid parameters, installation conditions, and design requirements. Stock levels change constantly, therefore, availability must always be verified by a manager.
