  • Bulk | liquid material vibrating level switch | sensor | detector | 100-1000mm | 18-30VDC / 85-250VAC | 5A | DPDT

    Code: ES-LSK310

    Vibrating level switch – a professional, reliable solution for detecting the level of bulk materials (powders, granules) and liquids in industrial tanks, hoppers, or silos. The device operates on the vibration principle, making it resistant to dust, deposits, foam, and changes in material properties.

  • Technical specifications

    Power supply: 18-30 V DC / 85-250 V AC
    Output signal: Relay 5 A / 250 VAC, DPDT
    Measuring length: 100-1000 mm
    Working pressure: -0,1 MPa … +2,5 MPa
    Operating temperature: -20 °C … +100 °C
    Mechanical connection: Thread, Flange, Clamp
    Minimum detection density threshold: Bulk materials: ≥ 0,23 g/cm³; Liquids: ≥ 0,8 g/cm³
    Main features and functions

    Universal application – suitable for both bulk materials and liquids
    Stable operation regardless of density fluctuations
    Relay output (DPDT) – easy integration into automation systems
    Various mechanical connections – thread, flange or clamp
    Application

    Electrician / automation technician: Quick installation into existing tanks or silos. Easy connection to PLC, relay or signal circuits. Low sensitivity to vibrations and environmental disturbances.
    Engineer / project manager: Reliable solution for demanding media (dust, granular flow, foam). Low maintenance costs, long service life.
    Food, chemical, pharmaceutical industry: Resistant to aggressive substances. Stable operation even when product properties change.
    Advantages

    Works with both powders and liquids
    Does not require calibration for the material
    Resistant to dust, deposits and vibrations
    Wide power supply and mounting options
    Disadvantages

    Not suitable for very low density bulk materials (< 0,23 g/cm³)
    This is a level switch (ON/OFF), not a continuous level meter

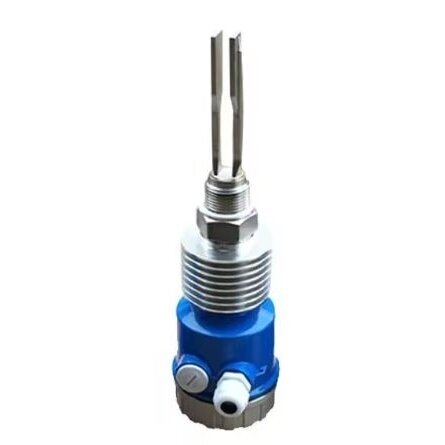

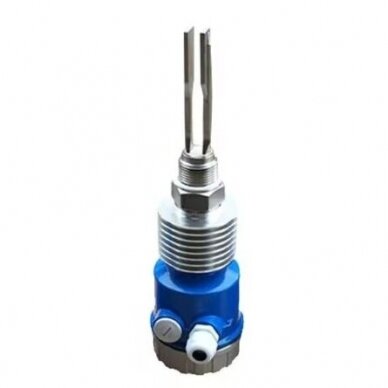

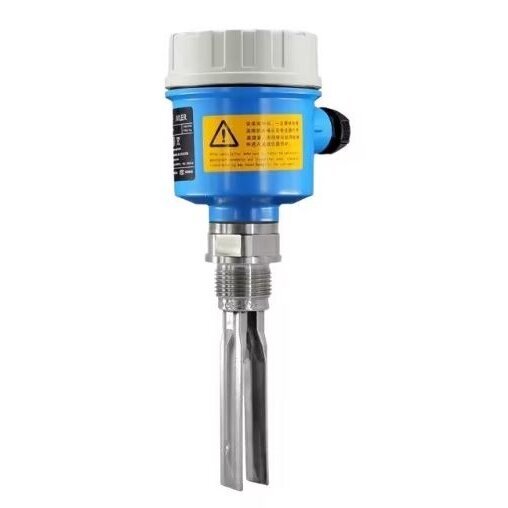

    Illustrative image may have been created using AI. The appearance of the product may differ slightly from the image shown. Please refer to the technical specification.
