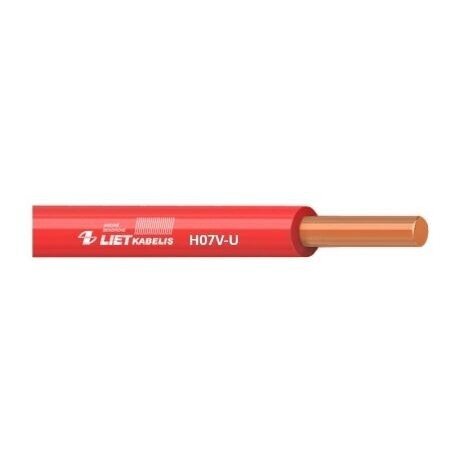

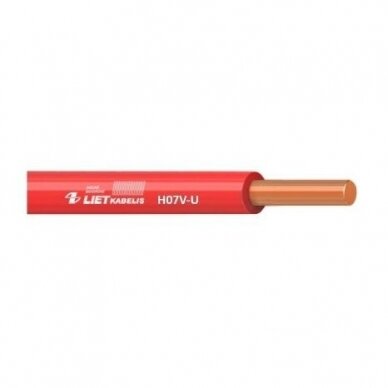

Cable 1.5mm² | copper | single-core | solid | H07V-U 1.5 | 1m | red
Code: 90501503• Cables are intended for fixed installation, laying them on surfaces in mounted or attached insulating pipes or similar sealed systems.
• Cables are designed for medium-power installation of electrical control and monitoring circuits of various equipment and devices.
• The conductor is made of annealed copper wire, solid and flexible. The copper core is covered with PVC insulation.Minimum order quantity: 10 meters!
-
Technical Specifications:
Cable type: DY, PV-1, H07V-U
Number of cores: 1
Core cross-section: 1.5 mm²
Rated voltage: 450/750 V
Insulation: PVC (TI 1 type insulation compound)
Insulation color: Red
Conductor structure: Single-wire, annealed copper, Class 1
Cable diameter: 2.75 mm
Insulation thickness: 0.7 mm
Operating temperature:
During installation: -5 °C to +40 °C
In operation: -30 °C to +70 °C
In case of short circuit: +160 °C
Thermal shock: 1 hour at +150 °C
High voltage test: 2.5 kV
Manufacturer: AB "Lietkabelis"
Functions:
Electrical current supply in fixed installations
Mounting on surfaces or in insulating tubes, cable ducts
Suitable for use in sealed systems
Wires for control and monitoring circuits of medium-power electrical devices
Long-term operation in a wide temperature range
Applications:
Electrical installations in residential and commercial buildings
Automation and control system circuits
Indoor electrical networks and lighting installations
Internal installations in industrial facilities
Electrical cabinets and distribution boxes
Pros:
Reliable conductor made of soft annealed copper
Resistance to high temperatures and thermal shock
Suitable for installation in enclosed systems and tubes
Flexible installation temperature range
High-quality PVC insulation ensures durability
Cons:
Not suitable for direct outdoor installation without additional protection
Illustrative image may have been created using AI. The appearance of the product may differ slightly from the image shown. Please refer to the technical specification.ManufacturerSingle-core wires are also called monolithic wires,
while multi-core wires are flexible wires.Wires usually have a single conductor covered with an insulating layer.
Cables have several insulated wires, covered with a common sheath.
Conductor properties of wires:
The resistance of copper conductors is lower (0.017Ω) than that of aluminum (0.028Ω),
but copper has better conductivity.
Copper has better electrical and thermal conductivity than aluminum.
Copper wires are more flexible, more resistant to corrosion, and more durable.
Aluminum wires quickly oxidize upon contact with air, forming a film that weakens the contact.
Copper wires carry higher currents than aluminum wires.
Copper conductors are denser than aluminum. Therefore, copper wire is heavier.The cross-sectional area of wires is chosen according to the power of specific equipment,
for example: for a 1kW load, a 1.57 mm² cross-sectional area of the conductor is required.
For aluminum wires: 5A per 1mm², and for copper wires: 8A per 1mm².This product is marked with the CE label, which confirms that it complies with all applicable European Union directives and regulations. CE marking is not just a formality – it is an important indicator of quality and safety, ensuring that the product has been properly assessed, tested, and can be safely used throughout the EU market.
