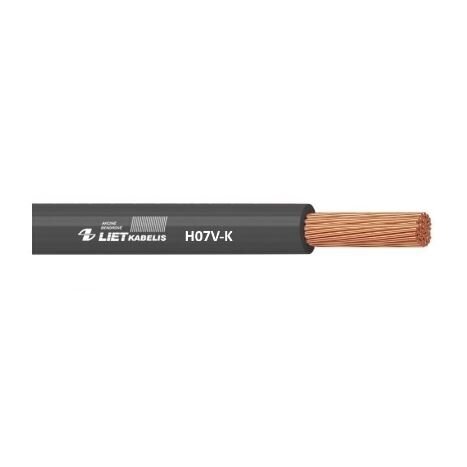

  • Cable 70mm² | copper | flexible | single-core | stranded | H07V-K 70 | 1m | black

    Code: 91370002

    H07V-K 70 – a flexible single-core 70 mm² copper electrical installation wire, intended for electrical distribution boards, power circuits, industrial equipment and other fixed electrical installations. The wire has a Class 5 stranded copper conductor, a rated voltage of 450/750 V and black PVC insulation, making it convenient to shape and install in confined spaces. Suitable for internal wiring in electrical cabinets, cable ducts and protective conduits when appropriate mechanical protection is provided.

  • Wire 70 mm² | copper | flexible | single-core | stranded | H07V-K 70 | 1 m | black

    H07V-K 70 – a flexible single-core electrical installation wire with a stranded annealed copper conductor and black PVC insulation. The 70 mm² cross-section wire is intended for electrical distribution boards, power circuits, industrial equipment and internal connections in electrical cabinets. Its class 5 flexible conductor construction makes it easier to shape and install in confined spaces, while the PVC insulation provides electrical insulation and mechanical protection.

    Key point:
    Installing large cross-section conductors in electrical panels requires sufficient flexibility and reliable connection components. H07V-K 70 is made of many thin copper strands, making it easier to bend and route between electrical components than a rigid solid conductor. The wire with black PVC insulation is intended for 450/750 V fixed electrical installations in protective conduits, cable ducts and electrical cabinets.
    Rated voltage
    450/750 V
    Conductor
    1 × 70 mm², copper
    Flexibility class
    Class 5, stranded
    Operating temperature
    up to +70 °C

    Construction and operating principle

    H07V-K 70 has one 70 mm² conductor made of many thin annealed copper strands. The stranded class 5 construction provides the flexibility required for forming wire connections in electrical distribution and control cabinets.

    The copper conductor is covered with black TI1 type PVC insulation with a thickness of 1.4 mm. The wire has an outer diameter of 14.7 mm, so its dimensions should be taken into account when selecting cable ducts, connection components and the installation location.

    The wire is intended for transmitting electrical energy in fixed electrical installations. It is used for internal connections in electrical cabinets, switchgear and power circuits of industrial equipment, provided that suitable mechanical protection is ensured.

    What are the benefits of H07V-K 70?
    The flexible 70 mm² copper conductor makes it easier to install larger cross-section electrical connections in confined spaces. The stranded construction allows the wire to be routed more conveniently inside electrical panels, while the PVC insulation protects the conductor from direct contact with surrounding components.

    Technical specifications

    Product type Electrical installation wire
    Designation H07V-K 70
    Conductor material Annealed copper (Cu)
    Conductor construction Stranded, flexible
    Conductor class Class 5
    Number of cores 1
    Core cross-section 70 mm²
    Rated voltage U₀/U 450/750 V
    Test voltage 2.5 kV
    Insulation material PVC, TI1 type
    Insulation colour Black
    Outer diameter 14.7 mm
    Insulation thickness 1.4 mm
    Maximum operating temperature +70 °C
    Temperature during short circuit Up to +160 °C
    Heat shock 1 hour at +150 °C
    Installation temperature From −5 °C to +40 °C
    Operating temperature From −30 °C to +70 °C
    Sales unit 1 m
    Minimum order 10 m

    When selecting connection terminals, cable lugs and installation accessories, their suitability for a 70 mm² class 5 flexible copper conductor must be checked. The permissible current load depends on the installation conditions.

    Main functions

    • Electrical power transmission – intended for electrical connections in power circuits.
    • 70 mm² copper conductor – used in higher-load circuits where this cross-section is specified by the design.
    • Class 5 flexibility – stranded construction makes wire shaping and connection easier.
    • Electrical panel wiring – suitable for internal connections in switchgear and electrical cabinets.
    • Industrial equipment power supply – used in power circuits for electric motors, inverters and other equipment according to the design.
    • Installation in ducts – intended for fixed installations in protective conduits and cable ducts.
    • PVC insulation – provides electrical insulation of the conductor and mechanical protection.
    • Black insulation – allows the conductor to be distinguished according to the colour coding used in the project.
    • Temperature characteristics – operating temperature from −30 °C to +70 °C.

    Where is it used?

    • Electrical distribution boards and cabinets
    • Internal connections in switchgear
    • Power circuits for industrial electric motors
    • Inverter and transformer connection circuits
    • Electrical installations in industrial automation systems
    • Electrical systems in commercial and administrative buildings
    • AC-side connections of solar power plant inverters according to the design
    • Fixed installations in cable ducts and protective conduits

    Use by requirement

    For the electrician.
    The flexible 70 mm² conductor makes installation of power connections easier in distribution boards and electrical cabinets where space for shaping wires is limited.
    For the electrical engineer.
    Used when designing higher-load electrical circuits where a 70 mm² copper conductor is required according to the calculated operating conditions.
    For an industrial company.
    Suitable for fixed connections in production equipment, control cabinets and electrical distribution systems, provided that equipment connection requirements are followed.

    Practical application

    In an electrical distribution board, H07V-K 70 can be used for a connection between the main incoming switch and distribution components if the design requires a 70 mm² copper conductor. The flexible stranded construction makes it easier to arrange the wire inside the panel, while terminals compatible with class 5 conductors or correctly selected cable lugs must be used for connection.

    Advantages

    • Annealed copper – good electrical conductivity
    • Flexible class 5 stranded conductor
    • More convenient installation than with a rigid solid wire
    • 70 mm² cross-section for higher-power circuits
    • PVC insulation – electrical and mechanical protection
    • Operating temperature from −30 °C to +70 °C

    Limitations

    • Not suitable for direct burial in the ground
    • Additional protection against environmental exposure is required outdoors
    • PVC insulation must be protected from prolonged UV exposure
    • Connection components must be suitable for flexible stranded conductors
    • Installation temperature from −5 °C to +40 °C
    • Minimum order quantity – 10 metres

    Safety and installation notes

    • Installation and connection work must be carried out by a qualified electrician after disconnecting and checking the voltage of the electrical circuit.
    • The 70 mm² cross-section is selected according to the load, installation method, ambient temperature, voltage drop and protective devices.
    • Use terminals compatible with class 5 stranded conductors or correctly crimped cable lugs.
    • The wire installation temperature must be from −5 °C to +40 °C.
    • Do not exceed the maximum conductor operating temperature of +70 °C.
    • Protect the wire from mechanical damage, prolonged direct UV exposure and unsuitable environmental conditions.
    • Determine the purpose of the black conductor according to the electrical installation diagram and applicable conductor identification requirements.

    Quick selection guide

    450/750 V
    1 × 70 mm²
    Class 5, flexible
    PVC TI1
    Black insulation
    Suitable when you need:
    • a flexible 70 mm² copper conductor for a power circuit;
    • internal connections in electrical panels and industrial equipment;
    • a fixed installation in protective conduits or cable ducts.
    Check before purchasing:
    • whether the project requires a 70 mm² cross-section;
    • whether the connection terminals are suitable for a class 5 copper conductor;
    • whether the black insulation colour corresponds to the circuit marking;
    • whether the required protection against mechanical and environmental effects is provided.
    Important reminder: a 70 mm² cross-section alone does not determine a specific permissible current in amperes. Current-carrying capacity depends on the installation method, ambient temperature, conductor grouping and other design conditions. Final selection must be carried out by a qualified electrical specialist.

    FAQ

    Is H07V-K 70 a copper wire?
    Yes. The conductor is made of annealed copper and consists of many thin strands. It is a flexible class 5 copper conductor.
    Is this wire flexible?
    Yes. H07V-K 70 has a class 5 stranded conductor, making it easier to bend and shape than a solid wire. This is particularly useful when installing inside electrical cabinets.
    Where can H07V-K 70 be used?
    It is intended for fixed electrical installations in distribution boards, electrical cabinets, cable ducts and protective conduits. It is also used in power and control circuits of industrial equipment according to the design.
    What is the maximum operating temperature?
    The maximum operating temperature is +70 °C. During a short circuit, the specified temperature limit is up to +160 °C, but this does not mean the wire may be continuously operated at this temperature.
    Can this wire be used in a solar power plant?
    It may be used for inverter AC-side connections and electrical distribution cabinet connections if it meets the project requirements. The H07V-K designation alone does not confirm suitability for DC cable circuits of solar modules.
    How is H07V-K 70 wire sold?
    The price is stated per 1 metre, and the minimum order quantity is 10 metres. Larger quantities can be ordered according to the requirements of the project.

    Flexible copper wire H07V-K 70 mm² – black

    H07V-K 70 – a single-core flexible copper installation wire with a stranded class 5 conductor, 450/750 V rated voltage and black PVC insulation. Intended for electrical distribution boards, industrial equipment power supply and fixed electrical installations. The 70 mm² cross-section and flexible construction make installation of higher-power electrical connections easier. The wire is sold by the metre, with a minimum order quantity of 10 m.
