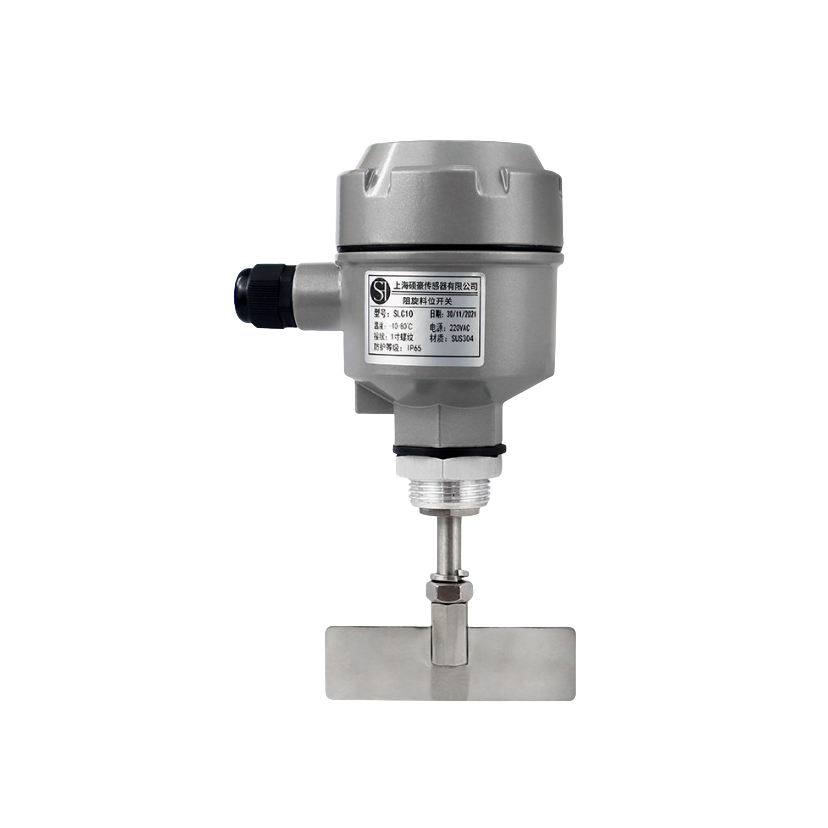

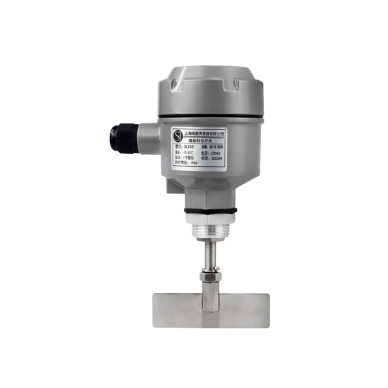

Cement | flour | bulk material rotary | rotating motion level sensor | detector | 230VAC | 5A/250V SPDT | explosion-proof | IP65

This model differs from the standard version by its explosion-proof construction and larger housing. This version is intended for processes requiring a higher level of safety. Before use, the certification documents of the specific model, permitted installation zones and all manufacturer operating conditions must be verified.

This switch does not measure material level in centimetres, metres or percentages. It operates as a point level sensor: the contact switches when the bulk material reaches the paddle. It can therefore be used for both high-level and low-level control.

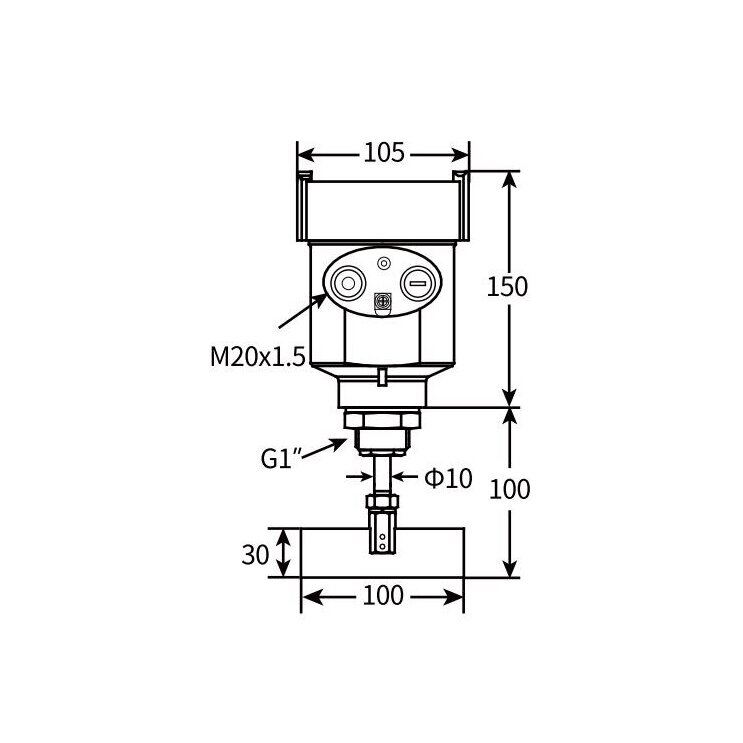

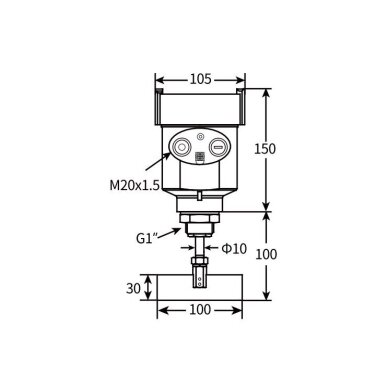

The explosion-proof version has a larger housing than the standard model. The housing width is approximately 105mm and the height is approximately 150mm. This type of housing is intended for safer operation in process systems where additional safety requirements must be taken into account.

The 100mm-wide paddle must have sufficient space to rotate freely and must not touch the tank wall, pipes, supports or other internal structures. The installation location should be selected so that a strong direct flow of material does not fall directly onto the paddle.

The explosion-proof rotary paddle level switch can be used in production, storage and processing systems where it is necessary to detect whether bulk material has reached a specific point in a tank and where the process environment is subject to higher safety requirements. Suitable for process hoppers, silos, storage vessels and dosing systems, provided that the certification of the specific model is suitable for the intended installation location.

• Explosion-proof version intended for processes subject to higher safety requirements.
• Simple electromechanical operating principle enables reliable point level detection of bulk materials.
• SPDT 5A / 250VAC contact is suitable for transmitting a signal to a control or alarm system.
• SUS304 stainless steel paddle is designed for direct contact with bulk material.
• 1 rpm rotation speed is intended for mechanical detection of material presence.
• IP65 protection rating protects the housing against dust and water jets.
• G1" process connection is designed for fixed installation into equipment.
• M20x1.5 cable entry is intended for connecting power and signal wiring.
• -20°C to +80°C operating temperature is suitable for standard industrial conditions.
• 3W power consumption is required to drive the paddle.

• Designed for point level rather than continuous level measurement: the switch detects material only at one specific level.
• Mechanical contact with the material: the paddle must physically contact the monitored bulk material.
• Not suitable for conventional liquid level measurement: the operating principle is based on stopping the rotating paddle.
• Standard temperature and pressure version: if the process requires high temperature or high pressure, a model specifically designed for those conditions must be selected.
• Certification data is required for safe use: the designation “explosion-proof version” alone is not sufficient; the technical documentation of the specific model must be followed.
• Clearance is required for paddle rotation: there must be no obstacles around the paddle.

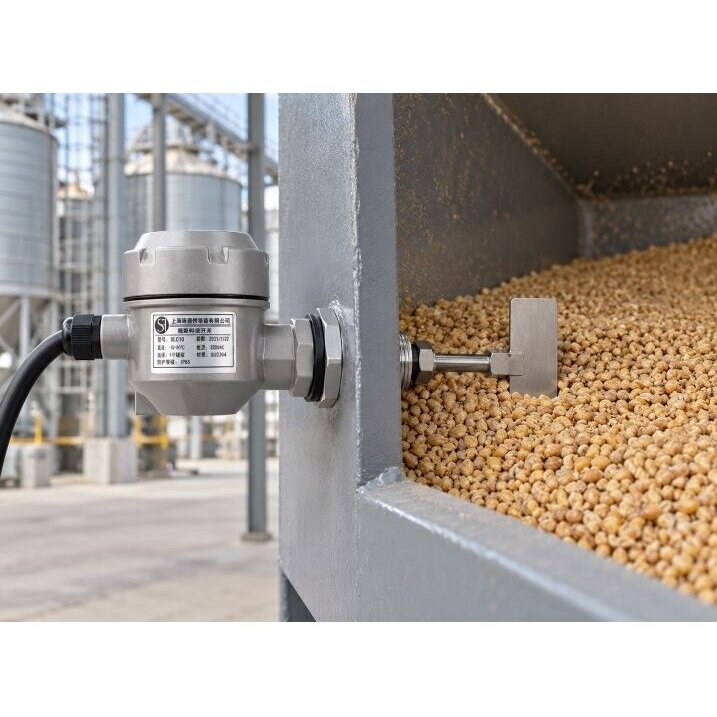

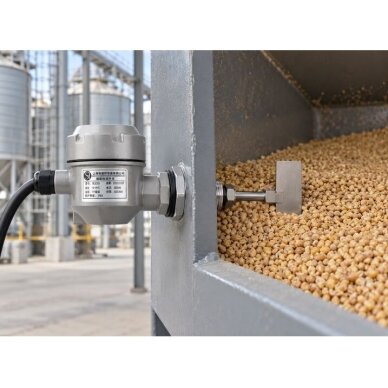

In a bulk-material process hopper subject to higher safety requirements, the explosion-proof rotary paddle level switch is installed at the maximum permitted filling level. As long as the material does not reach the paddle, the 230VAC synchronous motor rotates it at approximately 1 rpm. When the hopper fills, the bulk material stops the paddle, the SPDT contact switches, and the signal is transmitted to the controller, which stops material feeding or activates a full-tank alarm.

The main difference is the explosion-proof housing construction and the larger housing. The operating principle remains the same.

It detects whether bulk material has reached a specific point in the tank. It is a point level switch rather than a continuous level measuring device.

The paddle rotates slowly and continuously. When bulk material reaches it and creates mechanical resistance, rotation stops and the internal mechanism switches the signal contact.

The switch supply voltage is 230VAC.

An SPDT microswitch contact is used, with an electrical rating of up to 5A / 250VAC.

The paddle rotation speed is approximately 1 rpm.

The paddle is made of SUS304 stainless steel.

The standard explosion-proof version has an operating temperature range of -20°C to +80°C.

This is a standard-pressure version intended for normal atmospheric pressure conditions.

A G1" process connection is used.

The electrical cable entry is M20x1.5.

The enclosure protection rating is IP65.

Yes. When installed in the upper part of the tank, the SPDT contact can be used to stop material feeding or activate a full-tank alarm.

Yes. When correctly installed in the lower part of the tank, the change in contact state can be used to monitor the minimum material level.

This design is intended for bulk materials. Different sensor technologies are normally used for liquid level measurement.

No. Before installation, the certificates of the specific model, permitted zones, installation requirements and other technical conditions must be verified.

The explosion-proof rotary paddle level switch must be installed so that the paddle can rotate freely and does not touch the tank wall or internal structures. The process connection, mechanical mounting and cable entry must be installed in accordance with the manufacturer's requirements. Electrical 230VAC connection work must be carried out by a qualified specialist with the power supply disconnected before work begins. The SPDT contact rating of 5A / 250VAC must not be exceeded. When using an explosion-proof version, the certification documents of the specific model must be followed and it must be verified that the switch is approved for the intended installation location and zone.
