Differential pressure gauge | manometer 0-125Pa | IP67

Technical Specifications

Measurement Range: 0-125Pa
Accuracy: ±2% FS at 21°C (for pressures above 60 Pa: ±3%, for pressures below 60 Pa: ±4%)​
Maximum Overpressure: ~110 kPa – 150 kPa (in case of excessive pressure, the rubber safety plug will detach)​
Operating Temperature: -7°C to 60°C​
Protection Class: IP67 (fully protected against dust and water splashes)​
Pressure Types: Positive, negative, or differential pressure​

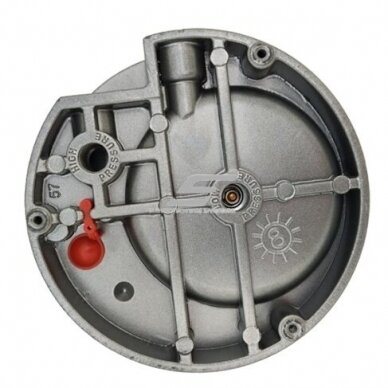

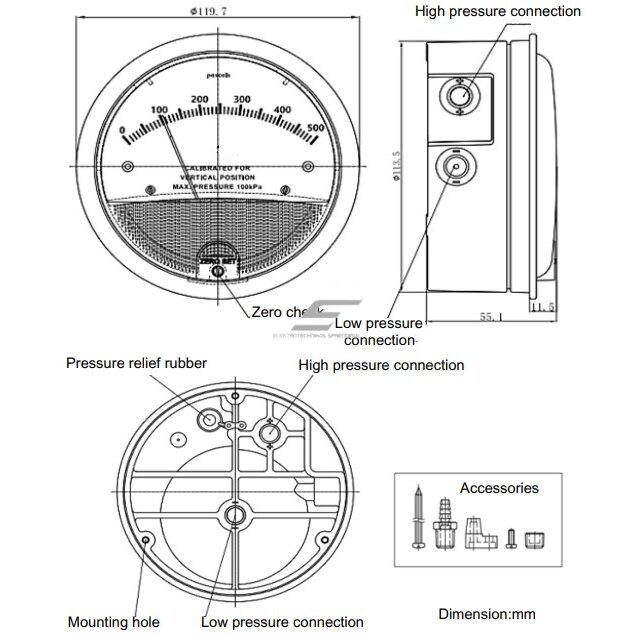

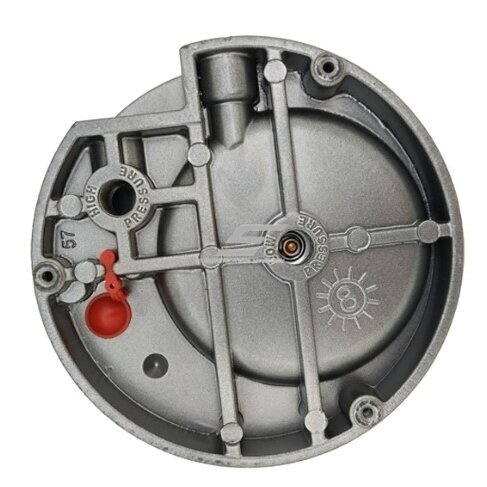

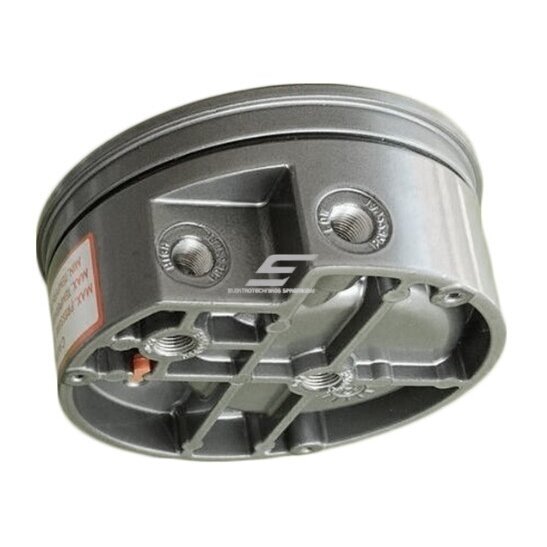

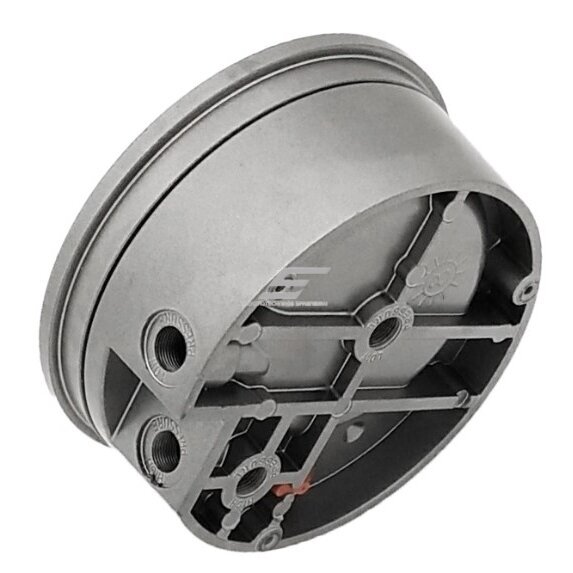

Connections: 2 sets of pressure connectors (on the sides and back)​
Mounting Options: 3 different mounting possibilities, allowing flexible adaptation in various environments​
Features and Properties

Magnetic Transmission Mechanism – Frictionless: Reduces wear and ensures longer service life and higher accuracy.​
No Liquid Filling – No Evaporation or Freezing Risk: The pressure gauge does not require liquid, thus avoiding issues like evaporation, freezing, or unpleasant odors common in some other types of gauges.​
High Resistance to Vibration and Shocks: Due to its mechanism and robust construction, the gauge maintains accurate readings and is unaffected by vibrations or shocks.​
Highly Sensitive Pressure Membrane: The rubber membrane acts as a sensitive element, ensuring precise and rapid response to even minimal pressure changes.​
Versatile Mounting: With two sets of connectors (side and rear) and three mounting options, the gauge can be easily adapted to various environments.​
Applications

The manometer is widely used in various industrial sectors:

Industrial Fans and Blowers: Measures fan or blower pressure to ensure optimal performance.​
Filter Monitoring: Helps determine when filters are clogged, optimizing their replacement.​
Gas Burners and Boilers Control: Regulates the air-gas mixture in burners for more efficient combustion.​
HVAC Systems: Used in ventilation systems to measure airflow resistance in ducts.​
Hydraulic Systems: Monitors hydraulic pressure in various systems.​
Medical Devices: Can be used for respiratory and blood pressure measurements.​
Aviation and Microelectronics: Suitable for precision industries requiring highly accurate pressure measurements.​
Environmental Projects: Applied in bioengineering and eco-friendly buildings.​
Food and Beverage Industry: Used for pressure measurement in production processes.​
Pros:

High Measurement Accuracy (±2% FS): Suitable for precise pressure control.​
No Liquid Filling Required: Avoids issues like freezing, evaporation, or unpleasant odors.​
Resistance to Vibration and Shocks: Accurate readings even in challenging conditions.​
Ability to Measure Positive, Negative, and Differential Pressure: Versatile usage.​
IP67 Protection Class: Resistant to dust and water splashes.​
Flexible Mounting: 2 connector locations + 3 mounting options.​
Cons:

No Digital Display: Mechanical readings may be harder to read in certain environments.​
Fixed Accuracy Level: Accuracy deviation increases at pressures below 60 Pa.​
Differential Pressure Gauge – Precise, Reliable, and Highly Versatile Solution!
