Electric radiator without thermostat | 1000W | 230V | 350x975x84mm | IP24 | white | ADAX | Glamox Heating TPVD 10

Electric convection radiator | 1000 W | 350 mm high | IP24C | without thermostat | Glamox Heating TPVD 10

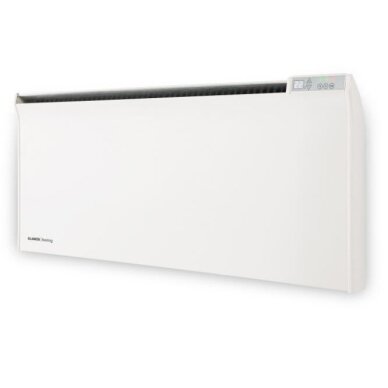

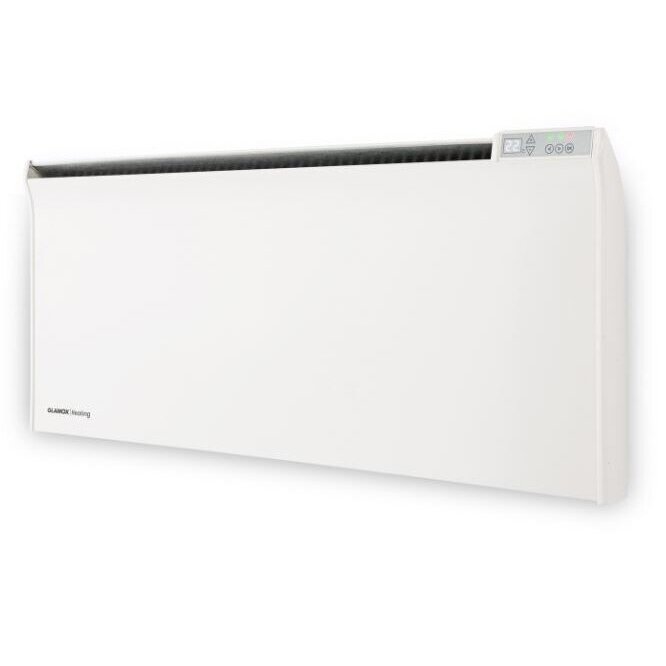

Glamox Heating TPVD 10 – a 1000 W electric convection radiator with a low-profile housing only 350 mm high. This is the highest-power version among the TPVD 04, TPVD 06, TPVD 08 and TPVD 10 models, designed for higher heat demand while retaining the 35 cm high construction.

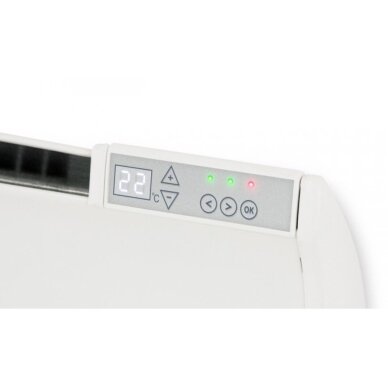

Protection rating – IP24C. The radiator is supplied without a thermostat, while the compatible programmable digital Glamox Heating DTV thermostat is selected and ordered separately.

TPVD 10 is wall-mounted and the mounting bracket is included. The radiator has a 1.20 m power cable with plug for connection to a socket and also supports connection to a fixed electrical installation. With separately purchased feet, the radiator can also be installed on the floor.

The radiator is equipped with overheating protection – a thermal fuse, while the maximum specified temperature of touchable surfaces is 80 °C. A 5-year warranty is provided.

Glamox Heating TPVD 10 is a 1000 W, 350 mm high convection radiator with dimensions of 350 × 975 × 84 mm. It is the highest-power model among these four TPVD versions and features an IP24C protection rating, overheating protection and the option to add a programmable DTV thermostat.

1000 W nominal power is the highest among the TPVD 04, TPVD 06, TPVD 08 and TPVD 10 models. The appropriate radiator output should be selected according to the heat loss and actual heating demand of the specific room.

For project design: TPVD 10 should be evaluated according to its IP24C protection rating rather than automatically applying the IP24 designation of other TPVD versions.

Important: the protection rating itself does not mean that the radiator can be installed anywhere in a humid room. The specific installation zone, clearances and electrical connection must comply with applicable electrical safety requirements.

Before ordering: as the radiator is sold without a thermostat, a compatible DTV thermostat for the TPVD series must be selected separately.

Compared with TPVD 08, the nominal power of TPVD 10 increases from 800 W to 1000 W, while the housing width increases from 813 mm to 975 mm. The height and depth remain unchanged at 350 mm and 84 mm.

Maximum specified touchable surface temperature – 80 °C. This value should be taken into account when selecting the installation location and planning access to the radiator.

• Residential rooms.
• Rooms where an IP24C-rated radiator is suitable according to the project requirements.
• Living rooms and bedrooms.
• Hallways and corridors.
• Offices and workspaces.
• Commercial and utility rooms.
• Under windows or other locations where a low 350 mm, 1000 W radiator is required.

• The radiator is normally wall-mounted.
• Mounting bracket included.
• Minimum clearance above the radiator – 50 mm.
• Minimum clearance below the radiator – 50 mm.
• The radiator can be floor-mounted using suitable separately purchased feet.
• The DTV thermostat is installed on the right-hand side of the radiator.
• The power cable is also located on the right-hand side of the radiator.
• Connection to a fixed electrical installation must be carried out by a qualified specialist.

• Maintain the minimum 50 mm clearances above and below.
• Do not cover the radiator or obstruct the areas required for natural air circulation.
• Take into account that touchable surfaces may reach up to 80 °C.
• The IP24C protection rating must be considered together with the requirements of the specific installation location.
• Fixed electrical installation work must be carried out by a qualified electrician.
• Use only a thermostat compatible with TPVD radiators.

Glamox Heating TPVD 10 | 1000 W | IP24C | 350 mm high | electric convection radiator

Glamox Heating TPVD 10 – a 1000 W white electric convection radiator with dimensions of 350 × 975 × 84 mm. Protection rating – IP24C. The radiator has overheating protection, a 1.20 m power cable with plug and a wall bracket, while the programmable digital DTV thermostat is selected separately. Floor mounting is also possible with additional feet. A 5-year warranty is provided.
