Electrical installation junction box | plastic | hermetic | 100x100x80mm | surface-mounted | grey | IP67

Code: ELSI-68101

Inquire about this item

Add to compareRemove from comparison Compare goods (0)

Add to wishlist

Price 5.52 € VAT incl.
( 4.56 € VAT excl. )

Want another price? Suggest yours!

Add to cart

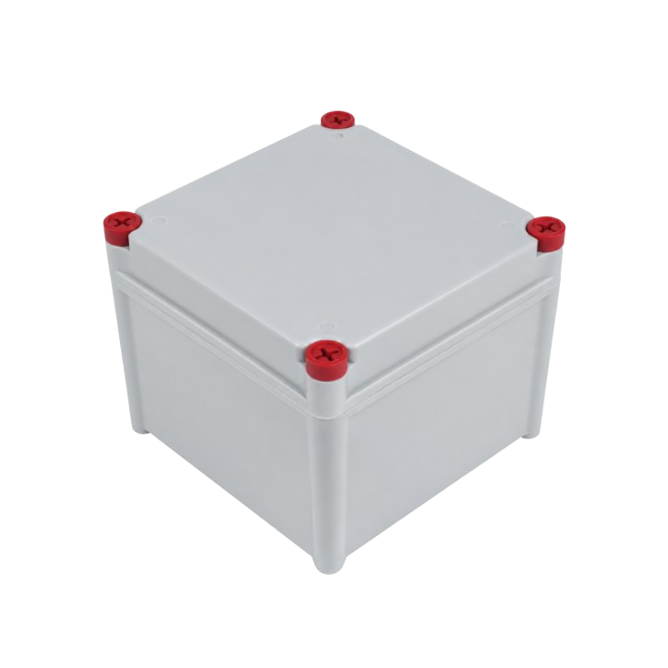

Hermetic ABS enclosure 100 × 100 × 80 mm – a compact IP67 and IK07 housing designed for electrical connections, automation and small electronic components. The enclosure is made of grey ABS (RAL 7035), has a silicone sealing gasket and is supplied with mounting screws. Operating temperature: −20 °C to +70 °C; cable glands, terminals, DIN rail and mounting plate are not included.

Electrical installation distribution box | ABS plastic | sealed | 100x100x80mm | surface-mounted | grey | IP67

Compact sealed electrical installation distribution and junction box made of grey RAL 7035 ABS plastic. Designed to protect electrical wire connections, terminals, small electronic components and automation assemblies from environmental effects. The 100 × 100 × 80 mm enclosure provides IP67 protection against dust and water, IK07 mechanical resistance and an operating temperature range from −20 °C to +70 °C. The lid is sealed with a white silicone foam rubber gasket and secured with red glass-fibre-reinforced nylon screws. Mounting screws are included. Cable glands, terminals, DIN rail and mounting plate are not included.

Key point:
Electrical connections and electronic components require a suitably protected enclosure, especially when equipment is installed in damp, dusty or industrial environments. The 100 × 100 × 80 mm ABS box provides compact space for a custom-configured electrical or automation assembly. IP67 protection, the silicone sealing gasket and IK07 mechanical resistance help protect the equipment inside, while the predefined mounting points make installation easier. Cable entries and internal components are selected separately according to the requirements of the specific project.

Protection
IP67 | IK07

Dimensions
100 × 100 × 80 mm

Sealing
Silicone lid gasket

Set contents
ABS enclosure with lid and screws

Operating principle

The box is used as a protective enclosure for electrical installation connections and small electronic and automation components. The enclosure base and lid are made of ABS plastic. The internal space can be adapted to different mounting solutions depending on component dimensions, fixing possibilities and electrical installation requirements.

Cable entry locations are selected during installation. Required openings are made in the enclosure walls using suitable cable glands or other sealed entries. To maintain the enclosure's IP67 protection rating, the entries must be correctly selected and installed with proper sealing.

IP67 protection means complete protection against dust and resistance to temporary immersion in water according to IEC 60529 classification. IK07 mechanical resistance corresponds to 2 J impact energy according to IEC 62262. The enclosure is intended for operation at ambient temperatures from −20 °C to +70 °C.

The box is fixed to the selected surface using the provided mounting holes. Their centre-to-centre spacing is 97 × 97 mm, and the hole diameter is Ø 3.6 mm. The overall external dimensions including the mounting structure according to the drawing are 109 × 109 mm. This allows mounting points and box positioning to be planned in advance.

Why is this box useful?
This is a universal protective enclosure whose internal configuration can be selected individually. The box is suitable for both simple wire connections and small electronic or automation assemblies. IP67 protection, IK07 mechanical resistance and the silicone lid gasket allow the enclosure to be used where protection against dust, moisture and mechanical impact is important. The included screws simplify enclosure assembly and installation.

Technical specifications

Product type	Sealed electrical installation distribution / junction box
Enclosure material	ABS plastic
Upper lid material	ABS plastic
Lower enclosure material	ABS plastic
Nominal dimensions	100 × 100 × 80 mm

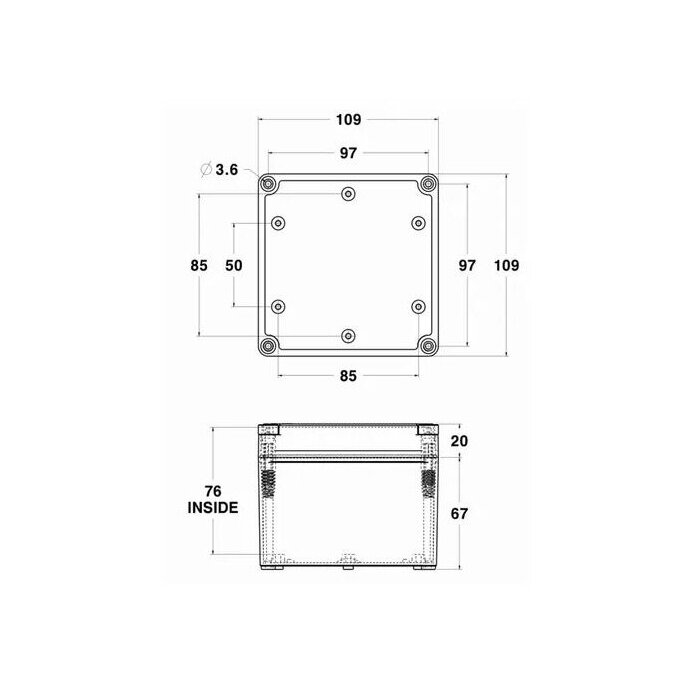

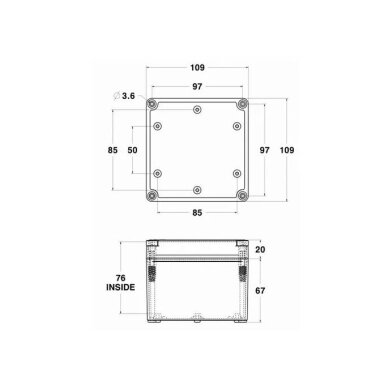

Overall external dimensions according to drawing	109 × 109 mm, including mounting structure
Mounting hole spacing	97 × 97 mm
Mounting hole diameter	Ø 3.6 mm
Internal height according to drawing	76 mm (construction dimension)
Protection class	IP67
Mechanical resistance class	IK07
Operating temperature	−20 °C to +70 °C
Flammability class	UL 94 HB
UV resistance	UV resistance specified, without additional test parameters
Compliance markings	CE, RoHS
Enclosure colour	Grey, RAL 7035
Lid colour	Grey, RAL 7035
Lid screw material	Nylon 6 with 30% glass-fibre reinforcement (PA6-GF30)
Lid screw colour	Red
Lid sealing gasket	Silicone foam rubber gasket
Gasket colour	White
Mounting method	Surface-mounted
Wall mounting screws	4 × 19 mm, Phillips, 4 pcs.
Additional mounting screws	6 × 10 mm, Phillips, 4 pcs., for DIN rail mounting
Cable entries / glands	Not included; selected separately
Terminals	Not included
DIN rail	Not included
Mounting plate	Not included
Application	Electrical installation connections, wire distribution, small electronic and automation assemblies
Set contents	ABS enclosure with lid, silicone lid sealing gasket, lid screws and mounting screws

Main functions

IP67 protection – protection against dust and temporary immersion in water under specified test conditions.
IK07 mechanical resistance – enclosure resistance to a 2 J mechanical impact.
ABS plastic construction – electrically non-conductive, corrosion-resistant enclosure.
Silicone sealing gasket – helps provide a sealed connection between the lid and base.
PA6-GF30 lid screws – nylon structural components with 30% glass-fibre reinforcement.
RAL 7035 grey colour – neutral colour for technical equipment enclosures.
Compact dimensions – 100 × 100 × 80 mm enclosure for small electrical and electronic assemblies.
Predefined mounting points – 97 × 97 mm mounting hole spacing.
Flexible internal equipment selection – project-specific components can be installed if dimensions and construction allow.
Choice of cable entry locations – openings can be made according to cable routing and enclosure construction.
Operating temperature – from −20 °C to +70 °C.
UL 94 HB flammability class – plastic flammability characteristic.
Mounting screws included – the enclosure is supplied with installation screws.

Where is it used?

Electrical installation wire junction and branch points
Small industrial automation connection assemblies
Sensor, transducer and signal cable connections
Lighting power supply and control cable connections
Connection assemblies for pumps, fans and other equipment
Electronic boards and small control modules when suitable fixing elements are installed
Enclosures for IoT, telemetry and communication-system electronics
Electrical installations in production equipment and process lines
Installations in basements, boiler rooms and other more humid technical rooms
Outdoor electrical assemblies where installation conditions correspond to the enclosure characteristics
Individually configured electronics and automation projects

Use according to need

For equipment manufacturers (OEM).
A standard-size ABS enclosure that can be configured according to the requirements of a specific electronics or automation assembly. Suitable for projects that do not require factory-installed internal equipment.

For designers / engineers.
IP67, IK07, the −20 °C to +70 °C temperature range and 97 × 97 mm mounting geometry make it possible to evaluate the enclosure in a technical project and plan the required cable entries and internal components.

For installers / electricians.
A practical enclosure for individually configured wire connections. Cable glands, terminals and other components are selected according to the specific installation, while the enclosure is mounted using the designated fixing points.

Practical application

For example, a small wire junction point needs to be installed in a technical room. The 100 × 100 × 80 mm box is fixed to a wall or equipment structure using the designated mounting holes. Sealed cable glands, purchased separately, are selected according to the number and outer diameter of the cables. Suitable terminals or other connection elements are installed inside the enclosure and securely fixed. After completing the connections, the silicone lid gasket is checked and the lid is closed with screws. This creates a neat electrical junction assembly that remains accessible for maintenance.

Advantages

IP67 protection against dust and water
IK07 mechanical resistance class
Durable ABS plastic enclosure
Silicone lid sealing gasket
Red PA6-GF30 lid screws
Screws included
Individually selected internal equipment
Compact 100 × 100 × 80 mm dimensions
Mounting holes for fixing the enclosure
Operating temperature from −20 °C to +70 °C

Disadvantages / limitations

Cable glands are not included
Terminals are not included
DIN rail is not included
Mounting plate is not included
Fixing of internal components must be planned separately
Cable openings are made during installation
Final IP67 sealing depends on correctly installed entries and lid
Internal space is limited for large or heat-generating components
UV resistance test duration and methodology are not specified

Safety and installation notes

⚡ Before installation, connecting wires or opening the box, disconnect the electrical power supply and verify that no voltage is present.
Fix the box using the designated mounting points in the construction.
Mounting hole spacing – 97 × 97 mm, hole diameter – Ø 3.6 mm.
For cable entries, use correctly selected sealed glands matching the cable outer diameter and required IP class.
Drill openings in the enclosure only in suitable locations without damaging the lid sealing contour or structural elements.
For outdoor installation, where possible, it is recommended to route cables from below and provide a drip loop.
Terminals or other electrical components used inside must be properly fixed and suitable for the intended electrical load.
Before closing, check that the white silicone gasket is clean, undamaged and correctly positioned.
Tighten the lid screws evenly without exceeding the appropriate tightening torque for plastic fastening elements.
Do not exceed the specified operating temperature range of −20 °C to +70 °C.
If heat-generating electronics are installed inside the enclosure, assess temperature rise in the closed space.
Electrical installation work must be carried out by a qualified specialist in accordance with applicable safety requirements.

Quick selection guide

100 × 100 × 80 mm

IP67 | IK07

ABS | RAL 7035

With screws

Suitable when you need:

a sealed enclosure for electrical connections or electronics;
IP67 protection against dust and water;
a compact ABS plastic enclosure;
individually selected cable entries and internal equipment;
a surface-mounting solution for technical or industrial environments.

Check before use:

whether the intended components fit inside the enclosure;
how many cable entries will be required and where they will be installed;
which terminals or fixing elements need to be purchased separately;
whether the selected glands provide the required sealing;
whether the intended operating temperatures fall within the −20 °C to +70 °C limits.

Important reminder: this is an empty protective enclosure with lid and screws. Cable glands, terminals, DIN rail and mounting plate are not included. All required internal components and cable entries are selected separately.

FAQ

What does IP67 protection mean?
IP67 means complete protection against dust and resistance to temporary immersion in water under IEC 60529 test conditions. Final sealing depends on correctly installed cable entries and a properly closed lid.

What does IK07 mean?
IK07 mechanical resistance corresponds to 2 J impact energy according to IEC 62262.

Is the box supplied with screws?
Yes. Lid screws and mounting screws are included. The technical specification also lists additional screws intended for DIN rail mounting.

Are cable glands included?
No. Cable glands are not included. They must be selected and purchased separately according to cable diameter and the required protection class.

Are terminals included?
No. Terminals are not included. They are selected separately according to conductor cross-section, electrical characteristics and connection diagram.

Does the box include a DIN rail?
No. A DIN rail is not included. The technical specification lists only screws intended for fixing it.

Is a mounting plate included?
No. A mounting plate is not included. Fixing of internal components must be planned separately according to the project.

Does the box have a lid sealing gasket?
Yes. A white silicone foam rubber gasket is used to seal the lid.

What material are the lid screws made from?
The red lid screws are made from nylon 6 with 30% glass-fibre reinforcement (PA6-GF30).

What are the box mounting dimensions?
Nominal enclosure dimensions – 100 × 100 × 80 mm. Mounting hole spacing – 97 × 97 mm, hole diameter – Ø 3.6 mm. Overall external dimensions including the mounting structure according to the drawing – 109 × 109 mm.

Can the box be used outdoors?
The IP67 protection class and specified UV resistance properties allow the enclosure to be considered for outdoor installations. For long-term use in direct sunlight, specific UV resistance requirements must be evaluated and cable entries must be installed correctly.

What temperature range can the box be used in?
The enclosure operating temperature range is from −20 °C to +70 °C. Components installed inside must also be suitable for these conditions.

Can additional cable entries be installed?
Yes. Cable entry openings can be made in the enclosure walls. Suitable sealed glands must be selected and structural and sealing elements must not be damaged.

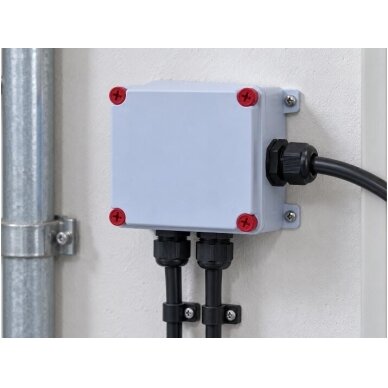

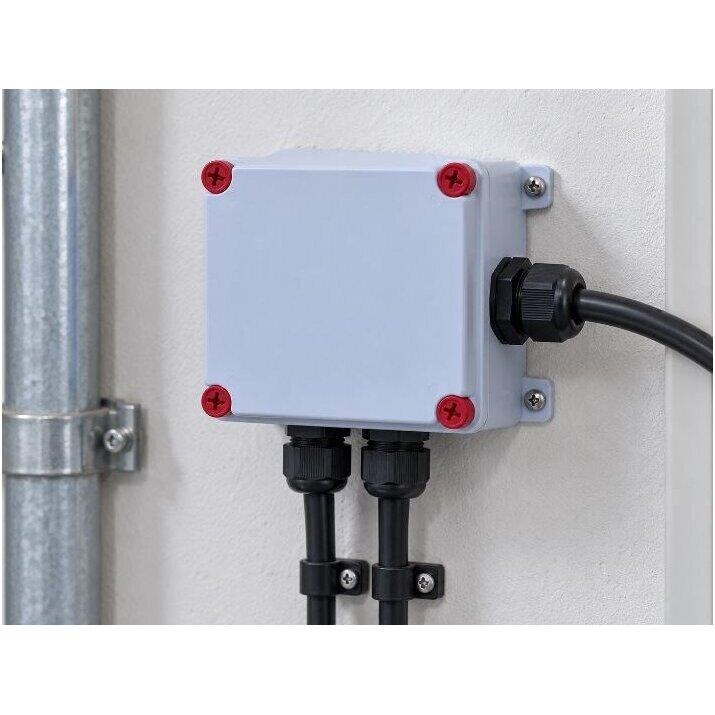

Sealed ABS electrical installation distribution box 100 × 100 × 80 mm | IP67 | IK07

Compact grey RAL 7035 ABS plastic enclosure with IP67 protection against dust and water, IK07 mechanical resistance, white silicone lid sealing gasket and red PA6-GF30 screws. Supplied with mounting screws. Suitable for electrical wire connections, automation assemblies and small electronic components. Cable glands, terminals, DIN rail and mounting plate are selected separately.
