    Electrical plug lockout box | LOTO safety device | universal | with padlock fixing | 51x51x89mm | red

    Code: ES-EP-01S
    Inquire about this item
    Price 18.30 € VAT incl.
    ( 15.12 € VAT excl. )
    Buy more, pay less
    10+ pcs.  – 12.83 € for pcs. -29%
    Want another price? Suggest yours!

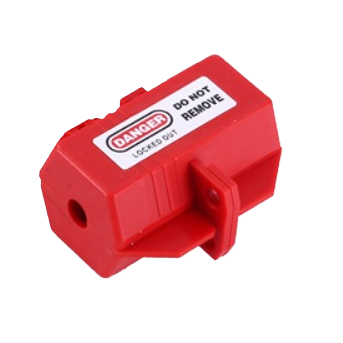

    LOTO electrical plug lockout device – a compact safety solution designed to physically isolate a disconnected electrical plug and prevent it from being inserted into a socket during maintenance or repair work. The plug is enclosed inside a 51 × 51 × 89 mm housing, the cable is routed through an Ø11 mm opening, and the device can be secured with up to 2 padlocks with shackles up to Ø7 mm. Suitable for LOTO procedures where one lockout point must be controlled by one or two workers.

  • Product description

    LOTO Electrical Plug Lockout | 51×51×89 mm | up to 2 padlocks | Ø11 mm cable opening

    LOTO electrical plug lockout designed to physically isolate a disconnected electrical equipment plug and prevent it from being connected to a power socket during lockout. The plug is fully enclosed inside the lockout body, while the cable is routed through the designated opening. The body can be secured with up to 2 padlocks, allowing one lockout point to be controlled by up to two workers.

    Main idea

    This is a mechanical LOTO lockout for an electrical plug, preventing equipment from being connected to the mains during lockout. The plug is enclosed inside the body, the cable is routed through the side opening, and the body is secured with padlocks.

    Dimensions
    51 × 51 × 89 mm
    Cable opening
    Ø11 mm
    Padlocks
    Up to 2 pcs.
    Padlock shackle
    Up to Ø7 mm

    Operating principle

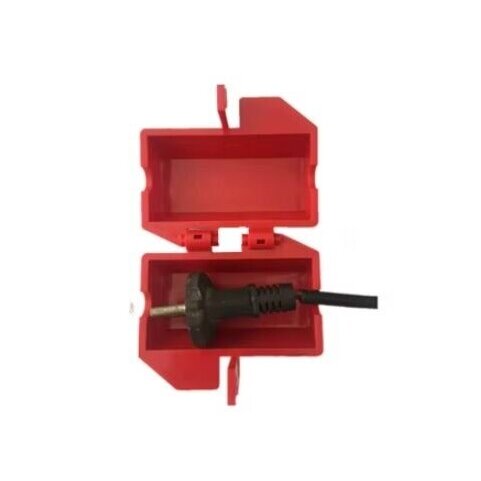

    The disconnected electrical plug is placed inside the lockout body. The power cable is routed through the dedicated opening, and the two body sections are closed.

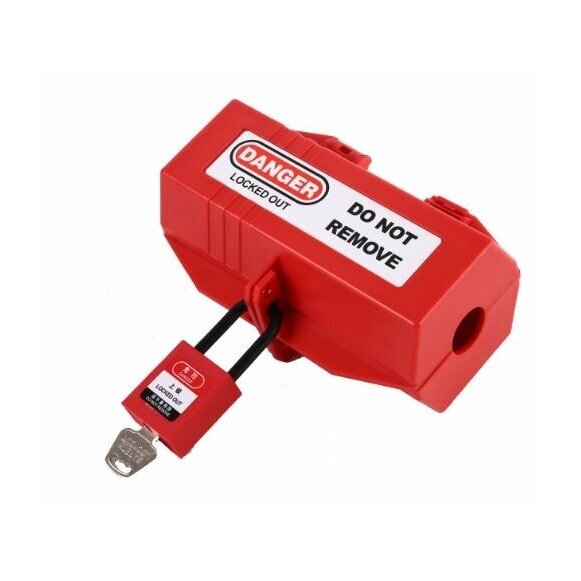

    The closed body is secured with one or two padlocks. As long as the padlocks remain in place, the plug cannot be removed from the body and connected to a power socket.

    What is the benefit of this type of LOTO lockout?

    The lockout physically isolates the electrical plug from the socket and helps prevent accidental or unauthorised connection of equipment to the power source during maintenance or repair work.

    Plug enclosed inside the body

    The electrical plug is fully enclosed inside the lockout. Only the power cable exits the body, so once the body is closed and locked, the plug becomes physically inaccessible for connection to a power socket.

    Lockout for up to 2 workers

    Up to 2 padlocks
    The lockout can be secured with two individual padlocks at the same time.
    Up to 2 workers
    Two workers can each use their own individual padlock on the same plug lockout.

    Technical specifications

    Product type LOTO electrical plug lockout
    Body material Engineering plastic
    Dimensions 51 × 51 × 89 mm
    Cable outlet opening diameter Ø11 mm
    Number of padlocks Up to 2 pcs.
    Maximum padlock shackle diameter Up to Ø7 mm
    Number of people controlling simultaneously Up to 2 people
    Purpose Isolating an electrical plug from the socket during LOTO lockout

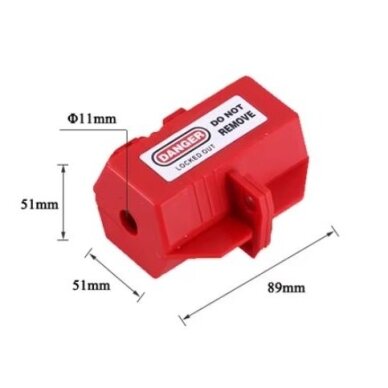

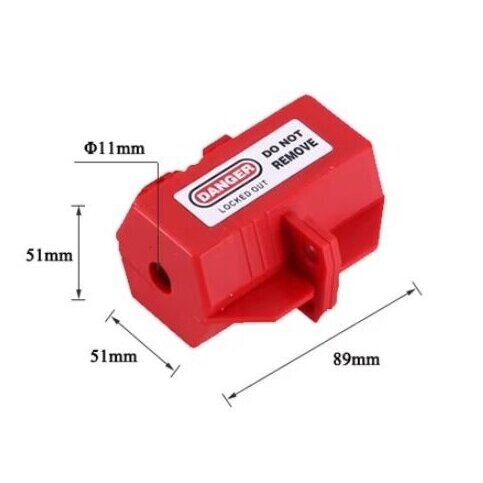

    Main dimensions

    Length 89 mm
    Width 51 mm
    Height 51 mm
    Cable opening Ø11 mm

    LOTO purpose

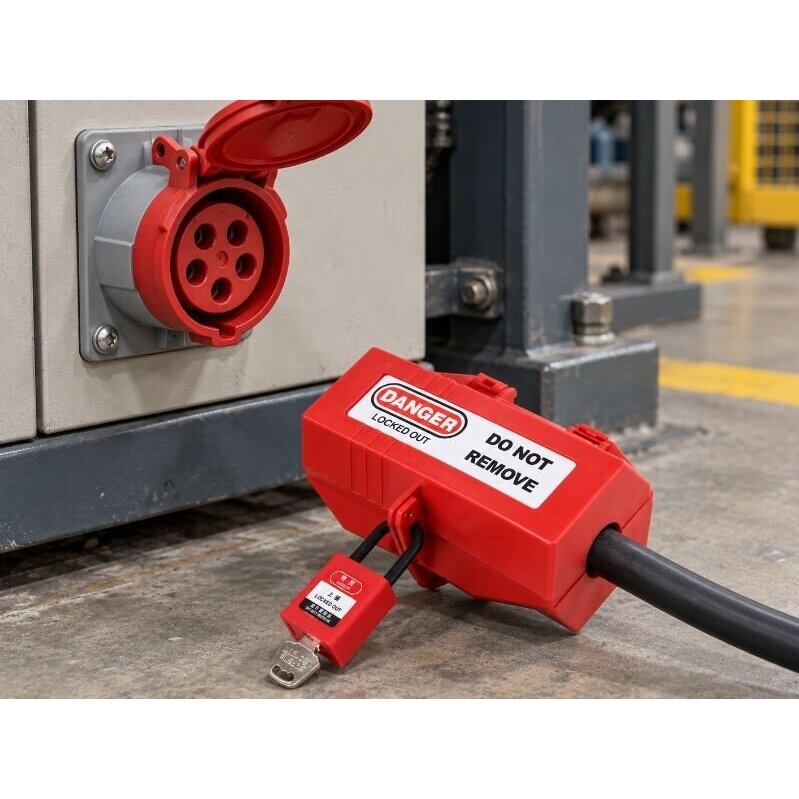

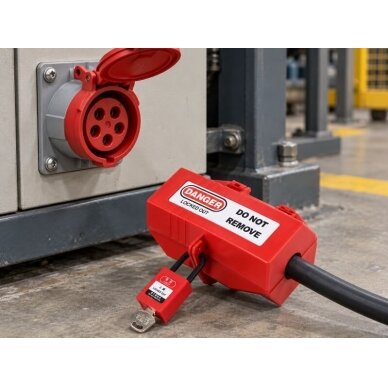

    The lockout is intended for use in electrical equipment lockout procedures when it is necessary to ensure that a disconnected plug cannot be reconnected to a power socket while repair, maintenance or other work is being carried out.

    Main functions

    • LOTO electrical plug lockout.
    • The plug is fully enclosed inside the body.
    • The cable exits through the Ø11 mm opening.
    • Up to 2 padlocks at the same time.
    • Individual lockout control for up to 2 workers.
    • Padlock shackle diameter – up to Ø7 mm.
    • Compact dimensions of 51 × 51 × 89 mm.

    Where is it used?

    • For locking electrical equipment power plugs.
    • During maintenance of industrial equipment.
    • During repair work.
    • In workplaces where LOTO procedures are used.
    • In situations where it is necessary to physically prevent a disconnected plug from being connected to a power socket.

    Use according to requirements

    For one worker
    The lockout can be secured with one individual padlock.
    For two workers
    Two separate padlocks allow the same electrical plug to be locked out simultaneously by two workers.
    For physical plug isolation
    The plug is enclosed inside the body, preventing direct connection to a socket.

    Practical use

    1. Disconnect the electrical equipment plug from the socket.
    2. Open the lockout body.
    3. Place the entire plug inside the body.
    4. Route the power cable through the Ø11 mm opening.
    5. Close both sections of the body.
    6. Secure the body with one or two padlocks.
    7. Check that the plug cannot be removed and connected to a power socket.

    Advantages

    • Physically isolates the plug from the power socket.
    • Up to 2 padlocks.
    • Lockout for up to 2 workers.
    • Compact construction.
    • The plug is fully enclosed inside the body.
    • Ø11 mm cable outlet opening.
    • Designed for LOTO electrical equipment lockout procedures.

    Limitations

    • The plug must physically fit inside the 51 × 51 × 89 mm body.
    • The cable must fit through the Ø11 mm outlet opening.
    • The padlock shackle must not exceed Ø7 mm.
    • A maximum of 2 padlocks can be used at the same time.
    • The dimensions of the specific plug must be checked before purchasing.

    Safety and use notes

    • Before use, the electrical plug must be physically disconnected from the socket.
    • Check that the plug body fits inside the lockout.
    • Check that the cable fits through the Ø11 mm opening.
    • Use padlocks with a shackle diameter not exceeding Ø7 mm.
    • After locking, check that the body cannot be opened and the plug cannot be removed.
    • The lockout does not replace the complete LOTO procedure established by the company.

    Quick selection guide

    LOTO | 51×51×89 mm | Ø11 mm cable opening | up to 2 padlocks | shackle up to Ø7 mm
    Suitable when you need: to physically isolate a disconnected electrical plug so that it cannot be connected to a socket during a LOTO procedure.
    Check before purchasing: the external dimensions of the plug, the cable diameter and the shackle diameter of the padlock being used.
    Important reminder: suitability for a specific plug depends on its actual dimensions – the entire plug must fit inside the body, and the cable must pass freely through the Ø11 mm opening.

    FAQ

    1. What is this lockout intended for?
    To physically lock out a disconnected electrical plug so that it cannot be connected to a power socket.
    2. Is this a LOTO device?
    Yes. The lockout is designed for electrical plug lockout during LOTO procedures.
    3. What are the lockout dimensions?
    51 × 51 × 89 mm.
    4. What is the diameter of the cable outlet opening?
    Ø11 mm.
    5. How many padlocks can be used?
    Up to 2 padlocks at the same time.
    6. What is the maximum padlock shackle diameter?
    Up to Ø7 mm.
    7. Can one lockout be used by two workers?
    Yes. Two separate padlock holes allow the lockout to be controlled simultaneously by two workers.
    8. Is it suitable for all electrical plugs?
    The lockout is intended for plugs of various shapes, but the specific plug must physically fit inside the 51 × 51 × 89 mm body, and the cable must fit through the Ø11 mm opening.

    LOTO Electrical Plug Lockout | 51×51×89 mm | up to 2 padlocks

    Compact LOTO electrical plug lockout that fully encloses a disconnected plug inside the body. The cable exits through an Ø11 mm opening, while the body can be secured with up to 2 padlocks with shackle diameters up to Ø7 mm. Designed to protect against accidental or unauthorised connection of electrical equipment to the power source.

    Illustrative image may have been created using AI. The appearance of the product may differ slightly from the image shown. Please refer to the technical specification.
