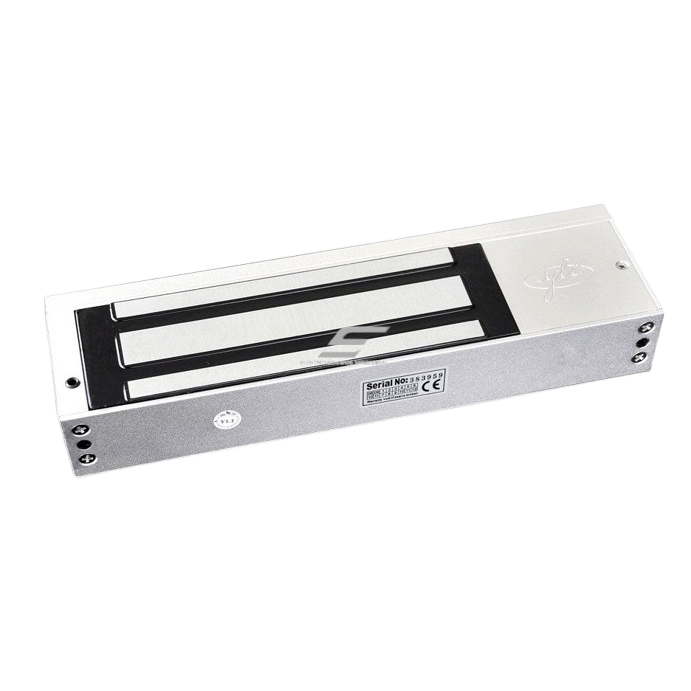

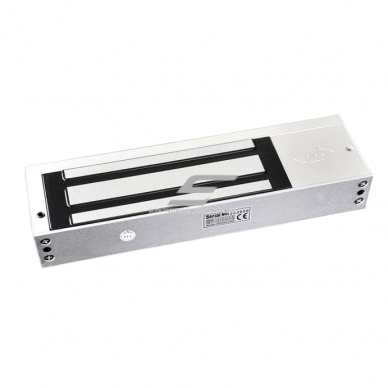

Electromagnetic door lock | Electromagnet | 12/24VDC | force 545kg | PBM-500
Code: PBM-500The electromagnetic door lock PBM-500 is a universal and reliable solution for ensuring door security in residential, commercial, and industrial buildings. This lock features a powerful 545 kg holding force, making it suitable for various types of doors. The anodized aluminum body ensures durability, while the galvanized parts protect against corrosion. With its compact dimensions and easy installation, this lock is an effective solution for both new and renovated door systems.
-
Technical data:
Holding force: 545 kg
Input voltage: 12/24 VDC ±10%
Current: 12V: 420 mA, 24V: 210 mA
Electromagnet dimensions: 265 x 74.7 x 38.5 mm
Plate dimensions: 185 x 60 x 13 mm
Material: Cover: Anodized aluminum. Lock: Galvanized metal. Plate: Galvanized metal
Operating temperature: -10°C to +55°C (14°F to 131°F)
Surface temperature: ≤ +20°C
Relative humidity: 0–90% (non-condensing)
Weight: 4.5 kg
Suitability: Wood, glass, metal, fire-rated doors
Usage:Residential homes to ensure security.
Commercial spaces such as offices or shops.
Industrial facilities with higher security requirements.
Fire-rated doors for building evacuation safety.
Advantages:High holding force: 545 kg ensures secure locking even under heavy load.
Versatility: Suitable for different door types.
Durability: Anodized aluminum and galvanized surfaces resist corrosion and mechanical damage.
Energy efficiency: Low current consumption ensures economical operation.
Disadvantages:Installation requirements: Proper mounting is needed, especially for glass doors.
Dependence on electricity: Continuous power supply is required for operation.
Weight: 4.5 kg can be challenging in some installation scenarios.
This electromagnetic door lock is an excellent choice for providing high security, reliability, and durability in various applications.Illustrative image may have been created using AI. The appearance of the product may differ slightly from the image shown. Please refer to the technical specification.This product is marked with the CE label, which confirms that it complies with all applicable European Union directives and regulations. CE marking is not just a formality – it is an important indicator of quality and safety, ensuring that the product has been properly assessed, tested, and can be safely used throughout the EU market.
CE certification means that the product has been evaluated according to the main criteria:
Safety requirements – ensures that the product does not pose a risk to the user or the environment
Electromagnetic compatibility (EMC) – the device does not interfere with other equipment and is resistant to external disturbances
Environmental standards – complies with current ecological and material usage requirements
Operational reliability – the product is suitable for long-term use according to its intended purposeCE marking allows this product to:
be legally supplied and used in all European Union countries
ensure a high level of quality and safety
be used in residential, commercial, and industrial environmentsThe CE mark is a declaration of the manufacturer’s responsibility, confirming that the product complies with all applicable standards and has been assessed according to EU legislation.
What does this mean for you as a buyer?
Safe use in everyday activities
Reliable performance and reduced risk of failure
Compliance with EU standards and requirements
Suitability for professional solutions
