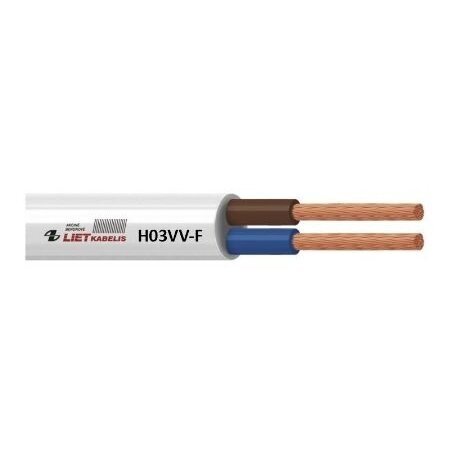

  • New item   Flexible copper cable H03VV-F | 2×0.75 mm² | 300/300 V | round | white | 1 m | Lietkabelis

    Flexible copper cable H03VV-F | 2×0.75 mm² | 300/300 V | round | white | 1 m | Lietkabelis

    Code: 91527501
    Inquire about this item
    Price 0.40 € VAT incl.
    ( 0.33 € VAT excl. )
    Want another price? Suggest yours!

    H03VV-F 2×0.75 mm² – AB Lietkabelis flexible round copper cable with class 5 conductors, PVC insulation and a white PVC sheath, 300/300 V. Sold by the metre.

    Cores: L and N, no PE. Indicative current ≈ 6 A – for light appliances indoors.

  • Product description

    Flexible copper cable H03VV-F | 2×0.75 mm² | 300/300 V | round | white | 1 m | Lietkabelis

    H03VV-F 2×0.75 mm² – flexible round copper cable with 2 finely stranded class 5 conductors, PVC insulation and a white PVC sheath, 300/300 V. Manufacturer: AB Lietkabelis. Designed for connecting light electrical appliances indoors. Sold by the metre.

    Key point:
    A light, slim appliance connection cable – cores: L and N, no PE. Its 300/300 V rating limits it to single-phase 230 V connections and light mechanical stress. The round design seals well in cable entries and glands.
    Cores
    2 (L and N, no PE)
    Cross-section
    0.75 mm²
    Rated voltage
    300/300 V
    Indicative current
    ≈ 6 A

    How it works

    The cable links the appliance with a plug, socket or terminals. Cores are coloured per HD 308: brown (L) and blue (N).

    The finely stranded annealed copper conductor (class 5) stays soft and withstands frequent flexing, while the PVC insulation and sheath protect the cores electrically and mechanically.

    Continuous conductor temperature is up to +70 °C, so the indicative current in free air is ≈ 6 A – about 1.4 kW on a single-phase 230 V circuit.

    Why choose H03VV-F 2×0.75 mm²?
    You get exactly the length you need with clear manufacturer data: voltage rating, number of cores and cross-section. The two-core version suits class II (double-insulated) appliances.

    Technical parameters

    Product type Flexible copper round cable H03VV-F
    Manufacturer / designation AB Lietkabelis – H03VV-F 2×0.75
    Number of cores 2 (L and N, no PE)
    Cross-section per core 0.75 mm²
    Conductor Flexible stranded annealed copper, class 5 (EN 60228)
    Insulation / sheath PVC (TI2) / white PVC (TM2)
    Rated voltage U0/U 300/300 V
    Test voltage 2 kV
    Conductor temperature Up to +70 °C continuous, up to +160 °C during short circuit
    Ambient temperature Operation −30…+70 °C, installation −5…+40 °C
    Minimum bending radius ≥ 5 × cable diameter
    Fire behaviour Flame propagation test EN 60332-1-2; CPR class Eca
    Standard EN 50525-2-11
    Indicative current ≈ 6 A (flexible PVC cable in free air, +30 °C)
    Indicative power ≈ 1.4 kW at 230 V
    Line length (ΔU ≤ 3 %) up to ≈ 22 m single-phase 230 V at 6 A
    Sales unit 1 metre
    ⚠ Check: current, power and length values are indicative (flexible PVC cable in free air, +30 °C). A coiled, bundled or heat-exposed cable carries less current. The final choice follows the appliance manufacturer's requirements and the protective device.

    Main functions

    • Power transmission – for appliances up to ≈ 6 A (1.4 kW at 230 V).
    • Flexible class 5 conductor – withstands frequent flexing and moving the appliance.
    • Two cores L and N – for class II appliances that need no PE.
    • PVC insulation and sheath – double protection for everyday indoor use.
    • Sold by the metre – we cut the length you need.

    How does it differ from similar cables?

    Where is it used?

    • Table lamps, floor lamps and indoor luminaires
    • Radios, TVs, audio and other small electronics
    • Chargers, power supplies and small office devices
    • Decorative indoor lighting

    Pros

    • Soft and flexible – easy to route and connect.
    • Made by Lietkabelis – Lithuanian manufacturer with clear technical data.
    • CPR Eca, EN 60332-1-2 – tested flame propagation.
    • Sold by the metre – pay only for the length you need.

    Cons / limitations

    • Light duty and 300/300 V only – for household appliances or 400 V choose H05VV-F.
    • Not for permanent outdoor or underground use – PVC ages under UV and frost; outdoors choose rubber H07RN-F.
    • Not for fixed wiring in walls – use NYM-J or CYKY-L.
    • No PE core – for class I (earthed) appliances choose a 3G cable.

    Safety and installation notes

    • Disconnect the supply before work and verify the absence of voltage.
    • Use ferrules on stranded conductors – otherwise strands splay and the joint heats up.
    • Provide strain relief at the plug and the appliance – terminals must not carry the cable's weight.
    • Green-yellow core is PE only – never phase or control signal.
    • Uncoil a cable on a reel before loading it with high current.
    • Mains connections must be made by a qualified electrician.

    Quick selection guide

    Choose H03VV-F 2×0.75 mm² for light single-phase appliance connections indoors.

    2×0.75 mm²
    300/300 V
    ≈ 6 A
    Round, white
    Suitable when you need:
    • 2 cores: L and N, no PE;
    • loads up to ≈ 6 A (1.4 kW at 230 V);
    • a flexible indoor connection.
    Check before ordering:
    • the appliance rated current and the cable specified by its manufacturer;
    • whether a PE core is needed (not included);
    • line length and voltage drop;
    • order some extra length for termination.
    Important reminder: 2×0.75 does not mean a total cross-section of 1.5 mm². It is 2 separate 0.75 mm² cores; select the cable by current, length and environment.

    FAQ – frequently asked questions

    What does H03VV-F 2×0.75 mean?
    H03 – 300/300 V rating, VV – PVC insulation and sheath, F – flexible conductor; 2×0.75 – 2 cores of 0.75 mm², no PE.
    Is it suitable for a 400 V three-phase circuit?
    No. H03VV-F is 300/300 V; for three-phase 400 V choose H05VV-F 4G or 5G.
    What load can it carry?
    Indicatively ≈ 6 A in free air at +30 °C – about 1.4 kW at 230 V. Less when coiled or bundled.
    Can it be used outdoors?
    Briefly and protected – yes, but PVC is not suitable for permanent outdoor or underground use. Choose H07RN-F.
    Can it be laid in walls instead of NYM-J?
    No. This cable is for connecting appliances; for fixed wiring choose NYM-J or CYKY-L.
    Do you sell by the metre?
    Yes, the sales unit is 1 metre. For larger quantities we prepare a quotation.

    Flexible copper cable H03VV-F | 2×0.75 mm² | 300/300 V | round | white | 1 m | Lietkabelis

    H03VV-F 2×0.75 mm² – Lietkabelis round flexible copper cable, 300/300 V, white sheath, 2 cores (L and N, no PE). Sold by the metre.

    Illustrative image may have been created using AI. The appearance of the product may differ slightly from the image shown. Please refer to the technical specification.
