  • New item   Flexible copper cable H05VV-F | 3G1 mm² | 300/500 V | round | white | 1 m | Lietkabelis

    Flexible copper cable H05VV-F | 3G1 mm² | 300/500 V | round | white | 1 m | Lietkabelis

    Code: 92331001
    Inquire about this item
    Price 0.73 € VAT incl.
    ( 0.60 € VAT excl. )
    Want another price? Suggest yours!

    H05VV-F 3G1 mm² – AB Lietkabelis flexible round copper cable with class 5 conductors, PVC insulation and a white PVC sheath, 300/500 V. Sold by the metre.

    Cores: L, N, PE. Indicative current ≈ 10 A – for household appliances indoors.

  • Product description

    Flexible copper cable H05VV-F | 3G1 mm² | 300/500 V | round | white | 1 m | Lietkabelis

    H05VV-F 3G1 mm² – flexible round copper cable with 3 finely stranded class 5 conductors, PVC insulation and a white PVC sheath, 300/500 V. Manufacturer: AB Lietkabelis. Designed for connecting medium-power electrical appliances indoors. Sold by the metre.

    Key point:
    A versatile appliance connection cable – cores: L, N, PE. The 300/500 V rating and sturdier sheath suit everyday household appliances. The round design seals well in cable entries and glands.
    Cores
    3 (L, N, PE)
    Cross-section
    1 mm²
    Rated voltage
    300/500 V
    Indicative current
    ≈ 10 A

    How it works

    The cable links the appliance with a plug, socket or terminals. Cores are coloured per HD 308: brown (L), blue (N) and green-yellow (PE).

    The finely stranded annealed copper conductor (class 5) stays soft and withstands frequent flexing, while the PVC insulation and sheath protect the cores electrically and mechanically.

    Continuous conductor temperature is up to +70 °C, so the indicative current in free air is ≈ 10 A – about 2.3 kW on a single-phase 230 V circuit.

    Why choose H05VV-F 3G1 mm²?
    You get exactly the length you need with clear manufacturer data: voltage rating, number of cores and cross-section. The PE core allows safe connection of class I appliances.

    Technical parameters

    Product type Flexible copper round cable H05VV-F
    Manufacturer / designation AB Lietkabelis – H05VV-F 3G1
    Number of cores 3 (L, N, PE)
    Cross-section per core 1 mm²
    Conductor Flexible stranded annealed copper, class 5 (EN 60228)
    Insulation / sheath PVC (TI2) / white PVC (TM2)
    Rated voltage U0/U 300/500 V
    Test voltage 2 kV
    Conductor temperature Up to +70 °C continuous, up to +160 °C during short circuit
    Ambient temperature Operation −30…+70 °C, installation −5…+40 °C
    Minimum bending radius ≥ 5 × cable diameter
    Fire behaviour Flame propagation test EN 60332-1-2; CPR class Eca
    Standard EN 50525-2-11
    Indicative current ≈ 10 A (flexible PVC cable in free air, +30 °C)
    Indicative power ≈ 2.3 kW at 230 V
    Line length (ΔU ≤ 3 %) up to ≈ 18 m single-phase 230 V at 10 A
    Sales unit 1 metre
    ⚠ Check: current, power and length values are indicative (flexible PVC cable in free air, +30 °C). A coiled, bundled or heat-exposed cable carries less current. The final choice follows the appliance manufacturer's requirements and the protective device.

    Main functions

    • Power transmission – for appliances up to ≈ 10 A (2.3 kW at 230 V).
    • Flexible class 5 conductor – withstands frequent flexing and moving the appliance.
    • Protective PE core – green-yellow, for earthing class I appliances.
    • PVC insulation and sheath – double protection for everyday indoor use.
    • Sold by the metre – we cut the length you need.

    How does it differ from similar cables?

    Where is it used?

    • Refrigerators, TVs, computers and office equipment
    • Luminaires, including metal-bodied ones (with PE)
    • Small household appliances indoors
    • Replacing appliance cords as specified by the manufacturer

    Pros

    • Soft and flexible – easy to route and connect.
    • Made by Lietkabelis – Lithuanian manufacturer with clear technical data.
    • CPR Eca, EN 60332-1-2 – tested flame propagation.
    • Sold by the metre – pay only for the length you need.

    Cons / limitations

    • Not for permanent outdoor or underground use – PVC ages under UV and frost; outdoors choose rubber H07RN-F.
    • Not for fixed wiring in walls – use NYM-J or CYKY-L.

    Safety and installation notes

    • Disconnect the supply before work and verify the absence of voltage.
    • Use ferrules on stranded conductors – otherwise strands splay and the joint heats up.
    • Provide strain relief at the plug and the appliance – terminals must not carry the cable's weight.
    • Green-yellow core is PE only – never phase or control signal.
    • Uncoil a cable on a reel before loading it with high current.
    • Mains connections must be made by a qualified electrician.

    Quick selection guide

    Choose H05VV-F 3G1 mm² for single-phase appliance connections indoors.

    3G1 mm²
    300/500 V
    ≈ 10 A
    Round, white
    Suitable when you need:
    • 3 cores: L, N, PE;
    • loads up to ≈ 10 A (2.3 kW at 230 V);
    • a flexible indoor connection.
    Check before ordering:
    • the appliance rated current and the cable specified by its manufacturer;
    • whether a PE core is needed (included);
    • line length and voltage drop;
    • order some extra length for termination.
    Important reminder: 3G1 does not mean a total cross-section of 3 mm². It is 3 separate 1 mm² cores; select the cable by current, length and environment.

    FAQ – frequently asked questions

    What does H05VV-F 3G1 mean?
    H05 – 300/500 V rating, VV – PVC insulation and sheath, F – flexible conductor; 3G1 – 3 cores of 1 mm², one of them green-yellow PE.
    Is it suitable for a 400 V three-phase circuit?
    The voltage rating allows it, but a three-phase connection needs a 4G or 5G cable.
    What load can it carry?
    Indicatively ≈ 10 A in free air at +30 °C – about 2.3 kW at 230 V. Less when coiled or bundled.
    Can it be used outdoors?
    Briefly and protected – yes, but PVC is not suitable for permanent outdoor or underground use. Choose H07RN-F.
    Can it be laid in walls instead of NYM-J?
    No. This cable is for connecting appliances; for fixed wiring choose NYM-J or CYKY-L.
    Do you sell by the metre?
    Yes, the sales unit is 1 metre. For larger quantities we prepare a quotation.

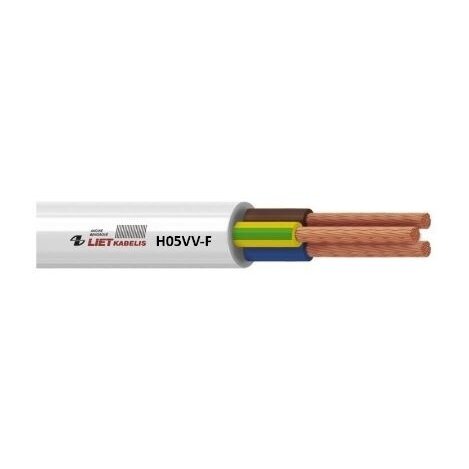

    Flexible copper cable H05VV-F | 3G1 mm² | 300/500 V | round | white | 1 m | Lietkabelis

    H05VV-F 3G1 mm² – Lietkabelis round flexible copper cable, 300/500 V, white sheath, 3 cores (L, N, PE). Sold by the metre.

    Illustrative image may have been created using AI. The appearance of the product may differ slightly from the image shown. Please refer to the technical specification.
