  • Flexible Rogowski coil | 3000 A | 85 mV/kA | Ø150 mm window | 2 m cable | strap mounting | NRC-XL-150

    Code: ESNRC-XL-150

    Flexible Rogowski coil for AC current up to 3000 A: 85 mV/kA @ 50 Hz, Ø150 mm window, 8 mm cross-section, ±0.2 % linearity, 2 m shielded cable, strap mounting. Connected via a Rogowski integrator or to an analyser with an 85 mV/kA input.

  • NRC-XL-150 – flexible Rogowski coil for measuring 3000 A AC current

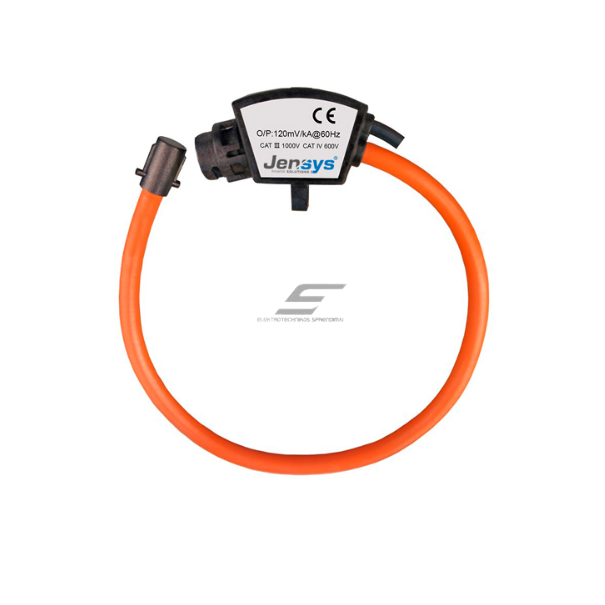

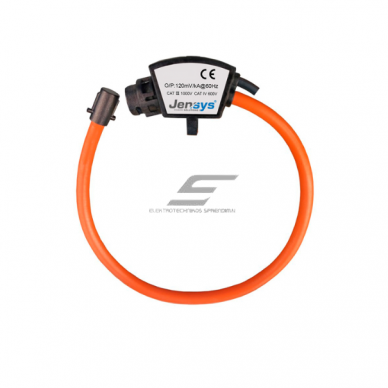

    A thin (8 mm) flexible coil that wraps around a cable or busbar up to Ø150 mm and, without electrical contact with the conductor, delivers an AC current signal – 85 mV per kiloampere at 50 Hz. Designed for energy monitoring in panels where a conventional current transformer does not fit or cannot be fitted without disconnecting the line.

    ⚠ Important before buying: the coil is not a 5 A / 1 A current transformer

    The coil output is only up to ~255 mV at 3000 A (50 Hz), a signal proportional to the rate of change of current. It must not be connected directly to the 5 A / 1 A current input of a meter or analyser. A Rogowski integrator (e.g. 85 mV/kA → 333 mV or 4–20 mA) or a device with a Rogowski input set to 85 mV/kA is required.

    Key point

    A Rogowski coil has no magnetic core, so it does not saturate during large current surges and is much lighter than a current transformer for the same current range. The Ø150 mm window wraps around large cable bundles or busbar packs. This is convenient when upgrading existing panels: the coil is fixed to an insulated cable with straps, and the integrator prepares an accurate signal for the measuring device.

    3000 A
    rated AC current
    85 mV/kA
    output @ 50 Hz
    Ø150 mm
    window diameter
    ±0.2 %
    linearity
    2 m
    shielded cable

    Technical data

    Model NRC-XL-150 (code ESNRC-XL-150)
    Type Flexible Rogowski coil, passive (without integrator)
    Rated current 3000 A AC
    Output signal 85 mV/kA @ 50 Hz (102 mV/kA @ 60 Hz); 3000 A, 50 Hz → 255 mV
    Window diameter Ø150 mm
    Coil cross-section 8 mm
    Accuracy range (class 0.5 %) 1–100 % of rated current (30–3000 A)
    Accuracy ≤0.5 % (calibrated, conductor centred, 25 °C)
    Linearity ±0.2 % of reading
    Position error ≤±1 % (<0.5 % near the centre)
    Phase error ≤0.5°
    Bandwidth 1 Hz – 100 kHz (−3 dB)
    Temperature drift 300 ppm/°C
    Insulation Coil 2000 V, cable 1000 V; 1000 V CAT III / 600 V CAT IV
    Operating temperature −30…+80 °C (storage −40…+90 °C)
    Protection rating IP67
    Cable 2 m, shielded
    Mounting With straps to a cable or busbar
    Materials Thermoplastic rubber, PC/ABS; flammability UL 94 V-0
    Compliance CE (EN 61010-1, EN 61326-1)

    Main functions

    • AC current measurement up to 3000 A without electrical contact with the conductor.
    • The flexible 8 mm loop wraps around cables and busbars up to Ø150 mm.
    • No magnetic core – the coil does not saturate and is not damaged by overload currents.
    • An open secondary circuit is not dangerous – no high-voltage hazard as with a conventional CT.
    • ±0.2 % linearity across the range, suitable for both small and large currents.
    • Wide bandwidth (1 Hz – 100 kHz) – suitable for harmonic analysis.
    • Shielded coil and cable reduce the influence of external fields and interference.
    • Strap mounting – the coil does not slide along the cable or vibrate.
    • IP67 and UL 94 V-0 – suitable for panels and industrial environments.
    How it differs from similar solutions
    Conventional current transformer (…/5 A) Has a core and a 5 A / 1 A output and connects directly to a meter, but it is heavier, the window is limited and an open secondary circuit is dangerous. A Rogowski coil needs an integrator.
    Coil with built-in integrator (333 mV) Gives a 333 mV signal straight away, but is more expensive and larger. NRC-XL-150 with a separate integrator lets you choose the output: 333 mV, 4–20 mA or another.
    NRC-XL-100 / NRC-XL-200 Coils of the same design with a different window and rated current: Ø100 mm / 1000 A and Ø200 mm / 6000 A.
    Y-FCT-510 Flexible coil of a different design for the same 3000 A / Ø150 mm / 85 mV/kA range.
    Where it is used
    • Energy monitoring of distribution panel incomers and feeders.
    • Upgrading existing panels when a CT does not fit between cables.
    • Energy management systems (EMS, BMS, SCADA) via an integrator with 4–20 mA or 333 mV output.
    • Power quality and harmonic measurements.
    • Current monitoring of solar plant, generator and motor feeders.

    Wiring diagram

    The coil wraps around one phase conductor with the arrow pointing towards the load. The 2 m cable is connected to the integrator's 85 mV/kA input, and the integrator output to the analyser, meter or PLC.

    NRC-XL-150 Rogowski coil wiring diagram – Elsprendimai.eu
    ☝ Click the diagram to open an enlarged version.
    ⚠ The diagram is for guidance only. Check the connection against the manufacturer's instructions. Installation must be carried out by a qualified electrician. UAB „Elektrotechnikos sprendimai“ accepts no responsibility for the connection or possible errors.
    Why:
    1An integrator is required
    The coil voltage is proportional to the rate of change of current (di/dt). The integrator converts it into a signal proportional to the current and adapts it to the device input.
    2Arrow towards the load
    If the coil is reversed, the signal phase flips by 180° – the analyser will show negative power or export.
    3Loop closed, conductor centred
    An unlocked loop or a conductor right next to the joint increases the position error to ±1 % or more.
    4One conductor in the coil
    If several phase conductors, or a phase and neutral, pass through the coil, their currents add up and the reading will be wrong.
    ✓ Advantages
    • Fits where a conventional CT does not.
    • Does not saturate and withstands overload currents.
    • An open circuit is not dangerous.
    • Class 0.5 % from 30 to 3000 A.
    • IP67, UL 94 V-0, wide bandwidth.
    ✗ Limitations
    • Measures alternating current (AC) only – not DC.
    • Requires an integrator or a device with a Rogowski input.
    • The signal depends on frequency: 85 mV/kA @ 50 Hz, 102 mV/kA @ 60 Hz.
    • Accuracy depends on the conductor position and a closed loop.
    • 2 m cable – extending it is not recommended.
    ⚡ Safety
    • Installation by a qualified electrician. Place the coil only on an insulated conductor; on bare busbars only with the voltage disconnected.
    • Observe the insulation limits: 1000 V CAT III / 600 V CAT IV.
    • Use personal protective equipment – work is carried out near live parts.
    • Do not connect the coil to a 5 A / 1 A CT input – readings will be wrong.
    • Power the integrator according to its instructions and check the set coil ratio (85 mV/kA).

    How to choose

    Situation Choose
    The cable or busbar fits into Ø150 mm NRC-XL-150
    Thicker cables or a busbar pack NRC-XL-200 (Ø200 mm, 6000 A)
    The device has a 333 mV input Add the three-phase integrator DTP.1, 3000 A, 85 mV/kA → 333 mV
    A 4–20 mA signal is needed for a PLC or SCADA Add the three-phase integrator DTP.3, 3000 A, 85 mV/kA → 4–20 mA
    Check before ordering:
    • alternating current (AC) is measured, rated current up to 3000 A;
    • the cable or busbar pack fits into the Ø150 mm window;
    • you have an integrator or a device with an 85 mV/kA Rogowski input;
    • a three-phase line needs 3 coils – one per phase.
    ☝ Elsprendimai.eu recommends together with it:

    FAQ

    Can I connect the coil directly to a meter with a 5 A input?

    No. A 5 A input is designed for a current transformer. Connect the coil via an integrator or to a device that has a Rogowski input with an 85 mV/kA setting.

    Does the coil measure direct current (DC)?

    No. A Rogowski coil responds only to changes in current, so it measures alternating current only.

    Can it be fitted without interrupting the line?

    On an insulated cable – yes, the coil opens and wraps around the conductor without disconnecting the load. On bare busbars work only with the voltage disconnected. Installation by a qualified electrician.

    The analyser shows negative power – why?

    The coil is fitted the wrong way round. Turn it so that the arrow points towards the load, or change the direction in the device settings.

    How many coils does a three-phase line need?

    Three – one per phase. Do not pass the neutral conductor through the coil together with a phase.

    Is it suitable for a 60 Hz network?

    Yes, only the signal is higher – 102 mV/kA. Set the corresponding ratio in the integrator or device.

    Summary

    NRC-XL-150 is a flexible 3000 A Rogowski coil with a Ø150 mm window and 85 mV/kA output, suitable where a conventional current transformer does not fit. Connected via an integrator. Not sure which integrator or device to choose? Send a photo of the panel and the model of the device you use – contact us.

    Published: 2026-10-31 · Data checked against the manufacturer's datasheet: 2026-10-31

    Sources. Manufacturer's NRC series Rogowski coil datasheet (available on request).
    Illustrative image may have been created using AI. The appearance of the product may differ slightly from the image shown. Please refer to the technical specification.
