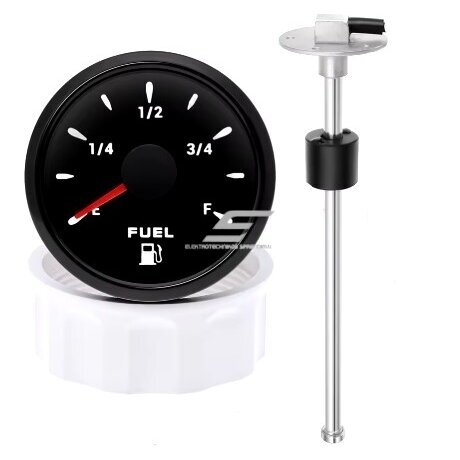

Fuel level measuring sensor | 0-190Ohm | 12-24V | IP67 | 100mm

Technical Specifications:

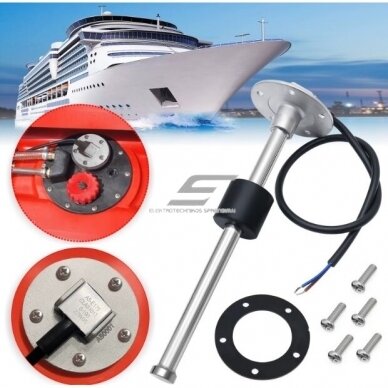

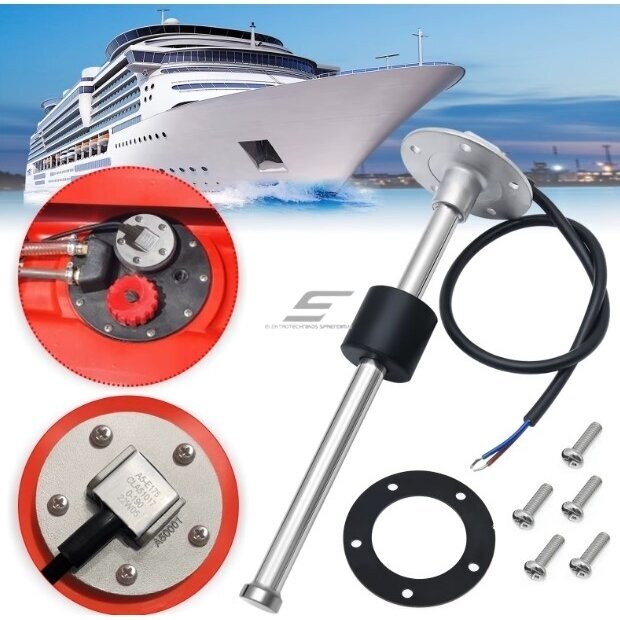

Fuel Float Sensor:

Protection class: IP67 (water and dust resistant)
Resistance: 0-190 ohms
Mounting type: SAE standard, 5 mounting holes
Resolution: 21 mm
Operating temperature: -40°C ~ +85°C
Mounting: 5 M5 screws and 2 mm thick gasket
Output signal: 0~190 ohms
Sensor length: 100 mm
Suitable for: Gasoline, diesel, methanol fuel, ethanol fuel
Wiring scheme: Blue wire: Connect to ground (GND); Brown wire: Connect to fuel level sensor signal wire
Fuel level and corresponding resistance: Empty tank: 0 ohms; Full tank: 190 ohms
Distance between the sensor float and tank bottom when the tank is empty: 3-21 mm
Fuel Level Gauge:

Indication range: E-1/4-1/2-3/4-F

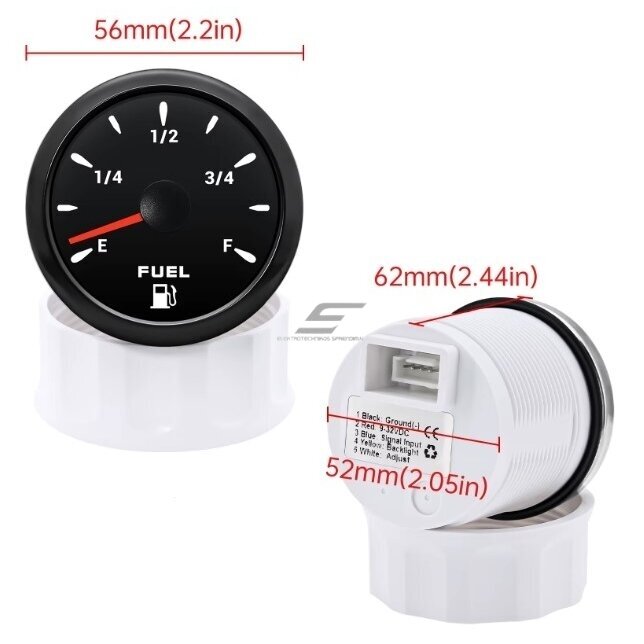

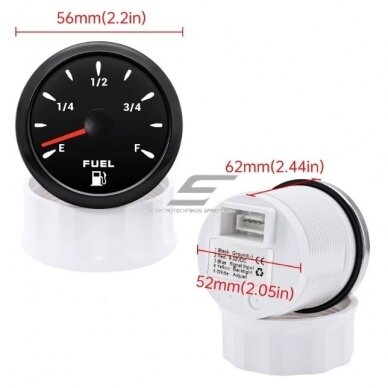

Diameter: 52 mm (2-1/16")
Power supply voltage: 9-32V (suitable for 12V-24V systems)
Materials: Plastic
Input signal: 0-190 ohms
Illumination: 7 color LED illumination
Protection class: IP67 (dust protection and immersion in water)
Features:

Accurate fuel level measurement: Uses a 0-190 Ohm float sensor to ensure accurate fuel level measurement in various vehicles.

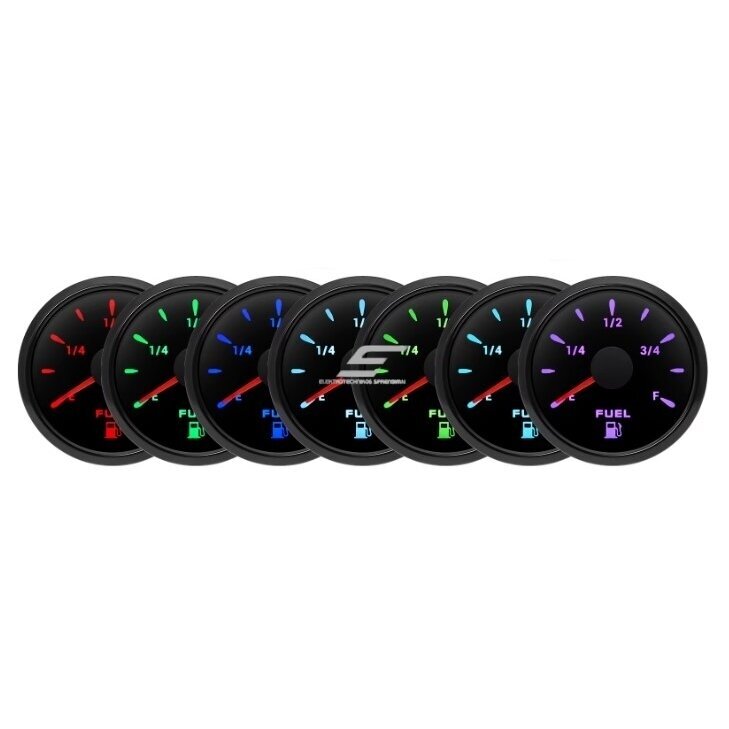

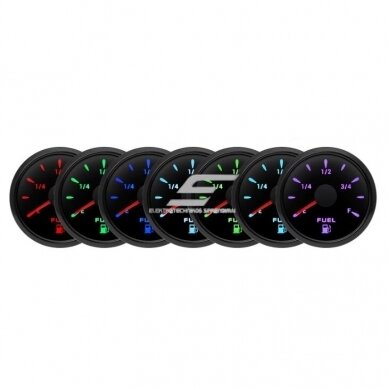

7 color illumination: Customizable gauge illumination according to user preferences.
Universal compatibility: Suitable for cars, yachts, boats, trucks, generators, and other equipment.
Resistant to environmental impacts: IP67 protection class ensures operation in wet environments or even in dirt.
Easy installation: SAE standard 5-screw mounting allows for easy installation of the fuel level sensor.
Wide operating temperature range: Ensures operation even under extreme conditions (-40°C ~ +85°C).
Compatibility with various fuel types: Suitable for gasoline, diesel, ethanol, and methanol fuel.
Usage:

In vehicles: Cars, motorcycles, trucks, RVs.
In marine vehicles: Yachts, boats, ships.
For generator fuel level monitoring: Ensures constant fuel level tracking in generators and other autonomous equipment.
Industrial equipment: Suitable for fuel tank monitoring in the industry.
Pros:

Water and dust resistant (IP67)
Accurate fuel level measurement
Wide applicability in various vehicles and equipment
7 color illumination allows for customization
Supports 12V and 24V systems
Cons:

Cannot be used as a precise fuel flow meter – only for level indication
Additional gasket may be required for installation in some tanks
Fixed float length (100 mm) – may not be suitable for very deep fuel tanks
Package:

1 x Fuel float sensor
1 x Fuel level gauge with LED illumination
5 x M5 screws for mounting
1 x Gasket (2 mm)
1 x Instruction manual
A perfect choice for those looking for a reliable, resistant, and easy-to-install fuel level measurement solution for both land and water vehicles!
