Guy wire ring for passive Franklin-type aluminum alloy lightning rods | Rd32mm | hot-dip galvanized steel

Technical Specifications

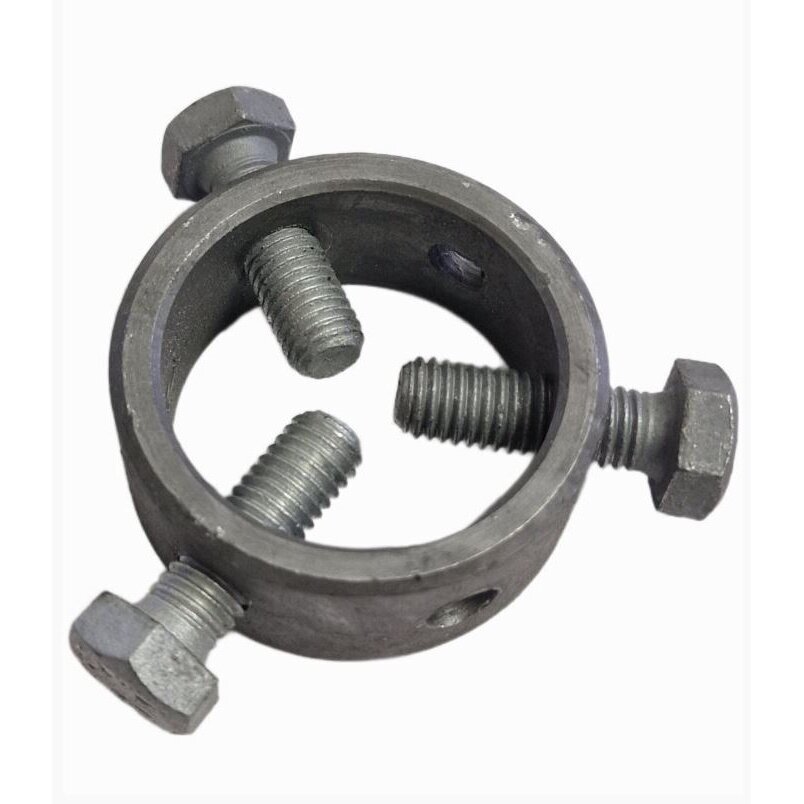

Product type: guy ring for lightning rod
Purpose: fastening of guy wires to the lightning air terminal
Suitable lightning rod diameter: up to Rd32 mm
Material: hot-dip galvanized steel (St/Zn)
Guy wire holes: 3 pcs., evenly spaced
Hole diameter: Rd6 mm
Ring height: 17 mm
Ring thickness: 5 mm
Mounting bolts: 3 x M8 (St/Zn)
Resistance: corrosion, outdoor conditions, mechanical loads

Functions

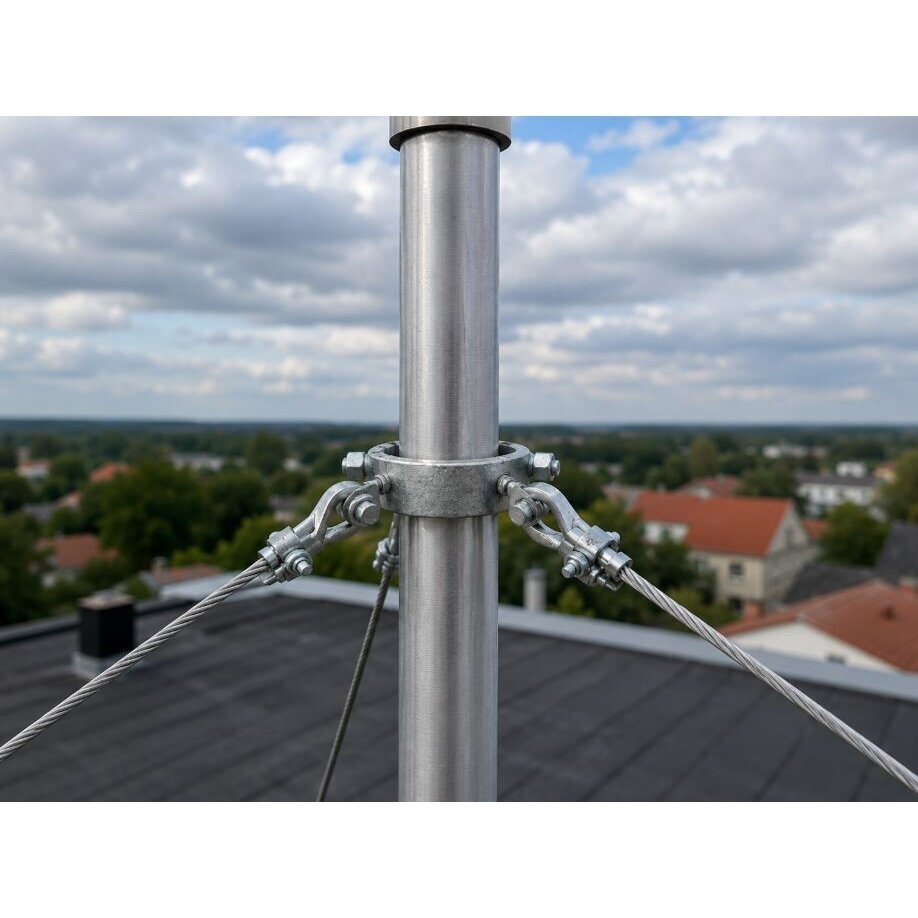

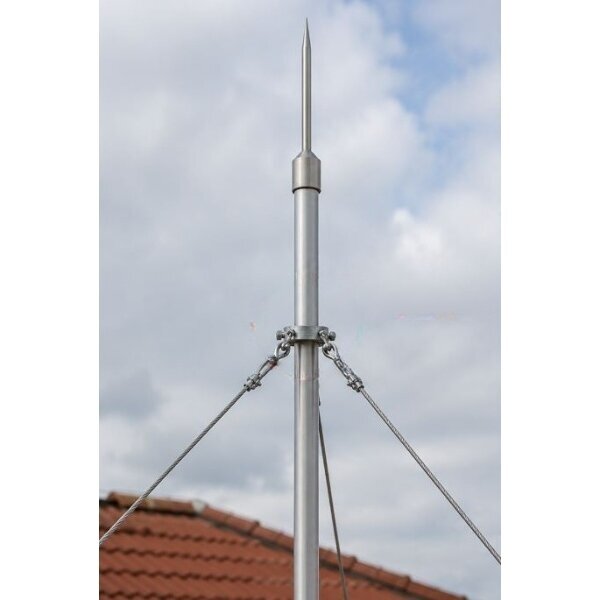

Stable reinforcement of the lightning rod: The ring allows attachment of guy wires that stabilize the lightning rod and protect it from bending or falling.
Even load distribution: Three evenly spaced holes allow balancing tension forces from different directions.
Strong mechanical fixation: M8 bolts ensure reliable fastening of the ring on the lightning rod mast.
Resistance to outdoor conditions: Hot-dip galvanization protects against corrosion, making the product suitable for long-term outdoor installations.

Applications

For residential users: Used in private houses or farm buildings where lightning protection is installed. Allows safe stabilization of the lightning rod using guy wires, especially for taller structures or open areas.
For electricians: An essential component when installing lightning protection systems. Enables quick and reliable fastening of guy wires to the lightning rod, ensuring structural stability.
For engineers / designers: Used in designing lightning protection solutions where stabilization of the lightning rod with guy wires is required. Ensures structural safety and durability.
For industrial and construction professionals: Widely used on industrial buildings, warehouses, towers, and other structures requiring reliable lightning rod mounting.

Advantages

Suitable for lightning rods up to Rd32 mm
Three fixing points – stable load distribution
Hot-dip galvanized steel – corrosion resistance
Includes M8 bolts
Strong and durable solution
Simple and fast installation
Suitable for outdoor and industrial conditions

Disadvantages

Additional guy wires and fastening elements are required
Installation requires precise positioning and tension adjustment

Frequently Asked Questions (FAQ)
What is a guy ring for a lightning rod used for?
It is used to attach guy wires to the lightning rod, improving stability and resistance to wind and loads.
Is it suitable for all lightning rods?
It is suitable for passive Franklin-type lightning air terminals with a diameter up to Rd32 mm.
Can it be used outdoors?
Yes, the hot-dip galvanized steel (St/Zn) ensures corrosion resistance and long service life outdoors.
Are mounting elements included?
Yes, the set includes 3 pcs. M8 bolts for mounting the ring to the lightning rod.
