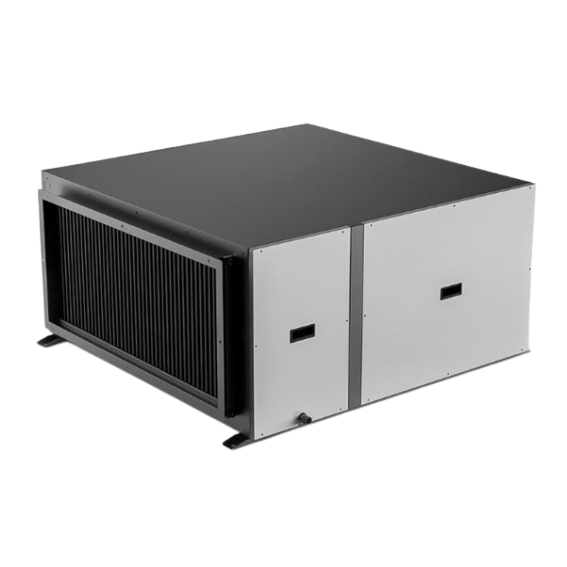

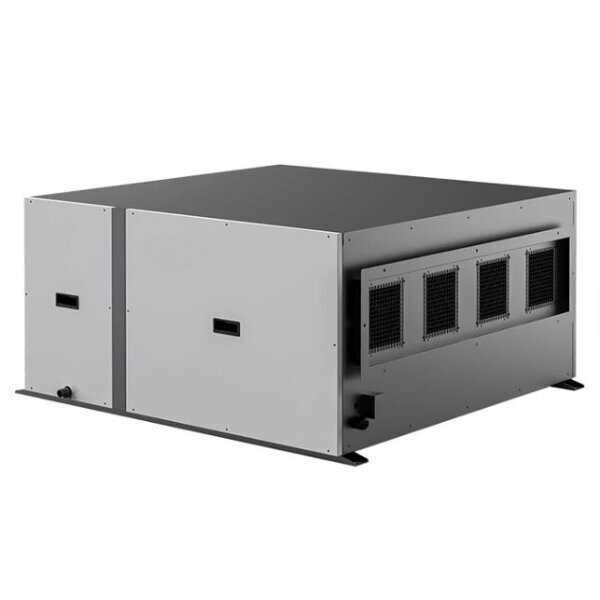

Industrial Air Dehumidifier | Moisture Extractor with Integrated Pump | 4800W | 380V | 480L/24h | 3250m³/h | 1270x1200x605mm
Code: ES-DY-C480DZPrice 5202.19 € VAT incl.( 4299.33 € VAT excl. )Industrial ceiling dehumidifier – a powerful and efficient solution for humidity control in large spaces. The device is designed for professional use in warehouses, production facilities, sports halls, swimming pools, archives, server rooms, and other areas where maintaining a stable microclimate is essential.
Thanks to its ceiling-mounted design and ultra-slim housing, this dehumidifier does not take up valuable floor space and can be easily integrated into ventilation systems or technical infrastructure. A modern electronic control system, automatic fault diagnostics, and an integrated condensate pump ensure reliable and stable operation even under intensive use.
-
Industrial Air Dehumidifier | Moisture Extractor with Integrated Pump | 4800W | 380V | 480L/24h | 3250m³/h | 1270x1200x605mm
Industrial ceiling-mounted (suspended) compressor dehumidifier for large rooms. Rated capacity – 480 l/day (30 °C, 80 % RH), at 27 °C and 60 % RH – 290 l/day, airflow – 3250 m³/h. The integrated condensate pump lifts the water and discharges it further away.
Key point:
Humidity in large rooms damages goods, structures and equipment, and delays work on construction sites. This unit removes up to 480 l of water per day and is suitable where you need to dry approx. 450–1000 m² (supplier data). When choosing, take temperature into account: in a cool room the actual capacity is lower than the rated one.Capacity
480 l/day (30 °C, 80 % RH)Airflow
3250 m³/hPower supply
380 V, three-phase · 4800 WCondensate
integrated pumpOperating principle

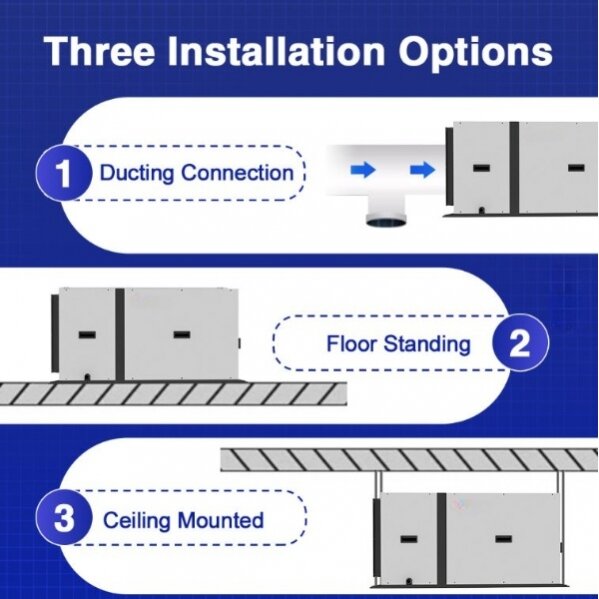

The unit is mounted on the ceiling or placed on the floor; according to the supplier it can also be connected to a duct system.
The fan draws humid air through the filter and passes it over a cold evaporator. Water vapour condenses on it, and the dry air, after passing through the condenser, returns to the room slightly warmer.
The integrated pump discharges the collected water to a drain or another location, so the unit can run continuously without attention.
Why choose the Industrial Air Dehumidifier 480 l/day?
High capacity and 3250 m³/h airflow allow a single unit to dry a large room, while the integrated pump removes the need to empty a tank.Technical specifications
Product type Industrial Air Dehumidifier Code ES-DY-C480DZ Power supply 380V 3N ~ 50Hz Power 4800 W Air flow 3250 m³/h Moisture extraction 480 l / 24h (30°C, RH 80%); 290 l / 24h (27°C, RH 60%) Noise level 55 dB(A) Refrigerant R410A x 2 Refrigerant charge 2.2 kg x 2 Dimensions 1270 × 1200 × 605 mm Weight 193 kg Recommended area ~450–1000 m² Condensate removal automatic pump Heat exchanger hydrophilic coated aluminum foil Control electronic / smart control Fault diagnostics automatic Filter easily removable and washable Installation type ceiling mounted / floor standing / duct system connection Construction slim Main functions
- Compressor dehumidification – efficiently removes moisture in warm and moderate-temperature rooms.
- Integrated condensate pump – water can be discharged higher or further away, no tank to empty.
- Washable air filter – easy maintenance, stable airflow.
[object Object]
- Warehouses where floor space is taken by racking
- Production halls
- Technical rooms
- Archives and storage facilities
- Commercial premises where the unit must not get in the way
- Rooms where the dehumidifier is connected to a duct system
[object Object]
For warehouse and production managers.
Dries large rooms without taking up floor space.For HVAC installers.
Mounted on the ceiling or connected to a duct system as the site requires.For electricians.
Three-phase supply and an integrated condensate pump simplify installation.Practical application
If humidity in a room of approx. 450–1000 m² exceeds 70 % after flooding or concreting, close windows and doors, run the dehumidifier with the condensate discharged by the pump and check humidity daily – drying will take less time and finishing can start sooner.Advantages
- Rated capacity 480 l/day, airflow 3250 m³/h
- The supplier also states a more realistic capacity – 290 l/day at 27 °C, 60 % RH
- Integrated condensate pump
- Can be ceiling-mounted – takes no floor space
Disadvantages / limitations
- Below ~10 °C capacity drops sharply – for cold rooms choose a desiccant dehumidifier (available on request)
- Actual capacity depends on temperature and humidity – the rated value is reached only at 30 °C, 80 % RH
- Noise level 55 dB(A) – suitable for technical and work areas, not bedrooms
- Requires a three-phase 380 V supply
- Weight 193 kg – installation and moving require two people or a lift
Safety and installation notes
- Connect only to an earthed supply; in damp rooms and on construction sites – through a 30 mA RCD.
- Three-phase connection must be made by a qualified electrician; check the phase sequence and protection rated for the power.
- Do not place near heat sources or cover the air openings; leave at least 20–30 cm of free space.
- After transport, allow the refrigerant to settle before switching on (see the manufacturer’s instructions).
- Disconnect the power and empty the tank before cleaning the filter or moving the unit.
Quick selection guide
4800W380V480L/24h3250m³/h1270x1200x605mmSuitable when you need to:- Dry a room of approx. 450–1000 m²
- Speed up drying of building materials or dry out after flooding
- Discharge condensate higher or further away with the pump
Check before use:- Room temperature – capacity is lower in cold rooms
- Whether a three-phase 380 V supply is available on site
- Where the condensate will be discharged

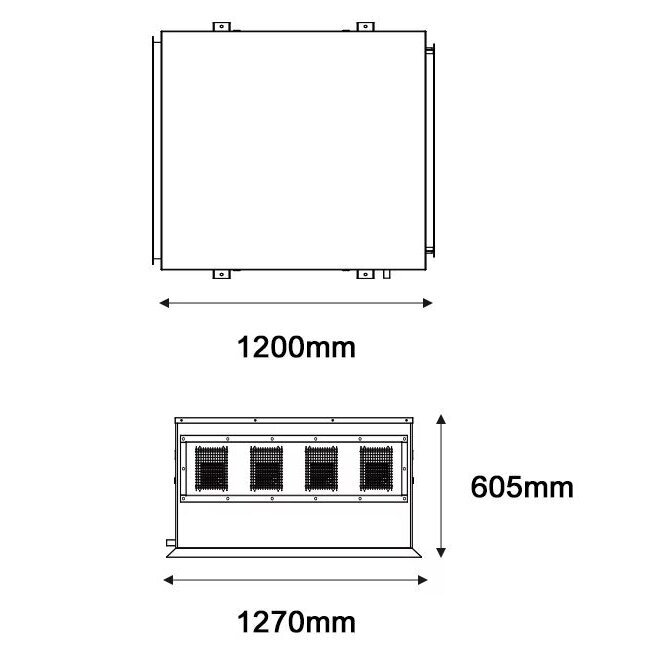

- Dimensions (1270 × 1200 × 605 mm) and weight (193 kg)
Important reminder: a dehumidifier does not replace ventilation and does not remove the cause of moisture (leaks, rising damp, thermal bridges) – that must be dealt with separately.FAQ
How much water will this dehumidifier actually remove?
The rated capacity of 480 l/day is stated at 30 °C and 80 % RH, at 27 °C and 60 % RH it is 290 l/day; in a cooler room it will remove less.What room size is it suitable for?
According to the supplier – approx. 450–1000 m²; use the category calculator for a more precise requirement.Is it suitable for an unheated garage in winter?
Below ~10 °C compressor dehumidifiers work with limited capacity, so for such a room we recommend a desiccant dehumidifier.How is the collected water removed?
By the integrated pump through a hose to a drain or another location.What power supply is required?
A three-phase 380 V supply; connection must be made by an electrician.Can it run unattended?
Yes, with the pump the water is discharged continuously, so there is no tank to empty.Industrial Air Dehumidifier 480 l/day | 380 V | 3250 m³/h
Industrial Air Dehumidifier with 480 l/day rated capacity and 3250 m³/h airflow – for humidity control in warehouses, production and construction sites. Use the category guide and capacity calculator to choose.
