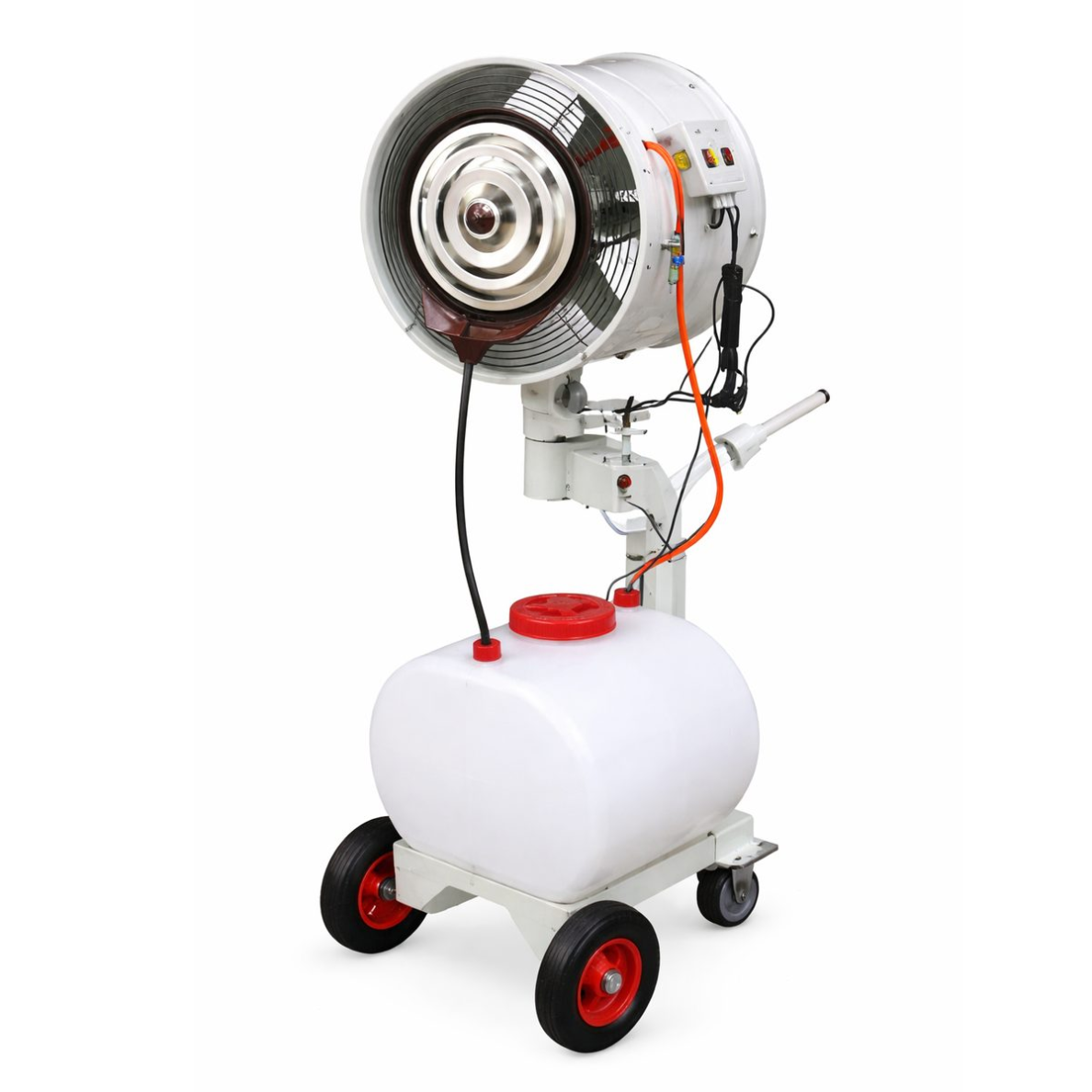

  • Industrial fog fan | air humidifier | 900 W | ~5097 m³/h | 60 L | up to 250 m² | free-standing | ES-HR-50

    Code: ES-HR-50

    Industrial fog fan for evaporative cooling: 900 W, airflow ~5097 m³/h, 60 L water tank, effective area up to 250 m².

  • Industrial fog fan | air humidifier | 900 W | ~5097 m³/h | 60 L | up to 250 m² | free-standing | ES-HR-50

    An industrial fog fan combines a powerful axial fan with water mist spraying. Fine water droplets evaporate in the airflow and cool the air – suitable for warehouses, workshops, farms, greenhouses, terraces and events.

    Key point:
    Evaporative cooling works best where the air is constantly exchanged: in open and semi-open areas it reduces heat without air conditioning or enclosed rooms.
    Power
    900 W
    Airflow
    ~5097 m³/h
    Water tank
    60 L
    Area
    up to 250 m²

    Operating principle

    A pump feeds water from the 60 L tank to the spray system, which creates a fine mist in the fan airflow.

    The axial fan (~5097 m³/h) carries the mist to the work zone, where the droplets evaporate and lower the air temperature.

    The effect is greatest in dry, hot weather; at very high humidity the cooling is weaker.

    Why choose ES-HR-50?
    High airflow and a 60 L tank allow a large zone to be cooled without fixed installation – the unit can be moved to wherever it is hottest.

    Technical specifications

    Product type Industrial fog fan | air humidifier
    Code ES-HR-50
    Power 900 W
    Supply voltage 220–240 V AC
    Airflow ~5097 m³/h (3000 CFM)
    Water tank 60 L
    Effective area up to 250 m²
    Fan type axial
    Mounting free-standing
    Material stainless steel

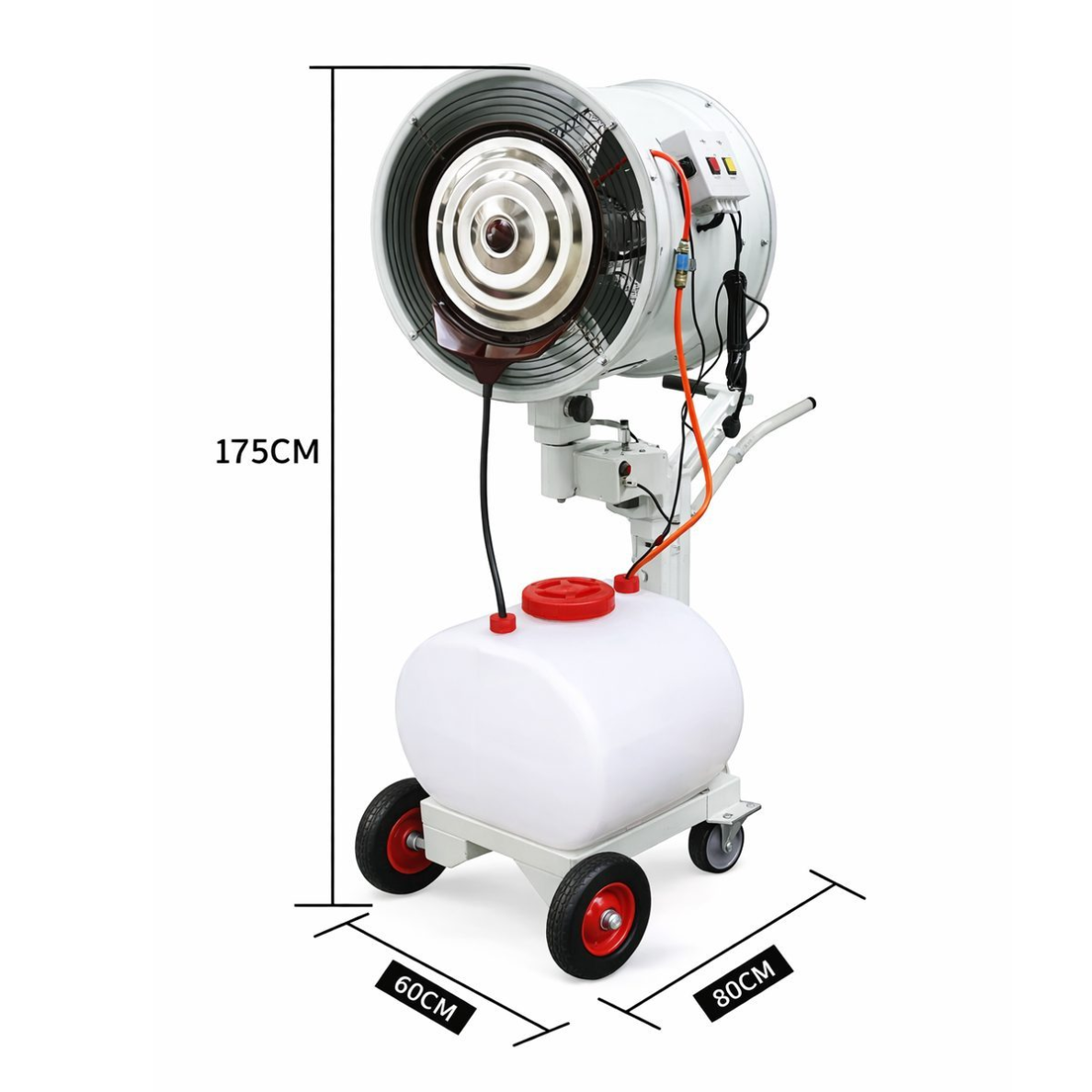

    Dimensions 1750 × 600 × 800 mm

    Main functions

    • Mist spraying – cools the air by evaporation.
    • Axial fan – high airflow of ~5097 m³/h.
    • 60 L tank – long operation without refilling.
    • Mounting – free-standing.
    • Versatile use – industry, agriculture, events.

    Where is it used?

    • Warehouses and logistics centres
    • Workshops and production halls
    • Farms and livestock barns

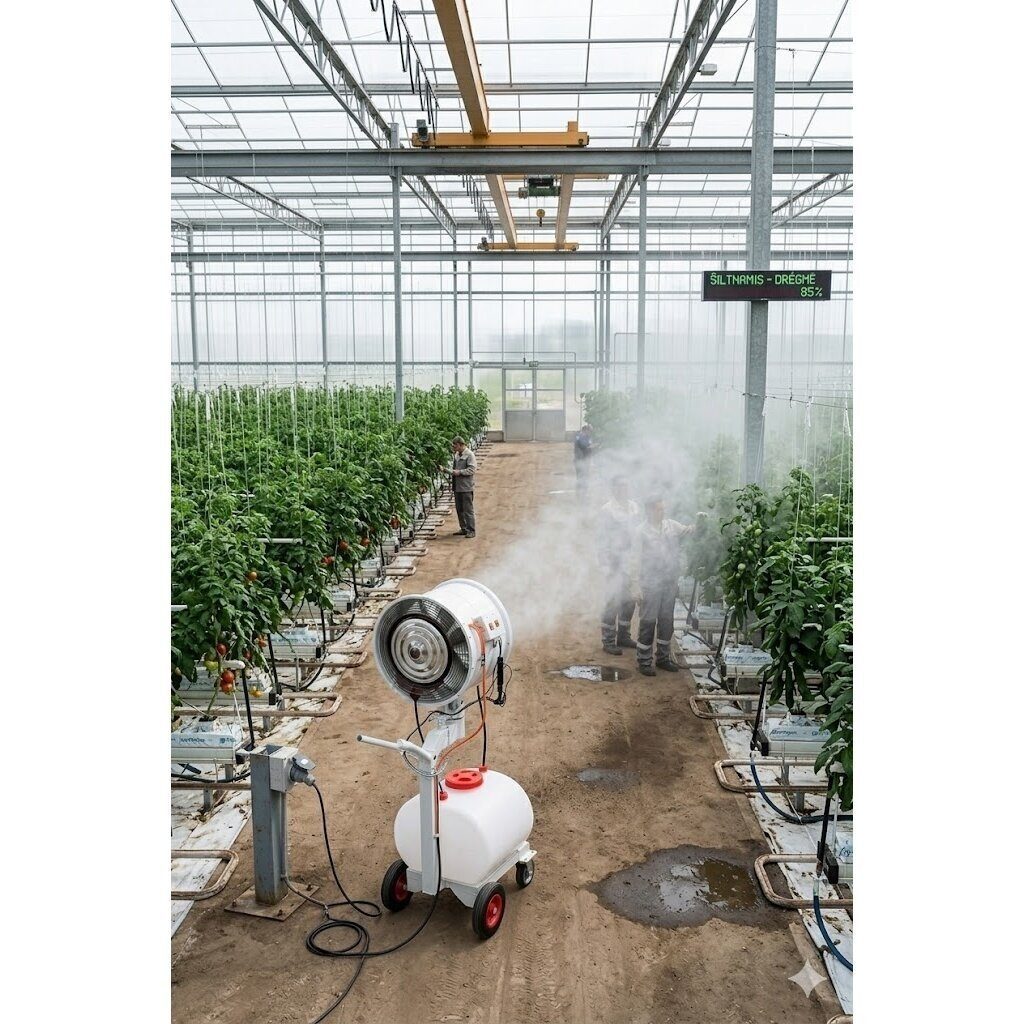

    • Greenhouses
    • Terraces, cafés, event areas
    • Construction sites and garages

    Use by need

    For production or warehouse managers.
    A cooler work zone on hot days without an air-conditioning system.
    For farmers.
    Less heat stress for livestock and poultry.
    For event organisers.
    Mobile cooling for outdoor areas.

    Practical use

    If the temperature in a workshop or barn rises above +30 °C on a hot summer day, a 900 W fog fan aimed at the work zone reduces the perceived heat without air-conditioning an enclosed room.

    Pros

    • High airflow – ~5097 m³/h
    • 60 L water tank
    • Cooling without air conditioning
    • Suitable for open and semi-open spaces
    • Simple operation

    Cons / limitations

    • Increases humidity – not suitable for enclosed, poorly ventilated rooms
    • Do not use near electrical equipment or documents
    • Less effect at high humidity
    • Ingress protection (IP) not specified

    Safety and installation notes

    • Connect to an earthed socket (220–240 V AC); outdoors use a 30 mA residual current device (RCD).
    • Do not direct mist at electrical equipment, panels or luminaires.
    • Disconnect from the mains before cleaning and refilling.
    • Clean the tank and nozzles regularly – standing water promotes bacterial growth.
    • Do not use at sub-zero temperatures.

    Quick selection guide

    900 W
    ~5097 m³/h
    60 L
    up to 250 m²
    Suitable when you need to:
    • cool a large open or semi-open zone;
    • reduce heat stress for workers or livestock;
    • have a mobile solution without installation.
    Check before use:
    • whether the zone is ventilated (evaporative cooling requires air exchange);
    • the socket and RCD protection;
    • water quality – hard water scales the nozzles.
    Important reminder: a fog fan is not an air conditioner – in an enclosed room it mainly increases humidity.

    FAQ

    How much does it cool?
    It depends on air humidity: the effect is greatest in dry, hot weather.
    Can it be used indoors?
    Only in large, well-ventilated spaces.
    How is water filled?
    Into the 60 L tank.
    What is the power?
    900 W, supply 220–240 V AC.
    Can it be used outdoors?
    Yes, for terraces and event areas, but protect it from rain and connect via an RCD.
    How is it maintained?
    Clean the tank and nozzles regularly and store in a dry room in winter.

    Industrial fog fan | air humidifier | 900 W | ~5097 m³/h | 60 L | up to 250 m² | free-standing | ES-HR-50

    Industrial fog fan | air humidifier 900 W, airflow ~5097 m³/h, 60 L tank – evaporative cooling for warehouses, workshops, farms and terraces.
