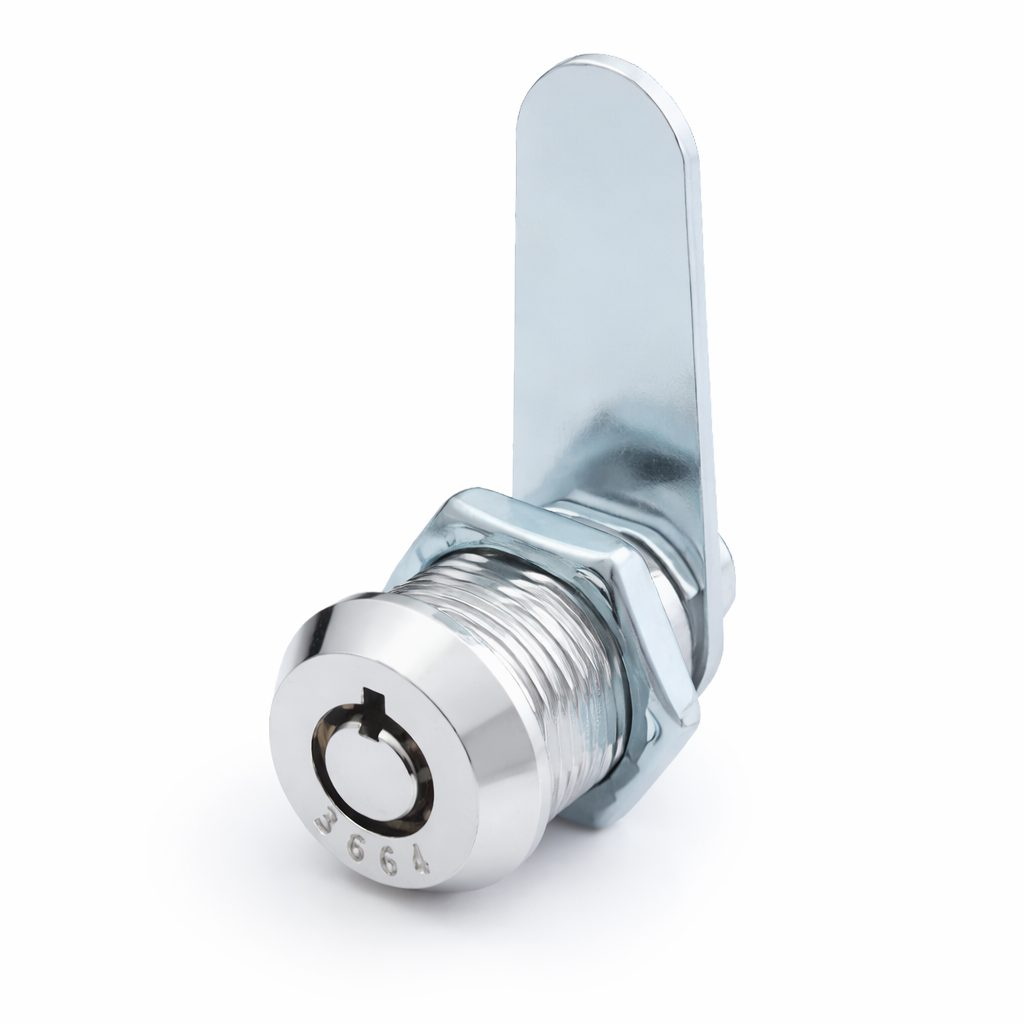

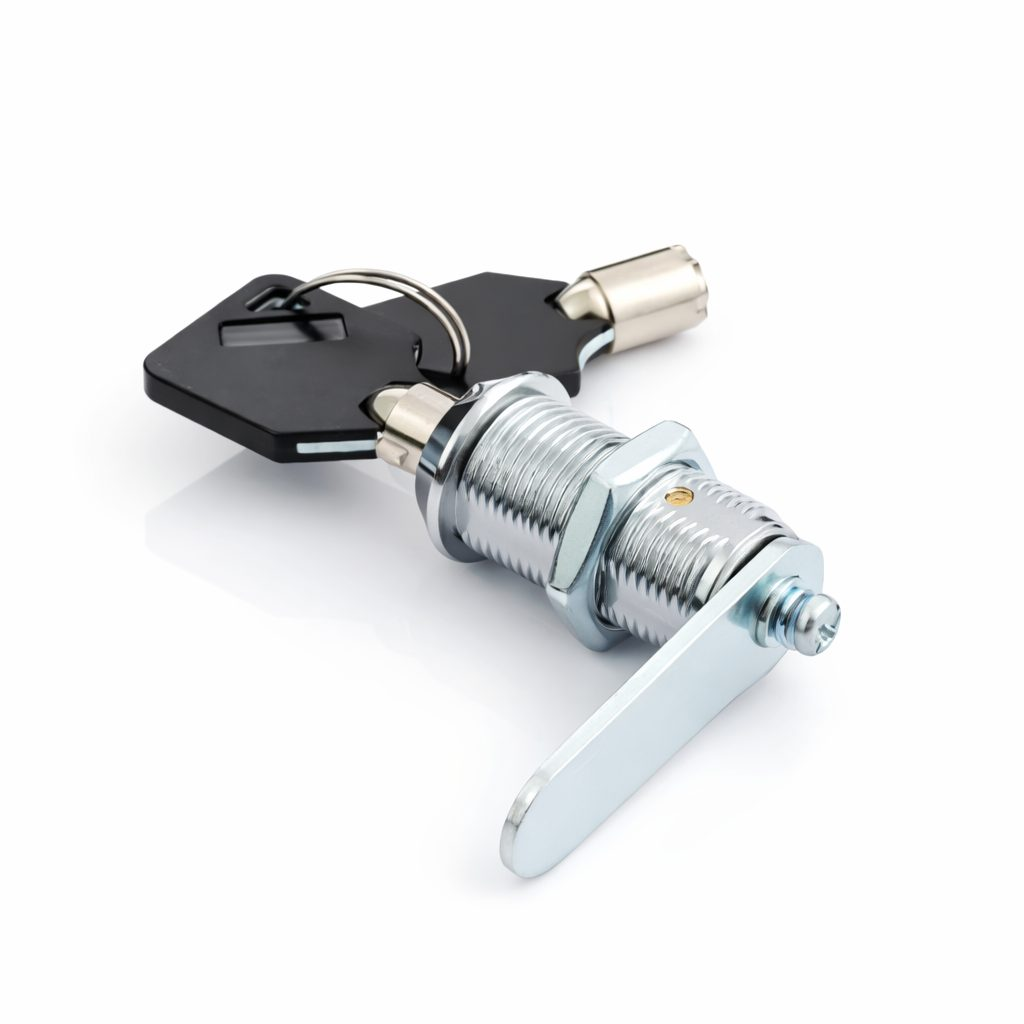

Industrial CAM lock | for cabinets and electrical distribution boards | ANSI Grade 1 | 25 mm cylinder | zinc alloy | chrome-plated | 90° / 180° unlocking | 2 keys

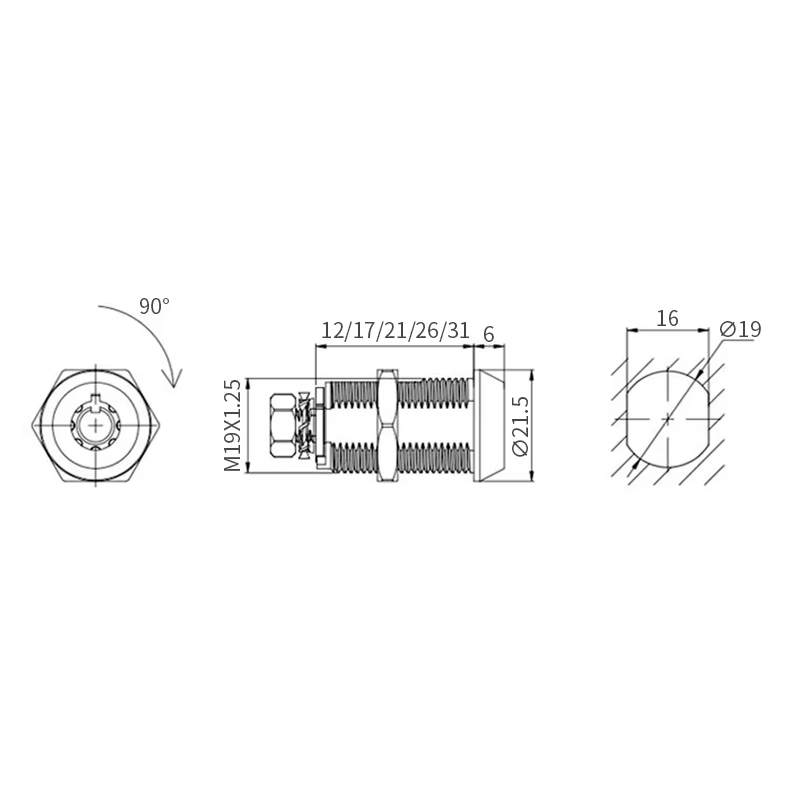

Technical Specifications

Type: High Security CAM Lock
Security Class: ANSI Grade 1 (highest)
Cylinder Length: 25 mm
Backset (depth): 32 mm
Mounting Hole Diameter: Ø19 mm
Unlocking Angle: 90° or 180°
Unlocking Method: Key
Number of Keys: 2 pcs.
Material: Zinc alloy
Surface Finish: Chrome-plated
Color: Zinc / Silver

Functions

High security level (ANSI Grade 1) – ensures reliable protection against unauthorized opening
Keyed Alike system – possibility to use the same key for multiple locks – simplified administration
90° or 180° unlocking – flexible adaptation according to installation type and construction
Durable zinc alloy housing – resistant to corrosion and mechanical wear
Compact 16 mm cylinder – suitable for thin metal or furniture doors

Application

For home users: Mailboxes, cabinets at home or in the garage, protection of documents or tools
For offices and administration: Document cabinets, archive furniture, server rooms or IT cabinets
For electricians / technicians: Electrical distribution boards, automation boxes, industrial control cabinets
In industry: Metal cabinets, warehouse lockers, equipment service areas

Advantages

ANSI Grade 1 security class
Keyed Alike option
Durable and long-lasting zinc alloy
Resistant chrome-plated finish
Easy installation
Universal application

Disadvantages

No additional IP protection (for indoor use)
Standard cylinder length (door thickness must be checked before installation)
