  • New item   Industrial socket box | 1×16 A 5P 400 V + 1×230 V 16 A | with rotary switch | wall-mounted | IP44 | Pawbol R-BOX KOMPAKT

    Industrial socket box | 1×16 A 5P 400 V + 1×230 V 16 A | with rotary switch | wall-mounted | IP44 | Pawbol R-BOX KOMPAKT

    Code: SKU# RBOX 1x230V+1x16A
    Inquire about this item
    Price 33.00 € VAT incl.
    ( 27.27 € VAT excl. )
    Want another price? Suggest yours!

    Wall-mounted Pawbol R-BOX KOMPAKT socket box: 1×CEE 16 A 5P 400 V and 1×230 V 16 A sockets, rotary switch lockable at 0. IP44, PG21 cable entry. No MCBs or RCDs inside – protection is installed in the panel.

  • Product description

    Industrial socket box | 1×16 A 5P 400 V + 1×230 V 16 A | with rotary switch | wall-mounted | IP44 | Pawbol R-BOX KOMPAKT

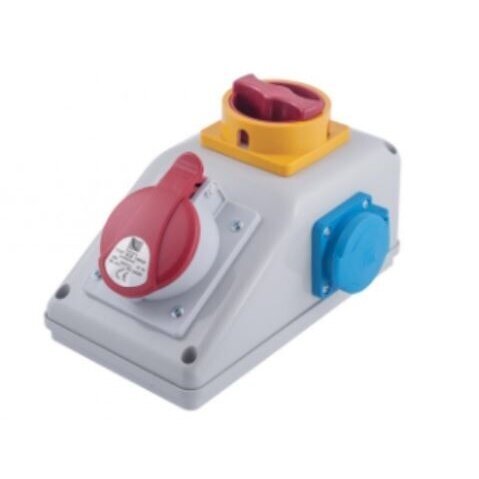

    Pawbol R-BOX KOMPAKT – a wall-mounted industrial socket box with one CEE 16 A 5P 400 V socket, one 230 V 16 A socket and a rotary switch in the enclosure. Designed as a fixed connection point for 16 A three-phase equipment and one household appliance in a garage, workshop or commercial premises.

    Key point:
    One compact IP44 box holds a three-phase socket, a household socket and a switch whose 0 position can be locked with a padlock. Useful where equipment needs local on/off control and safe isolation during servicing.
    Sockets
    1×CEE 16 A 5P + 1×230 V 16 A
    Protection
    IP44
    Switch
    rotary switch, lockable at 0
    Mounting
    wall-mounted

    How it works

    The box is fixed to a wall. The supply cable enters through a PG21 cable gland and is connected to internal terminals; the supply cable is not included.

    A rotary switch is built into the enclosure. R-BOX KOMPAKT is made with a 0-1 or an L-0-P switch (phase sequence reversal for changing motor rotation) – confirm the exact version when ordering. In position 0 the switch can be locked with a padlock.

    There are no MCBs or RCDs inside – protect the line in the panel with an MCB up to 16 A and a 30 mA RCD. This protects both the CEE and the 230 V sockets.

    Why choose Pawbol R-BOX KOMPAKT 16 A?
    One product instead of a separate CEE socket, household socket and switch: fewer boxes on the wall and fewer connections. The lockable 0 position lets you service connected equipment without the risk of someone switching it on.

    Technical specifications

    Product type Wall-mounted industrial socket box with switch
    Manufacturer / model Pawbol, R-BOX KOMPAKT (B.165/1/01 – 0-1 switch; B.165/1/LP – L-0-P switch)
    CEE socket 1× 16 A, 5P (3P+N+PE), 400 V
    Household socket 1× 230 V 16 A (2P+PE)
    Switch Rotary switch, 0-1 or L-0-P (depending on version); position 0 lockable with a padlock
    Protective devices None (no MCBs, RCDs or fuses)
    Degree of protection IP44 (with covers closed)
    Enclosure Plastic (ABS), grey
    Cable entry PG21 cable gland
    Dimensions (W × H × D) approx. 143 × 210 × 126 mm (distributor data)
    Supply Fixed cable to internal terminals; cable not included
    Mounting Wall-mounted, fixed

    Key functions

    • CEE 16 A 5P 400 V socket – for three-phase equipment with a 5-pin plug.
    • 230 V 16 A socket – for a hand tool, lamp or charger next to the machine.
    • Rotary switch – local on/off control at the equipment.
    • Lockable 0 position – a padlock prevents accidental switch-on during servicing.
    • IP44 – protection against solid objects over 1 mm and splashing water from all directions.
    • PG21 cable entry – sealed entry of the supply cable.

    How does it differ from similar products?

    Pawbol R-BOX KOMPAKT 32 A (2222) Same design with a CEE 32 A 5P socket – for more powerful equipment.
    Famatel 3067 (8567) 1×CEE 16 A + 1×230 V box, IP44, no switch – when no switch is needed; check the CEE contact count (4P or 5P) on its product page.
    SEZ ROS 4/V-12 (573) 1×16 A 5P + 2×230 V 16 A with 0–1 switch, IP44 – when two household sockets are needed.

    Where is it used?

    • Garages and car service workshops
    • Workshops and small production halls
    • Commercial and storage premises
    • Connection points for compressors, machine tools and welders
    • Agricultural buildings (dry or covered areas)
    • Technical rooms and boiler rooms

    Use by need

    For beginners.
    The box is wall-mounted and permanently wired – connection is done by an electrician. Turn the switch to 0 before inserting or removing a plug.
    For experienced installers.
    The cable enters through a PG21 gland. If the box has an L-0-P switch, check that positions L and P match the required motor rotation directions.
    For energy engineers / designers.
    There are no protective devices inside: protect the line with an MCB up to 16 A sized to the cable and a 30 mA RCD – this protects both sockets.

    Practical use

    In a garage, a wall-mounted R-BOX KOMPAKT supplies a compressor from the CEE 16 A socket and a work lamp or battery charger from the 230 V socket. Before servicing the compressor the mechanic turns the switch to 0 and locks it with a padlock. The line is protected in the panel by a 16 A MCB and a 30 mA RCD.

    Pros / advantages

    • CEE 16 A 5P and 230 V sockets in one enclosure
    • Built-in switch – no separate switch needed at the machine
    • Position 0 lockable with a padlock
    • Compact wall-mounted enclosure
    • PG21 cable entry

    Cons / limitations

    • No MCBs or RCDs – protection must be in the panel
    • IP44 – not for water jets or wash-down; for wet areas choose an IP67 model, e.g. SEZ ROSPG 1631 D (2236)
    • Only one 230 V socket – SEZ ROS4/V-12 (573) has more household sockets
    • The switch version (0-1 or L-0-P) must be confirmed when ordering

    Safety and installation notes

    • ⚡ Installation and connection by a qualified electrician only, with the supply disconnected.
    • ⚡ Protect the line with an MCB sized to the cable cross-section (max. 16 A) and a 30 mA RCD.
    • The total load of all sockets must not exceed the rated current of the supply line MCB.
    • The CEE 400 V socket needs a three-phase line – it cannot be used from a single-phase line.
    • On construction sites, supply the box only from a construction site distribution board (HD 60364-7-704).
    • The protective earth (PE) contact of the 230 V socket must be connected.
    • IP44 applies only with the socket covers closed and the cable properly sealed in the PG21 gland.

    Quick selection guide

    CEE 16 A 5P + 230 V
    Rotary switch
    IP44
    No protective devices
    Suitable when you need:
    • A connection point for 16 A three-phase equipment and one household appliance
    • Local on/off control at the machine
    • The option to lock the switch while servicing equipment
    Check before choosing:
    • The switch version: 0-1 or L-0-P (phase sequence reversal)
    • Confirm the household socket type (Schuko or French with earth pin) when ordering
    • Whether the panel has an MCB up to 16 A sized to the cable and a 30 mA RCD
    Important reminder: The box has no MCBs, RCDs or fuses – line protection is installed in the panel. The switch is for local control and does not replace protective devices.
    ☝ Elsprendimai.eu recommends:

    FAQ

    Does the box contain an MCB or RCD?
    No. R-BOX KOMPAKT has only sockets and a rotary switch – protection is installed in the panel that supplies it.
    What is the difference between the 0-1 and L-0-P switch versions?
    0-1 is simple on/off. L-0-P reverses the phase sequence and so changes the rotation direction of a three-phase motor.
    Is a supply cable included?
    No. The box is permanently wired: the cable enters through the PG21 gland to the internal terminals.
    Can it be used outdoors?
    IP44 protects against splashes with the covers closed – suitable under a canopy. For direct rain and water jets choose a higher-IP product.
    Can it be connected to a single-phase line?
    The CEE 400 V socket needs a three-phase line, so it cannot be used from a single-phase supply. If you only need 230 V, choose a box with household sockets, e.g. Famatel 3064 (8578).
    Which cable and MCB should be used?
    A 5-core cable (3 phases, N, PE) via an MCB of max. 16 A. The cross-section is chosen by the electrician according to length and installation method.

    Sources: Pawbol R-BOX KOMPAKT data from distributors listing the same catalogue code (B.165/1, B.165/1/01, B.165/1/LP: TIM.pl, Sonepar.pl, Empik). Checked 2026-10-20.

    Pawbol R-BOX KOMPAKT 1×16 A 5P + 1×230 V with switch, IP44

    Wall-mounted Pawbol R-BOX KOMPAKT socket box with CEE 16 A 5P 400 V and 230 V 16 A sockets and a rotary switch, IP44, no protective devices.
