  • New item   Industrial socket box | 1×32 A 5P 400 V + 1×230 V 16 A | with rotary switch | wall-mounted | IP44 | Pawbol R-BOX KOMPAKT

    Industrial socket box | 1×32 A 5P 400 V + 1×230 V 16 A | with rotary switch | wall-mounted | IP44 | Pawbol R-BOX KOMPAKT

    Code: RBOX 1x230V+1x32A
    Inquire about this item
    Price 33.00 € VAT incl.
    ( 27.27 € VAT excl. )
    Want another price? Suggest yours!

    Wall-mounted Pawbol R-BOX KOMPAKT socket box: 1×CEE 32 A 5P 400 V and 1×230 V 16 A sockets, rotary switch lockable at 0. IP44, PG21 cable entry. No MCBs or RCDs inside – protection is installed in the panel.

  • Product description

    Industrial socket box | 1×32 A 5P 400 V + 1×230 V 16 A | with rotary switch | wall-mounted | IP44 | Pawbol R-BOX KOMPAKT

    Pawbol R-BOX KOMPAKT – a wall-mounted industrial socket box with one CEE 32 A 5P 400 V socket, one 230 V 16 A socket and a rotary switch in the enclosure. Designed as a fixed connection point for 32 A three-phase equipment and one household appliance in a garage, workshop or commercial premises.

    Key point:
    One compact IP44 box holds a three-phase socket, a household socket and a switch whose 0 position can be locked with a padlock. Useful where equipment needs local on/off control and safe isolation during servicing.
    Sockets
    1×CEE 32 A 5P + 1×230 V 16 A
    Protection
    IP44
    Switch
    rotary switch, lockable at 0
    Mounting
    wall-mounted

    How it works

    The box is fixed to a wall. The supply cable enters through a PG21 cable gland and is connected to internal terminals; the supply cable is not included.

    A rotary switch is built into the enclosure. R-BOX KOMPAKT is made with a 0-1 or an L-0-P switch (phase sequence reversal for changing motor rotation) – confirm the exact version when ordering. In position 0 the switch can be locked with a padlock.

    There are no MCBs or RCDs inside. The line up to 32 A is protected in the panel by an MCB and a 30 mA RCD, and the 230 V 16 A socket requires 16 A protection – the box does not have it.

    Why choose Pawbol R-BOX KOMPAKT 32 A?
    One product instead of a separate CEE socket, household socket and switch: fewer boxes on the wall and fewer connections. The lockable 0 position lets you service connected equipment without the risk of someone switching it on.

    Technical specifications

    Product type Wall-mounted industrial socket box with switch
    Manufacturer / model Pawbol, R-BOX KOMPAKT (B.325/1/01 – 0-1 switch; B.325/1/LP – L-0-P switch)
    CEE socket 1× 32 A, 5P (3P+N+PE), 400 V
    Household socket 1× 230 V 16 A (2P+PE)
    Switch Rotary switch, 0-1 or L-0-P (depending on version); L-0-P version – 3-pole, 40 A (distributor data); position 0 lockable with a padlock
    Protective devices None (no MCBs, RCDs or fuses)
    Degree of protection IP44 (with covers closed)
    Enclosure Plastic (ABS), grey
    Cable entry PG21 cable gland
    Dimensions (W × H × D) approx. 143 × 210 × 126 mm (distributor data)
    Supply Fixed cable to internal terminals; cable not included
    Mounting Wall-mounted, fixed

    Key functions

    • CEE 32 A 5P 400 V socket – for three-phase equipment with a 5-pin plug.
    • 230 V 16 A socket – for a hand tool, lamp or charger next to the machine.
    • Rotary switch – local on/off control at the equipment.
    • Lockable 0 position – a padlock prevents accidental switch-on during servicing.
    • IP44 – protection against solid objects over 1 mm and splashing water from all directions.
    • PG21 cable entry – sealed entry of the supply cable.

    How does it differ from similar products?

    Pawbol R-BOX KOMPAKT 16 A (2220) Same design with a CEE 16 A 5P socket; the 230 V socket is protected by the 16 A line MCB.
    Famatel 3068 (8570) 1×CEE 32 A + 1×230 V box, IP44, no switch – when no switch is needed; check the CEE contact count (4P or 5P) on its product page.
    SEZ ROS 4/V-10 (2228) 1×32 A 5P + 2×230 V 16 A with 0–1 switch, IP44 – when two household sockets are needed.

    Where is it used?

    • Garages and car service workshops
    • Workshops and small production halls
    • Commercial and storage premises
    • Connection points for compressors, machine tools and welders
    • Agricultural buildings (dry or covered areas)
    • Technical rooms and boiler rooms

    Use by need

    For beginners.
    The box is wall-mounted and permanently wired – connection is done by an electrician. Turn the switch to 0 before inserting or removing a plug.
    For experienced installers.
    The cable enters through a PG21 gland. If the box has an L-0-P switch, check that positions L and P match the required motor rotation directions.
    For energy engineers / designers.
    There are no protective devices inside. With a 32 A line MCB the 230 V 16 A socket is not properly protected – provide 16 A protection or choose a model with built-in MCBs.

    Practical use

    In a workshop, a wall-mounted R-BOX KOMPAKT 32 A serves a machine tool with a CEE 32 A plug. The line from the panel is protected by a 32 A MCB and a 30 mA RCD, and the electrician provided 16 A protection for the 230 V socket circuit. Before changing tools the operator turns the switch to 0 and locks it with a padlock.

    Pros / advantages

    • CEE 32 A 5P and 230 V sockets in one enclosure
    • Built-in switch – no separate switch needed at the machine
    • Position 0 lockable with a padlock
    • Compact wall-mounted enclosure
    • PG21 cable entry

    Cons / limitations

    • No MCBs or RCDs – protection must be in the panel
    • 230 V 16 A socket without internal protection: behind a 32 A line MCB it requires separate 16 A protection
    • IP44 – not for water jets or wash-down; for such areas choose a higher-IP product, e.g. the Scame 405.3287 socket (2382), IP66/IP67
    • The switch version (0-1 or L-0-P) must be confirmed when ordering

    Safety and installation notes

    • ⚡ Installation and connection by a qualified electrician only, with the supply disconnected.
    • ⚡ Protect the line with an MCB sized to the cable cross-section (max. 32 A) and a 30 mA RCD; the 230 V 16 A socket requires 16 A protection.
    • The total load of all sockets must not exceed the rated current of the supply line MCB.
    • The CEE 400 V socket needs a three-phase line – it cannot be used from a single-phase line.
    • On construction sites, supply the box only from a construction site distribution board (HD 60364-7-704).
    • The protective earth (PE) contact of the 230 V socket must be connected.
    • IP44 applies only with the socket covers closed and the cable properly sealed in the PG21 gland.

    Quick selection guide

    CEE 32 A 5P + 230 V
    Rotary switch
    IP44
    No protective devices
    Suitable when you need:
    • A connection point for 32 A three-phase equipment and one household appliance
    • Local on/off control at the machine
    • The option to lock the switch while servicing equipment
    Check before choosing:
    • The switch version: 0-1 or L-0-P (phase sequence reversal)
    • Confirm the household socket type (Schuko or French with earth pin) when ordering
    • Whether the panel has a 32 A MCB, a 30 mA RCD and 16 A protection for the 230 V socket
    Important reminder: The box has no MCBs, RCDs or fuses – line protection is installed in the panel, and the 230 V socket requires 16 A protection. The switch is for local control and does not replace protective devices.
    ☝ Elsprendimai.eu recommends:

    FAQ

    Does the box contain an MCB or RCD?
    No. R-BOX KOMPAKT has only sockets and a rotary switch – protection is installed in the panel that supplies it.
    What is the difference between the 0-1 and L-0-P switch versions?
    0-1 is simple on/off. L-0-P reverses the phase sequence and so changes the rotation direction of a three-phase motor.
    Is a supply cable included?
    No. The box is permanently wired: the cable enters through the PG21 gland to the internal terminals.
    Can it be used outdoors?
    IP44 protects against splashes with the covers closed – suitable under a canopy. For direct rain and water jets choose a higher-IP product.
    Can it be connected to a single-phase line?
    The CEE 400 V socket needs a three-phase line, so it cannot be used from a single-phase supply. If you only need 230 V, choose a box with household sockets, e.g. Famatel 3064 (8578).
    Does the 230 V socket need separate protection?
    Yes. If the box is supplied by a line with an MCB above 16 A, the 230 V 16 A socket requires 16 A protection – the box does not have it.

    Sources: Pawbol R-BOX KOMPAKT data from distributors listing the same catalogue code (B.325/1, B.325/1/01, B.325/1/LP: TIM.pl, Sonepar.pl, Empik). Checked 2026-10-20.

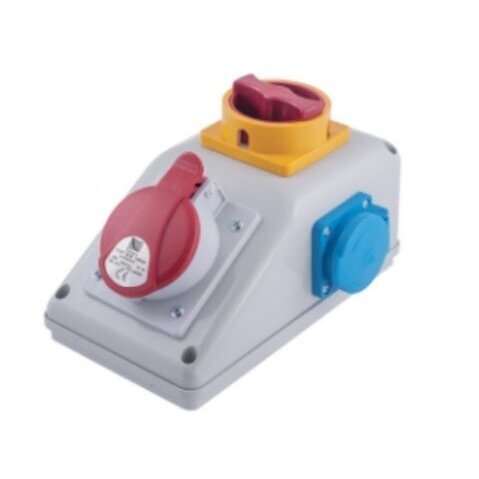

    Pawbol R-BOX KOMPAKT 1×32 A 5P + 1×230 V with switch, IP44

    Wall-mounted Pawbol R-BOX KOMPAKT socket box with CEE 32 A 5P 400 V and 230 V 16 A sockets and a rotary switch, IP44, no protective devices.

    Illustrative image may have been created using AI. The appearance of the product may differ slightly from the image shown. Please refer to the technical specification.
