IP Network Audio Control and Broadcasting Console | Up to 64 Speakers | SIP/IP | PoE | Bluetooth

Desktop IP Audio Broadcast Console – 64 Terminals, 20 Zones, PoE, Bluetooth, USB, AUX, Emergency Broadcasting

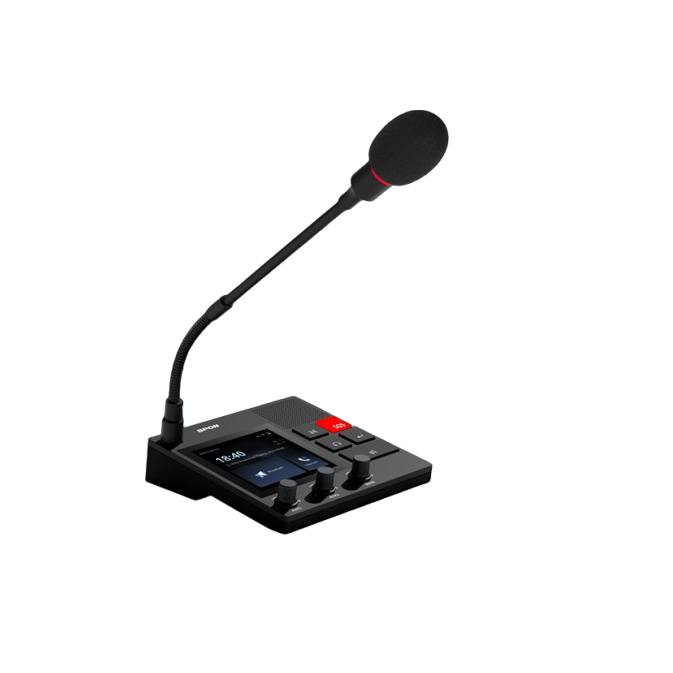

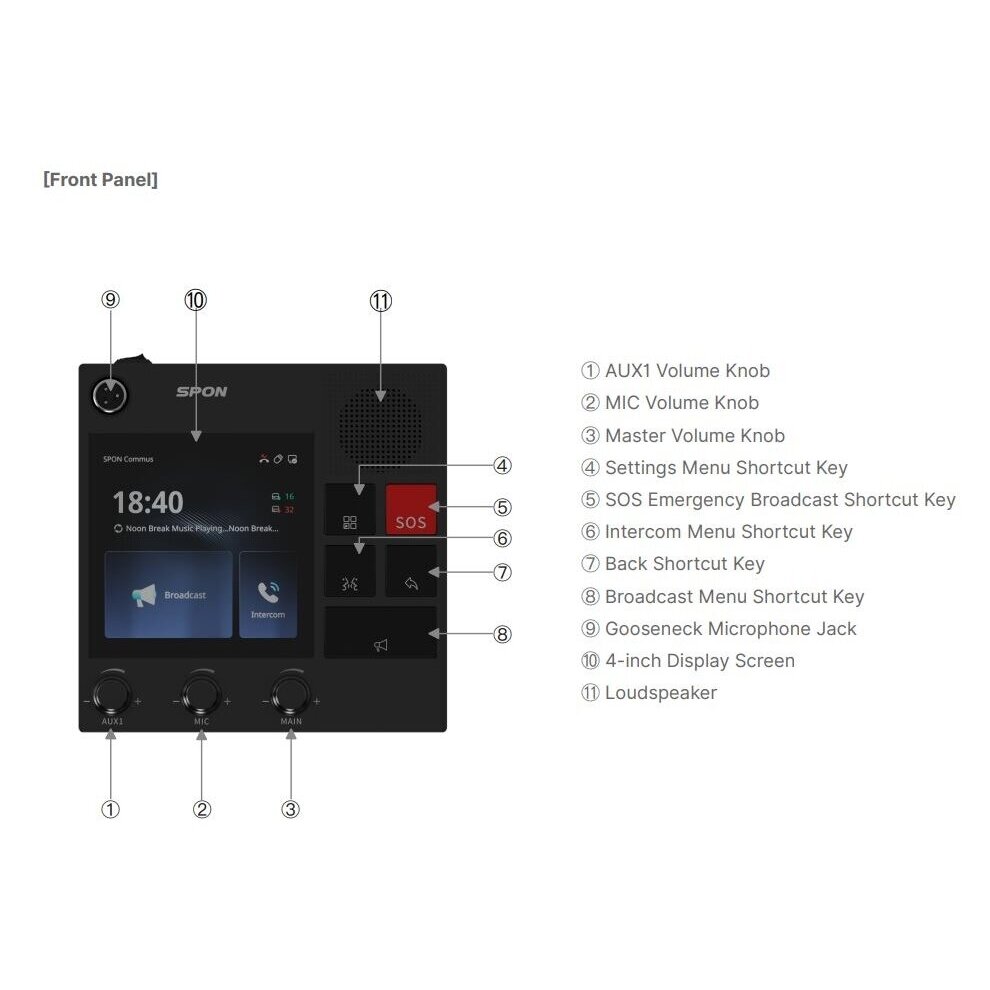

Desktop IP audio broadcast console is a compact central control station for IP public address, background music, scheduled announcements, intercom and emergency broadcasting systems. It features an integrated IP Audio Edge Core, supports up to 64 registered network terminals and up to 20 independent zones, and can be managed via a web browser or DevConfig software. With built-in microphone, speaker, 4.0" LCD display, Bluetooth, USB, AUX inputs, PoE support and emergency broadcast button, this console is suitable for schools, factories, logistics centers, office buildings, hotels, shopping malls and administrative facilities.

• Schools and educational buildings – scheduled bells, announcements and emergency messages.
• Factories and production facilities – shift signals, safety announcements and zone broadcasting.
• Logistics centers and warehouses – operational announcements and background music zones.
• Shopping malls and commercial buildings – public address, background music and emergency warnings.
• Office buildings and hotels – internal announcements, intercom and centralized audio control.
• Security and control rooms – as a central public warning and announcement station.

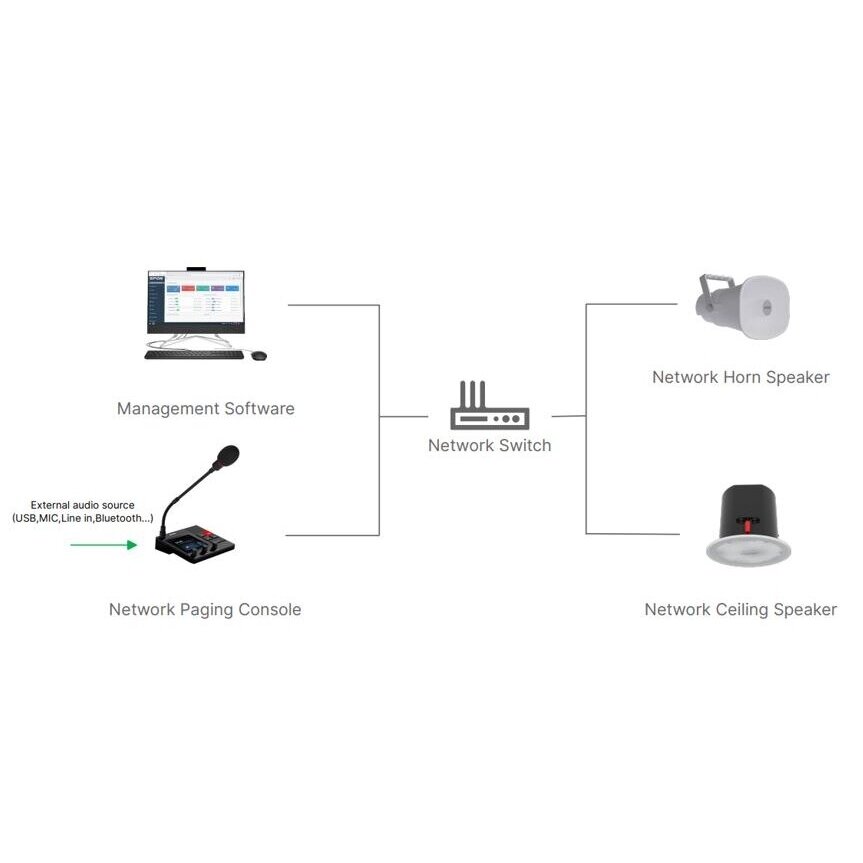

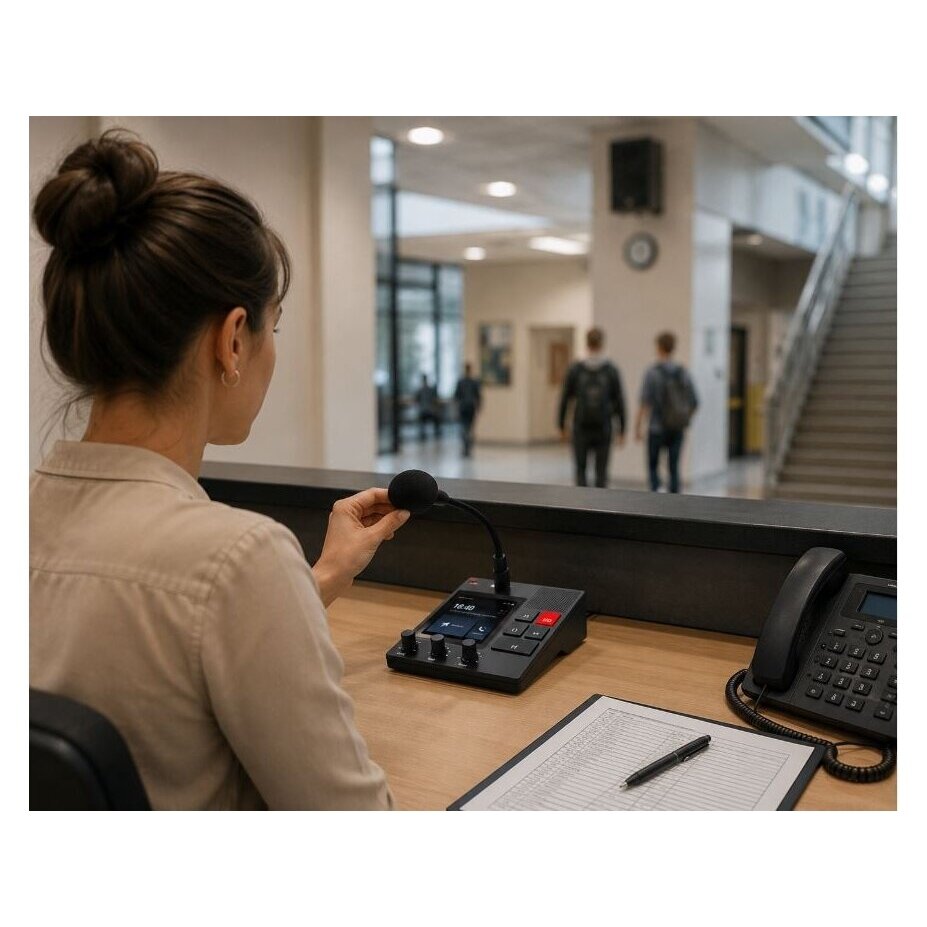

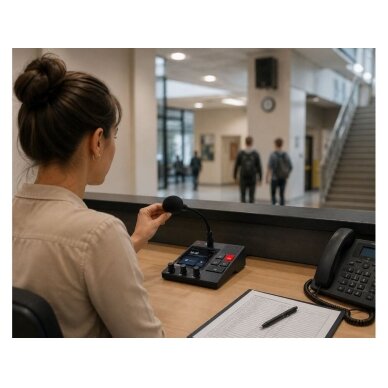

For example, the console can be installed on a desk in a security room, administration office or technical control room. IP speakers or IP audio terminals are connected through the Ethernet network, and the operator can select individual zones or all zones to transmit announcements.

In a school, the console may be used for scheduled bells, background music, live announcements and emergency evacuation messages. In a factory or logistics center, it can be used for shift start signals, operational instructions, alarm messages and zone-specific voice broadcasting.

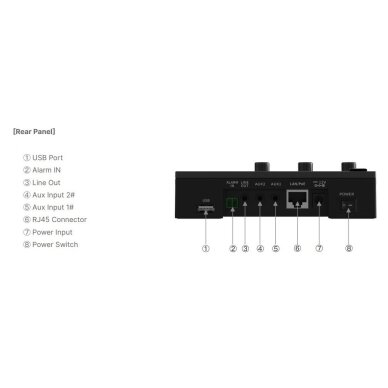

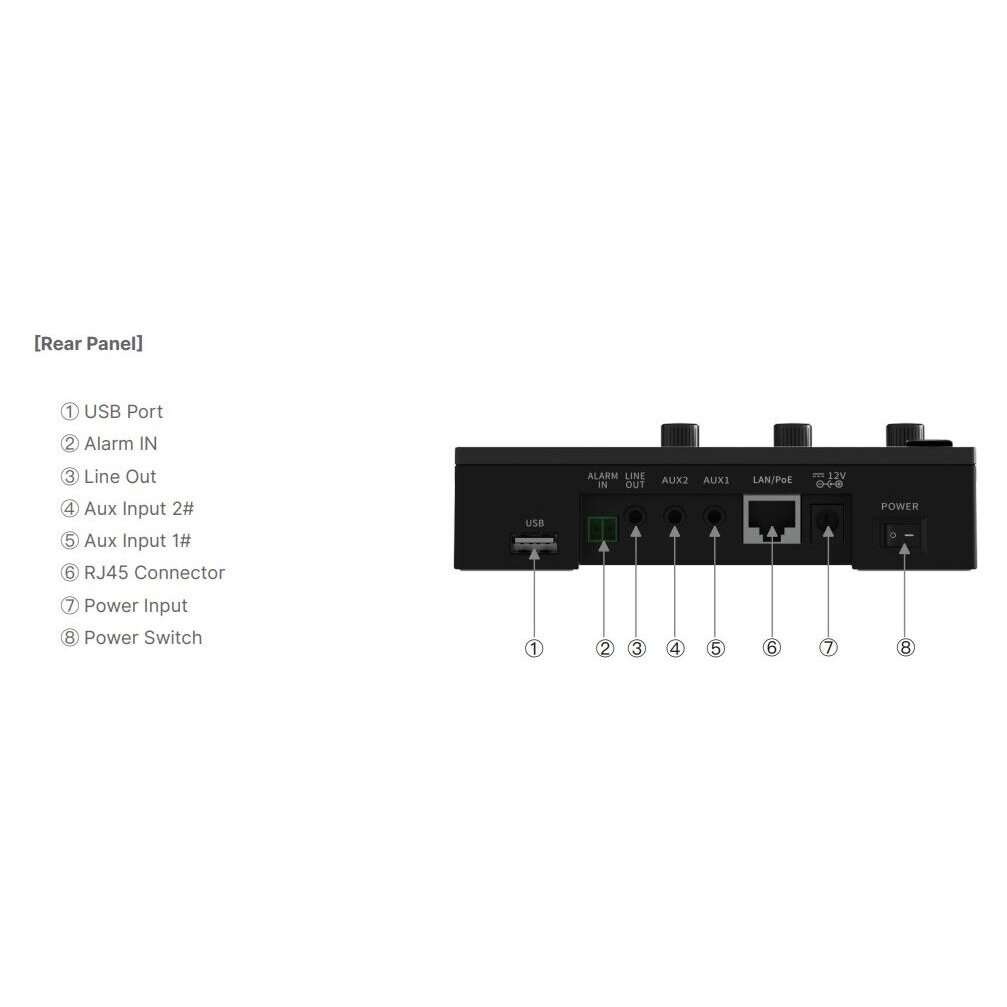

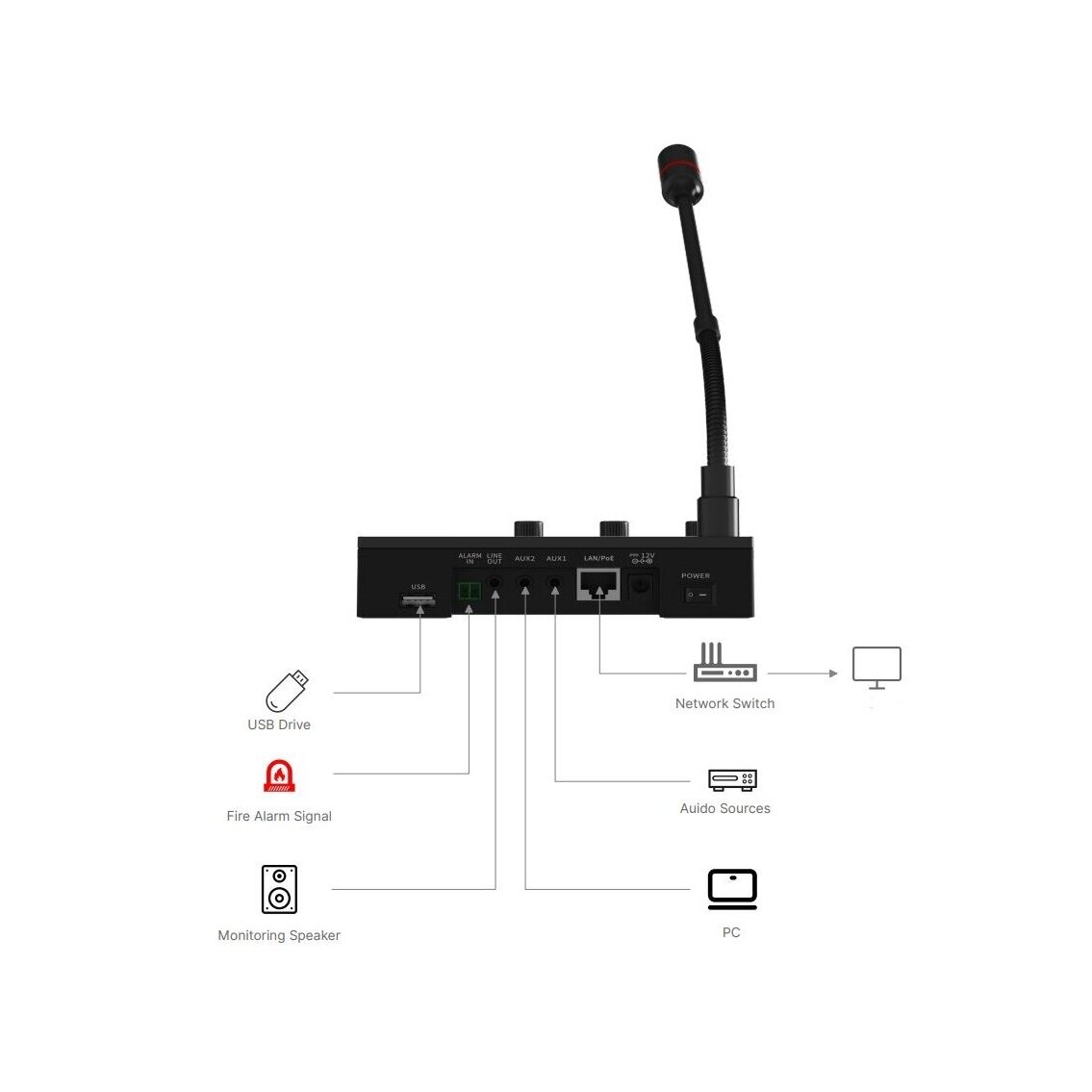

Integrated audio mixer: the console can simultaneously receive and mix multiple audio sources, including microphone, Bluetooth, USB storage device, AUX1 and AUX2. Each channel can be adjusted independently.

Live voice broadcasting: the operator can transmit announcements in real time to a selected zone, multiple zones or all zones simultaneously.

Scheduled broadcasting: the system can be programmed for work shift start signals, school bells, evacuation announcements and background music schedules.

Emergency announcements: a dedicated emergency broadcast button allows immediate transmission of critical announcements to all connected terminals.

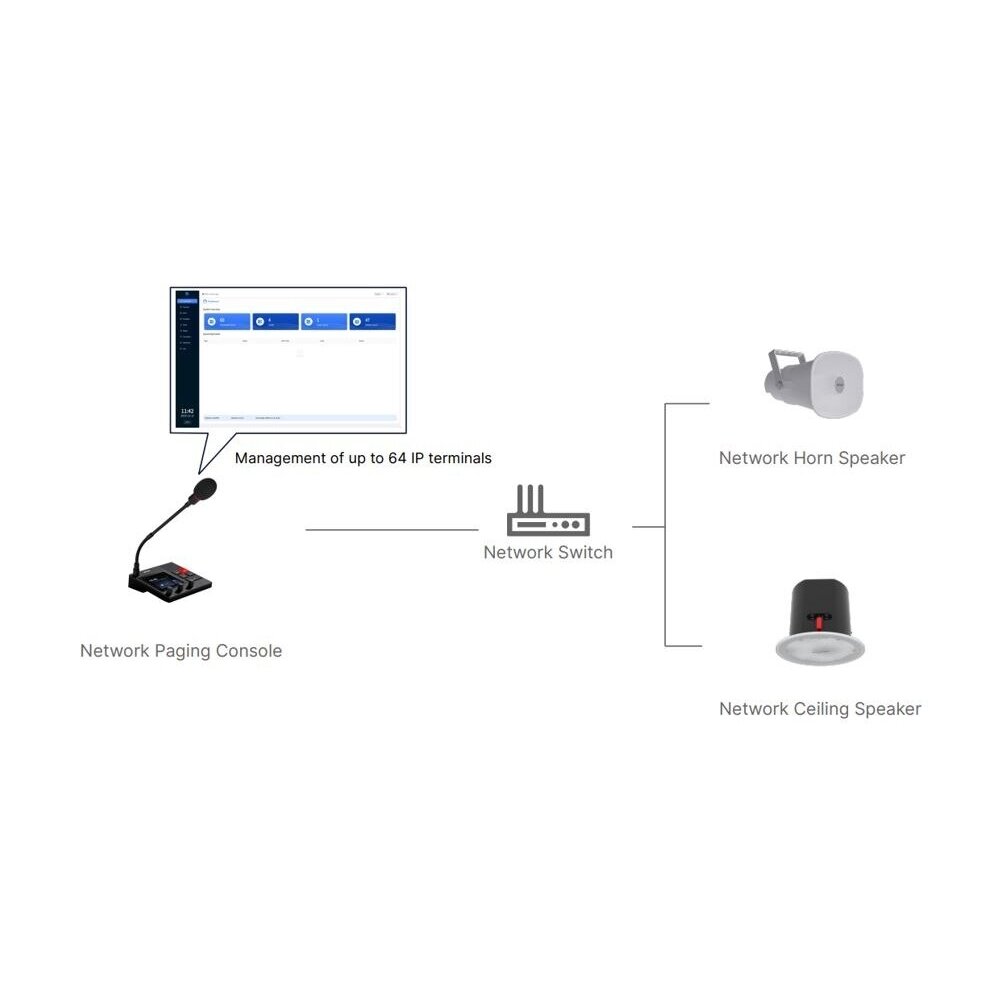

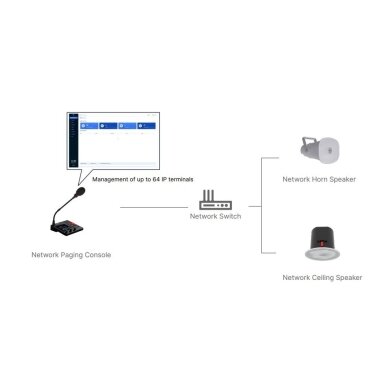

Centralized IP system management: the integrated IP Audio Edge Core allows management of up to 64 network devices without an additional server or licensed software.

Remote administration: management is available through a web browser and DevConfig software.

For electrical installers: ideal for implementing public address systems, background music systems, IP speaker networks, school notification systems and audio systems for administrative buildings. PoE support can simplify installation and reduce cabling requirements.

For engineers and system designers: suitable for cost-effective IP audio system design without additional servers or complex licensing. It can be used in schools, factories, logistics centers, shopping malls, office buildings and hotels.

For security and technical system specialists: supports emergency broadcasting and integration with alarm or warning systems, allowing the console to function as a central public warning station for a facility.

The console is a professional IP audio control device and should be installed as part of a properly designed network audio system.

• Use indoors only and protect the device from moisture, dust and direct outdoor exposure.
• Check PoE compatibility before connecting the console to a PoE switch or injector.
• Plan the network infrastructure correctly, especially for multi-zone and emergency audio systems.
• Use compatible IP audio terminals and speakers to ensure correct operation.
• Emergency broadcasting systems should be tested regularly according to the facility’s safety procedures.
• Installation and configuration should be performed by qualified personnel, especially when connected to alarm or evacuation systems.

Fast selection guide

This desktop IP audio broadcast console is a suitable choice when a facility needs a compact control station for live announcements, zone broadcasting, scheduled messages, background music and emergency audio. It is especially useful for small and medium-size IP public address systems where a separate server is not required.

To form a fully functional system, it is recommended to combine the console with the following compatible devices:

• IP alarm interface module – for integration with alarm, evacuation or warning systems.
• USB software license dongle – if required by the selected software or system configuration.
• Outdoor wall-mounted IP network speaker – for public address and emergency announcements in outdoor or semi-outdoor zones.

Central IP audio console for announcements, background music and emergency broadcasting

This desktop IP audio broadcast console is a practical solution for facilities that need centralized control of public address, scheduled broadcasting, background music and emergency voice announcements.

With support for up to 64 network terminals, 20 zones, PoE, Bluetooth, USB, AUX inputs, web-based management and a dedicated emergency broadcast button, it is suitable for schools, factories, logistics centers, office buildings, hotels, shopping malls and other professional IP audio systems.
