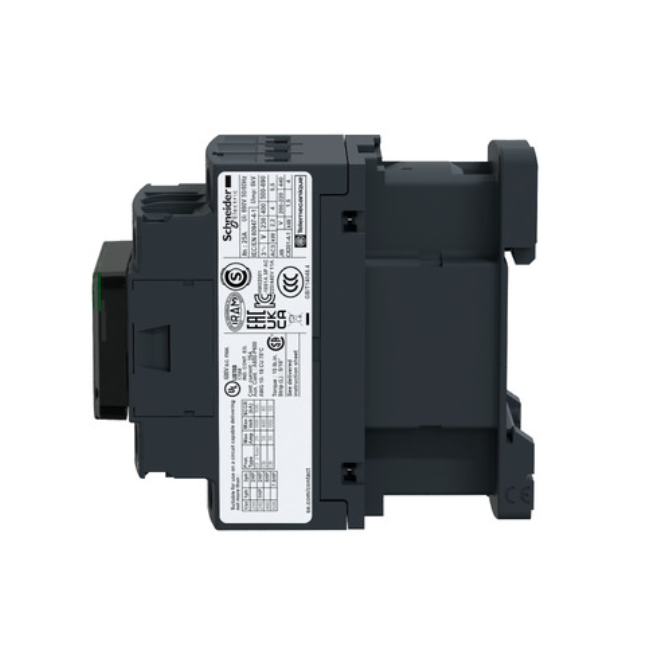

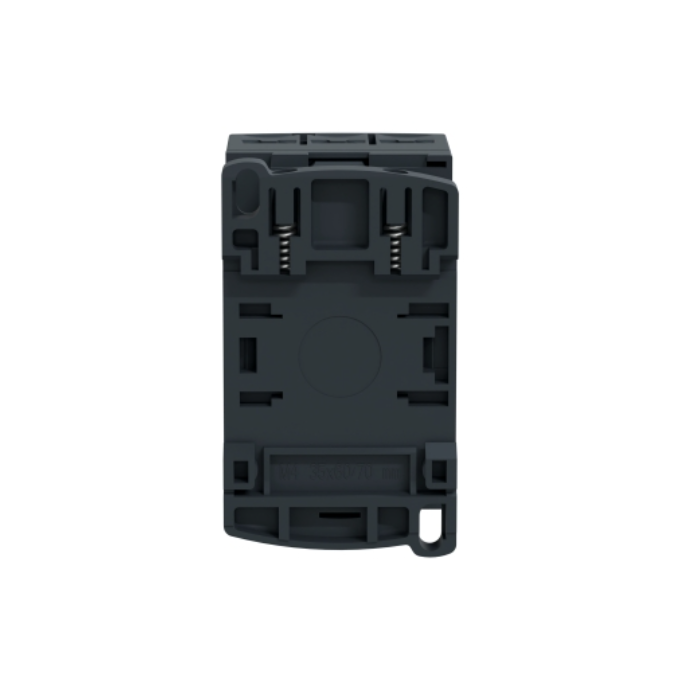

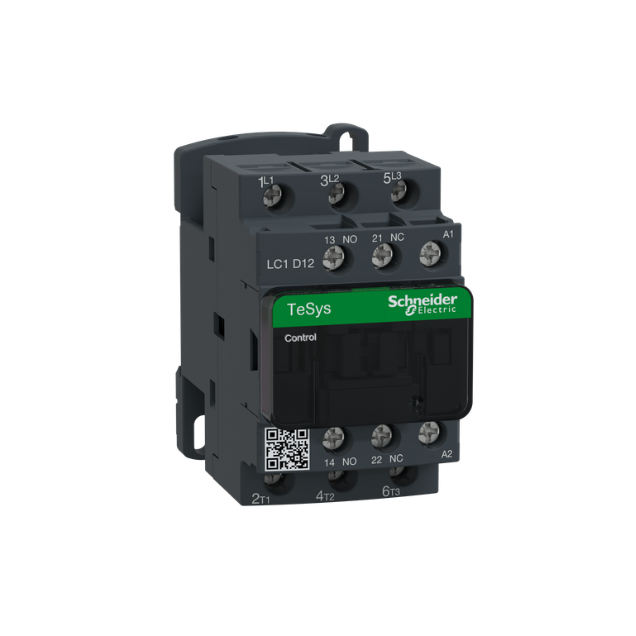

LC1D Contactor | 3P | 12A | 5.5kW | 230VAC | AC 50/60Hz coil | 3NO auxiliary contacts | Screw terminals

LC1D Contactor 3P 12A – 5.5kW, 230VAC AC 50/60Hz coil, 3NO contacts, screw terminals

LC1D 3-pole contactor, designed for the control of electric motors, lighting, heating, ventilation, pumps, and other electrical loads. The contactor features a 12A rated current, 3 main normally open contacts, a 230VAC AC 50/60Hz control coil, and screw terminals, making it suitable for standard automation, control, and power distribution schemes.

• For electric motor control – for switching motors on, off, and in automatic control schemes.
• For pump control – in water, heating, technological, or circulation pump circuits.
• In ventilation systems – for controlling fans, air supply, or extraction devices.
• In lighting circuits – for switching larger lighting groups via a control system.
• In automation panels – in industrial, commercial, and technical electrical control solutions.

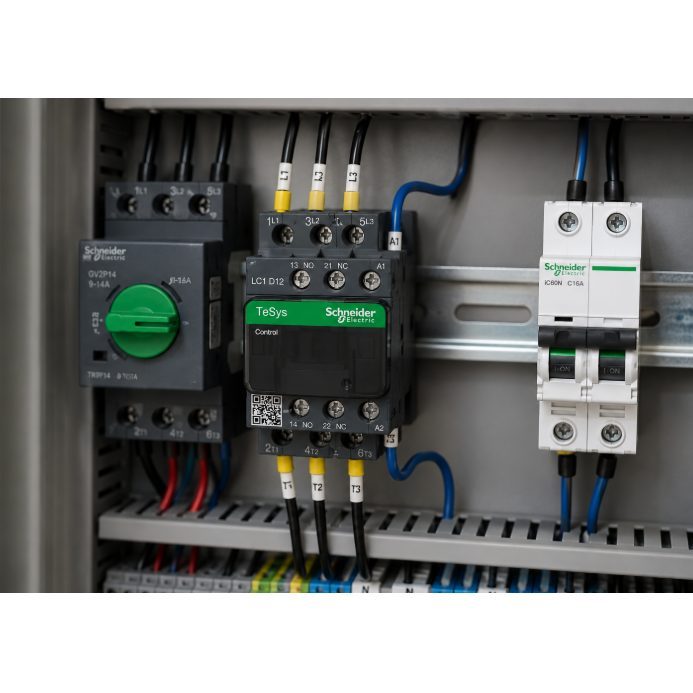

For example, the contactor is installed in a control panel and used to control a three-phase pump or fan. A 230VAC control voltage is applied to the contactor's coil from a button, relay, pressure switch, float switch, automation controller, or other control element.

When the control signal is activated, the contactor closes the 3 main contacts and switches on the load. When the signal disappears, the contactor disengages and the load is switched off.

For the electrician: a convenient component in electrical panels when trifase loads need to be controlled via buttons, relays, automation controllers, or safety devices.

For the automation specialist: suitable for motor, pump, fan, and technological process control circuits where reliable electromagnetic switching is required.

For the engineer/designer: can be used when designing automation schemes for motor control, heating, ventilation, water supply, or industrial equipment.

For facility and industrial sites: a suitable solution for workshops, production areas, technical zones, pump stations, ventilation nodes, and other electrical control systems.

The contactor is an electrical control device, therefore its selection and installation must be performed according to the load type, current, voltage, control scheme, and applicable electrical safety regulations.

• Installation must be performed by a qualified electrician in compliance with electrical safety standards.
• Before installation, always disconnect the power supply and ensure there is no voltage in the circuit.
• Check the coil voltage – this contactor is designed for 230VAC AC 50/60Hz control.
• Load must not exceed the contactor's rated parameters – evaluate not just the current, but also the load type.
• Additional protection is recommended for motor control – a thermal relay, motor protection switch, or other appropriate protection device.
• Terminals must be properly tightened, and wire cross-section chosen according to load and installation conditions.

Quick selection guide

3P 12A contactor with 230VAC coil is suitable when you need to control a three-phase load via a 230V control circuit. It is a practical choice for pumps, fans, motors, lighting groups, and control schemes mounted in automation panels.

A reliable contactor for controlling motors, pumps, and automation circuits

The 3P 12A contactor with a 230VAC AC 50/60Hz coil is a practical choice for electrical control systems where you need to switch three-phase loads via a control circuit.

Due to its 3NO main contacts, 12A rated current, 5.5kW power, screw terminals, and broad applicability, this contactor is suitable for automation panels, motor control, pump systems, ventilation, lighting control, and various industrial electrical solutions.
